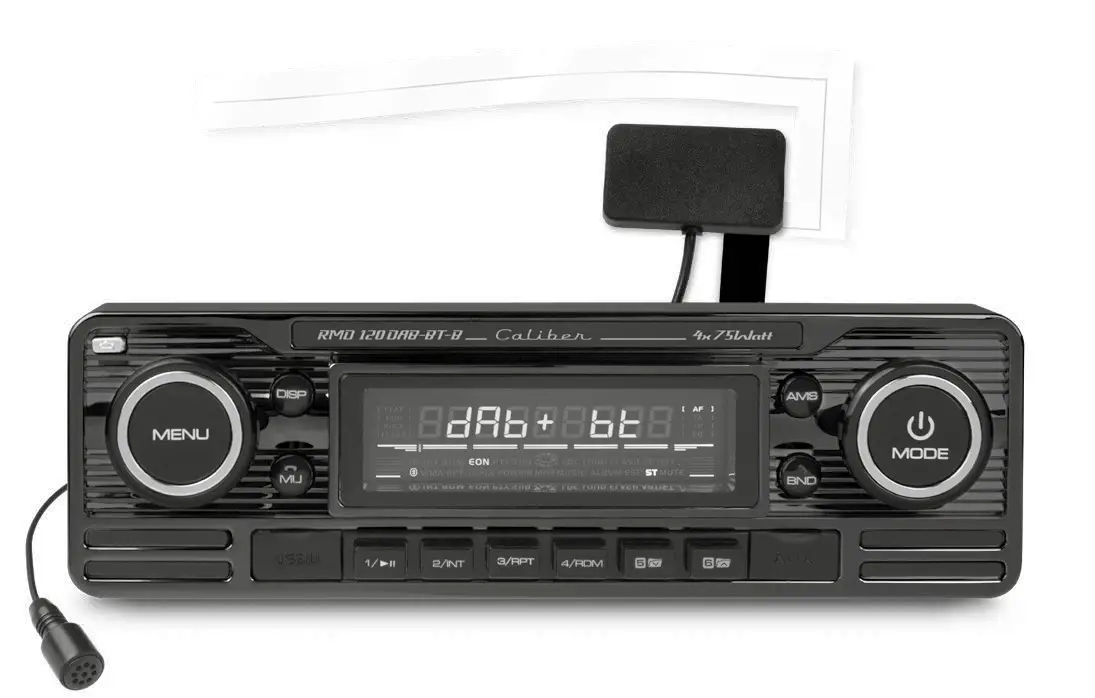

RMD 120DAB-BT-B
SPECIFICATIONS
FM TUNER
Frequency….,………………………………… Range 87.5∼108MHZ
Usable Sensitivity……………………………………12 dBuV
Stereo Separation…………………………………..>30dB
DAB’ TUNER
Frequency Range …………………………..174∼240MHz
Antenna type – Screen mount/male SMA connector / active (with 5V phantom power supply)
Note: connect the antenna power supply wire to the remote/antenna wire (blue/white) of the head unit
ELECTRIC
Current Consumption ————–DC 11 ∼15 Volt
Load Impedance ———<10Amppere
Dimensions ———4 ohm
Power Output ————195mm (W) x 160mm (D) x 58mm (H)
Line Output ————– 4 x 75W (Max)
TRANSMISSION Bluetooth
Freq range: —–2402-2480 Mhz
Max e.r.p: —–<100mW/20dBm
PLAYBACK
MP3, WMA, playback with ID3 Tag Display
We are continuously improving/updating our products and product information.
It’s, therefore, possible that there is a slight difference between the description in this manual to the operation of the product. If something is different or not clear; always check our website for the most current version.

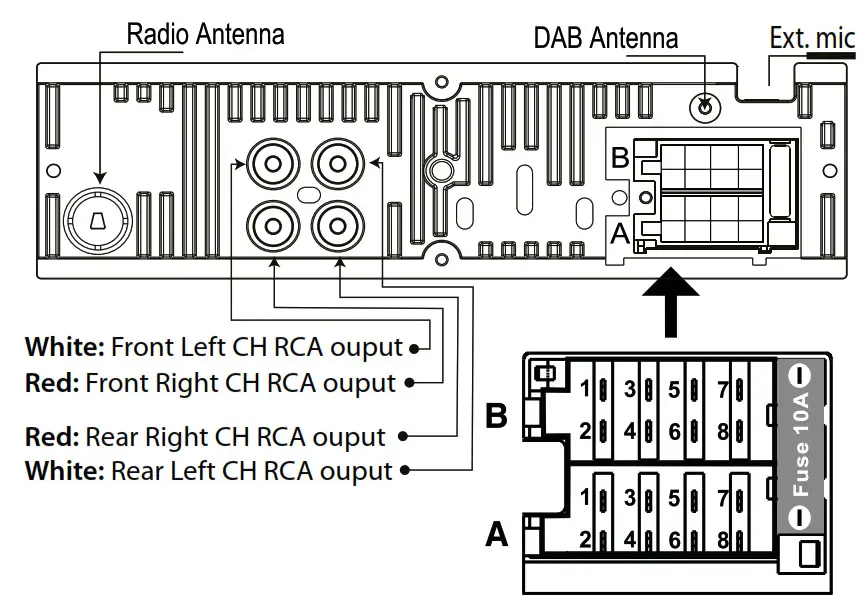

WIRING DIAGRAM
CONNECTOR A
| CONNECTOR B
|

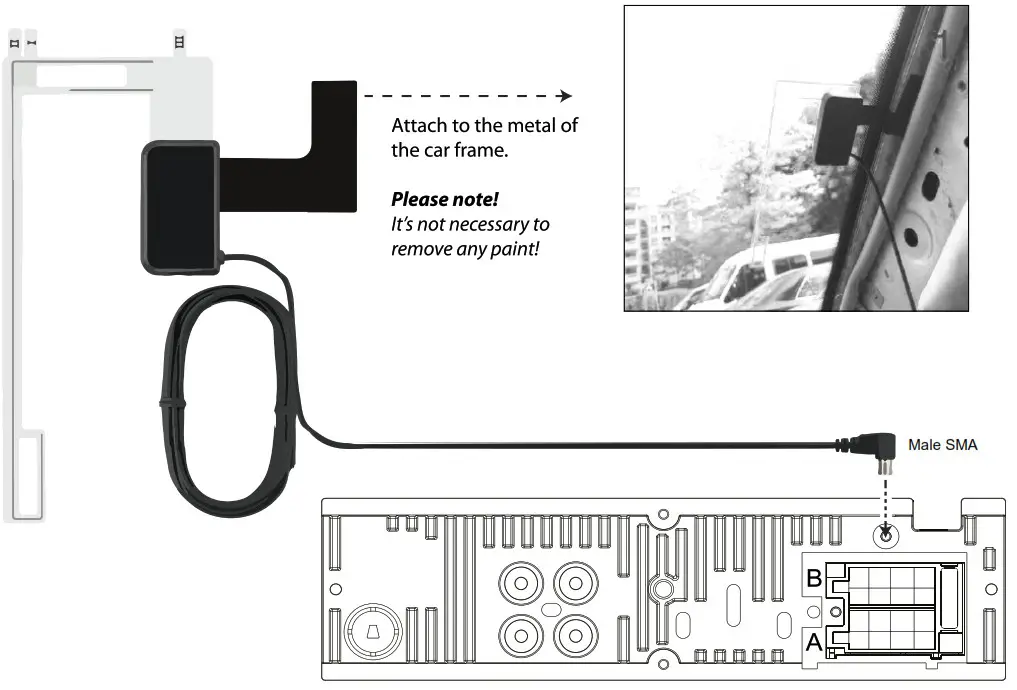

DAB ANTENNA INSTALLATION
Place the antenna to the windshield near the A post.
Remove the cover of the A post.
Stick the transparent part of the antenna on the windshield and put the black part on the metal frame.
- Antenna connection Connect the DAB antenna correctly according to the wiring diagram as described on the page to the left.
- Station search and automatic storage Press the [MODE] button (8) to switch to DAB mode. After the switch to DAB mode upon first energizing, the system will automatically search and store. If not or if you want to re-scan, long-press the LAMS] button (11) to start the search. When the search is completed, it will start playing the first active station.
- Playback DABS stations After a full search the 18 strongest stations automatically will be stored in the three DAB bands. Six presets on each band. To recall the stations, switch between DAB1, DAB2, DAB3 using the [BND] button (12) and use preset buttons (16-21) to switch between 1-6 or use the
buttons (13/14).
buttons (13/14).

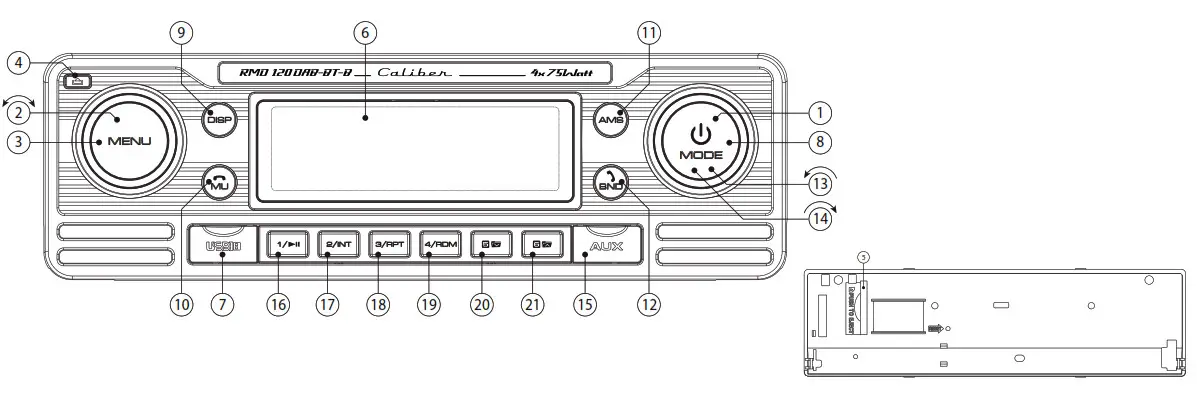

| Key | System | DABS I FM | MP3/WMA | BT Audio | Bluetooth | |||||
| Short press | long press | Short press | long press | Short press | long press | Short press | long press | Short press | long press | |
| 1 | Power | Power off | ||||||||
| 2 | Rotary Volume | |||||||||
| 3 | Menu (audio / system) | OK | ||||||||
| 4 | Panel release | |||||||||
| 5 | SD card input | |||||||||
| 6 | LCD display | |||||||||
| 7 | USB port | |||||||||
| 13 | Mode | Mode | Mode | |||||||
| 9 | Display | |||||||||
| 10 | Mute | Reject incoming call/end call | ||||||||
| 11 | AMS | |||||||||
| 12 | Band | Answer incomming call | Transfer conversation to mobile phone | |||||||
| 13 | DAB: previous station FM: Seek down | FM: Manual down | Track down | fast-backward | Track down | |||||
| 14 | DAB: next station FM: Seek up | FM: Manual up | Track up | fast forward | Track up | |||||
| 15 | 3,5mm AUX In Jack | |||||||||
| 16 | M1 | Store M1 | Play/Pause | Play/Pause | ||||||
| 17 | M2 | Store M2 | Intro | |||||||
| 18 | M3 | Store M3 | Repeat | |||||||
| 19 | M4 | Store M4 | Shuffle | |||||||
| 20 | M5 | Store M5 | -10 track skip | Previous Folder | ||||||
| 21 | M6 | Store M6 | +10 track skip | Next Folder | ||||||
| Description of the functions | |
| Panel Release | Push this button to release the front panel. |
| Power | Power function to activate or deactivate the unit. |
| Band | Band selection allows you to select different reception bands, f.i. FM1, FM2 and FM3 or DAB1, DAB2 and DAB3 |
| AF | AF stands for Alternative frequencies; the tuner will return to alternative frequencies whenever the reception signal is getting worse. |
| TA | TA stands for Traffic announcement which means that it will give you information about the traffic (if broadcasted) no matter what mode you are in (SD, USB, etc.) it will automatically interrupt the SD and give the information, after that it automatically switches back to the selected mode |
| Manual up/down | Hold rotary button to switch to manual radio frequency search (up/down step by step) |
| Menu (system) | Press the VOL/SEL button for several seconds to activate the cyclical mode to choose from the following user instructions: AF on/off > TA on/off > PTY off/speech/music > REG loc/dx > TA seek/alarm > PI sound/mute > RETURN US > BEEP on/off > AREA eur/usa (rotate to adjust) |
| Audio Menu | The Audio menu button gives you the possibility to adjust your sound system with the following options Bass, Treble, Balance and Fader. These options can be used to fine-tune your sound. In DSP mode you can choose from preset EQ settings: FLAT, CLASSIC, POP, ROCK. |
| Mode | The mode button allows you to go from one source (f.i. SD) to another source (f.i. Tuner) by pushing the button as many times as needed. |
| AMS | AMS stands for Automatic store; in tuner mode, it will automatically store the 6 strongest stations (M1-M6). Note: all previously stored stations are lost. |
| Rotary volume | This knob allows you to adjust the volume from minimum to maximum level. NOTE high sound levels may cause damage to your ears. |
| M1-M6 | These are the preset stations where you can store your favorite radio stations if in tuner mode. |
| Pause/Play | This button allows you in USB or SD mode to play or to pause the music. |
| Repeat | Repeat will play a selected song or album continuously. Available in USB and SD mode. |
| Shuffle | Shuffle will play all the songs randomly. Available in USB and SD mode. |
| File down/up | In MP3 mode press this button to go up or down one folder. |
| Track down/up | In MP3 mode press this button to go up or down one track |
| fast forward/backward | Long press to fast forward to the USB or SD. |
| 3,5mm AV jack in | To connect an external audio system. |
| USB poort | When inserting a USB stick the unit will switch to USB mode. |
| SD card input (behind panel) | Remove the front panel to insert SD card. When inserting an SD card the unit will switch to SD mode. (Max 16GB card) |
| Reset (behind panel) | Use a non-metallic pointed object to press and hold the reset button for 5 seconds. The unit will be set to factory default. |
| Bluetooth | Open the Bluetooth menu by pressing and holding “MENU” button |
| Pairing | Activate BlueTooth on your mobile phone, and search for available devices. Select “Car Audio”, password “8888”. If successful “BT ON” is displayed. |
| Reconnect | The unit will normally auto-reconnect. |
| Reject incomming call | Press (MU) button if you not wish to answer the call, and return to normal playing mode. |
| Transfer | To audio transfer from the head unit back to the mobile phone. Long press the Transfer (BND) button to transfer the audio back to your mobile. |
Note! Do not operate the unit while driving!
RED PRECAUTIONS
WARNING
Points to observe for safe usage
- Read this manual carefully before using this disc and the system components. They contain instructions on how to use this product in a safe and effective manner. Caliber Europe BV cannot be responsible for problems resulting from failure to observe the instructions in this manual.
WARNING
This symbol means important instructions. Failure to heed them can result in injury or material property damage.Do not operate any function that takes your attention away from safely driving your vehicle.
Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions. Failure to do so may result in an accident. Keep the volume at a level where you can still hear outside noises while driving.
Excessive volume levels that obscure sounds such as emergency vehicle sirens or road warning signals (train crossings, etc.) can be dangerous and may result in an accident. LISTENING AT LOUD VOLUME LEVELS IN A CAR MAY ALSO CAUSE HEARING DAMAGE.Do not disassemble or alter.
Doing so may result in an accident, fire, or electric shock. Use only in cars with a 12V volt negative ground.
(Check with your dealer if you are not sure.) Failure to do so may result in fire, etc. Keep small objects such as screws out of the reach of children.
Swallowing them may result in serious injury. If swallowed, consult a physician immediately.
Use the correct ampere rating when replacing fuses.
Failure to do so may result in fire or electric shock.
Do not block vents or radiator panels.
Doing so may cause heat to build up inside and may result in fire.
Use this product for mobile 12V applications.
Use for other than its designed application may result in fire, electric shock or another injury.
Halt use immediately if a problem appears.
Failure to do so may cause personal injury or damage to the product. Return it to your authorized Caliber Europe BV Europe BV dealer or the nearest Caliber Europe BV Service Centre for repairing.
Product cleaning.
Use a soft dry cloth for periodic cleaning of the product. For more severe stains, please dampen the cloth with water only. Anything else has the chance of dissolving the paint or damaging the plastic.
Temperature.
Be sure the temperature inside the vehicle is between +45°C (+113°F) and 0°C (+32°F) before turning your unit on.
Maintenance.
If you have problems, do not attempt to repair the unit yourself. Return it to your Caliber Europe BV Europe BV dealer or the nearest Caliber Europe BV Service Station for servicing.
Caliber hereby declares that the item RMD120DAB-BT is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU (RED) and 2011/65/EU (RoHS).
Old appliances and/or batteries must not be disposed of with garbage! If the device/battery can not be used anymore, every user is legally obliged to dispose of old appliances and/or batteries separated from the garbage, e.g. at a collection point of his municipality/district.
CALIBER EUROPE BV. Kortakker 10.4264Ae Veen. The Netherlands
