Caliber Rmd402dab-bt Car Stereo Radio User Manual

CALIBER RMD402DAB-BT Car Stereo Radio SPECIFICATIONS

General:

• Power supply: 12VDC neg. ground
• Max power output: 75Wx4 channels
• RMS power output: 20Wx4 channels (40 10% T.H.D.)
• Suitable speaker impedance: 4-8 ohm
• Fuse: 10A

Radio:

• FM Stereo Radio
  Frequency range: 87.5-108.0 MHz (Europe)
  Signal/noise ratio: 50dB
  Radio sensitivity: 10dB
• DAB Stereo Radio
  Frequency range: 174~240MHz
  Antenna type: Screen mount I male SMA connector I active (with +SV phantom power source)

USB/5D:

• Frequency response: 20Hz-20KHz
• Signal/noise ratio: >50dB
• T.H.D.: <3% (1KHz)
• USB charge output: 5V, max. 1.1A

Transmission

• Bluetoolh Freq range: 2402-2480 Mhz
• Max e.r.p: <100mW/20dBm

Note: Specifications and the design are subject to change without notice due to improvements in technology

We are continuously improving/updating our products and product information.
It’s therefore possible that there is a slight difference between the description in this manual to the operation of the product. If something is different or not clear; always check our website for the most current version.

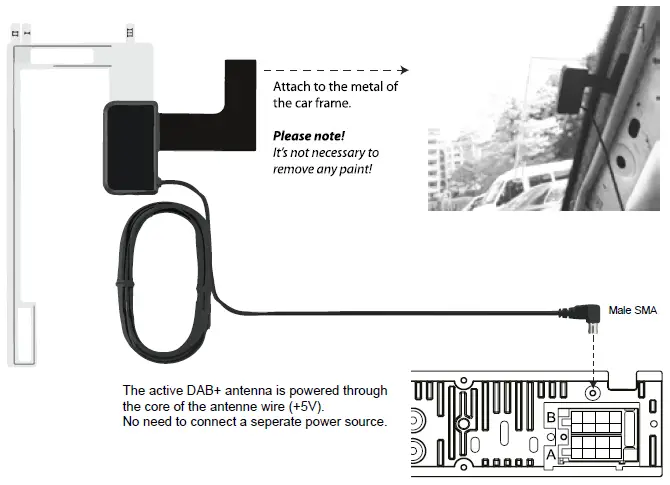

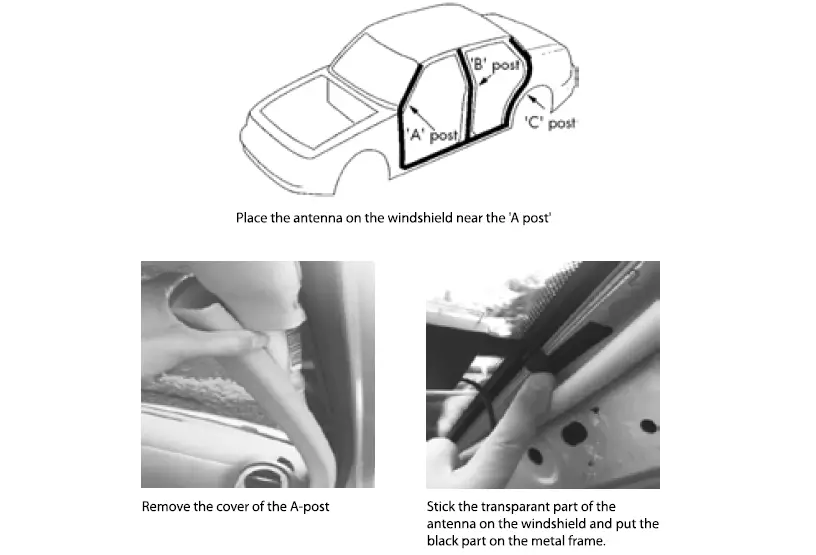

ANTENNA INSTALLATION

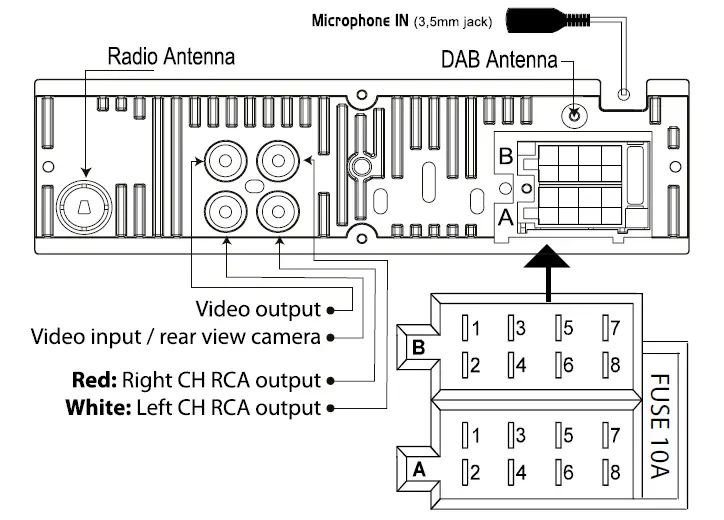

Wiring Diagram

DECLARATION FORM
Caliber hereby declares that the item RMD402DAB-BT is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU (RED) and 2011/65/EU (ROHS).

REMOTE CONTROL

1. Power Button
   Short press to turn on the unit.
2. Answer phone
   On Bluetooth mode, press it to answer the phone or redial.
3. End call
   When it is on Bluetooth phone call, press it to hang up.
4. 0/ Mode
   When the unit is on, press it for MODE switch.
5. 1 / ►II
   When it is on radio mode, short press it to choose station1. Long press it to define station number to be “1 “; When it is on USB/SD playing, Bluetooth music mode, short press it for pause/playing
6. 2 / INT
   When it is on radio mode, short press it to choose station2. Long press it to define station number to be “2”; When it is on USB/SD playing, short press it for browse playing.
7. 3/RPT
   When it is on radio mode, short press it to choose station3. Long press it to define station number to be “3”; When it is on USB/SD playing, short press it for repeat playing.
8. 4/ RDM
   When it is on radio mode, short press it to choose station4. Long press it to define station number to be “4”; When it is on USB/SD playing, short press it for random playing.
9. 5/-10
   When it is on radio mode, short press it to choose station5. Long press it to define station number to be “5”; When it is on USB/SD playing, short press it for -10 tracks.
10. 6/+10
    When it is on radio mode, short press ii to choose station6. Long press it to define station number to be “6”; When it is on USB/SD playing, short press it for +1 O tracks.
11. AF
    When the unit is on, short press it for AF on/off
12. AMS
    When it is on radio station, short press it to browse stations.
13. SEL
    SELECT Multi-functional button
14. Mute
    For Mute
15. TA
    Press it for TA on/off
16. PTY
    When it is on RDS radio model, It is for PTY function selection.
17. VOL+
    For volume +/-
18. BAND
    When it is on radio station, short press it for band switch.
19. Previous/ Next
    When it is on radio model, short press it for station scan;
    When it is on USB/SD playing, Short press it for previous or next tracks.
    Long press it for fast forward or fast backward. When it is on Bluetooth music mode, press it for previous or next track.

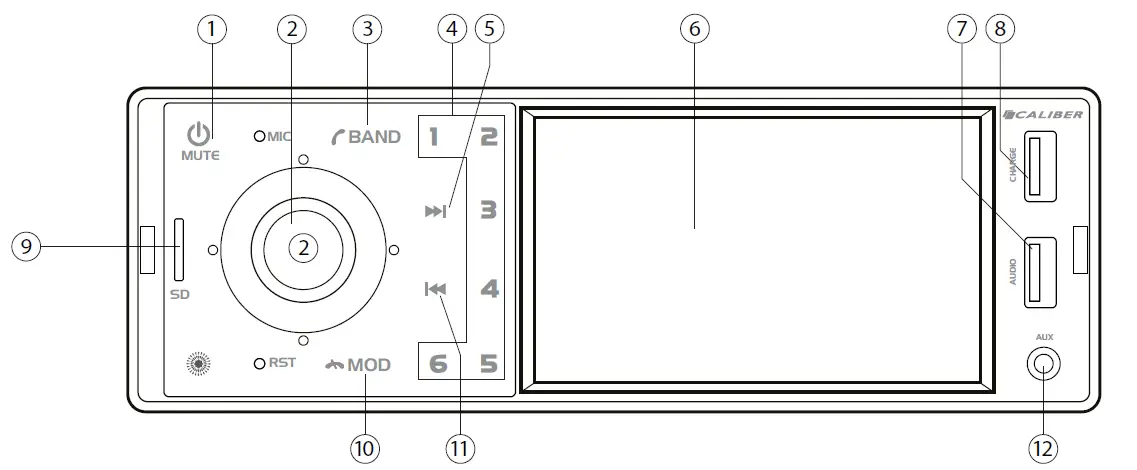

Overview
