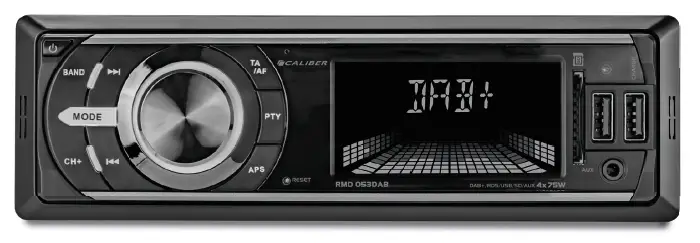

CALIBER RMD 053DAB Car Stereo Suitable
ANTENNA INSTALLATION

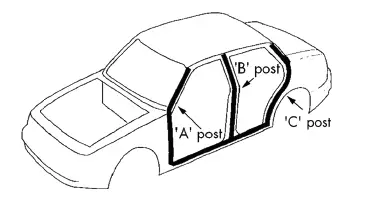

- Place the antenna on the windshield near the ‘A post’

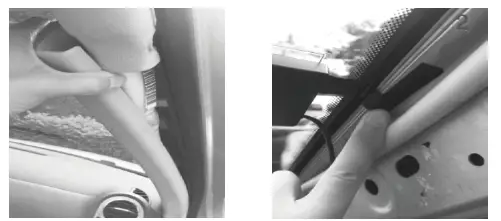

- Remove the cover of the A-post

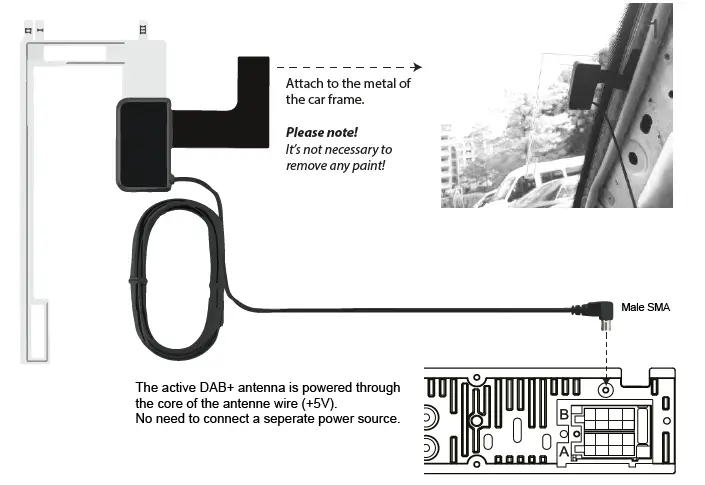

- Stick the transparent part of the antenna on the windshield and put the black part on the metal frame.

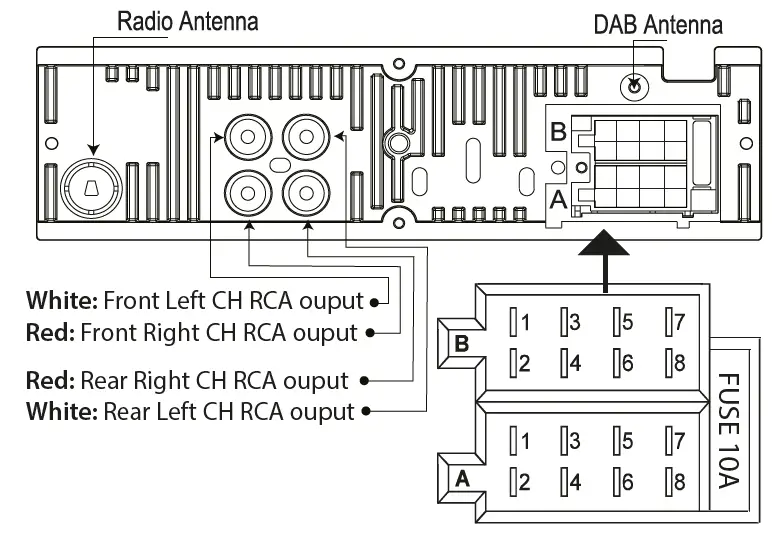

WIRING DIAGRAM
Connector A
- —
- —
- —
- Memory +12V (yellow wire)
- Remote +12V output (blue wire)
- —
- +12V ignition (red wire)
- Ground (black wire).
Connector B
- Right rear speaker (+)
- Right rear speaker (-)
- Right front speaker (+)
- Right front speaker (-)
- Left front speaker (+)
- Left front speaker (-)
- Left rear speaker (+)
- Left rear speaker (-)
NOTES
- Note the serial number of your device here for future reference: E.G:321163/000000
- (This number can be found on the top label on the head unit)
SPECIFICATIONS
General
- Power supply: 12V DC
- neg. ground
- Max power output: 75Wx4 channels
- RMS power output: 20Wx4 channels
- (4Ω 10% T.H.D.)
- Suitable speaker impedance: 4-8 ohm
- Fuse: 10A
- Dimensions: (WxDxH) 190x133x59mm (outer sizes)
- 178x108x50mm (built-in part)
Radio
- FM Stereo Radio
- Frequency range 87.5-108.0 MHz (Europe)
- Signal/noise ratio 50dB
- Radio sensitivity 10dB
DAB Stereo Radio
- Frequency range 174 ~ 240MHz
- Band III
- Antenna type Screen mount/male SMA connector / active
- (with +5V phantom power source)
- USB / SD: USB charge output 5V, max. 1.1A
Note: Specifications and the design are subject to change without notice due to improvements in technology.
We are continuously improving/updating our products and product information. It’s, therefore, possible that there is a slight difference between the description in this manual to the operation of the product. If something is different or not clear; always check our website for the most current version.

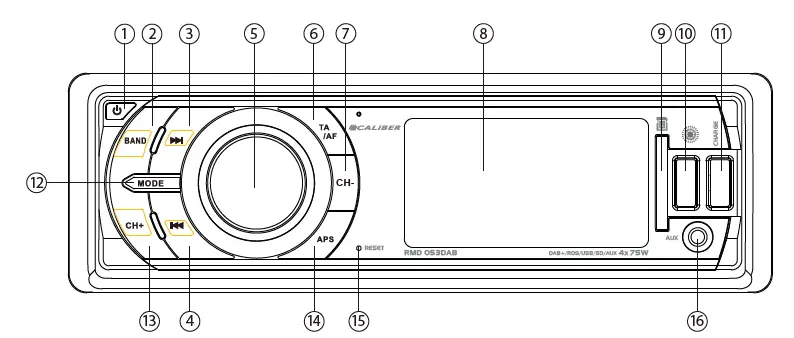

OVERVIEW
| Key | System | Tuner | MP3/WMA | |||
| Short press | long press | Short press | long press | Short press | long press | |
| 1 | Power ON | Power OFF | Mute | Mute | ||
| 2 | Band | |||||
| 3 | Manual up | Seek up | Track up | fast forward | Track up | |
| 4 | Manual down | Seek down | Track down | fast backward | ||
| 5 | Audio sub menu | Radio feature sub menu | Audio sub menu | Radio feature sub menu | Audio sub menu | Radio feature sub menu |
| 6 | TA | AF | ||||
| 7 | ||||||
| 8 | LCD display | |||||
| 9 | SD card reader (32GB max.) | |||||
| 10 | USB port for MP3 playback (32GB max.) | |||||
| 11 | USB charge port (5V charge output) | |||||
| 12 | Mode | Mode | Mode | |||
| 13 | Preset Channel up | |||||
| 14 | APS | |||||
| 15 | Reset | |||||
| 16 | AUX-in for optional wired connection | |||||
| Description of the functions | |
| Power | Power function to activate or deactivate the unit. |
| Band | Band selection allows you to select different reception bands, f.i. FM0~FM9, DAB1, DAB2, DAB3 etc |
| Manual up/down | Short press to move the radio frequency number up/down step by step. |
| Seek up/down: | Long press to search automatically to the next radio station. |
| Audio Menu | The Audio menu button gives you the possibility to adjust your sound system with the following options: Bass, Treble, Balance, Fader, Loud, EQ, DX/LOCAL and Stereo/mono. These options can be used to fine tune your sound. |
| Mode | The mode button allows you to go from one source to another source (f.i. Tuner) by pushing the button as many times as needed. |
| AF | In tuner mode it will automatically store the strongest stations. Note: all previous stored stations are lost. |
| Rotary volume | This knob allows you to adjust the volume from minimum to maximum level. NOTE high sound levels may cause damage to your ears. |
| Press the volume button to set more options. The display shows which settings you are currently controlling | |
| Pause/Play | This button allows you in USB or SD mode to play or to pause the music. |
| Intro (INT) | Intro will play 10 seconds of each song on the USB or SD. If the preferred song is playing, push again and it will play that song. |
| Repeat (RPT) | Repeat will play a selected song or album continuously. Available in USB and SD mode. |
| Shuffle (RMD) | Shuffle will play all the songs randomly. Available in USB and SD mode. |
| Track down/up | In MP3 mode press this button to go up or down one track |
| fast forward/backward | Long press to fast forward to the USB or SD. |
| 3,5mm AUX jack in | To connect an external audio system. |
| USB port | When inserting a USB stick the unit will switch to USB mode. (Max 32GB) |
| SD card input | When inserting an SD card the unit will switch to SD mode. (Max 32GB card) |
| Reset | Use a non-metallic pointed object to press and hold the reset button for 5 seconds. The unit will be set to factory default. |
WARNING
Points to observe for safe usage
Read this manual carefully before using this system. They contain instructions on how to use this product in a safe and effective manner. Caliber Europe B.V. cannot be responsible for problems resulting from failure to observe the instructions in this manual.
- This symbol means important instructions. Failure to heed them can result in injury or material property damage.
- Do not operate any function that takes your attention away from safely driving your vehicle.
- Keep the volume at a level where you can still hear outside noises while driving.
- Listening at loud volume levels in a car may also cause hearing damage.
- Do not disassemble or alter.
- This device is designed for mobile 12V applications and should also be used as such.
- Use only in cars with a 12V volt negative ground.
- Use the correct ampere rating when replacing fuses.
- Use for other than its designed application may result in fire, electric shock or another injury.
- Keep small objects such as screws out of the reach of children.
- Do not block vents or radiator panels.
Maintenance
- When there is a problem, turn the unit immediately off and contact your authorized Caliber dealer.
Product cleaning
- Use a soft dry cloth for periodic cleaning of the product. For more severe stains, please dampen the cloth with water only. Anything else has the chance of dissolving the paint or damaging the plastic.
Temperature
- Be sure the temperature inside the vehicle is between 0°C (+32°F) and +45°C (+113°F) before turning your unit on.
Caliber hereby declares that the item RMD053DAB is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU (RED) and 2011/65/EU (ROHS).
Old appliances and/or batteries must not be disposed of with garbage! If the device/battery can not be used anymore, every user is legally obliged to dispose of old appliances and/or batteries separated from the garbage, e.g. at a collection point of his municipality/district.
