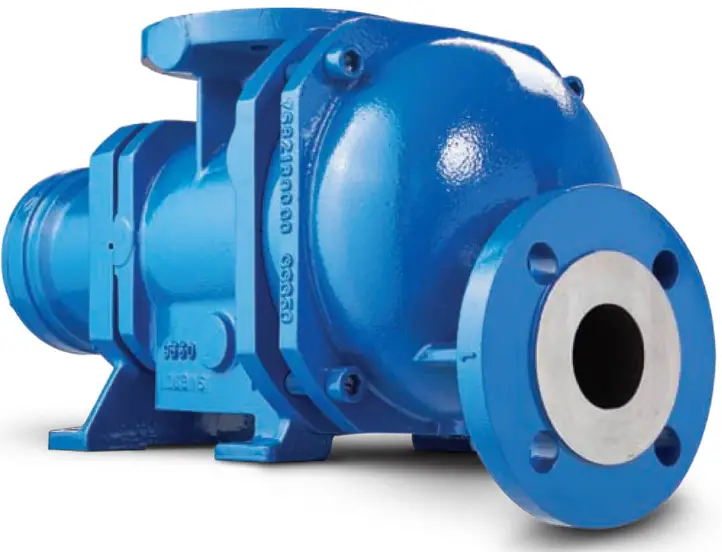

MOUVEX C-Series Eccentric Disc Pump
Product Recovery Equals Big Savings
Now is the time to install Mouvex Seal-less Eccentric Disc Pumps to minimize product waste and dramatically improve production yield.

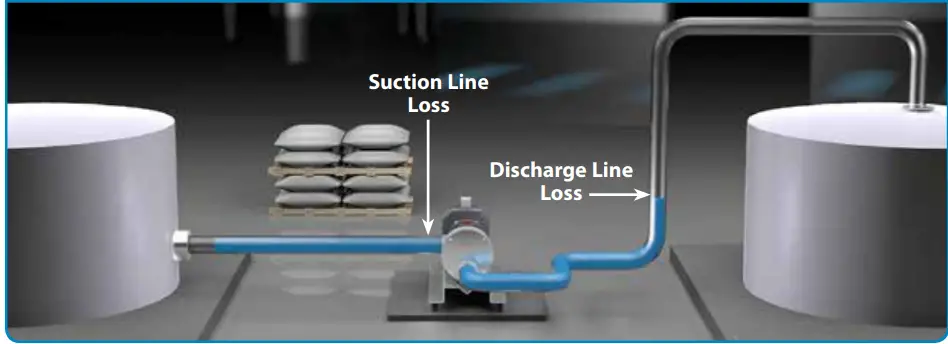

Typical Transfer or Fill Line Where Product Losses Occur
Calculate Your Savings
Suction and Discharge Line Losses with Mouvex’s product recovery capabilities on both suction (self priming) and discharge (compressor effect) capability:
| Size | Volume | ||
| OD inch | OD mm | Gallon/ Foot | Liters/ Meter |
| 1.0 | 25 | 0.03 | 0.38 |
| 1.5 | 38 | 0.08 | 0.95 |
| 2.0 | 51 | 0.14 | 1.77 |
| 2.5 | 63 | 0.23 | 2.85 |
| 3.0 | 76 | 0.34 | 4.17 |
Estimated Product Cost per gallon or liter =
| Inlet / Suction Line | |
| Length of Inlet Tube | |
| Volume (Multiply from Table 1) | |
| % Nominal Recovery* 95% | |
| Cost (Volume x % x Cost/Unit) | |
| Discharge Line | |
| Length of Outlet Tube | |
| Volume (Multiply from Table 1) | |
| % Nominal Recovery* 80% | |
| Cost (Volume x % x Cost/Unit) | |

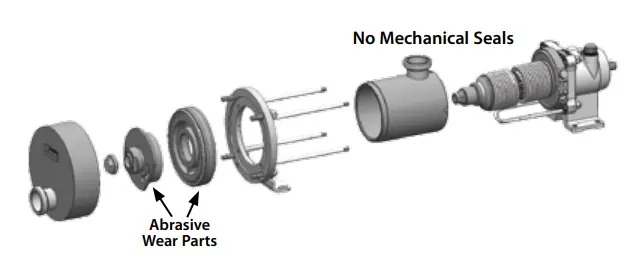

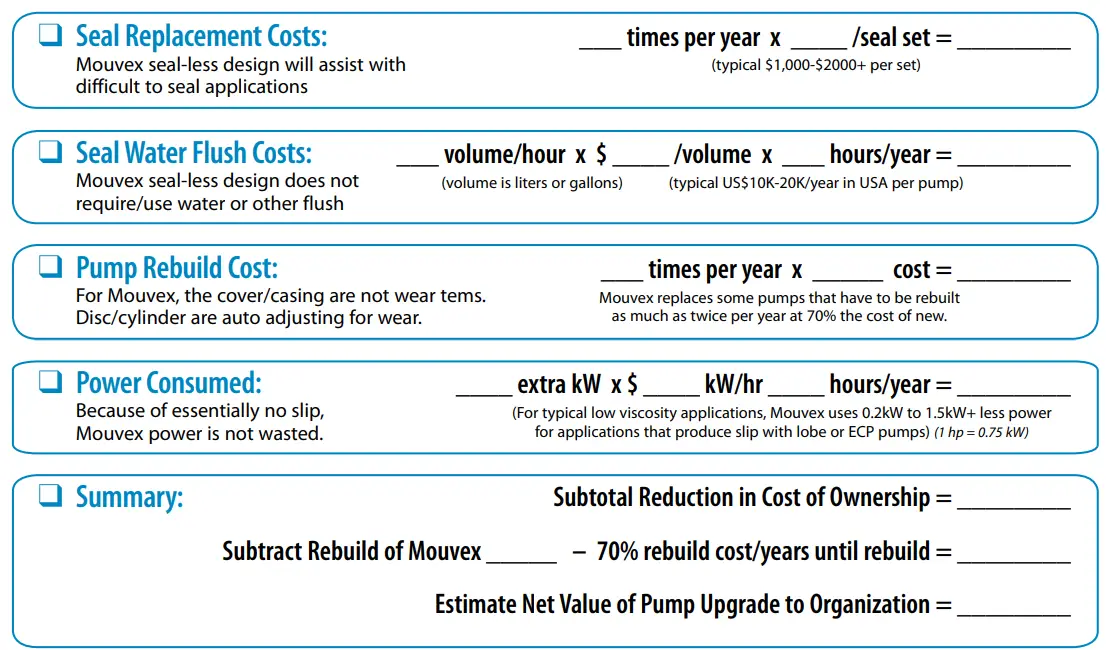

Additional Savings Eccentric Disc Pumps
Mouvex Principle

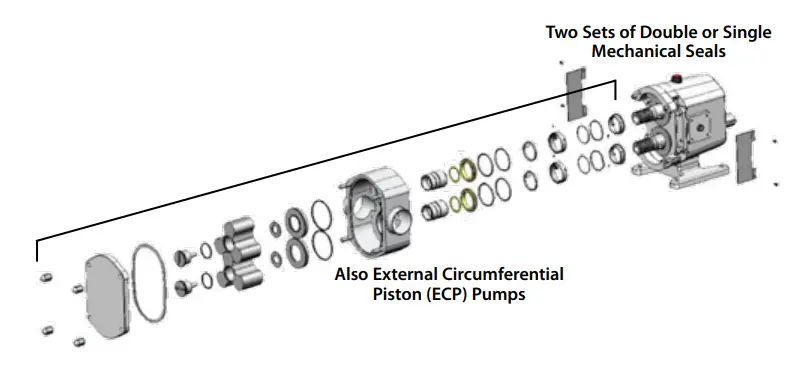

Lobe & ECP Pumps
Mouvex
