CALIBER RMD 032

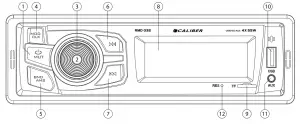

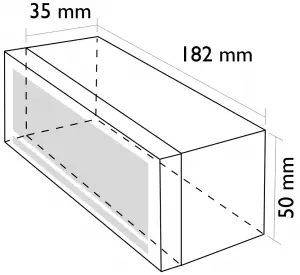

Overview
- Power/Mute/Pause
- Volume control
- Function selection
- Mode switching/clock button
- Band switching/automatic memory storage
- Next track/search radio station forwards
- Previous track/search radio station backwards
- Display
- MicroSD card slot
- USB interface (No charge function)
- AUX-IN jack
- Reset button
- Power ON/OFF
- End/ignore call (only for Bluetooth models)

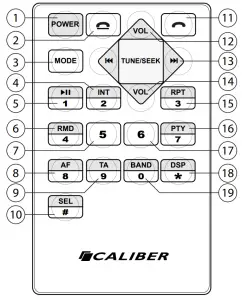

- Mode switch (Tuner/AUX)
- Intro play / Preset 2 / No. 2
- Play/Pause playback / Preset 1 / No. 1
- Shuffle playback / Preset 4 / No. 4
- Preset 5 / No. 5 / -10 tracks
- RDS AF mode / Preset 8 / No. 8
- RDS TA mode / Preset 9 / No. 9
- Audio (settings) menu / Numeric #
- Call pickup (only for Bluetooth models)
- Increase volume / + in menu
- Next track / tune seek
- Decrease volume / – in menu
- Repeat mode / Preset 3 / No. 3
- PTY / Preset 7 / No. 7
- Preset 6 / No. 6 / +10 tracks
- Display / Numeric *
- Band / Numeric 0

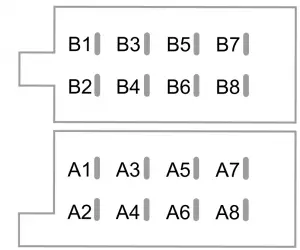

ISO connector
B 1. Rear right speaker(+) / Purple
B2. Rear right speaker(-)/ Purple-Black
B3. Front right speaker(+)/ Grey
B4. Front right speaker(-)/ Grey-Black
B5. Front left speaker(+)/ White
B6. Front left speaker(-) / White-Black
B7. Rear left speaker(+) / Green
B8. Rear left speaker(-) / Green-Black
A1. Not connected
A2. Not connected
A3. Not connected
A4. Battery 12V (+)/Yellow
A5. Antenna power/ Blue-White
A6. Not connected
A8. ACC+ I Red
A8. Ground / Black
Warning: The negative speaker lead should NOT be grounded, otherwise it will damage the radio!
WARNING! To connect the unit, use ISO connectors only. |
We are continuously improving/updating our products and product information.
It’s therefore possible that there is a slight difference between the description in this manual to the operation of the product.
If something is different or not clear; always check our website for the most current version.
RMD 032
Button | System | Tuner | MP3 | |||
Short press | long press | Short press | long press | Short press | long press | |
| 1 | Power | Power off | Mute | Mute | ||
2 | Rotary Volume | |||||
| 3 | Menu | RDS settings | ||||
4 | Mode | Display | ||||
| 5 | Band | AMS (18 presets stations) | ||||
6 | Next station (AMS by stored) | Seek up | Track up | fast forward | ||
| 7 | Previous station (AMS by stored) | Seek down | Track down | fast backward | ||
8 | LCD display | |||||
| 9 | micro SD card input | |||||
10 | USB port | |||||
| 11 | 3,5mm AUX In Jack | |||||
| Description of the functions | |
| Power | Power function to activate or deactivate the unit. Hold the button for 3 seconds to deactivate. |
| Band | Band selection allows you to select different reception bands, f.i. FM1, FM2 and FM3 |
| Seek up/down | Press to search automatically to the next radio station > Long press to switch to manual search mode |
| Menu | The Audio menu button gives you the possibility to adjust your sound system with the following options: STEREO / MONO > DX / LOC > CHANNEL / STEP (auto. seek / frequency by steps) |
| Mode | The mode button allows you to go from one source to another source (f.i. Tuner) by pushing the button as many times as needed. |
| AMS | In tuner mode it will automatically store the strongest stations. Note: all previous stored stations are lost. |
| Rotary volume | This knob allows you to adjust the volume from minimum to maximum level. NOTE high sound levels may cause damage to your ears. |
| Track down/up | In MP3 mode press this button to go up or down one track |
| fast forward/backward | Long press to fast forward to the USB or SD. |
| 3,5mm AUX jack in | To connect an external audio system. |
| USB port | When inserting a USB stick the unit will switch to USB mode (Max 32GB). |
| SD card input | When inserting a SD card the unit will switch to SD mode (Max 32GB card). |
| Reset | Use a non-metallic pointed object to press and hold the reset button for 5 seconds. The unit will be set to factory default. |
Note! Do not operate the unit while driving!
PRECAUTIONS
Points to observe for safe usage
Read this manual carefully before using this system. They contain instructions on how to use this product in a safe and effective manner. Caliber Europe B.V. cannot be responsible for problems resulting from failure to observe the instructions in this manual.
|
This symbol means important instructions. Failure to heed them can result in injury or material property damage. |
Do not operate any function that takes your attention away from safely driving your vehicle.
Keep the volume at a level where you can still hear outside noises while driving.
Listening at loud volume levels in a car may also cause hearing damage.
Do not disassemble or alter.
This device is designed for mobile 12V applications and should also be used as such.
Use only in cars with a 12V volt negative ground.
Use the correct ampere rating when replacing fuses.
Use for other than its designed application may result in fire, electric shock or other injury.
Keep small objects such as screws out of the reach of children.
Do not block vents or radiator panels.
Maintenance.
When there is a problem, turn the unit immediately off and contact your authorized Caliber dealer.
Product cleaning.
Use a soft dry cloth for periodic cleaning of the product. For more severe stains, please dampen the cloth with water only. Anything else has the chance of dissolving the paint or damaging the plastic.
Temperature.
Be sure the temperature inside the vehicle is between 0°C (+32°F) and +45°C(+113°F) before turning your unit on.
Caliber hereby declares that the item RMD032 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU (RED) and 2011/65/EU (RoHS).
