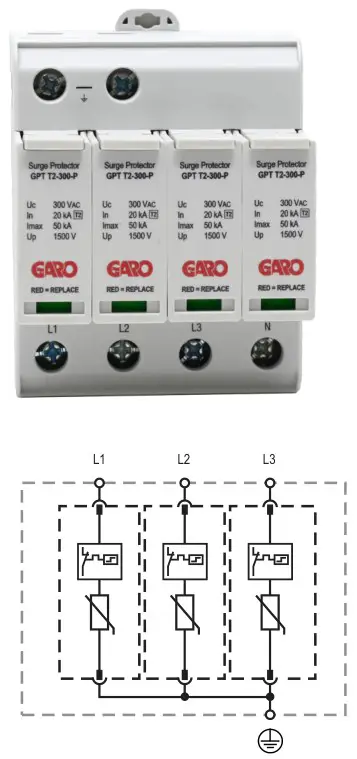

GARO GPT T2-300-4-0 Surge Arrestor Type 11 Instruction Manual
Location of Use: Sub-Distribution Boards
Network Systems: TN-C Mode of Protection: L-PEN

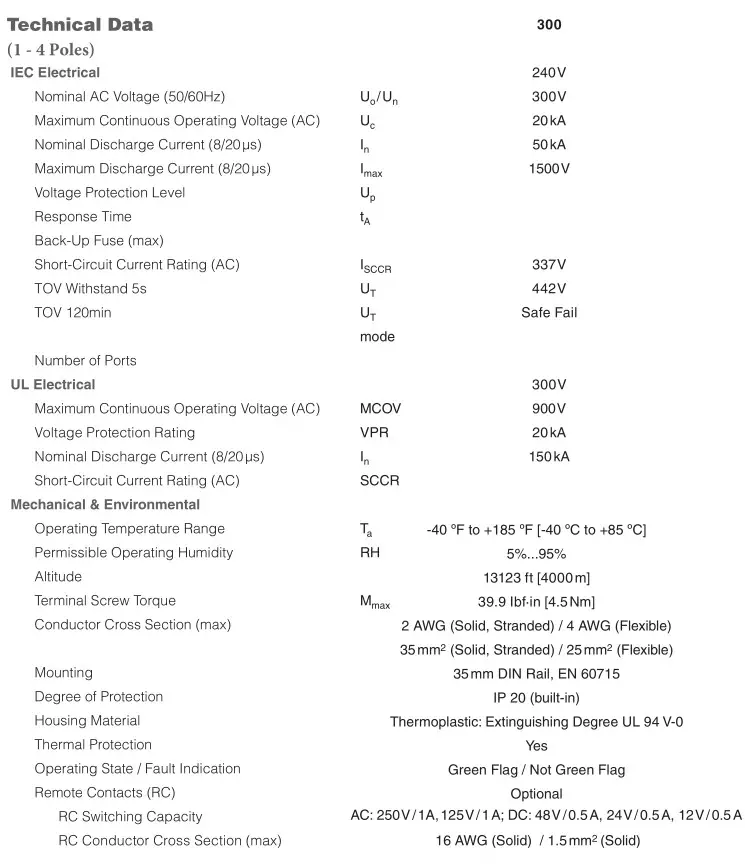

Surge Ratings: In = 20 kA (8/20 µs) IEC/EN/UL Category: Class II / Type 2 / Type 1CA
Protective Elements: High Energy MOV Housing: Pluggable Design
Compliance: IEC 61643-11:2011
EN 61643-11:2012
UL 1449 4th Edition
Document
Declaration of conformity 2016-06-29
Quality
Arvidsson Version 2 page 1 av/of 1
Supplier :
GARO AB
Box 203
S-335 25 GNOSJO
Sweden
Telephone: +46 (0)370 33 28 00
Telefax: +46 (0)370 33 28 50
Supplier established within EU
Supplier of equipment : Surge Protection Devices
Trade Mark : GARO
Type Designation : GPT T2
We hereby declare that our product fulfils the requirements of following EC directives
The Low Voltage Directive (LVD) 2014/35/EU
Electromagnetic compatibility (EMC) 2004/108/EU
RoHS Directive (RoHS) 2011/65/EU
No electromagnetic compatibility (EMC) immunity or emission tests are required on the assembly (EMC) 2004/108/EG.
The following harmonised standards (latest edition) or technical specifications which comply with good engineering practice i n safety matters in force within the EU have been used in the design: EN61643-1
The equipment conforms completely with the above stated harmonised standards or technical specifications.
Or/Eller
The equipment confirms only partially with the above stated harmonised standards or technical specifications but complies with good practice in safety matters in force within the EU.
We have product surveillance according to CENELEC’s harmonised requirements, documents CCA-201.
Garo AB 2016-06-29
Company Date
Sign
Environmental- and Quality Manager
Position
Magnus
Name
