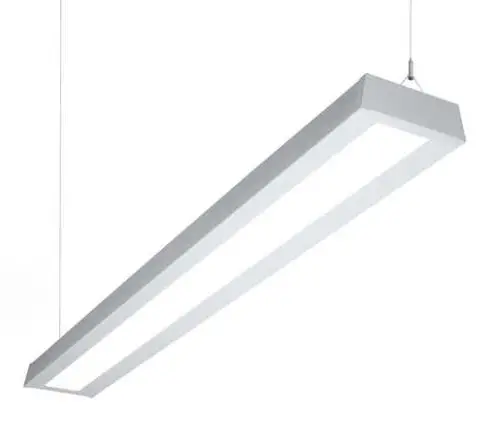

PEERLESS 1751218 RNNAWD Renna Direct Wall

Renna™ Transitions Ordering Guide

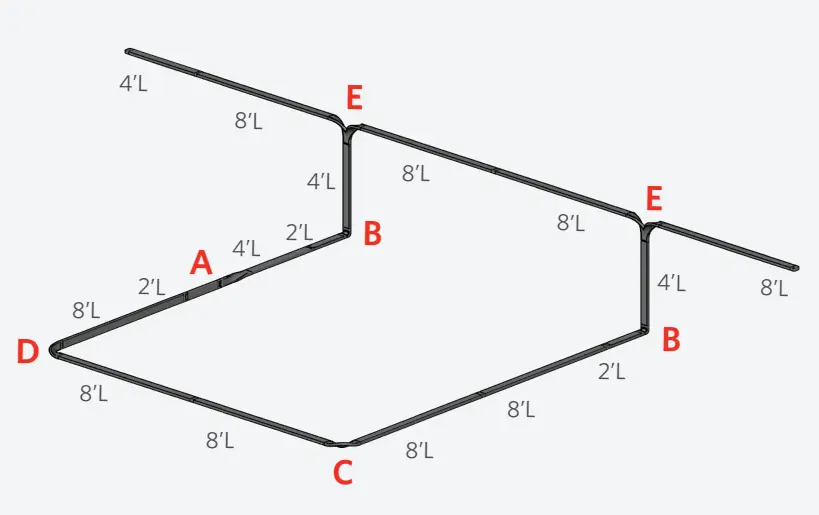

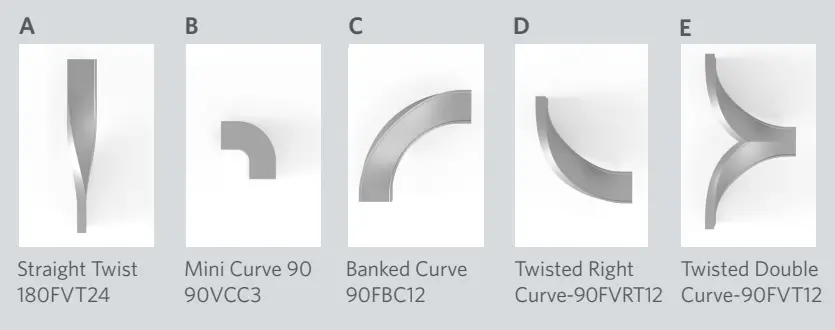

Mix and match RennaTM transitions and run lengths to create one-of-a-kind designs. Use this guide to learn more about the available transitions, their sizes and nomenclature. Transitions can be combined with straight fixtures to create layers of light around your environment. Simply sketch your layout to determine the number of transitions and straight sections needed then upload your drawing to the RFA tool to get a submittal drawing and full bill of material. See below for an example.

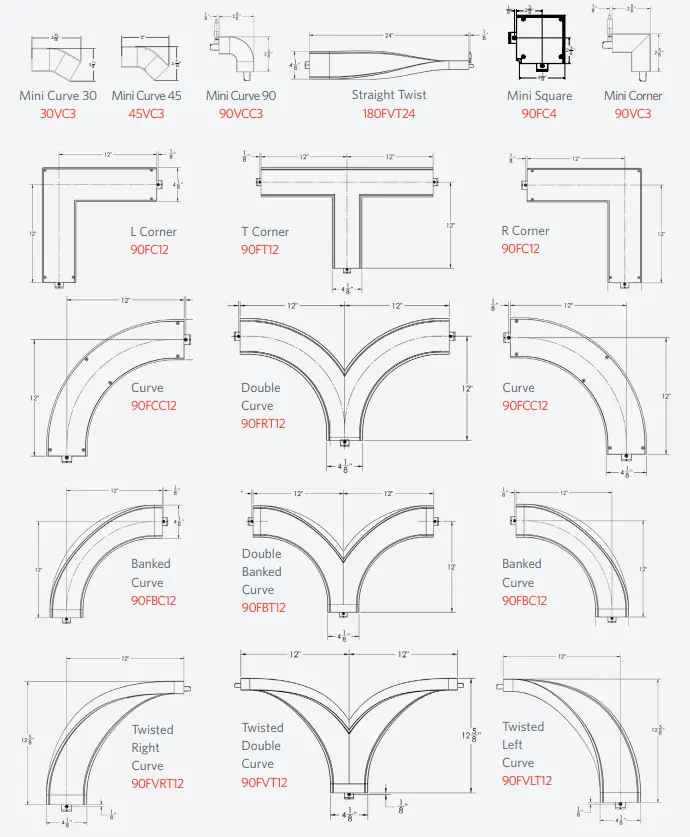

Pendant

Surface

Series	Transition	Mounting Type	Overall Suspension	Finish	Options
Pendant
RNNATR	30VC3 Mini Curve 30°	F1/ T-bar ceiling (universal mounting bracket)	24A 24” adjustable	C110 Painted Aluminum	BLK Black cord, cord manager, and canopy
	45VC3 Mini Curve 45°	F1A/ T-bar ceiling (universal mounting bracket with integrated J-box)	48A 48” adjustable	C202 Textured Black	MCS Matching Canopy at support for aesthetics
	90VCC3 Mini Curve 90°	F2/ Hard ceiling (horizontal J-box)	96A 96” adjustable	C210 Textured White	SLP Slope Ceiling
	90VC3 Mini Corner		144A 144” adjustable	CO99 Custom Color
	90FC12 L Corner			RALTBD Ral Paint Finishes
	90FCC12 Curve
	90FBC12 Banked Curve
	90FVRT12 Twisted Right Curve
	90FVLT12 Twisted Left Curve
	90FC4 Mini Square
	90FT12 T Corner
	90FRT12 Double Curve
	90FBT12 Banked Double Curve
	90FVT12 Twisted Double Curve
	180FVT24 Unlit Straight Twist to Verical 24in
	UST3 Unlit Straight 3in
	UST6 Unlit Straight 6in
	UST9 Unlit Straight 9in
	UST12 Unlit Straight 12in

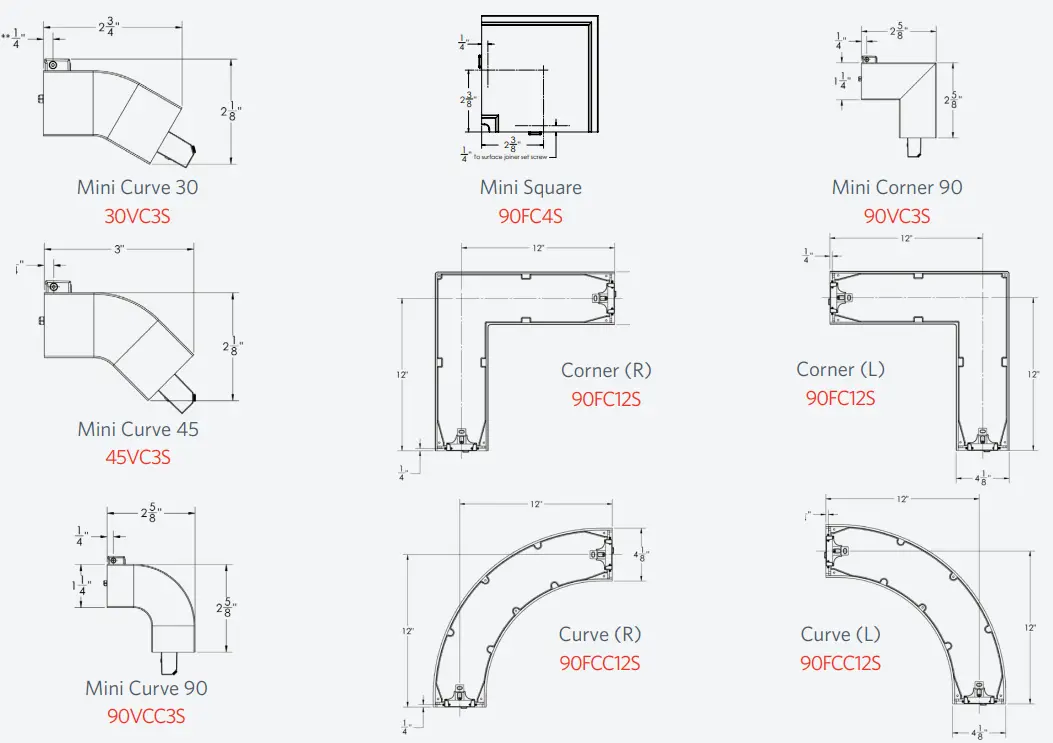

Surface
RNNATR	30VC3S Mini Curve 30°	LF* Left		C110 Painted Aluminum
	45VC3S Mini Curve 45°	RT* Right		C202 Textured Black
	90VCC3S Mini Curve 90°			C210 Textured White
	90VC3S Mini Corner	* for use with 90FC12S,		CO99 Custom Color
	90FC12S L Corner			RALTBD Ral Paint Finishes
	90FCC12S Curve
	90FC4S Mini Square
Specialty
RNNATR	90AA4 Adjustable Angle	F1/ T-bar ceiling (universal mounting bracket)		C110 Painted Aluminum
	XXFC4 Mini Obtuse Angle**	F1A/ T-bar ceiling (universal mounting bracket with integrated J-box)		C202 Textured Black
	XXFC4 Mini Acute Angle***	F2/ Hard ceiling (horizontal J-box)		C210 Textured White
				CO99 Custom Color
				RALTBD Ral Paint Finishes

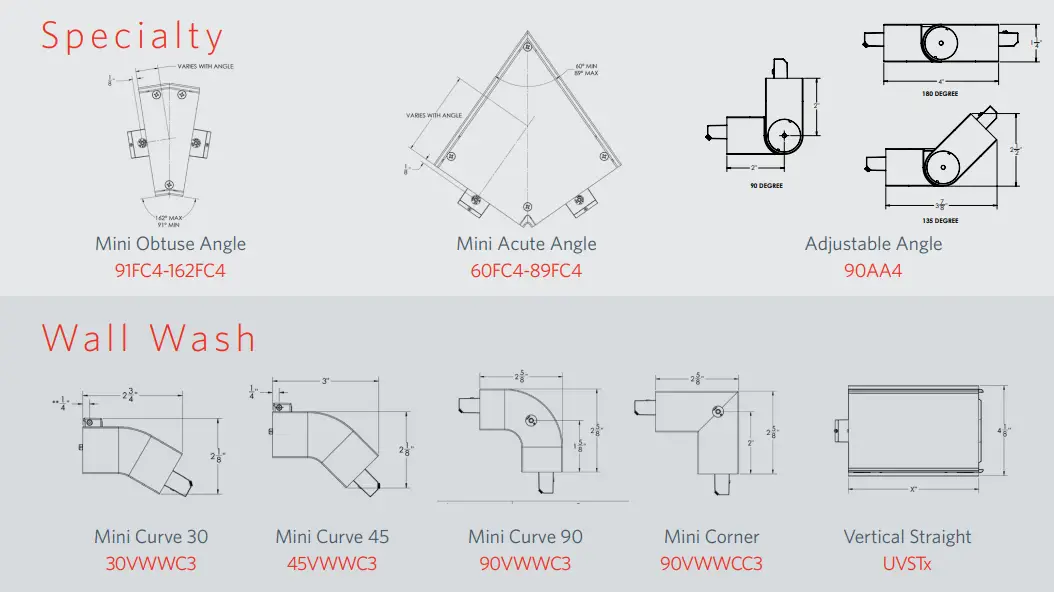

Wall Wash
RNNATR	30VWWC3 Mini Curve 30°VWW*	F1/ T-bar ceiling (universal mounting bracket)	24A 24” adjustable	C110 Painted Aluminum	BLK Black cord, cord manager, and canopy
	45VWWC3 Mini Curve 45° VWW*	F1A/ T-bar ceiling (universal mounting bracket with integrated J-box)	48A 48” adjustable	C202 Textured Black	MCS Matching Canopy at support for aesthetics
	90VWWC3 Mini Curve 90° VWW*	F2/ Hard ceiling (horizontal J-box)	96A 96” adjustable	C210 Textured White	SLP Slope Ceiling
	90VWWCC3 Mini Corner VWW*		144A 144” adjustable	CO99 Custom Color
	UVST3 Unlit Vertical Straight 3in*			RALTBD Ral Paint Finishes
	UVST6 Unlit Vertical Straight 6in*
	UVST9 Unlit Vertical Straight 9in*
	UVST12 Unlit Vertical Straight 12in*
	UVST24 Unlit Vertical Straight 24in*

Straight Fixtures: Consult individual product spec sheets for complete fixture options
Pendant Mount: RNNAD – Renna Direct (Static & TUWH) | RNNAI – Renna Indirect | RNNAID – Renna Indirect Direct
Surface Mount: RNNAS – Renna Surface Mount
Vertical Wall Wash: RNNAVWW – Renna Vertical Wall Wash Suspended Linear
- For fixed Mini Obtuse Angle XX will be equal to a range of 60 – 89 degrees. Example RNNATR 73FC4
- For fixed Mini Acute Angle XXX will be equal to a range of 91-162 degrees. Example RNNATR 132FC4 When using specialty transitions please contact the factory for details and lead times
