DIYLIFTMANUAL041323 Tinker Totter Work
Stand Instructions

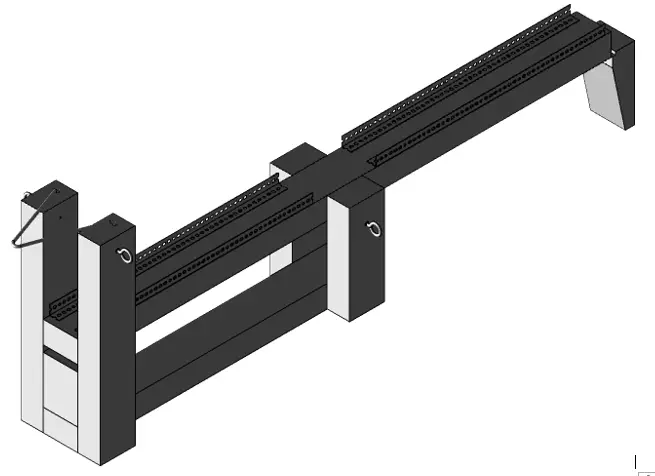

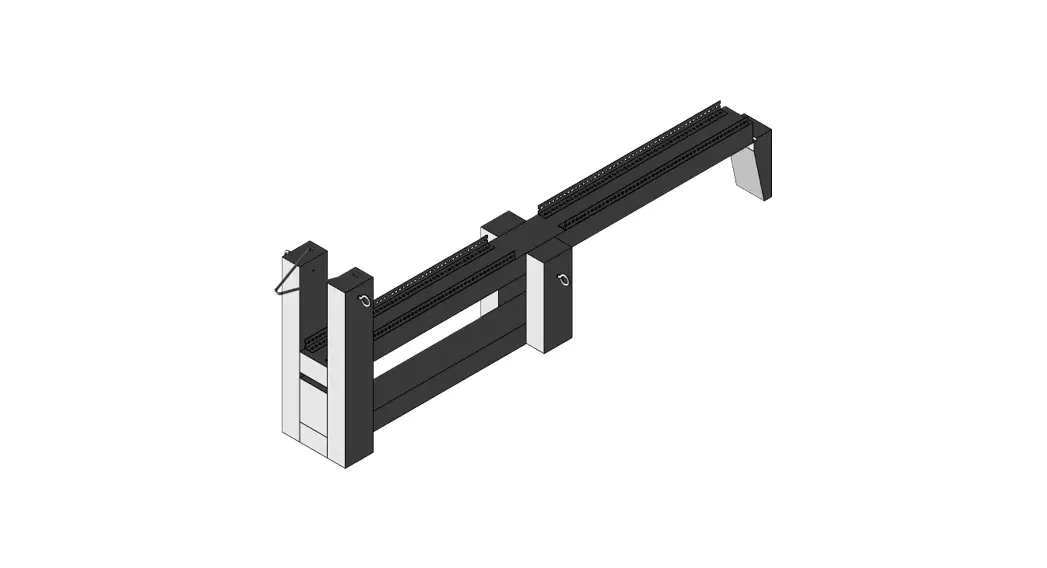

“TINKER TOTTER” WORK STAND
build manual!
DIYLIFTMANUAL041323 Tinker Totter Work Stand
WARNING: SOLD AND USE THIS STAND AT YOUR OWN DAMN RISK (THAT MEANS YOU TOO, AMERICANS!). FOR THE SAKE OF LIABILITY, JUST PRESUME THE STAND WILL FALL OVER (AND/OR APART) AND DESTROY YOUR MOTORCYCLE, YOUR SELF, AND EVERYTHING ELSE YOU MAY LOVE OR VALUE (IF ANY).

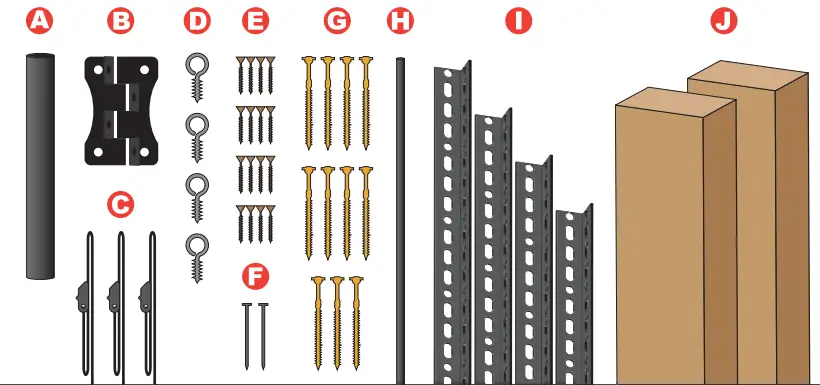

LIST OF MATERIALS
(1)1.5″ X 12″ STEEL- PIPE A
(1) GATE HINGE WITH 90 DEGREE STOP B
(3) CAM BUCKI-E TIE DOWNS C
(4) EYE 1301-T SCREWS D
(12) 3″ FL-AT HEAD DECK SCREWS E
(2) 4″ NAILS F
(11) 6″ GRK STRUCTURAL- SCREWS G
(1) 10′ X 10MM REBAR H
(4) 36″ X 1.5″ SL-OTTEP STEEL- ANGL-E IRON I
(2) 4X6″ X 12′ L.-UMBER J

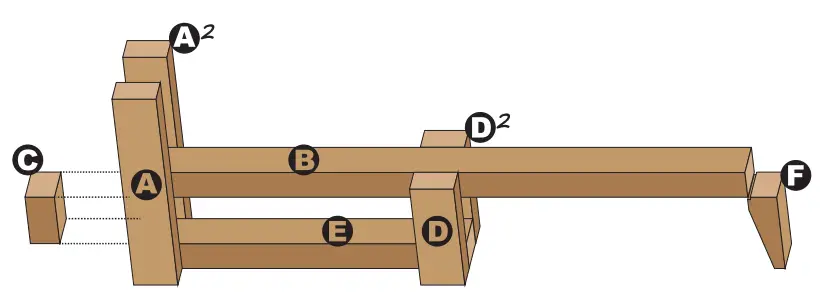

Step1:cut lumber(2)4×6”x12’
| A | A² | D | D² | C | E |
| 30” | 30” | 15.5” | 15.5” | 7.5” | 45” |
B 84”

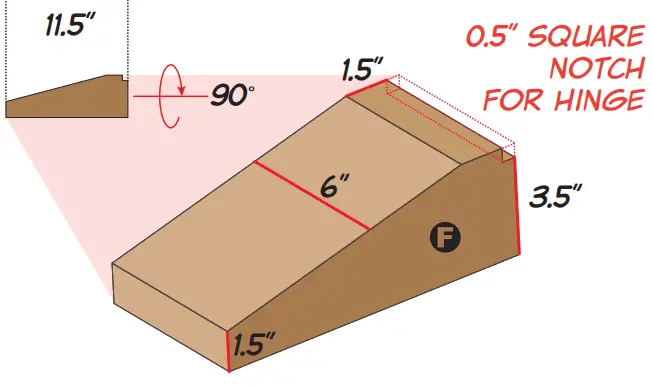

F SURPLUS FOR PCKUPS OR INCREASING I-IEI01-1T, LENGTH

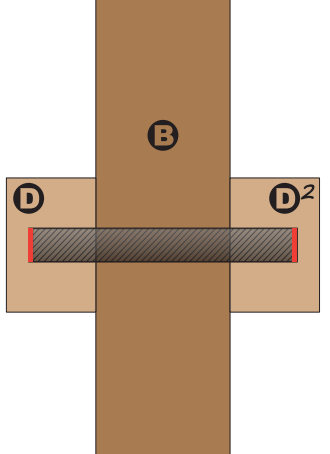

STEP 2:DRILL HOLES
1.5″ INNER DIAMETER
TOP DOWN WHEN ASSEMBLED
(4) 2″ FIAT HEAP PECK SCREWS

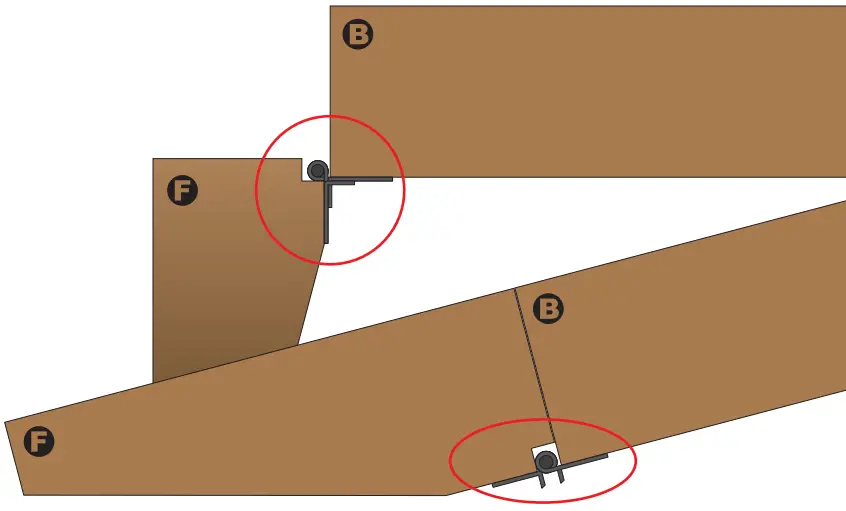

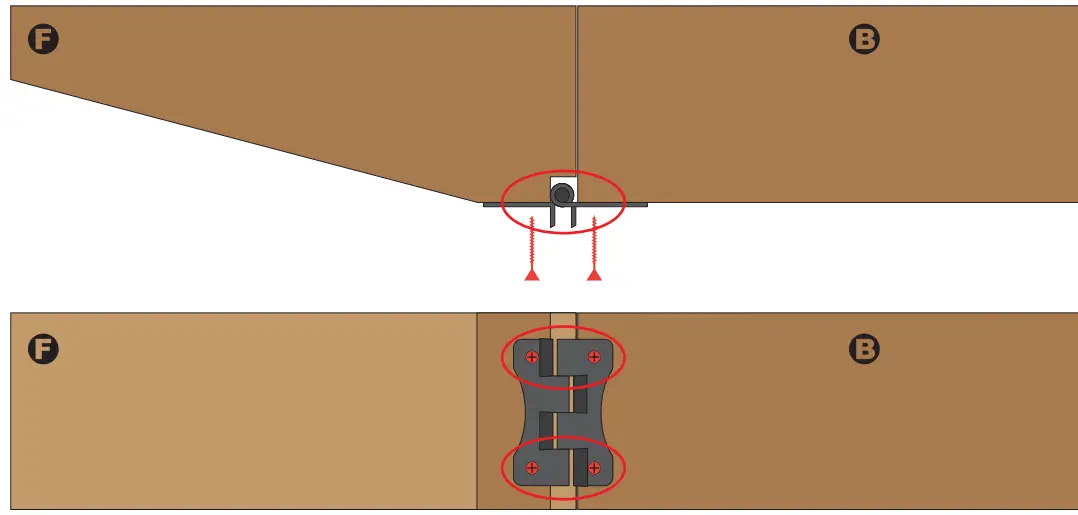

LINE UP THE ENDS OF F AND B AND PLACE THE KNUCKLE OF THE HINGE INTO THE NOTCH
THEN SCREW THE TRIMMED NIN&E INTO THE WOOD THROUGH THE FOUR HOLES.
FLAT NEAP SCREWS SINK INTO THE HOLES IN THE HINGE, SCREWS WITH A RAISED NEAP MAY BUMP INTO THE TAGS.
REBAR, (2) NAIL.S, (4) EYE 1301-T5.

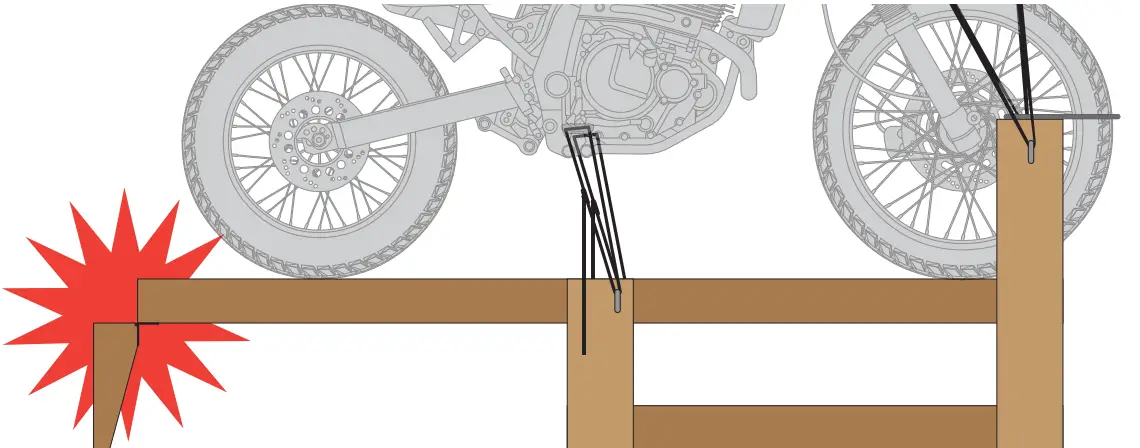

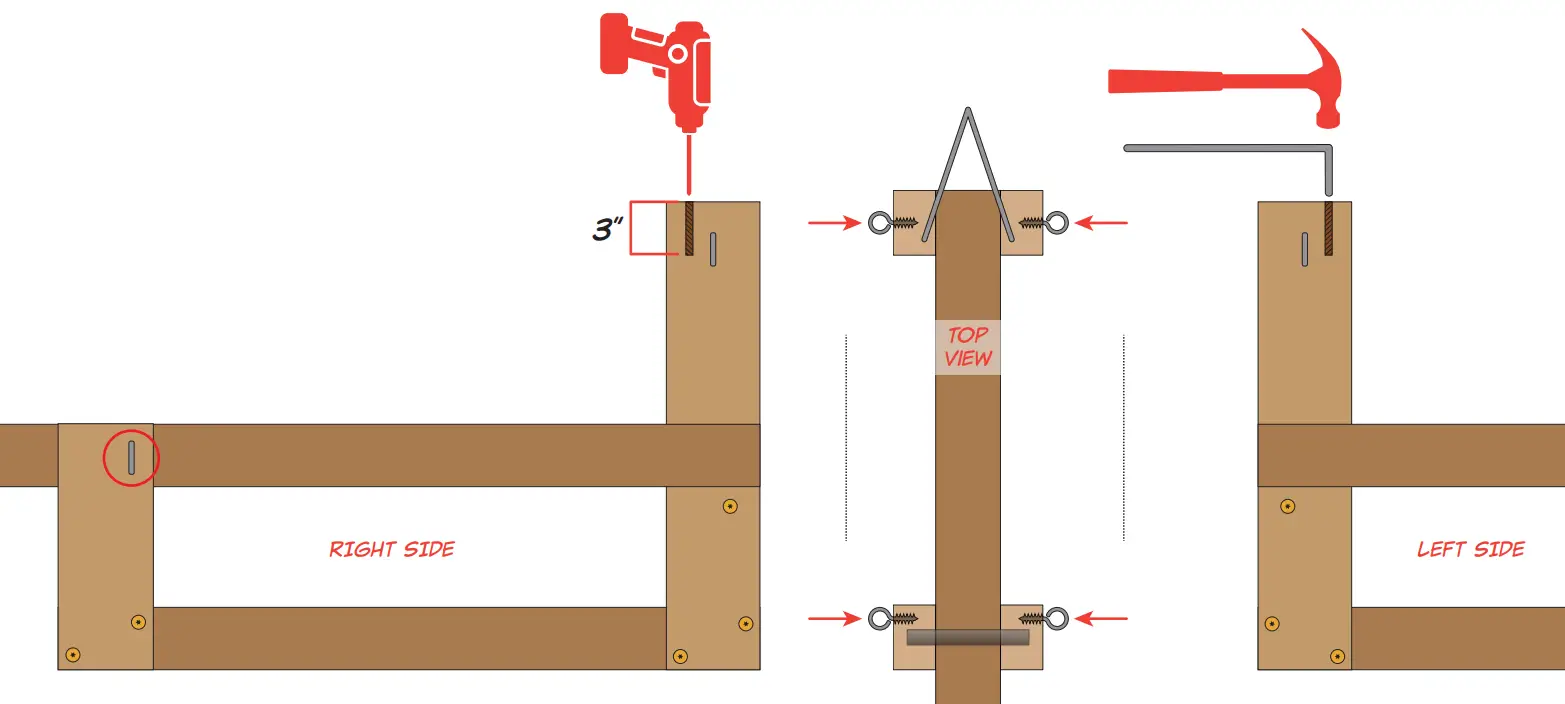

LINE UP THE ENDS OF YOUR REI3AR TRIANGLE ON TO THE TOPS OF A AND A², THEN DRILL-DOWN 3 INCHES WITH A 10MM WT.
YOU MAY NEED TO HAMMER THE ROAR INTO THE HOLES. SECURE WITH NAILS.
SCREW YOUR EYE 801-TS IN NEAR THE TOPS OF A A² D D²
NOTE: BEW CAREFUL. NOT TO SCREW AN EYE BOLT INTO THE PIPE OR ROAR!

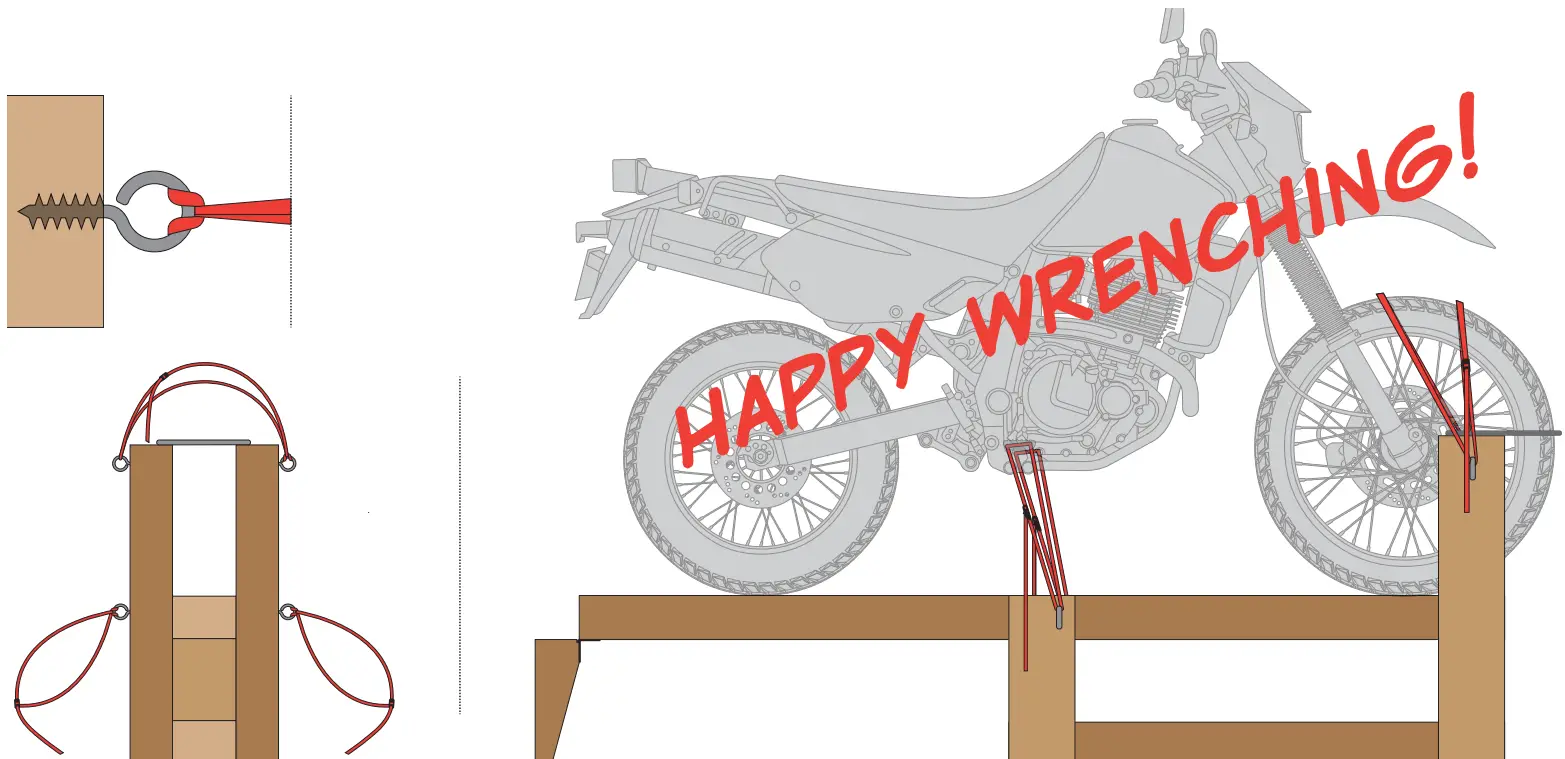

STEP 6: HITCHING STRAPS (3) CAM BUCKLE TIE DOWNS
ATTACH THE STRAPS TO THE EYE BOLTS ON A D D²
THREAD IT THROUGH THE EYE DOLT ON A²

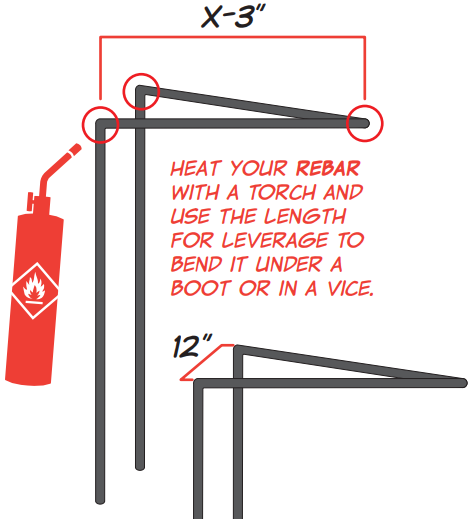

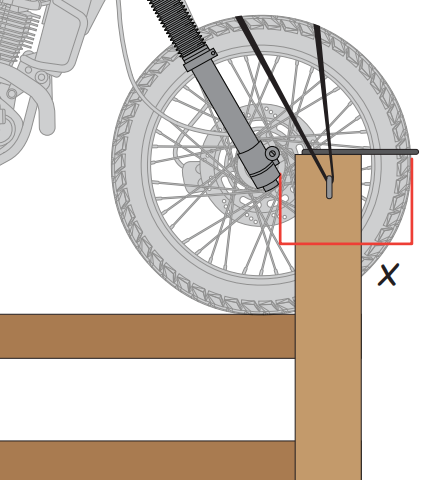

STEP 3: RENR PREP 10′ X 10MM REBAR

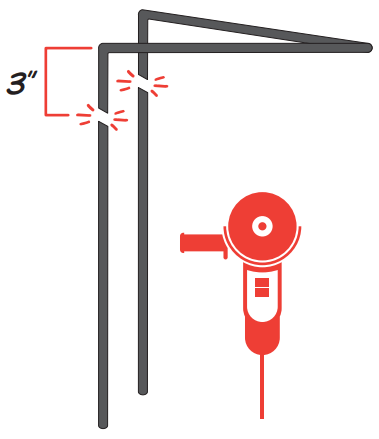

MEASURE FOR X AND TAKE 3″ OFF FOR CLEARANCE.
TRIM THE EXCESS REEMR WITH AN ANGLE GRINDER OR HACK SAW.
STEP 4: HINGE PREP ONWARD™ PERMALIGN™ HINGE

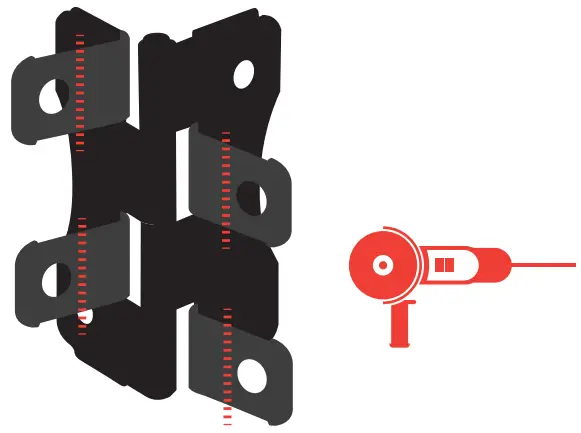

PINCH YOUR ONWARD™ PERMALISN™ HINGE IN A VICE, AND TRIM THE TABS OFF BELOW THE HOLES. THIS HELPS THE HINGE CLEAR THE &ROUND WHILE LEAVING ENOUGH LEFT FOR SUPPORT WHEN THE BIKE IS MOUNTED.
STEP 5: ASSEMBLY 1.5″ X 12″ STEEL- PIPE

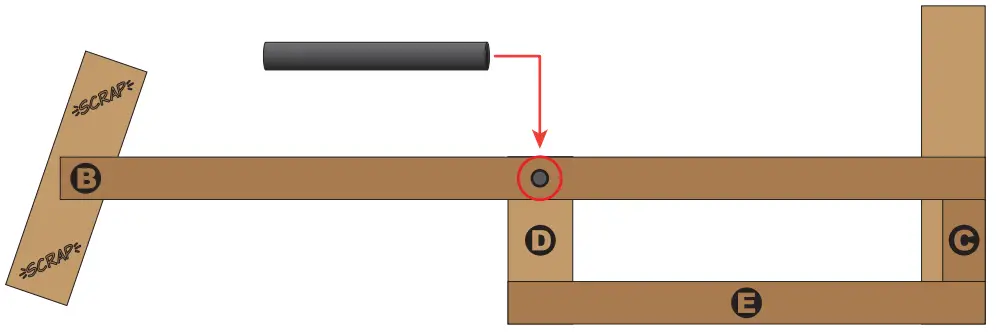

MY DOWN D AND A THEN ADD B AND ALIGN THE HOLES. USE SCRAP FOR SUPPORT. ADD THE REMAINING E AND C BLOCKS AND ALIGN THE EDGES.
DROP THE PIPE INTO THE 401E. IT SHOULD STICK OUT NO MORE THAN 3 INCHES.
(11) 6″ GRK PECK SCREWS (OR MG I3MTS)
PLACE A² AND D² INTO POSITION AND SCREW IN YOUR FIRST 5 6RK’S. 8E SURE TO PRE-DRILL THE 4 NEAR THE EDGES, THEY MAY SPLIT OR END UP CRACKING IF THE WOOD DRIES OUT OVER TIME.

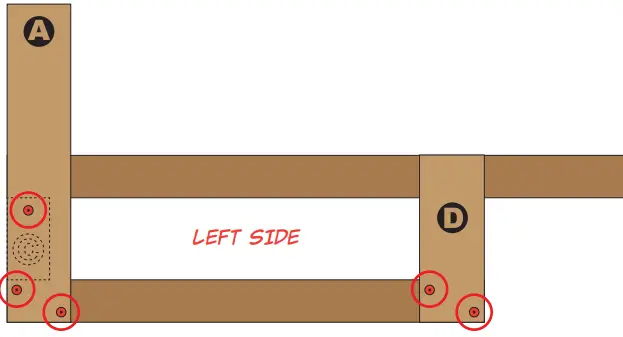

SCREW A SINGLE 6RK THROUGH E AND INTO THE BOTTOM OF C, THEN FLIP THE RI& OVER AND SCREW IN YOUR REMAINING 5 ORKS INTO A AND D.
