FONESTAR SPS-403N Projector Stand
Product Information
Product Name: SPS-403N Projector Stand
Description: The SPS-403N is a projector stand designed to securely hold projectors and provide a stable platform for projection. It is equipped with wheel locking elements for added stability and safety. The stand is manufactured by FONESTAR, a reputable company known for its high-quality audiovisual products.
Product Usage Instructions
- Read the installation recommendations in the instruction manual before proceeding with the setup.
- Ensure that the installation surface is completely flat and firm to guarantee maximum stability.
- If available, always use the wheel locking elements provided to secure the stand in place.
- Take note that FONESTAR does not accept responsibility for any damages or breakages resulting from incorrect attachment or mishandling of the mount.
- Refer to the diagram provided in the manual for the correct placement of each component.
- Use the included screws and nuts as indicated by their respective labels (A1, A2, A3, etc.) for assembly.
- For the main projector attachment, use M6x65 screws (x5) labeled A1 and M6x12 screws (x4) labeled A4.
- Make sure to follow the specified maximum weight limit when mounting the projector.
- Refer to the manual for additional instructions on attaching other components such as G1, G2, G3, and G4.
- Once all components are securely attached, double-check the stability of the stand.
For further information or assistance, please visit the official FONESTAR website at www.fonestar.com.

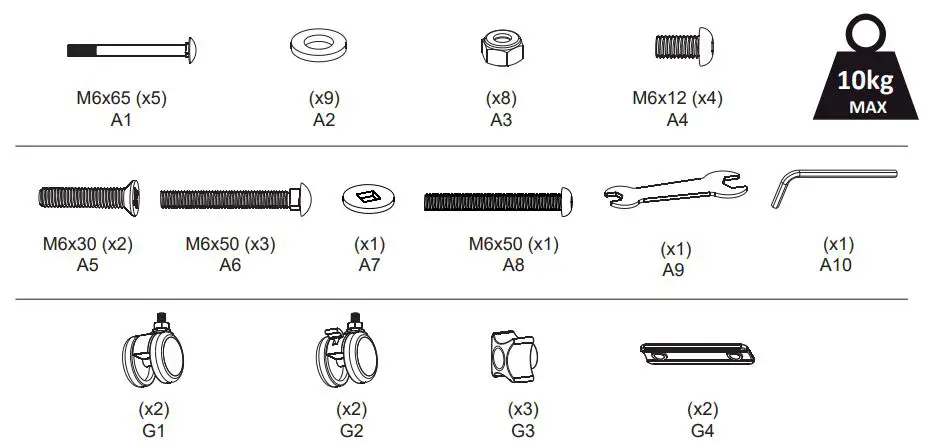

ACCESSORIES INCLUDED

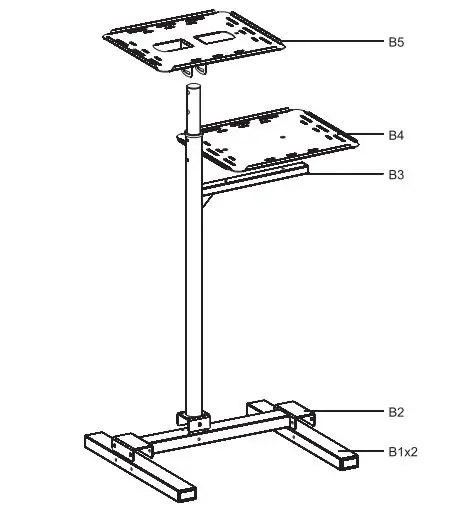

Product Parts

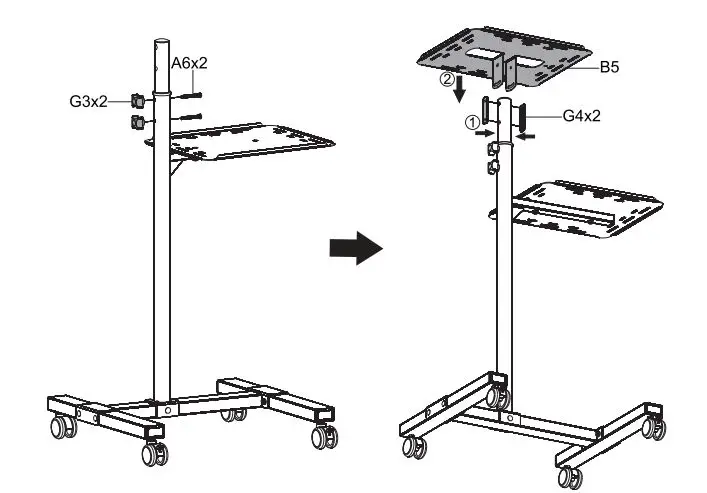

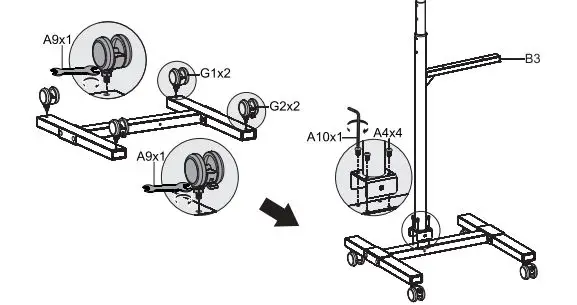

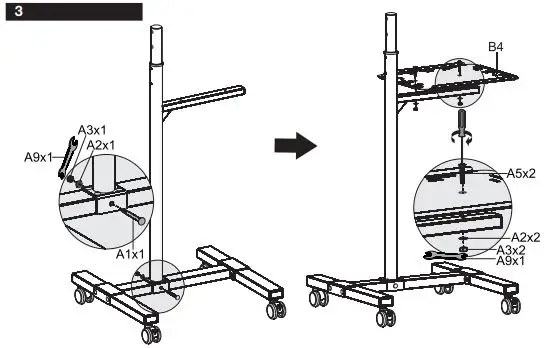

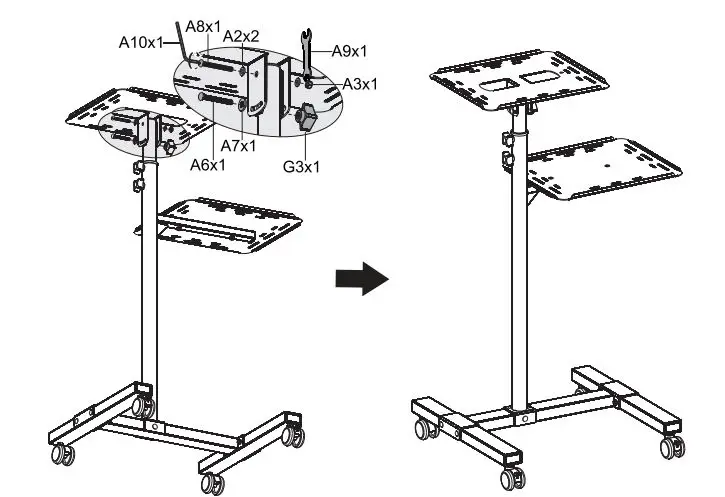

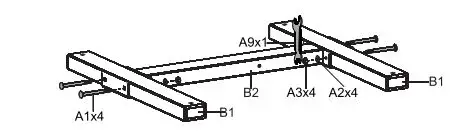

ASSEMBLY INSTRUCTIONS
Important Instructions
- Follow the installation recommendations in the instruction manual.
- To ensure that the mount holds the maximum weight, the installation surface must be completely flat and firm; make use of wheel locking elements whenever possible.
- FONESTAR does not hold itself responsible for damages or breakages resulting from the mount falling apart because it was incorrectly attached, or handled incorrectly.
