Instruction Manual

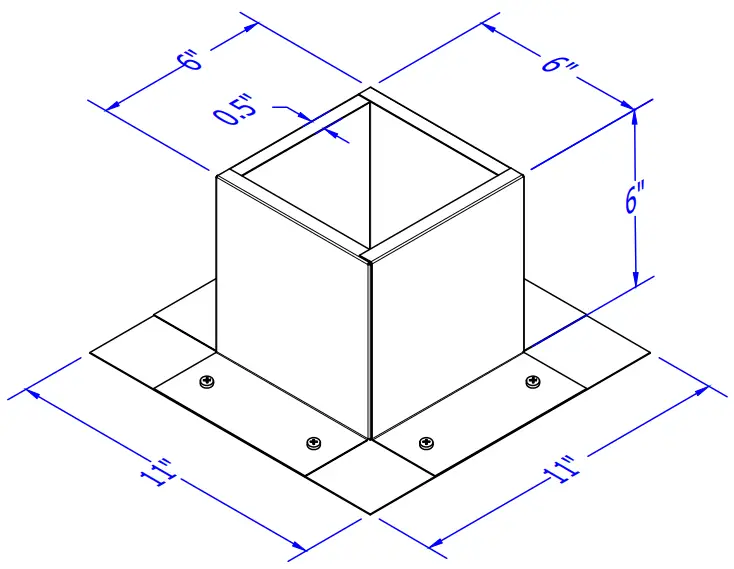

Angled View

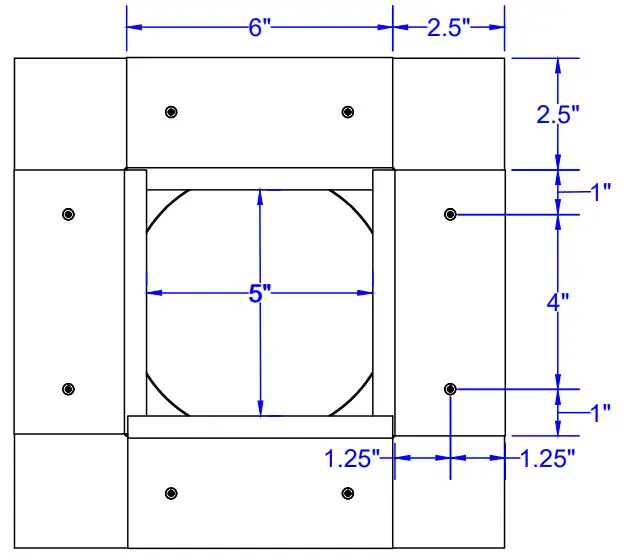

Top View

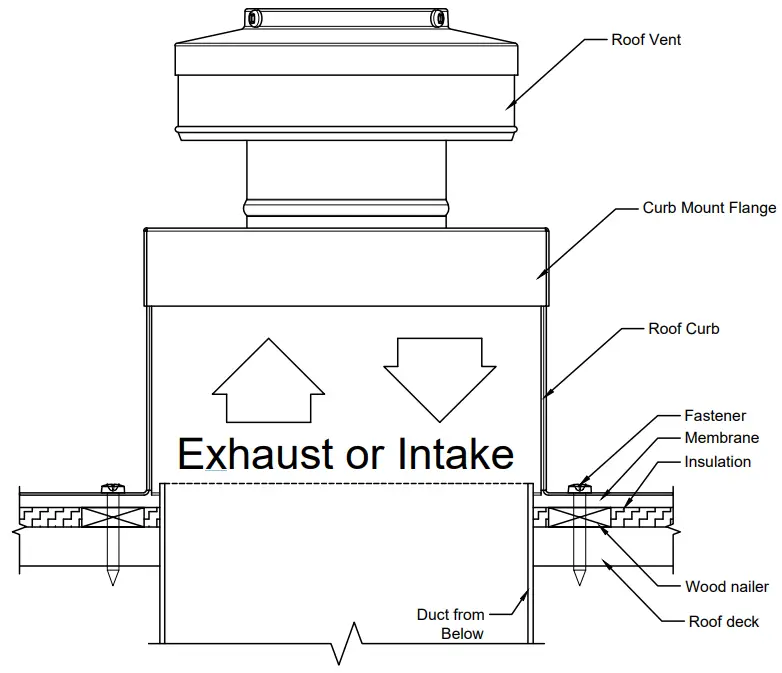

Roof Curb Flashing Detail
Roof Curb Installation Instructions
- Cut a square or round hole 5″ in diameter.
- Total number of screws or nails needed for flange = 8
- Recommended installation screw: #10 x 1 1/2″ Sheet Metal Screw
- Flash roof curb onto roof according to specifications of the roof manufacturer.
- Screws are not included.
Roof Curb Model: RC-3-H6
Inside Diameter: 5″, Outside Length & Width: 6″, Height: 6″
Active Ventilation Products, Inc.
Website: roofvents.com
Email: [email protected]
11/16/2021
