RC-8-H12 Aluminum Roof Curb
Instruction Manual

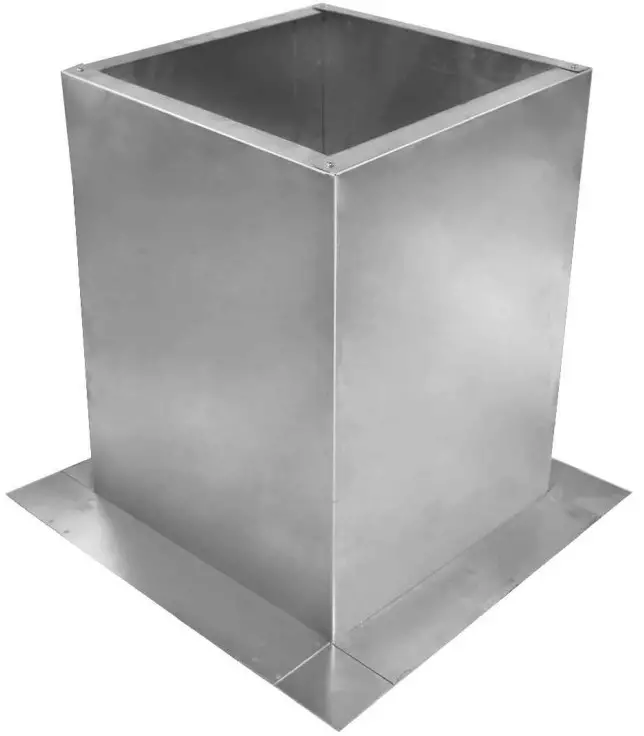

Angled View
– Aluminum Alloy 3003-H14
– Thickness = 0.025″ ± 0.005
– Tolerance = ± .25 (¼” )
RC-8-H12 Aluminum Roof Curb

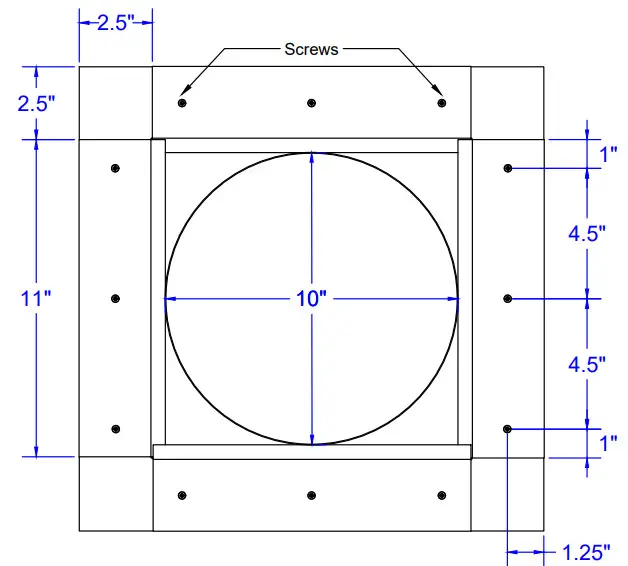

Top View

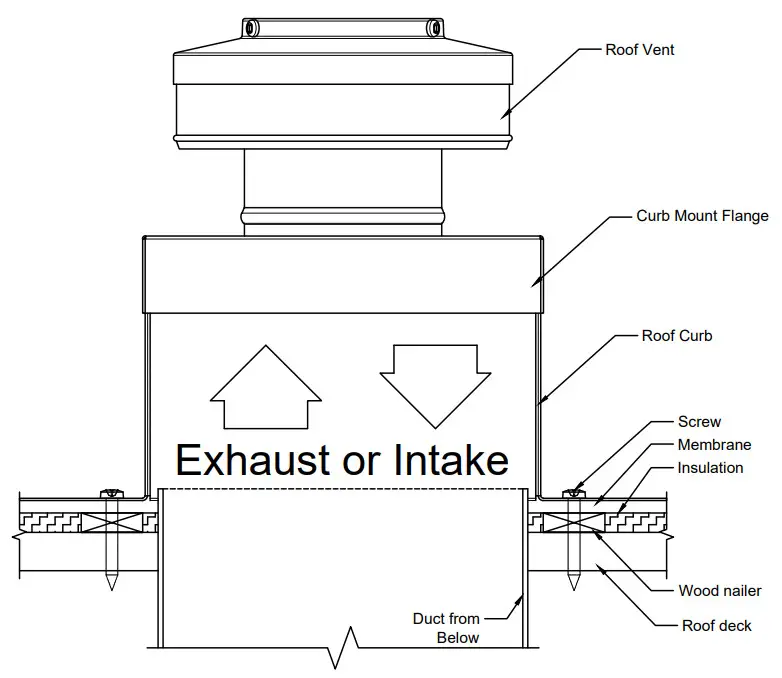

Roof Curb Flashing Detail
Roof Curb Installation Instructions
- Cut a round hole 11″ in diameter in the roof deck.
- Total number of screws needed for flange = 12
- Recommended installation screw: #10 x 1 1/2″ Sheet Metal Screw
- Flash roof curb onto deck according to specifications of the membrane manufacturer.
- Screws not included.
Roof Curb Model: RC-9-H12
Inside Opening: 11″, Outside Length & Width: 12″, Height: 12″
Active Ventilation Products, Inc.
Website: roofvents.com
Email: [email protected]
