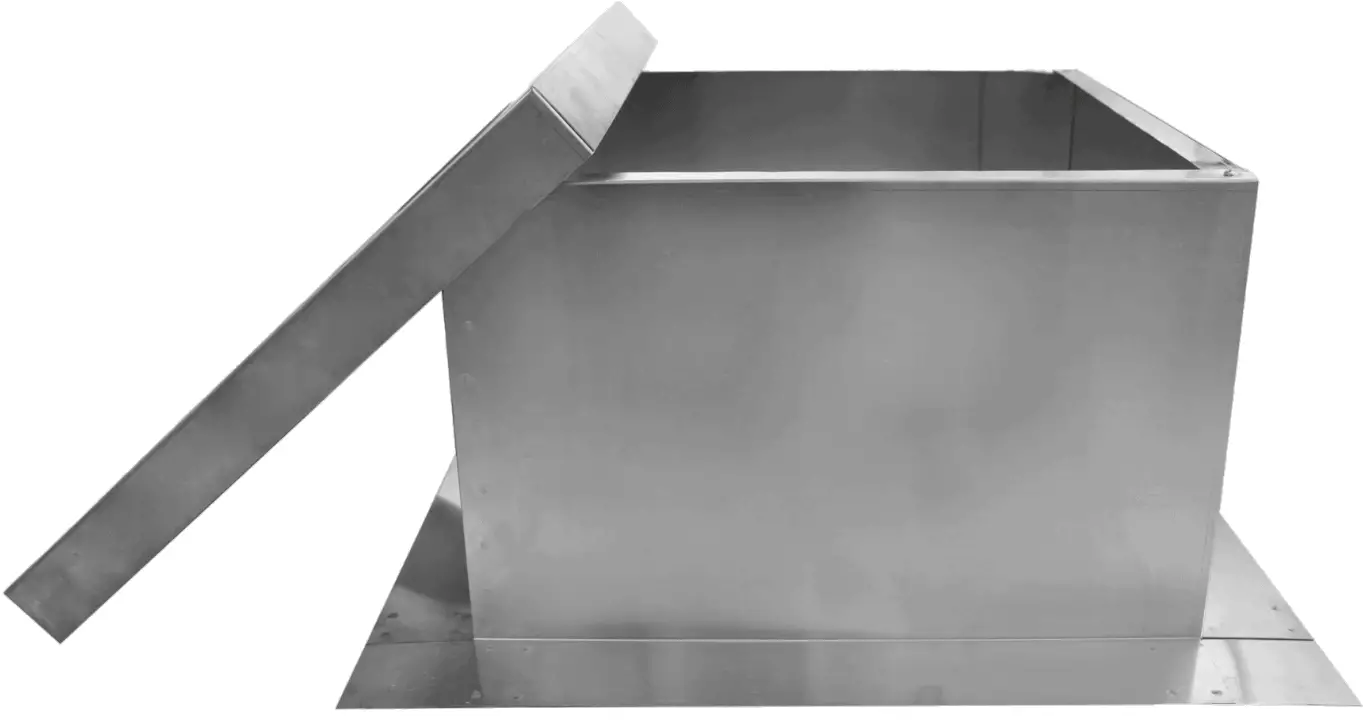

Active Ventilation Products RC-18-H12 Aluminum Roof Curb

Model: RC-18-H12

Roof Curb Installation Instructions

1. Cut a square or round hole 19″ in diameter in the roof deck.
2. Total number of screws needed for flange = 16
3. Recommended installation screw: #10 x 1 1/2″ Sheet Metal Screw
4. Flash roof curb onto deck according to specifications of the membrane manufacturer.
5. Screws not included.

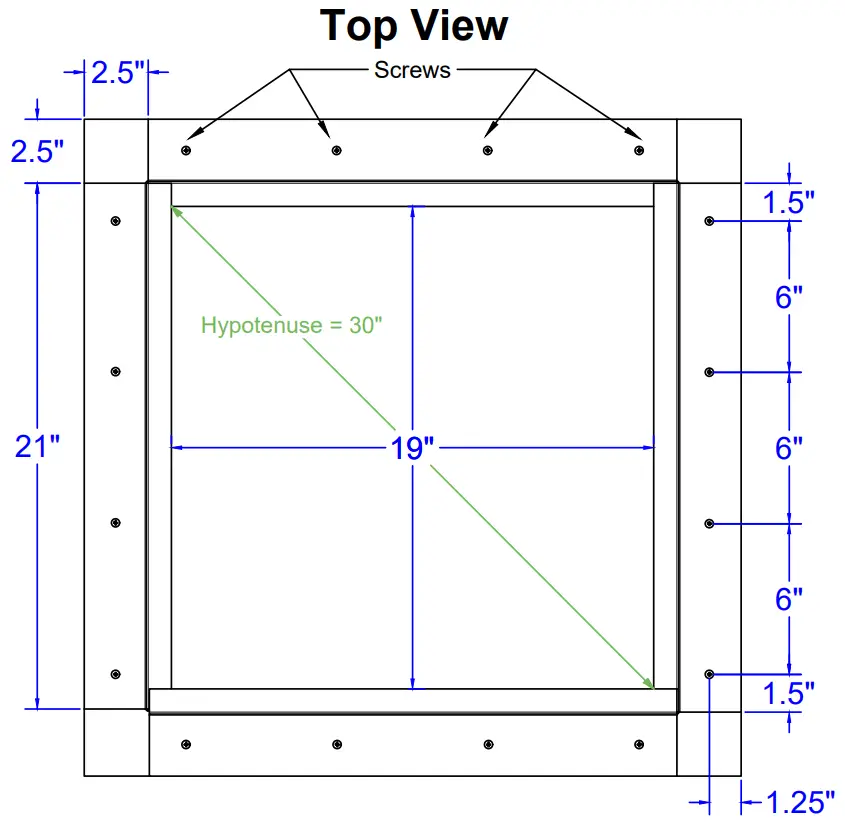

Dimension

• Aluminum Alloy 3003-H14
• Thickness = 0.040″ ± 0.005
• Tolerance = ± .25 ( 14″ )\

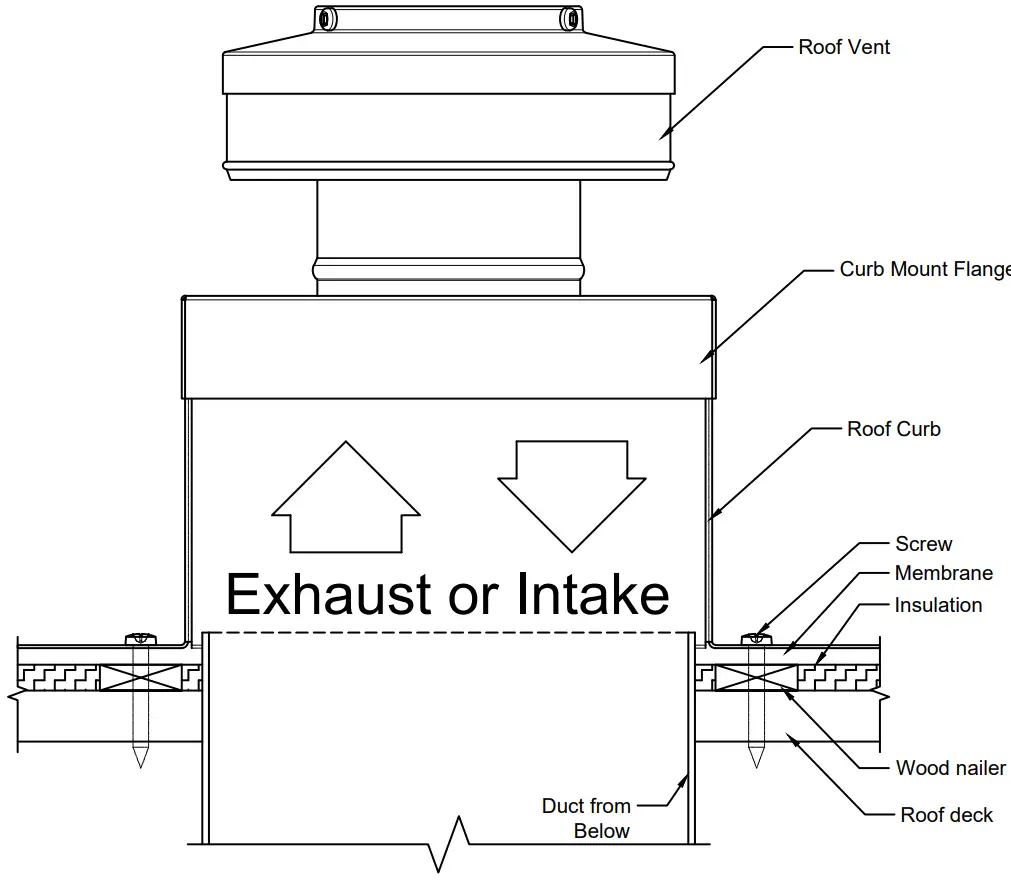

Roof Curb Flashing Detail

Active Ventilation Products, Inc.
Website: roofvents.com Email: [email protected]
