Active Ventilation Products Rc-14-h6 Aluminum Roof Curb User Manual

Active Ventilation Products RC-14-H6 Aluminum Roof Curb User Manual

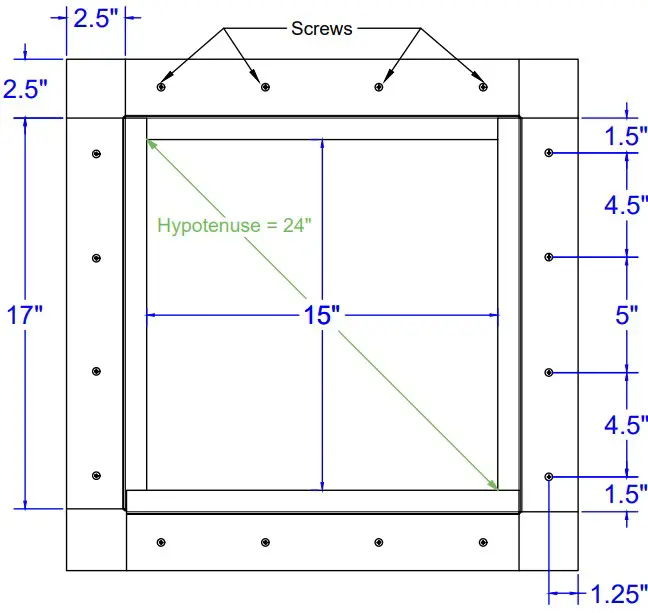

Top View

• Aluminum Alloy 3003-H14
• Thickness = 0.040″ ± 0.005
• Tolerance = ± .25 ( 14″ )

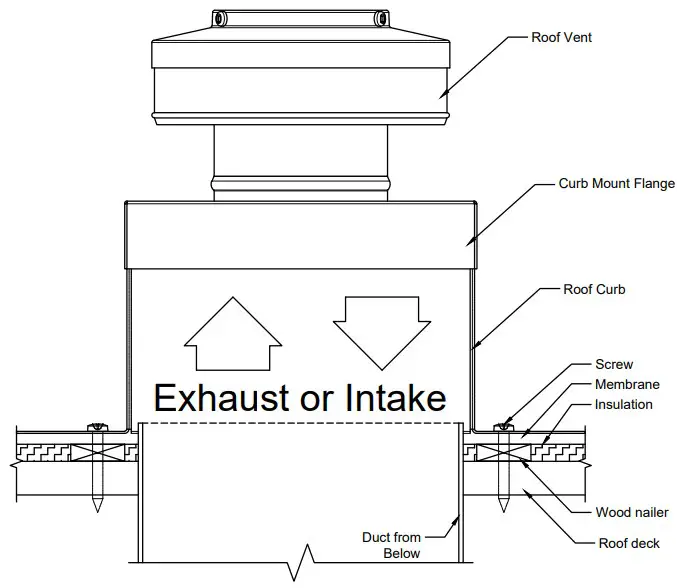

Roof Curb Flashing Detail

Roof Curb Installation Instructions

1. Cut a square or round hole 15″ in diameter in the roof deck.
2. Total number of screws needed for flange = 16
3. Recommended installation screw: #10 x 1 1/2″ Sheet Metal Screw
4. Flash roof curb onto deck according to specifications of the membrane manufacturer.
5. Screws not included.

Roof Curb Model: RC-14-H6 Inside Opening: 15″, Outside Length & Width: 16″, Height: 6″

Active Ventilation Products, Inc.
Website: roofvents.com Email: [email protected]
