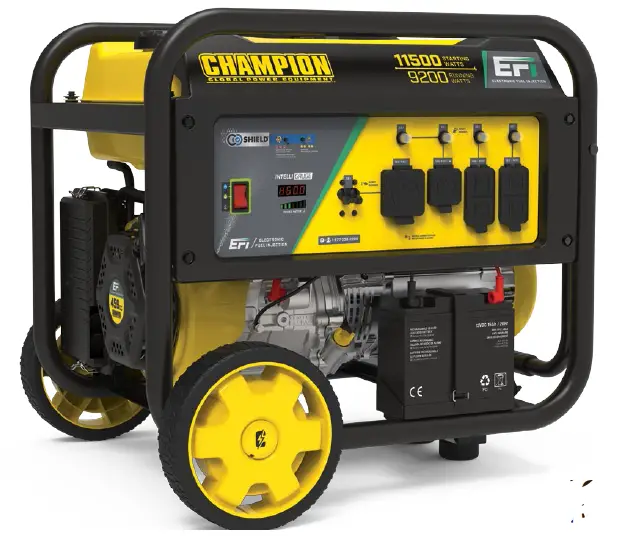

CHAMPION 100485 9200W Electric Start Generator
WARNING:
Read the ENTIRE operator’s manual to become familiar with the features of the product before operating.
Failure to operate the product correctly can result in damage to
the product, personal property and cause serious injury or even death.
www.championpowerequipment.com
© Champion Power Equipment 2021.
All Rights Reserved.
Set Up
Open shipping carton. Assembly > Unpacking

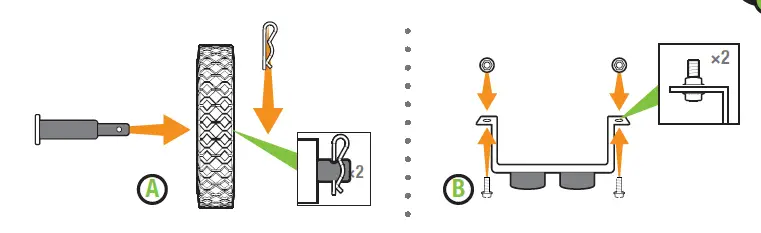

Attach wheel kit. Assembly > Install the Wheel Kit

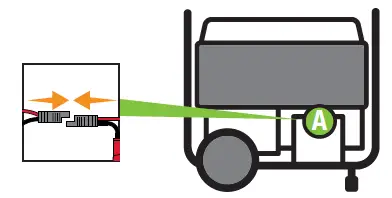

Connect the battery. Assembly > Connect the Battery.
Cut cable tie on each side of battery connector.
Push two halves of battery connector together tightly.
Add oil. Assembly > Add Engine Oil.
Recommended: 10W-30, up to 37.2 fl. oz. (1100 ml) DO NOT overfill.

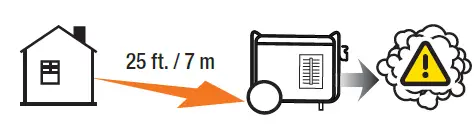

Move the generator outdoors.
Move generator to an open, outdoor area.
Point exhaust away. Never run generator in enclosed areas (e.g., not in house or garage).
Keep all objects at least 5 feet (1.5 m) from generator.
Heat from the muffler and exhaust gas can ignite combustible materials.

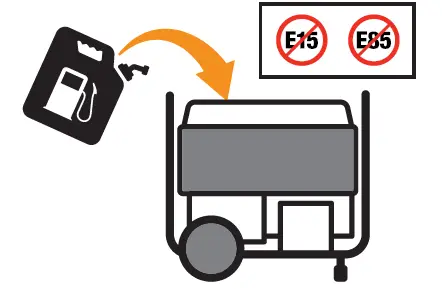

Add fuel. Assembly > Add Fuel DO NOT use E15 or E85.
DO NOT plug in any electrical devices.
NEVER START OR STOP THE GENERATOR WITH ELECTRICAL DEVICES CONNECTED OR TURNED ON!
Electric Start

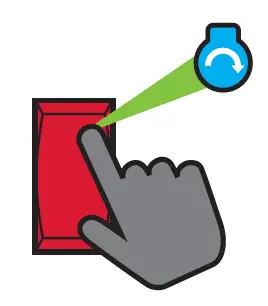

Press and hold the ignition switch to the “START” position
THE ELECTRONIC FUEL SYSTEM REQUIRES BATTERY POWER IN ORDER TO START THE GENERATOR. CHARGE BATTERY PRIOR TO STARTING.
Start Up
Start UpManual Start
- Push the ignition switch to the “ON” position.
- Pull the starter cord.

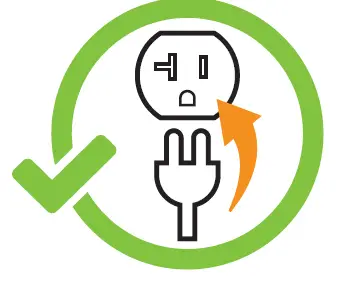

Plug in. Operation > Connecting Electrical Loads.

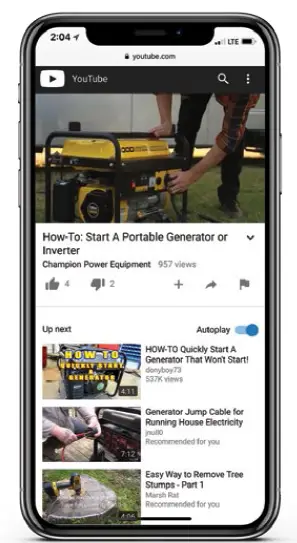

Visit our YouTube channel to watch our how-to videos and subscribe to view our latest videos on our Champion Power Equipment products!
