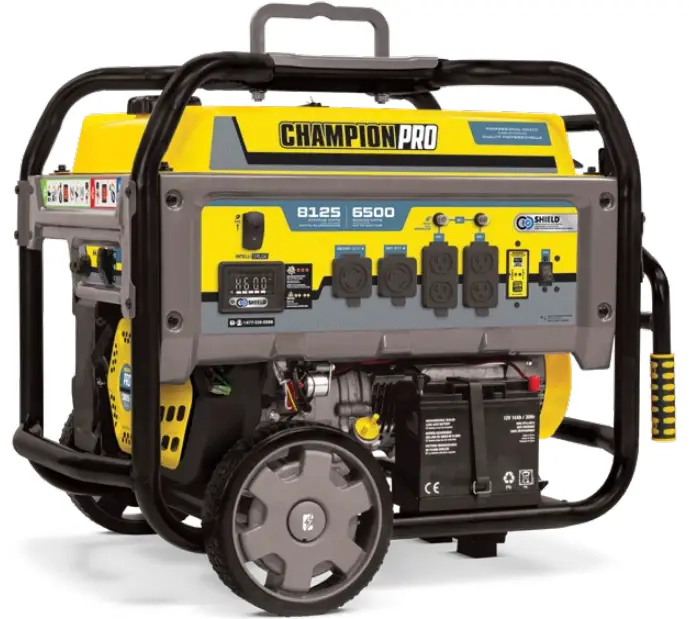

CHAMPION PRO 100430 6500W Electric Start Generator User Guide

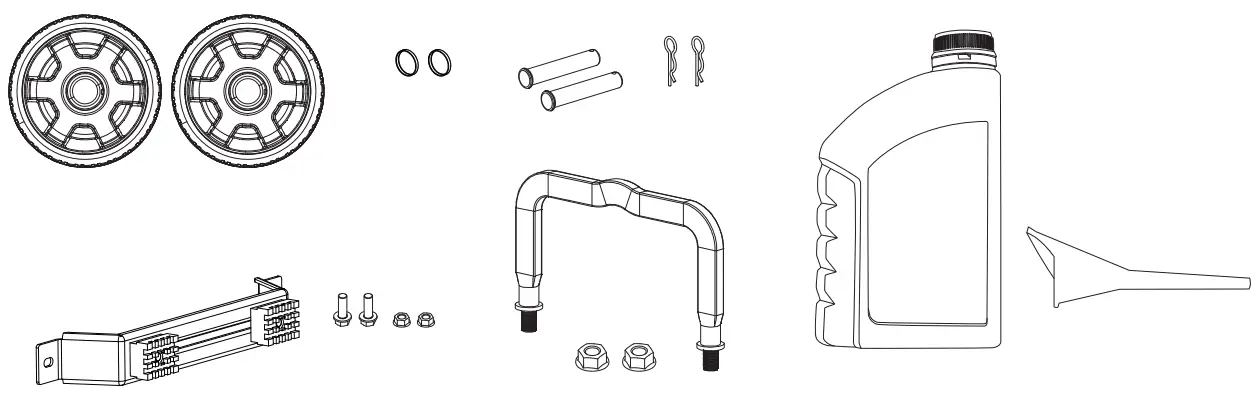

PARTS INCLUDED

 WARNING
Read the ENTIRE operator’s manual to become familiar with the features of this product before operation. This QuickStart Guide IS NOT a substitute for the Operator’s Manual.

Failure to operate the product correctly could result in damage to the product, personal property or cause serious injury or death.

Set Up

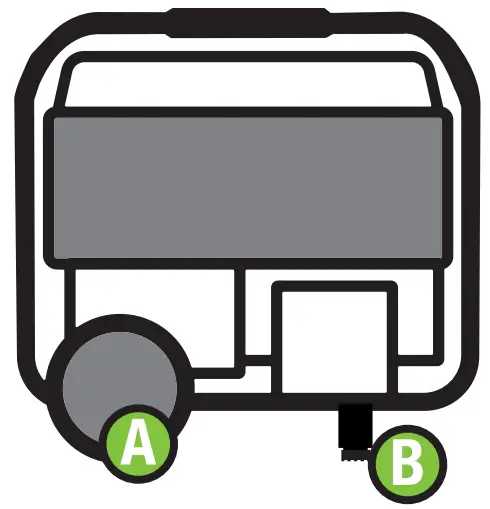

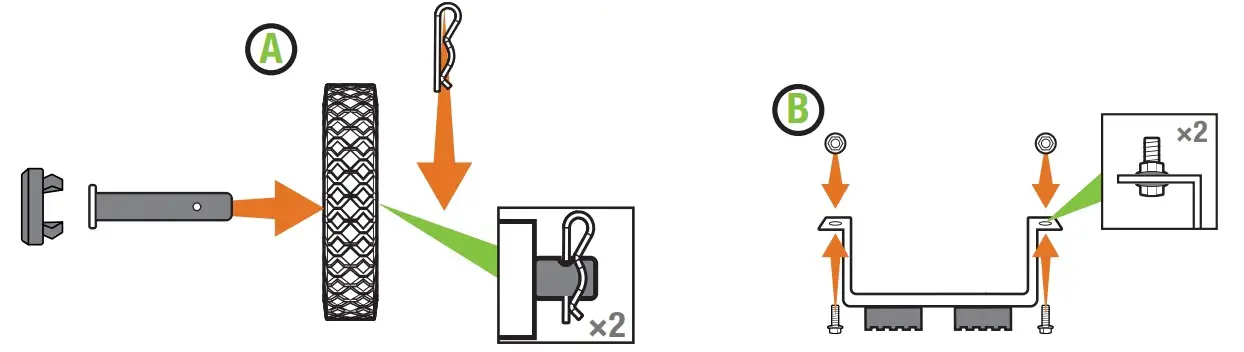

1. Attach wheel kit. Assembly > Install the Wheel Kit.

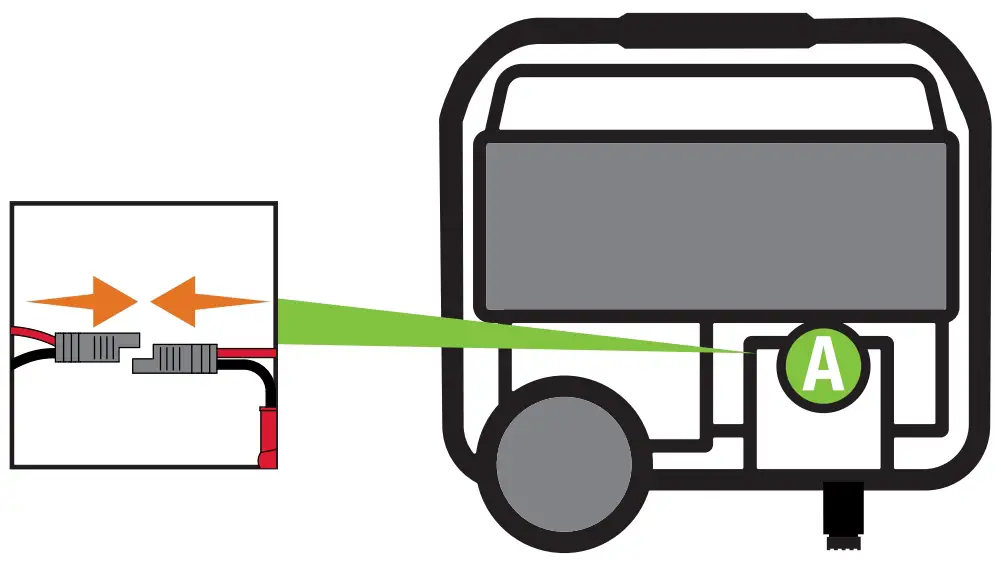

2. Connect the battery. Assembly > Connect the Battery.
   Cut cable tie on each side of battery connector.
   Push two halves of battery connector together tightly

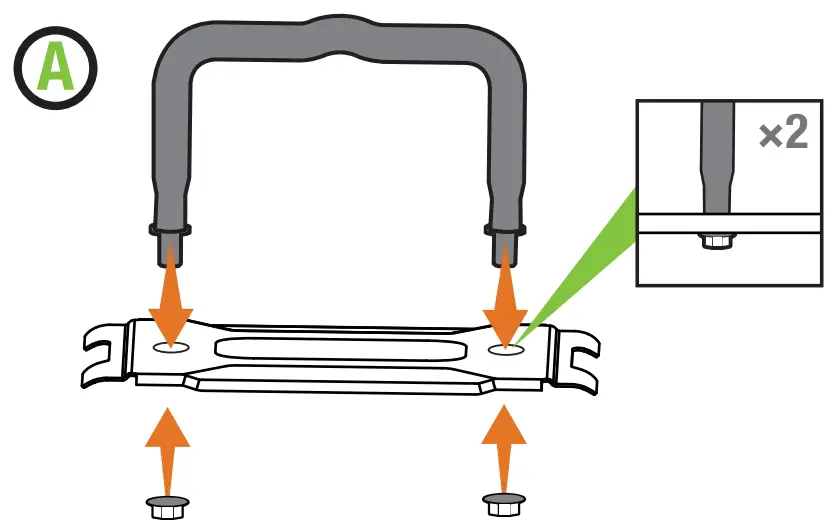

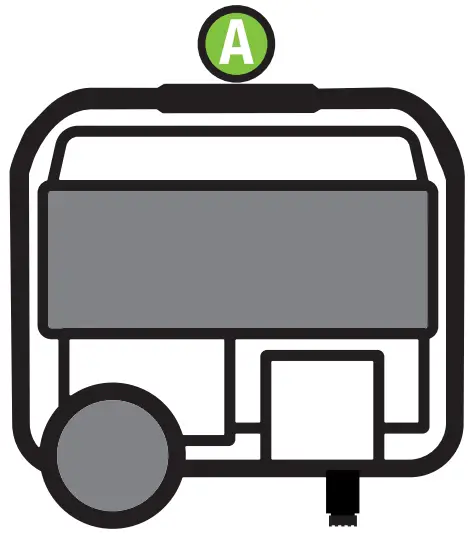

3. Install lifting hook. Assembly > Install the Lifting Hook.

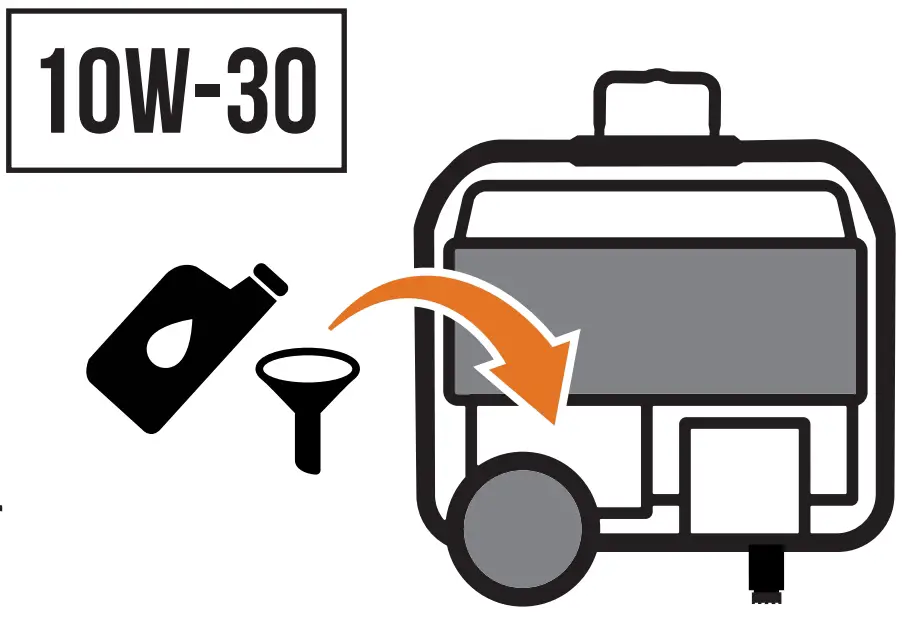

4. Add oil.  Assembly > Add Engine Oil.
   Recommended: 10W-30, up to 37.2 fl. oz. (1100 ml). DO NOT overfill.

5. Move the generator outdoors.

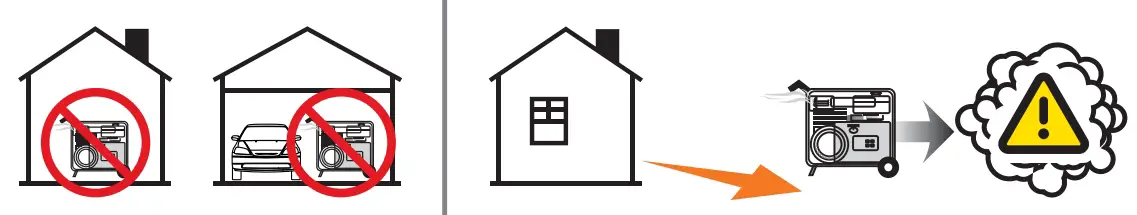

   Move generator to an open, outdoor area. Point exhaust away from people and buildings. Never run generator inside a home or garage.

   Keep all objects at least 5 feet (1.5 m) from generator. Heat from the muffler and exhaust gas can ignite combustible materials.

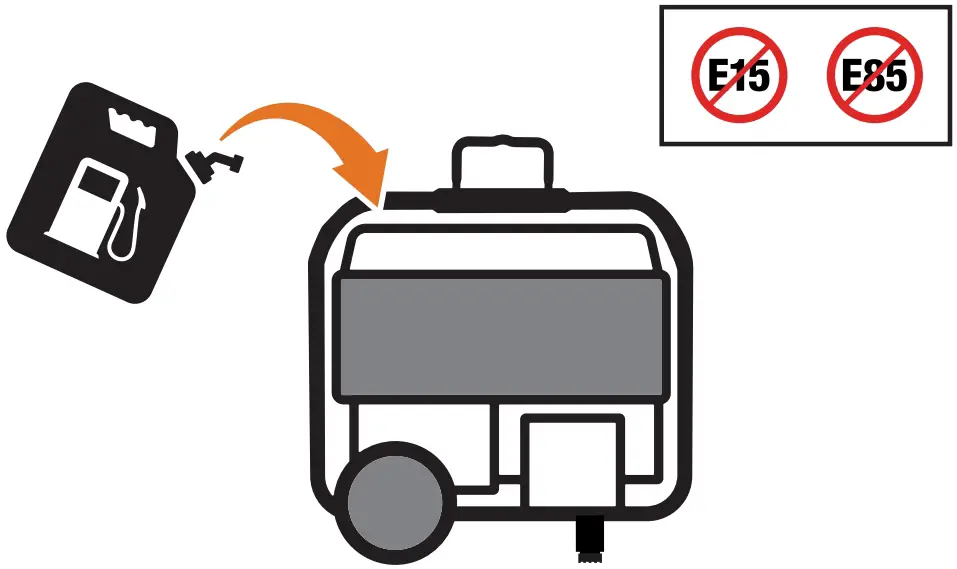

6. Add fuel. Assembly > Add Fuel
   DO NOT use E15 or E85.

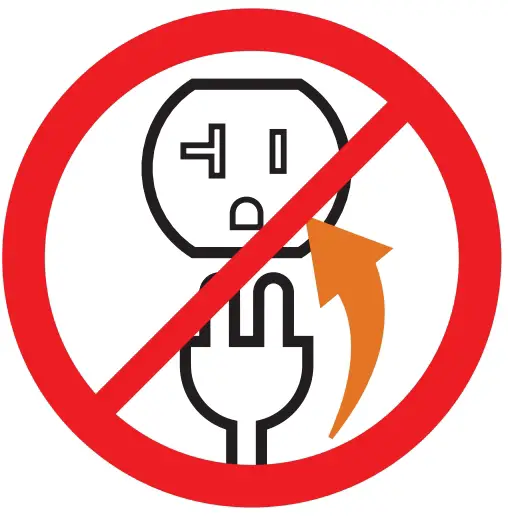

7. DO NOT plug in any electrical devices.
   NEVER START OR STOP THE GENERATOR WITH ELECTRICAL DEVICES CONNECTED OR TURNED ON!

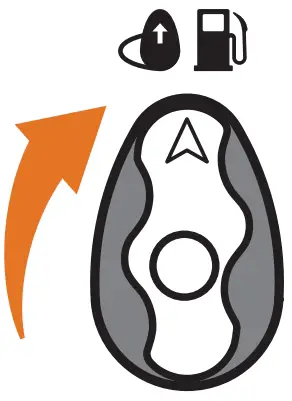

8. Turn the fuel valve “ON”.

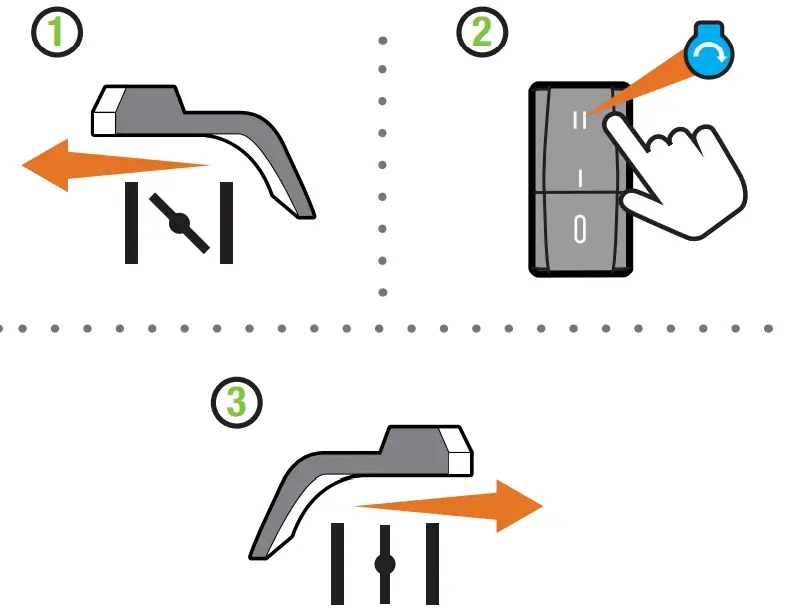

Electric Start

1. Move the choke lever to the “CHOKE” position.
2. Press and hold the ignition switch to the “START” position.
3. Move the choke lever to the “RUN” position.

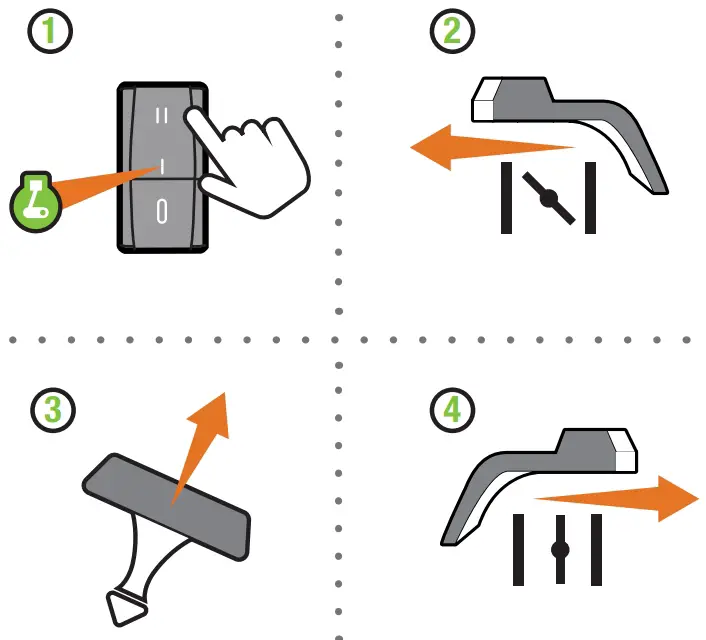

Manual Start

1. Push the ignition switch to the “ON” position.
2. Move the choke lever to the “CHOKE” position.
3. Pull the starter cord.
4. Move the choke lever to the “RUN” position.

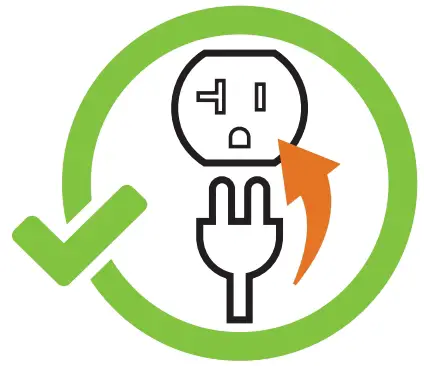

Plug in Operation > Connecting Electrical Loads.
