QUICKSTART GUIDE

201035

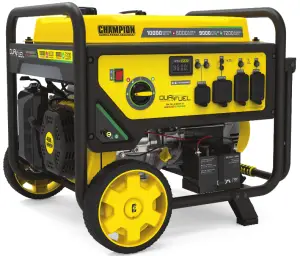

8000W Dual Fuel Electric Start Generator

 WARNING:
Read the ENTIRE operator’s manual to become familiar with the features of the product before operating.
Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury or even death.

Set-Up

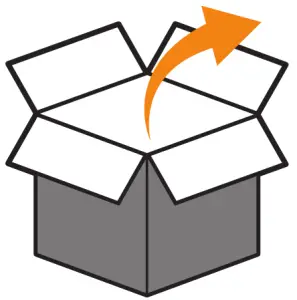

1. Open shipping carton.   Assembly > Unpacking

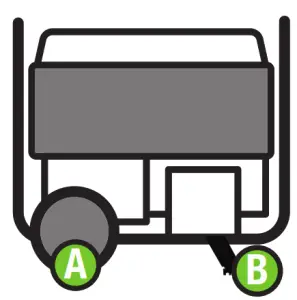

2. Attach wheel kit. Assembly > Install Wheel Kit

3. Connect the battery. Assembly > Connect the Battery. Cut cable tie on each side of the battery connector. Push two halves of the battery connector together tightly.

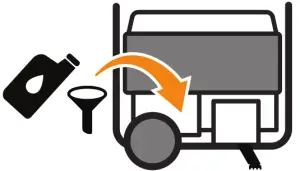

4. Add oil. Assembly > Add Engine Oil. Recommended: 10W-30, up to 40.6 fl. oz. (1200 ml) DO NOT overfill.
   10W – 30

5. Move the generator outdoors.
   Move generator to an open, outdoor area. Point exhaust away. Never run a generator in enclosed areas (e.g., not in house or garage).
   Keep all objects at least 5 feet (1.5 m) from the generator. The heat from the muffler and exhaust gas can ignite combustible materials.

   Start-Up

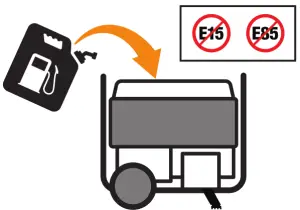

6. Add fuel. Assembly > Add Fuel: Gasoline  DO NOT use E15 or E85.

or

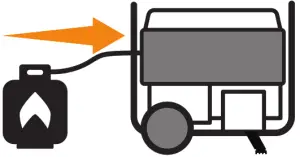

Connect propane cylinder. Assembly > Add Fuel: Propane (LPG)

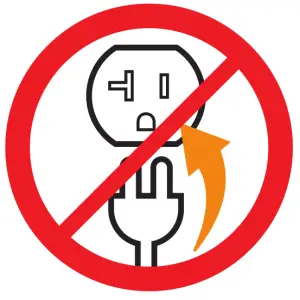

  7. DO NOT plug in any electrical devices.

  NEVER START OR STOP THE GENERATOR WITH ELECTRICAL DEVICES CONNECTED OR TURNED ON!
NUNCA ENCIENDA UN GENERADOR CON APARATOS ELECTRONICOS ENCHUFADOS O ENCENDIDOS

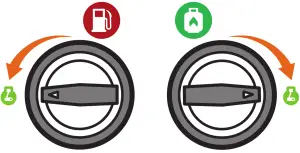

8. Select Fuel. Operation > Starting the Engine. Gasoline: Turn the fuel select dial to the “Gasoline Run” position. Propane: Turn fuel select dial to “Propane Run” the position.

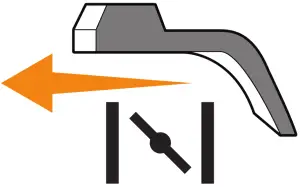

9. Move the choke lever to the “CHOKE” position.
10a. Gasoline

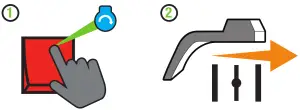

Electric Start

1. Press and hold the ignition switch to the “START” position.
2. Move the choke lever to the “RUN” position.

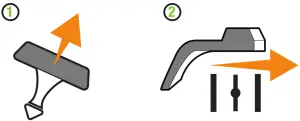

Manual Start

1. Pull the starter cord.
2.  Move the choke lever to the “RUN” position.

10b. Propane

Electric Start

1. Press and hold the ignition switch to the “START” position.
2. Move the choke lever to the “RUN” position.

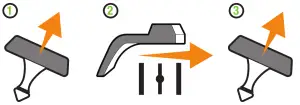

Manual Start

1. Pull the starter cord 1-3 times until you feel some combustion pulses.
2. Move the choke lever to the “RUN” position.
3. Pull the starter cord.

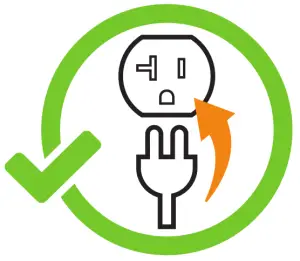

11. Plugin.  Operation > Connecting Electrical Loads.
NEED ASSISTANCE OR HAVE A QUESTION? GIVE US A CALL.

1•877•338•0999
CHAMPIONPOWEREQUIPMENT.COM
www.championpowerequipment.com
© Champion Power Equipment 2021.
All Rights Reserved.
