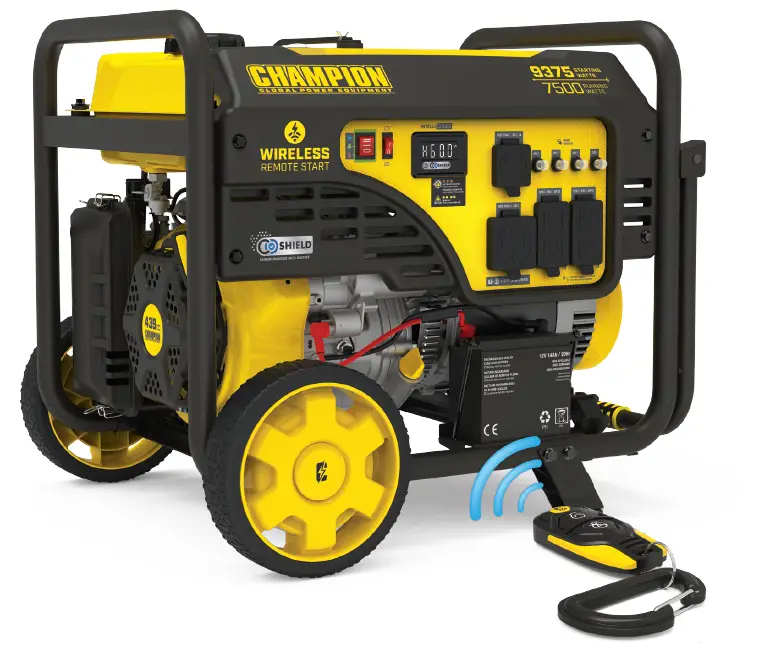

CHAMPION POWER EQUIPMENT QUICK START 7500W Wireless Start Generator

WARNING:

Read the ENTIRE operator’s manual to become familiar with the features of the product before operating.
Failure to operate the product correctly can result in damage to the product, and personal property and cause serious injury or even death.

Set-Up

1. Open shipping carton. Assembly > Unboxing

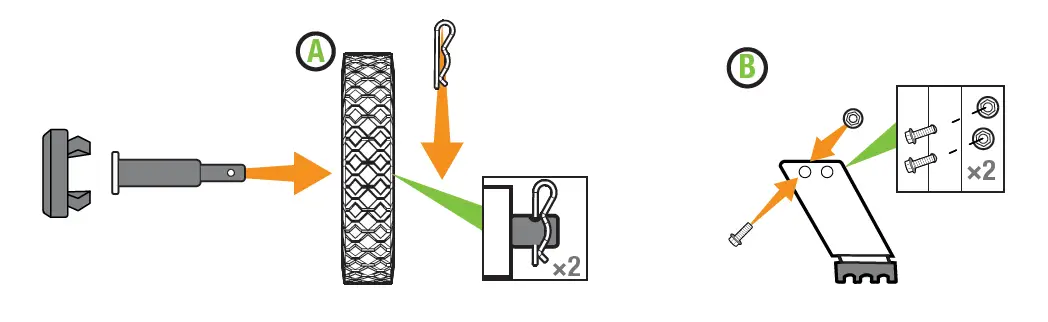

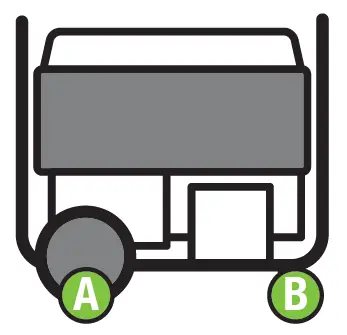

2. Attach wheel kit. Assembly > Install Wheel Kit

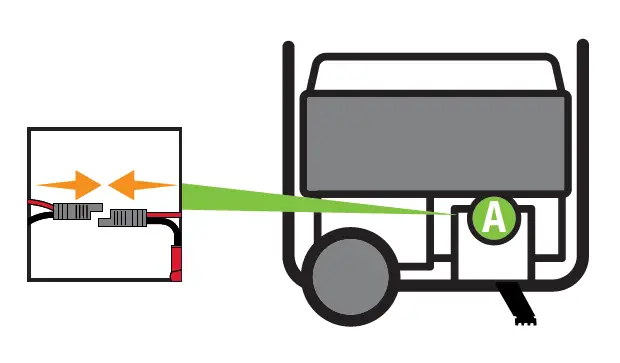

3. Connect the battery. Assembly > Connect the Battery.
   • Cut cable tie on each side of the battery connector.
   • Push two halves of the battery connector together tightly.

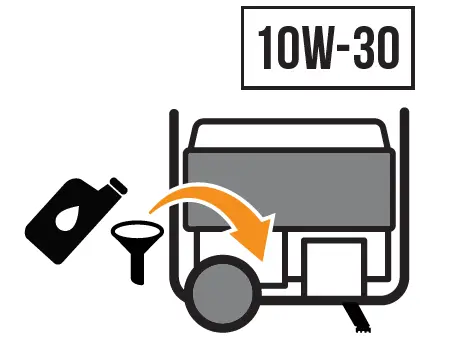

4. Add oil. Assembly > Add Engine Oil.
   Recommended: 10W-30, up to 37.2 fl. oz. (1100 ml) DO NOT overfill.
5. Move the generator outdoors.
   Move generator to an open, outdoor area.
   Point exhaust away. Never run a generator in enclosed areas (e.g., not in house or garage). Keep all objects at least 5 feet (1.5 m) from the generator. The heat from the muffler and exhaust gas can ignite combustible materials.

Start Up

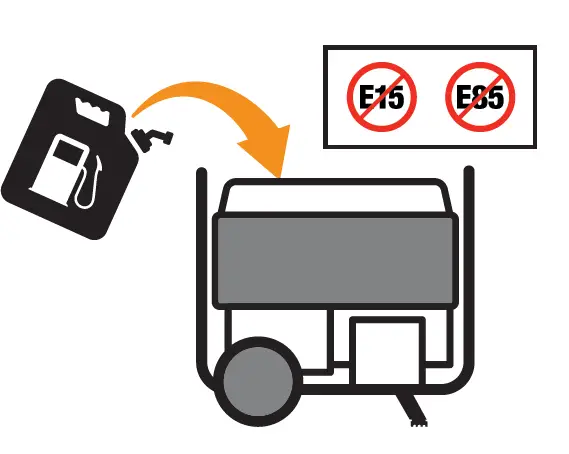

1. Add fuel. Assembly > Add Fuel
   DO NOT use E15 or E85.
2. DO NOT plug in any electrical devices.
   NEVER START OR STOP THE GENERATOR WITH ELECTRICAL DEVICES CONNECTED OR TURNED ON!

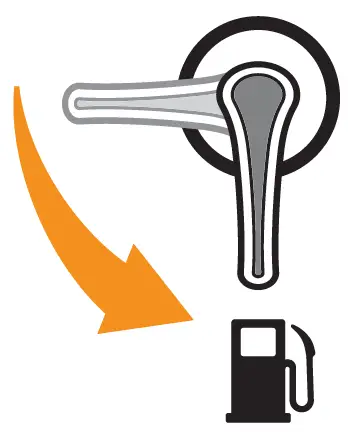

3. Turn the fuel valve “ON”.

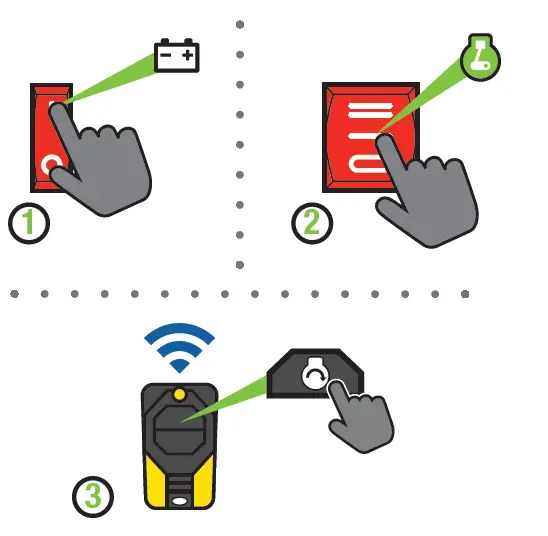

   1. Wireless Start
      1. Push the battery switch to the “ON” position.
      2. Push the ignition switch to the “ON” position.
      3. Press and release the “START” button on the remote key fob.
   2. Electric Start

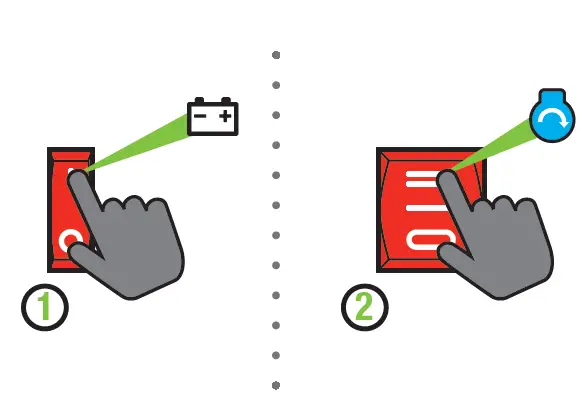

      1. Push the battery switch to the “ON” position.
      2. Press and hold the ignition switch to the “START” position.

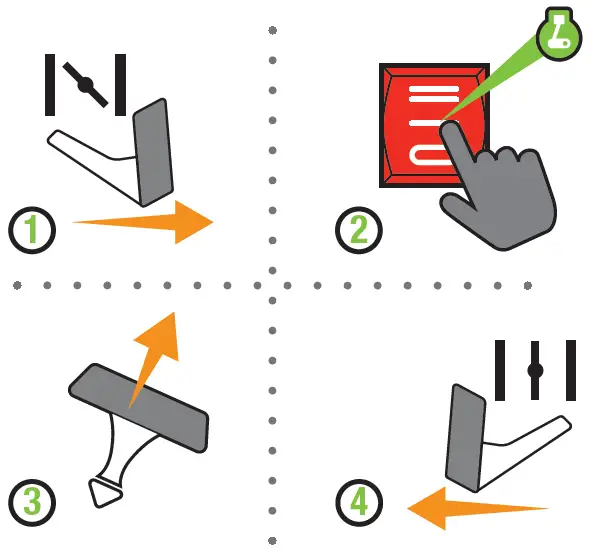

   3. Manual Start
      1. Move the choke lever to the “CHOKE” position.
      2. Push the ignition switch to the “ON” position.
      3. Pull the starter cord.
      4. Move the choke lever to the “RUN” position.

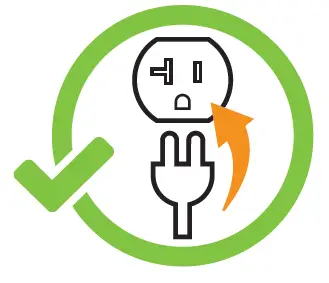

4. Plug in. ° Operation > Connecting Electrical Loads.
