CHAMPION 9200W Electric Start Generator 100485 User Guide
Set Up / Montaje

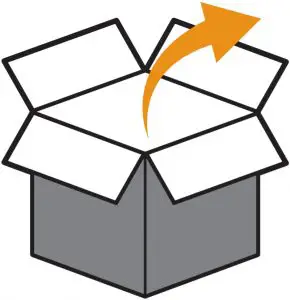

1. Open shipping carton.
Assembly > Unpacking

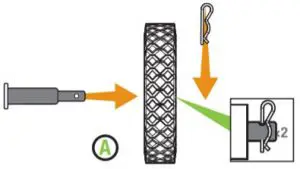

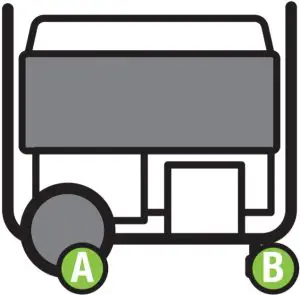

2. Attach wheel kit. Assembly > Install the Wheel Kit.

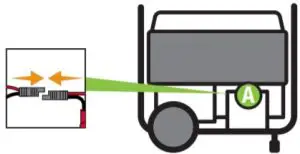

3. Connect the battery. Assembly > Connect the Battery.
Cut cable tie on each side of battery connector.
Push two halves of battery connector together tightly.
4. Add oil. Assembly > Add Engine Oil.
Recommended: 10W-30, up to 37.2 fl. oz. (1100 ml) DO NOT overfill.
Start Up / Arrancar
5. Move the generator outdoors
Move generator to an open, outdoor area. Point exhaust away. Never run generator in enclosed areas (e.g., not in house or garage).

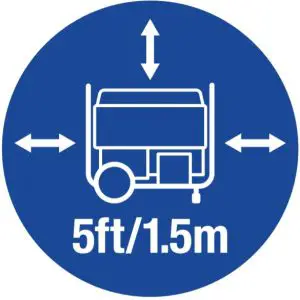

Keep all objects at least 5 feet (1.5 m) from generator. Heat from the muffler and exhaust gas can ignite combustible materials.

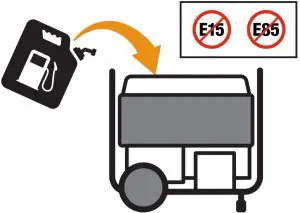

6. Add fuel. Assembly > Add Fuel
DO NOT use E15 or E85.

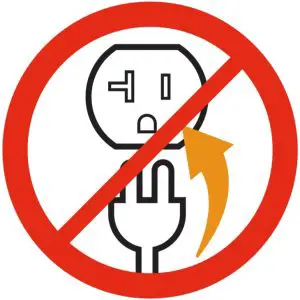

7. DO NOT plug in any electrical devices.
NEVER START OR STOP THE GENERATOR WITH ELECTRICAL DEVICES CONNECTED OR TURNED ON!

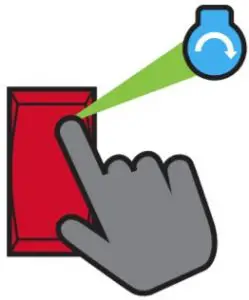

8a. Electric Start
Press and hold the ignition switch to the “START” position.THE ELECTRONIC FUEL SYSTEM REQUIRES BATTERY POWER IN ORDER TO START THE GENERATOR. CHARGE BATTERY PRIOR TO STARTING.
Start Up / Arrancar
8b. Manual Start
1. Push the ignition switch to the “ON” position.
2. Pull the starter cord.

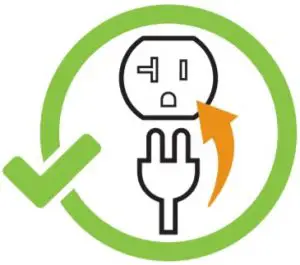

9. Plug in. Operation > Connecting Electrical Loads

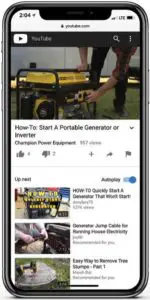

Visit our YouTube channel to watch our how-to videos and subscribe to view our latest videos on our Champion Power Equipment products!
