Wall luminaire
24 470
Instructions for use
Application
Wall luminaire with two-sided light distribution opening.
Fully glare free light for lighting wall surfaces.
For interior or exterior lighting design.
Product description
Luminaire made of aluminium alloy and stainless steel

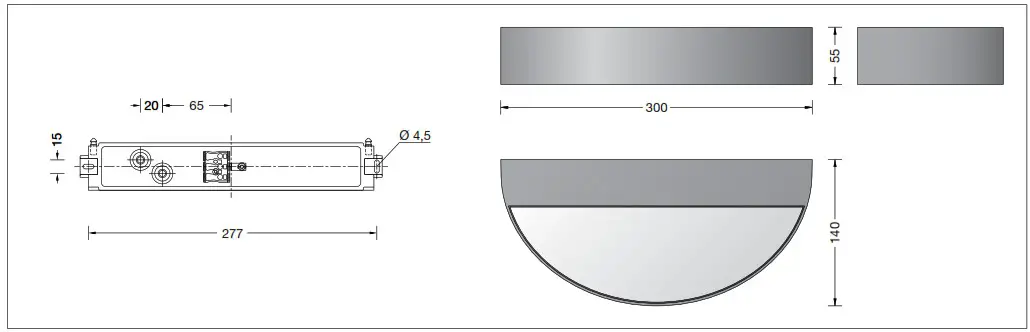

BEGA Unidure® coating technology Safety glass, white Silicone gasket 2 elongated fixing holes Width 4.5 mm · 277 mm spacing 2 cable entries for through-wiring of mains supply cable ø 7-10.5 mm Connection terminal 2.5@ Earth conductor connection BEGA Ultimate Driver ® LED power supply unit 220-240 V ≂ 0/50-60 Hz DC 176-264 V BEGA Thermal Switch ® Temporary thermal shutdown to protect temperature-sensitive components
Safety class I
Protection class IP 65
Dust-tight and protection against water jets Impact strength IK05 Protection against mechanical impacts < 0.7 joule
– Safety mark
– Conformity mark
Weight: 1.5 kg This product contains light sources of energy efficiency class(es) B, C
Safety
The installation and operation of this luminaire are subject to national safety regulations.
Installation and commissioning may only be carried out by a qualified electrician.
The manufacturer accepts no liability for damage caused by improper use or installation.
If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.
Overvoltage protection
The electronic components installed in the luminaire are protected against overvoltage in accordance with DIN EN 61547.
To achieve an additional protection against e. g. transients, etc. we recommend separate overvoltage protection components.
You can find them on our website at www.bega.com.
Lamp
| Module connected wattage | 5.7 W |
| Luminaire connected wattage | 6.8 W |
| Rated temperature | ta = 25 °C |
| Ambient temperature | ta max = 50 °C |
24 470 K3
| Module designation | LED-0274/830 |
| Colour temperature | 3000 K |
| Colour rendering index | CRI > 80 |
| Module luminous flux | 1135 lm |
| Luminaire luminous flux | 573 lm |
| Luminaire luminous efficiency | 84,3 lm / W |
24 470 K4
| Module designation | LED-0274/840 |
| Colour temperature | 4000 K |
| Colour rendering index | CRI > 80 |
| Module luminous flux | 1170 lm |
| Luminaire luminous flux | 591 lm |
| Luminaire luminous efficiency | 86,9 lm / W |
Installation
Undo hexagon socket head screws (wrench size 3 mm) through the opening in the luminaire housing up to the stop and lift luminaire top.
Disconnect plug-connection of the LED connecting cable.
Lead the mains supply cable through the cable entry of the luminaire base.
Fix luminaire base with enclosed or any other suitable fixing material onto the mounting surface.
Make earth conductor connection.
Push silicone sleeves over the lines and make electrical connection.
In order to guarantee the maximum service life of the electrical components, the enclosed desiccant pouch must be placed in the luminaire.
Remove the desiccant pouch from the foil packaging and place it in the position marked by the red information label immediately before finally closing the luminaire.
Make earth conductor connection between luminaire top and luminaire base.
Connect the LED connection cable by means of a plug connector.
Make sure that gasket is positioned correctly.
Install the luminaire top, press-on and tighten screws evenly.
Please ensure that no cables are pinched by the luminaire top.
Cleaning · Maintenance
Clean luminaire regularly with solvent-free cleansers from dirt and deposits.
Do not use high pressure cleaners.
Replacing the LED module
The designation of the LED module is noted on a label in the luminaire.
The light colour and light output of BEGA replacement modules correspond to those of the modules originally fitted.
The module can be replaced by qualified persons using standard tools.
Disconnect the system and open the luminaire.
Please follow the installation instructions for the LED module.
Inspect and, if necessary, replace the luminaire gaskets.
Defective glass must be replaced.
Close the luminaire.
Spares
| Housing + Glass graphite | 25 000 066 |
| Housing + Glass silver | 25 000 067 |
| Housing + Glass white | 25 000 068 |
| LED power supply unit | DEV-0304/350 |
| LED module 3000 K | LED-0274/830 |
| LED module 4000 K | LED-0274/840 |
| Gasket | 83 001 440 |
BEGA Gantenbrink-Leuchten KG · Postfach 31 60 · 58689 Menden · [email protected] · www.bega.com
BEGA · Das gute Licht.
