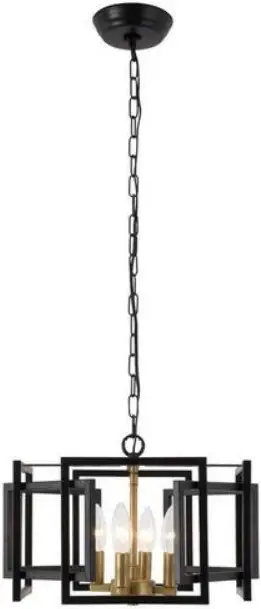

Maxax MX19169-4BG-P Hartford 4-Light Black-Gold Small Chandelier Instruction Manual

Dear Customer:
Thank you for your business!
If you have any questions or problems, please send us an email to [email protected] or call us at 469-312-6428. We will do everything possible to make you completely satisfied with your purchase.
Product reviews help future customers to make their purchase decision. You are encouraged to share your experience by leaving a short product review on the platform where you bought this product.
Thank you!
Zgear Team

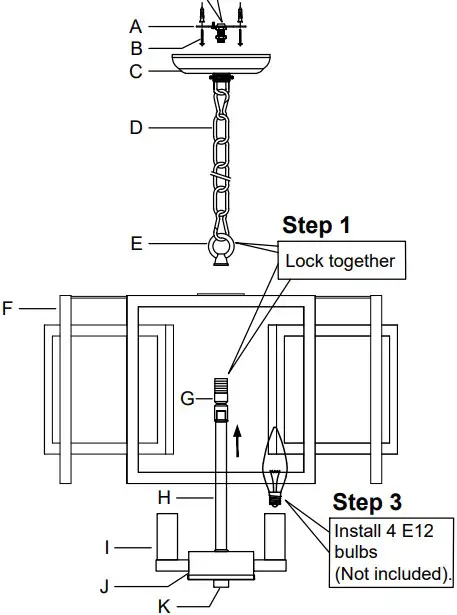

Assembly & Installation Instructions

Warning: If any special control devices are used with this fixture, follow the instructions carefully to assure full compliance with N.E.C.requirements. If there are any questions, contact a qualified electric contractor.

Warning: California Residents Proposition 65 This product contains lead, a chemical known to the state of California to cause cancer and birth defects or other reproductive harm. Do not place the product in your mouth. Wash your hands after handling this product.

Caution: It is highly recommended to get an electrician to install this light. Please make sure to turn the electricity off at the main circuit breaker before beginning installation. All glass is fragile.Use care when handling glass component(s)and/or lamp(s)

Step 2

2A. Lock the crossbar to the junction box of the ceiling by using 2 pcs of 5/32 screws in the accessories bag.
2B. Connect the wires. The hot/positive (+) wire is the one which has writing on it. The negative (-) wire is the one which has no writing.
2C. Cover the celing canopy and attach the  screws to the canopy

( Rated 110-130V/60Hz, bulb 60W maximum.)

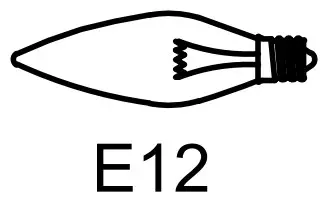

• Light Bulb  (Not included)

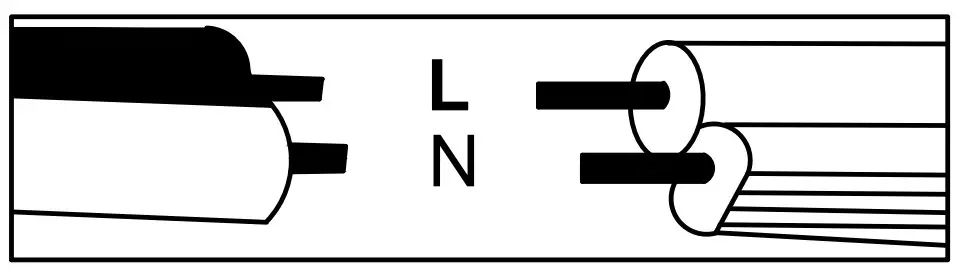

WIRE CONNECTION DIAGRAM

Wires meeting safety standards are required toconnect the electrical circuit.

CAUTION: Risk of fire

Please read all instructions carefully. Before youproceed to install, make sure that the power supplyis turned off and remains off until installation iscompleted.

PARTS INCLUDED
