SSS SIEDLE ECE 602-0 Entrance Controller Extension

Entrance controller extension

Application

ECE 602-0 entrance controller extension in switch panel housing for extending the EC 602-… entrance controller by a further six switching contacts (potential-free normally open contact). One extension can be connected via ribbon cable per controller.

Electrical voltage
Mounting, installation and servicing work on electrical devices may only be performed by a suitably qualified electrician

Scope of supply

Entrance controller extension ECE 602-…
Ribbon cable (approx. 11 cm; with plug at each end)
This product information

Terminal assignment (potential-free)

S1, S2 Relay 1
S3, S4 Relay 2
S5, S6 Relay 3
S7, S8 Relay 4
S9, S10 Relay 5
S11, S12 Relay 6

Mounting and installation

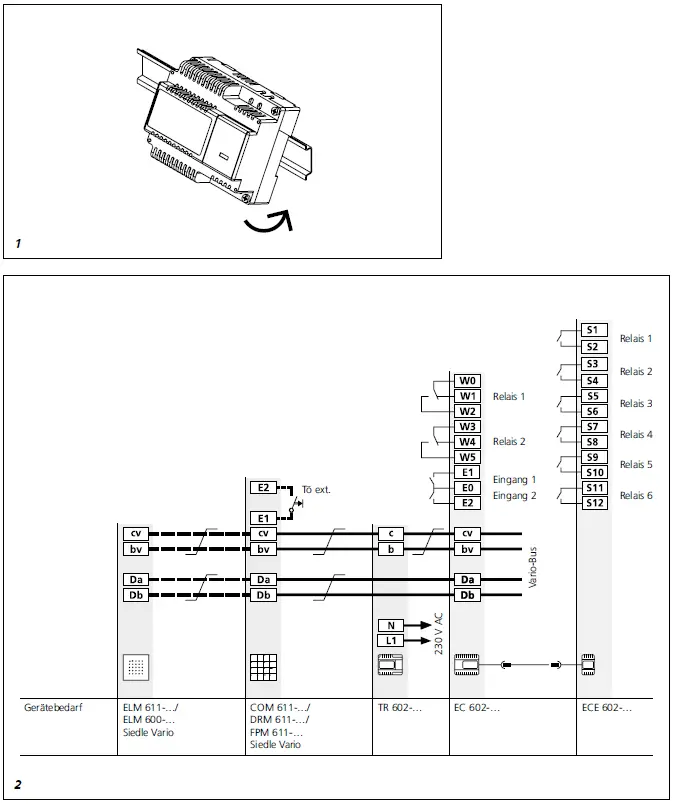

Mount the Entrance controller extension ECE 602-… on the top hat rail on the right next to the Entrance controller EC 602-… or in the next row.
(not illustrated):
Connect Entrance controller EC 602-… and Entrance controller extension ECE 602-… using the provided ribbon cable.
Install in accordance with the wiring diagram.

Note
If a longer ribbon cable is required (max. 35 cm) due to interlacing or a larger spacing between devices, the ZRCE 602-… ribbon connecting cable can be ordered.

Important!
The access control components contained in the wiring diagram are equipped with pre-installable terminals. If required, the housing can be opened and the terminals pulled out together with the connected installation.
