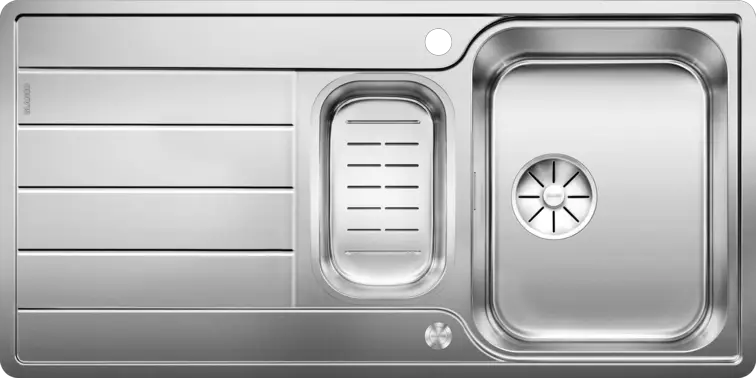

BLANCO CLASSIMO 6 S-IF InFino Stainless Steel Brushed Both Sides Instructions

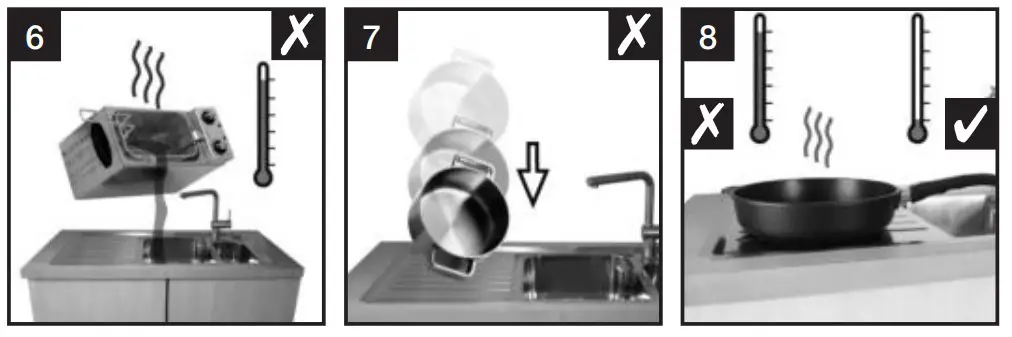

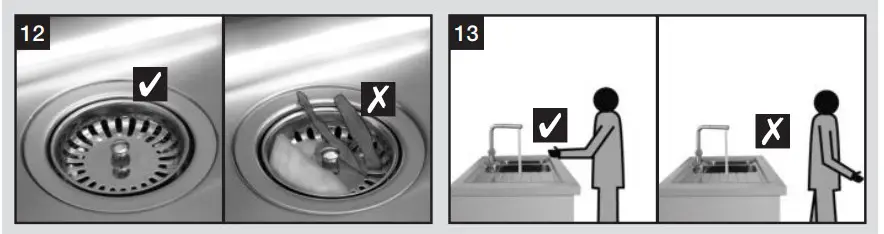

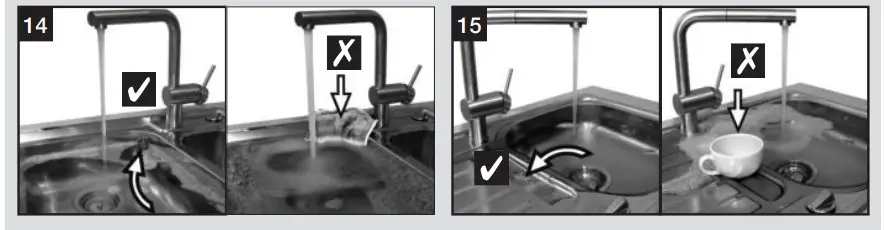

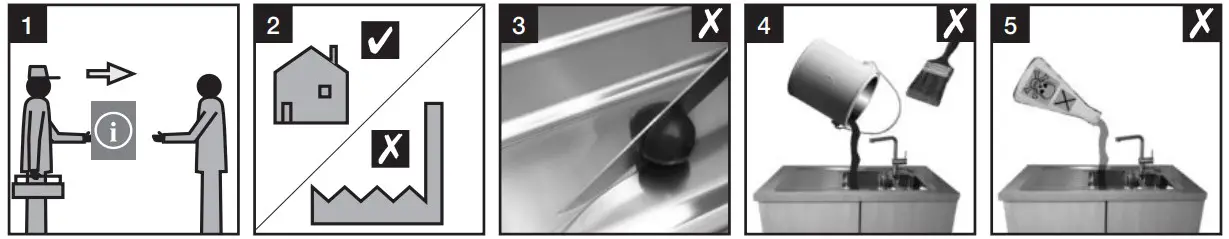

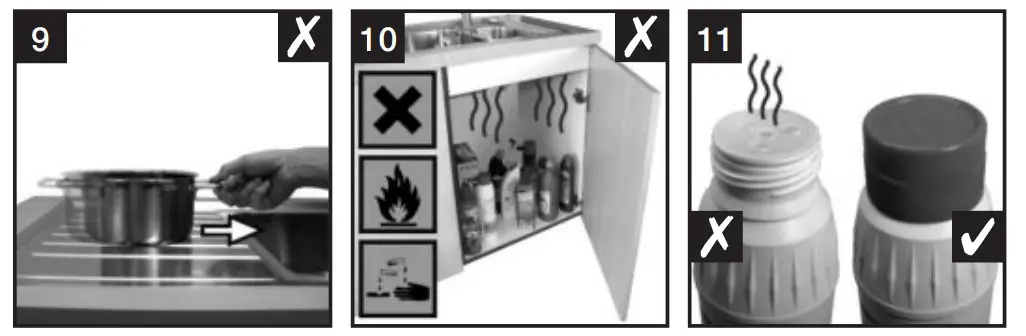

HOW TO USE
OK
not OK

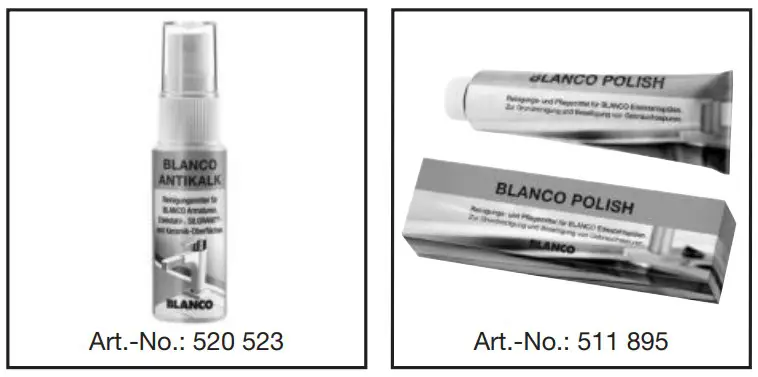

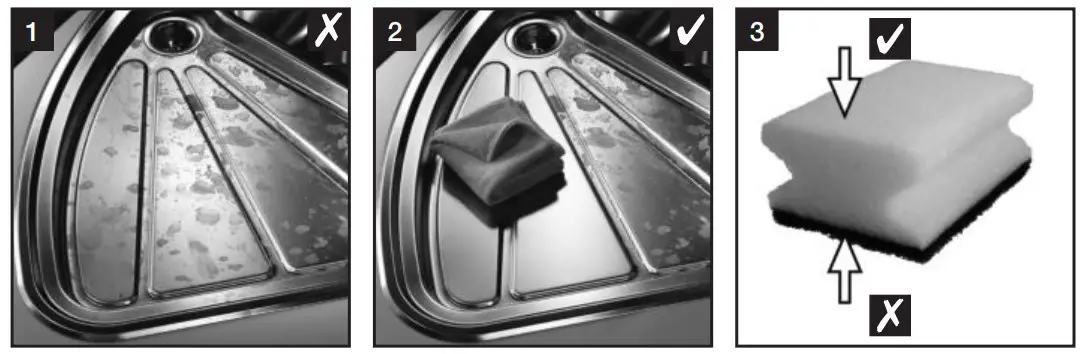

HOW TO CLEANING

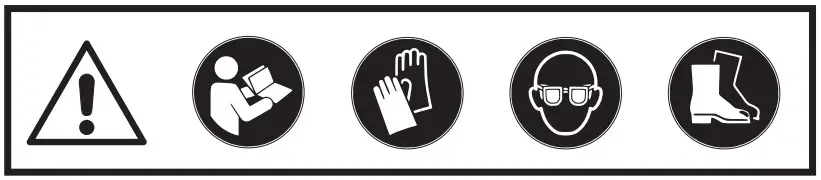

IMPORTANT ICON

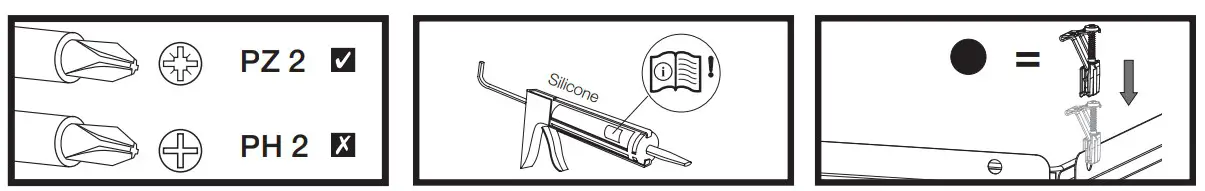

TOOLS

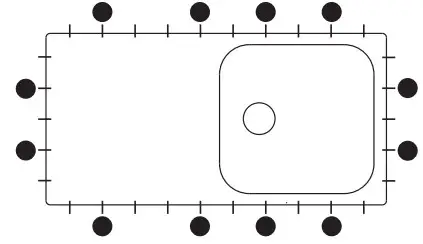

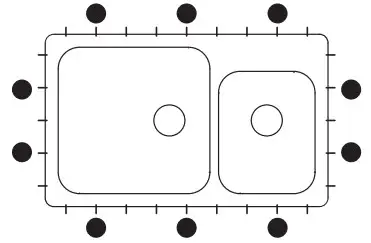

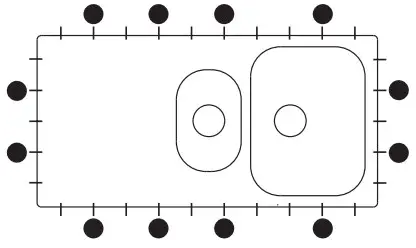

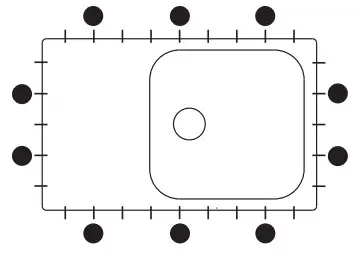

INSTRUCTION
- BLANCO LEMIS 45 S-IF Mini
- BLANCO CLASSIMO 45 S-IF BLANCO LEMIS 45 S-IF
- BLANCO LEMIS 6-IF
- BLANCO CLASSIMO 6 S-IF BLANCO LEMIS 6 S-IF
- BLANCO LEMIS XL 6 S -IF COMPACT
- BLANCO CLASSIMO XL 6 S-IF BLANCO LEMIS XL 6 S-IF
- BLANCO CLASSIMO 8 S – IF BLANCO LEMIS 8 S-IF
- BLANCO CLASSIMO 8 S – IF BLANCO LEMIS 8 S-IF
- BLANCO LEMIS XL 8 -IF

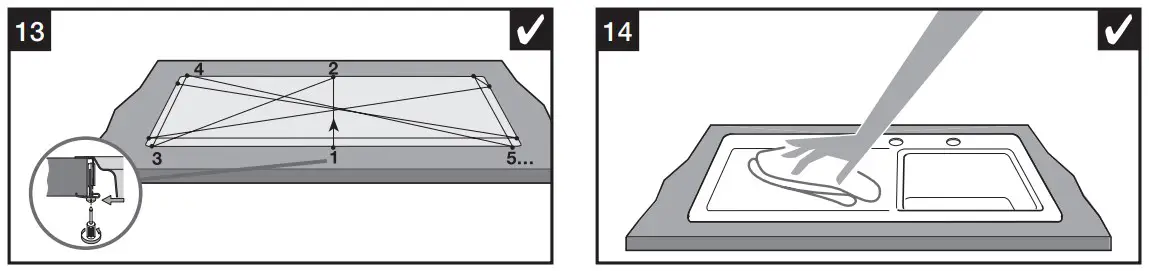

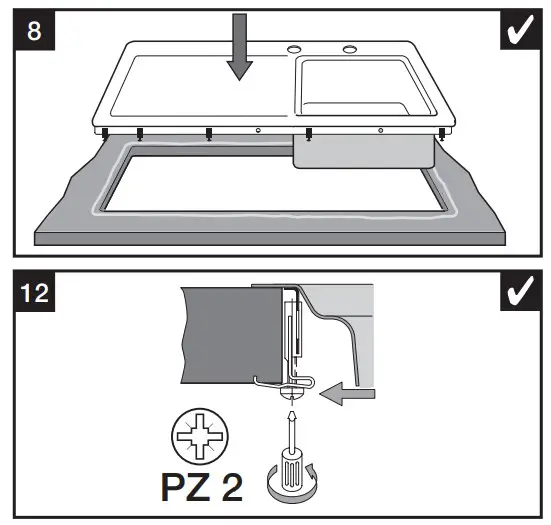

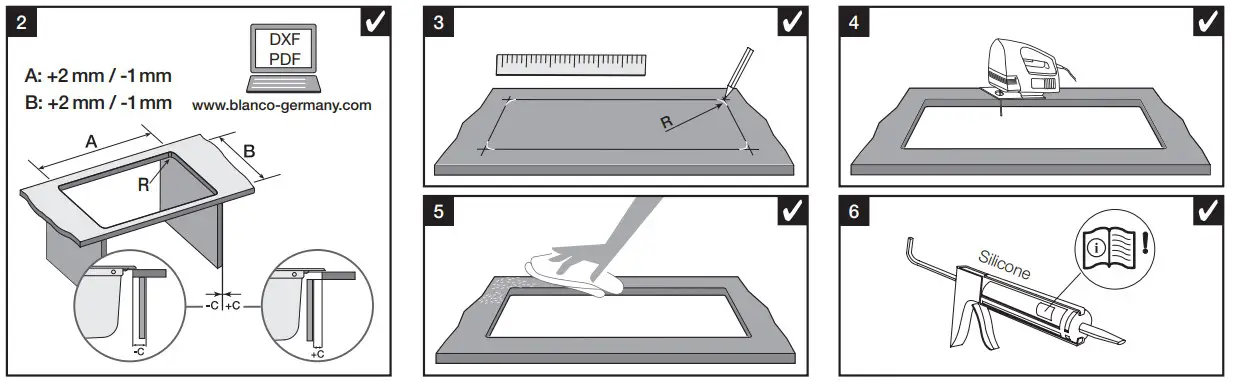

INDUCTION
| +2mm /-1mm | R | C | ||
| A | B | |||
| BLANCO LEMIS 45 S-IF Mini | 585 mm | 480 mm | 15 mm | +1 mm |
| BLANCO CLASSIMO 45 S-IF | 840 mm | 480 mm | 15 mm | +1 mm |
| BLANCO LEMIS 45 S-IF | 840 mm | 480 mm | 15 mm | +1 mm |
| BLANCO LEMIS 6-IF | 595 mm | 480 mm | 15 mm | -2,5 mm |
| BLANCO CLASSIMO 6 S-IF | 980 mm | 480 mm | 15 mm | 0 mm |
| BLANCO LEMIS 6 S-IF | 980 mm | 480 mm | 15 mm | 0 mm |
| BLANCO LEMIS XL 6 S-IF Compact | 760 mm | 480 mm | 15 mm | -24 mm |
| BLANCO CLASSIMO XL 6 S-IF | 980 mm | 480 mm | 15 mm | -27 mm |
| BLANCO LEMIS XL 6 S-IF | 980 mm | 480 mm | 15 mm | -27 mm |
| BLANCO CLASSIMO 8 S-IF | 1140 mm | 480 mm | 15 mm | +7 mm |
| BLANCO LEMIS 8 S-IF | 1140 mm | 480 mm | 15 mm | +7 mm |
| BLANCO CLASSIMO 8–IF | 840 mm | 480 mm | 15 mm | +20 mm |
| BLANCO LEMIS 8–IF | 840 mm | 480 mm | 15 mm | +20 mm |
| BLANCO LEMIS XL 8–IF | 800 mm | 480 mm | 15 mm | 0 mm |

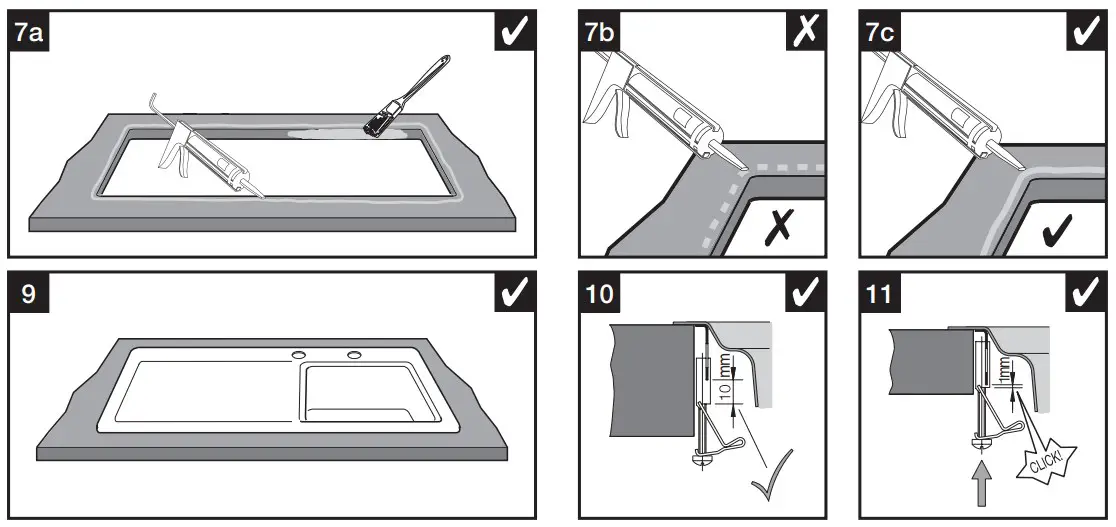

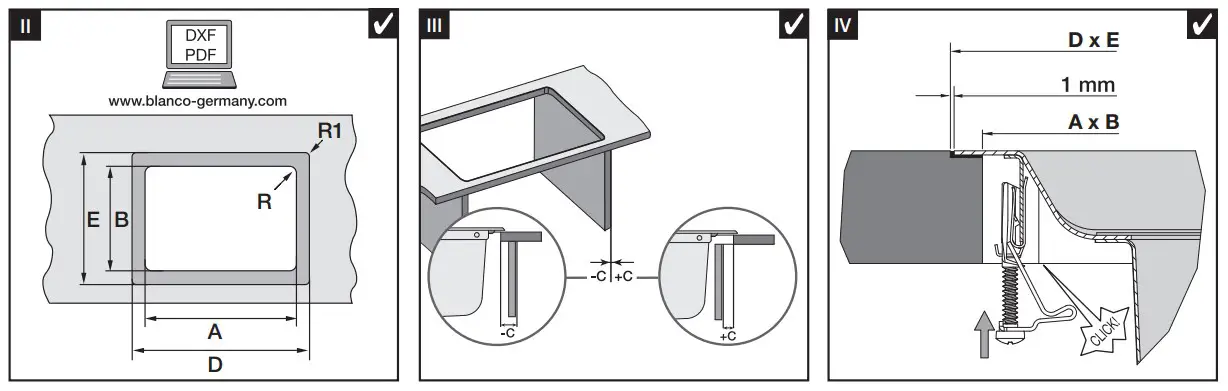

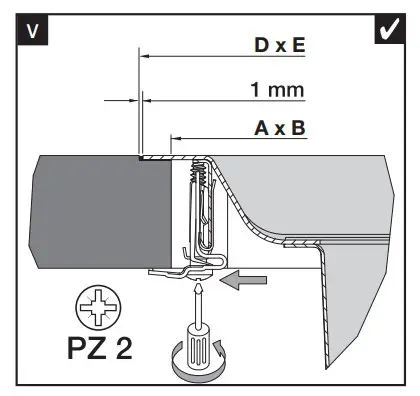

INDUCTION
| +2mm /-1mm | R | C | +1mm /-1mm | -0,5mm R1 | |||
| A | B | D | E | ||||
| BLANCO LEMIS 45 S-IF Mini | 585 mm | 480 mm | 15 mm | +1 mm | 607 mm | 502 mm | 26 mm |
| BLANCO CLASSIMO 45 S-IF | 840 mm | 480 mm | 15 mm | +1 mm | 862 mm | 502 mm | 26 mm |
| BLANCO LEMIS 45 S-IF | 840 mm | 480 mm | 15 mm | +1 mm | 862 mm | 502 mm | 26 mm |
| BLANCO LEMIS 6-IF | 595 mm | 480 mm | 15 mm | -2,5 mm | 617 mm | 502 mm | 26 mm |
| BLANCO CLASSIMO 6 S-IF | 980 mm | 480 mm | 15 mm | 0 mm | 1002 mm | 502 mm | 26 mm |
| BLANCO LEMIS 6 S-IF | 980 mm | 480 mm | 15 mm | 0 mm | 1002 mm | 502 mm | 26 mm |
| BLANCO LEMIS XL 6 S-IF Compact | 760 mm | 480 mm | 15 mm | -24 mm | 782 mm | 502 mm | 26 mm |
| BLANCO CLASSIMO XL 6 S-IF | 980 mm | 480 mm | 15 mm | -27 mm | 1002 mm | 502 mm | 26 mm |
| BLANCO LEMIS XL 6 S-IF | 980 mm | 480 mm | 15 mm | -27 mm | 1002 mm | 502 mm | 26 mm |
| BLANCO CLASSIMO 8 S-IF | 1140 mm | 480 mm | 15 mm | +7 mm | 1162 mm | 502 mm | 26 mm |
| BLANCO LEMIS 8 S-IF | 1140 mm | 480 mm | 15 mm | +7 mm | 1162 mm | 502 mm | 26 mm |
| BLANCO CLASSIMO 8–IF | 840 mm | 480 mm | 15 mm | +20 mm | 862 mm | 502 mm | 26 mm |
| BLANCO LEMIS 8–IF | 840 mm | 480 mm | 15 mm | +20 mm | 862 mm | 502 mm | 26 mm |
| BLANCO LEMIS XL 8–IF | 800 mm | 480 mm | 15 mm | 0 mm | 822 mm | 502 mm | 26 mm |
