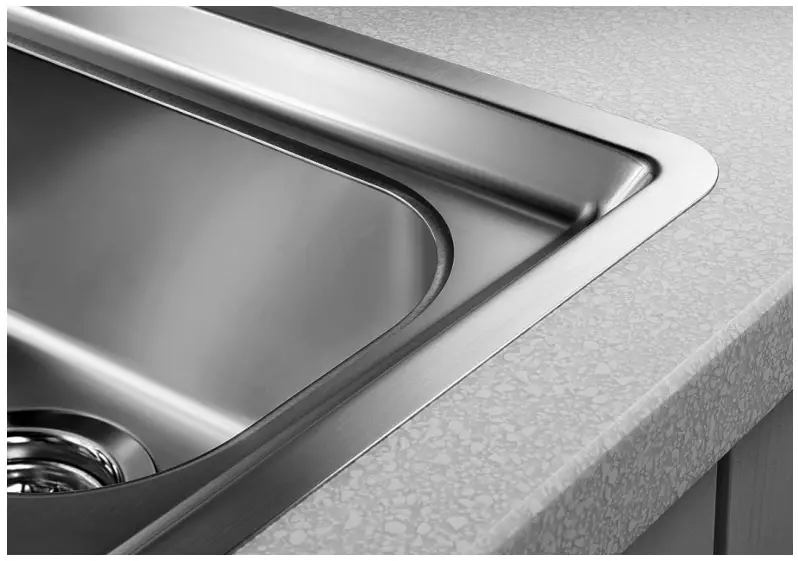

CLSSICO-IF Stainless Steel Brushed Finish Washbasin
Instruction Manual
CLASSICO-IF Stainless Steel Brushed Finish Washbasin
 | ||||
| BLANCO LEMIS 45 S-IF Mini | BLANCO CLASSIMO 45 S-IF BLANCO LEMIS 45 S-IF | BLANCO LEMIS 6-IF | BLANCO CLASSIMO 6 S-IF BLANCO LEMIS 6 S-IF | BLANCO LEMIS 6 S IF compact |
 | |||
| BLANCO CLASSIMO XL 6 S-IF BLANCO LEMIS XL 6 S-IF | BLANCO CLASSIMO XL 8 S-IF BLANCO LEMIS XL 8 S-IF | BLANCO CLASSIMO XL 8 -IF BLANCO LEMIS XL 8-IF | BLANCO LEMIS 6 S IF compact |

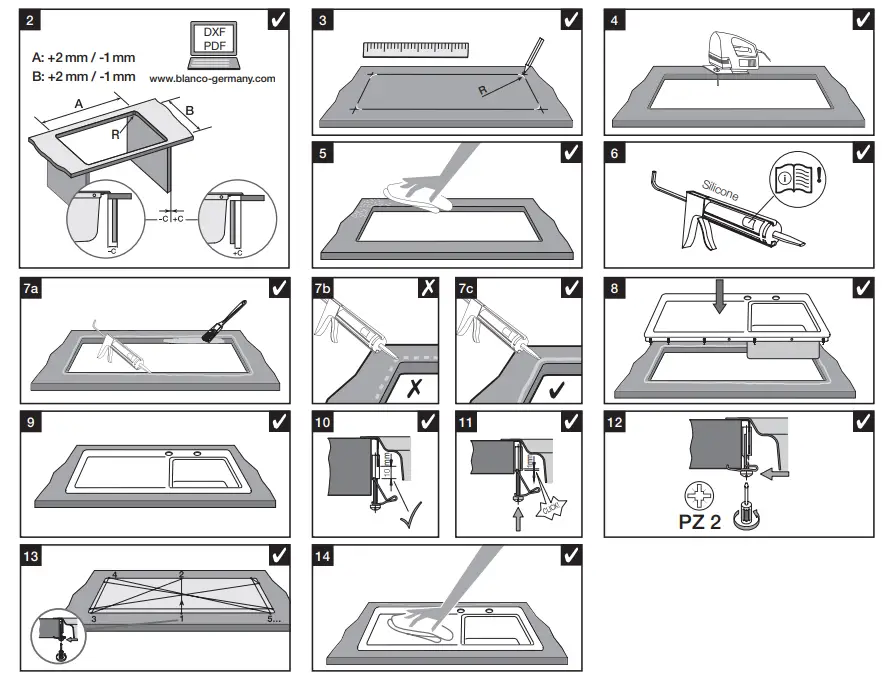

| +2mm /-1mm | ||||
| A | B | R | C | |
| BLANCO LEMIS 45 S-IF Mini | 585 mm | 480 mm | 15 mm | +1 mm |
| BLANCO CLASSIMO 45 S-IF | 840 mm | 480 mm | 15 mm | +1 mm |
| BLANCO LEMIS 45 S-IF | 840 mm | 480 mm | 15 mm | +1 mm |
| BLANCO LEMIS 6-IF | 595 mm | 480 mm | 15 mm | -2,5 mm |
| BLANCO CLASSIMO 6 S-IF | 980 mm | 480 mm | 15 mm | 0 mm |
| BLANCO LEMIS 6 S-IF | 980 mm | 480 mm | 15 mm | 0 mm |
| BLANCO LEMIS XL 6 S-IF Compact | 760 mm | 480 mm | 15 mm | -24 mm |
| BLANCO CLASSIMO XL 6 S-IF | 980 mm | 480 mm | 15 mm | -27 mm |
| BLANCO LEMIS XL 6 S-IF | 980 mm | 480 mm | 15 mm | -27 mm |
| BLANCO CLASSIMO 8 S-IF | 1140 mm | 480 mm | 15 mm | +7 mm |
| BLANCO LEMIS 8 S-IF | 1140 mm | 480 mm | 15 mm | +7 mm |
| BLANCO CLASSIMO 8–IF | 840 mm | 480 mm | 15 mm | +20 mm |
| BLANCO LEMIS 8–IF | 840 mm | 480 mm | 15 mm | +20 mm |
| BLANCO LEMIS XL 8–IF | 800 mm | 480 mm | 15 mm | 0 mm |

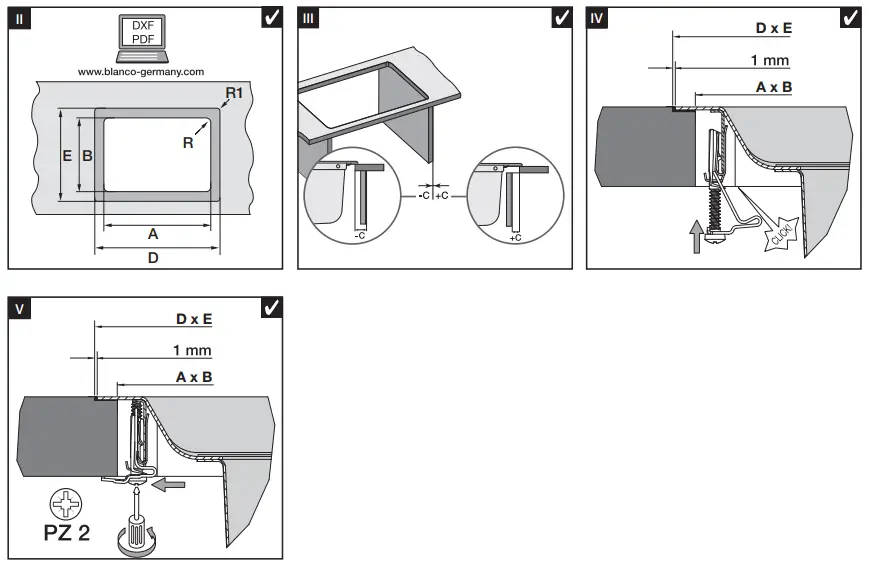

| +2mm /-1mm | +1mm /-1mm | -0,5mm | |||||
| A | B | R | C | D | E | R1 | |
| BLANCO LEMIS 45 S-IF Mini | 585 mm | 480 mm | 15 mm | +1 mm | 607 mm | 502 mm | 26 mm |
| BLANCO CLASSIMO 45 S-IF | 840 mm | 480 mm | 15 mm | +1 mm | 862 mm | 502 mm | 26 mm |
| BLANCO LEMIS 45 S-IF | 840 mm | 480 mm | 15 mm | +1 mm | 862 mm | 502 mm | 26 mm |
| BLANCO LEMIS 6-IF | 595 mm | 480 mm | 15 mm | -2,5 mm | 617 mm | 502 mm | 26 mm |
| BLANCO CLASSIMO 6 S-IF | 980 mm | 480 mm | 15 mm | 0 mm | 1002 mm | 502 mm | 26 mm |
| BLANCO LEMIS 6 S-IF | 980 mm | 480 mm | 15 mm | 0 mm | 1002 mm | 502 mm | 26 mm |
| BLANCO LEMIS XL 6 S-IF Compact | 760 mm | 480 mm | 15 mm | -24 mm | 782 mm | 502 mm | 26 mm |
| BLANCO CLASSIMO XL 6 S-IF | 980 mm | 480 mm | 15 mm | -27 mm | 1002 mm | 502 mm | 26 mm |
| BLANCO LEMIS XL 6 S-IF | 980 mm | 480 mm | 15 mm | -27 mm | 1002 mm | 502 mm | 26 mm |
| BLANCO CLASSIMO 8 S-IF | 1140 mm | 480 mm | 15 mm | +7 mm | 1162 mm | 502 mm | 26 mm |
| BLANCO LEMIS 8 S-IF | 1140 mm | 480 mm | 15 mm | +7 mm | 1162 mm | 502 mm | 26 mm |
| BLANCO CLASSIMO 8–IF | 840 mm | 480 mm | 15 mm | +20 mm | 862 mm | 502 mm | 26 mm |
| BLANCO LEMIS 8–IF | 840 mm | 480 mm | 15 mm | +20 mm | 862 mm | 502 mm | 26 mm |
| BLANCO LEMIS XL 8–IF | 800 mm | 480 mm | 15 mm | 0 mm | 822 mm | 502 mm | 26 mm |
BLANCO GmbH + Co KG
Service
Tel.: +49 7045 44-81 419
[email protected]
www.blanco-germany.com
