BLANCO 525322 Stainless Steel Natural Finish
Installation Instructions

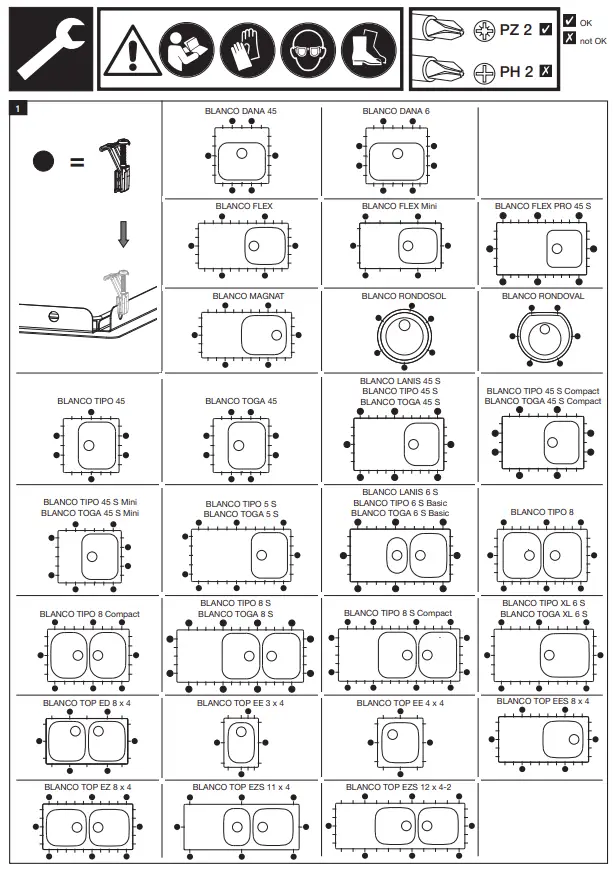

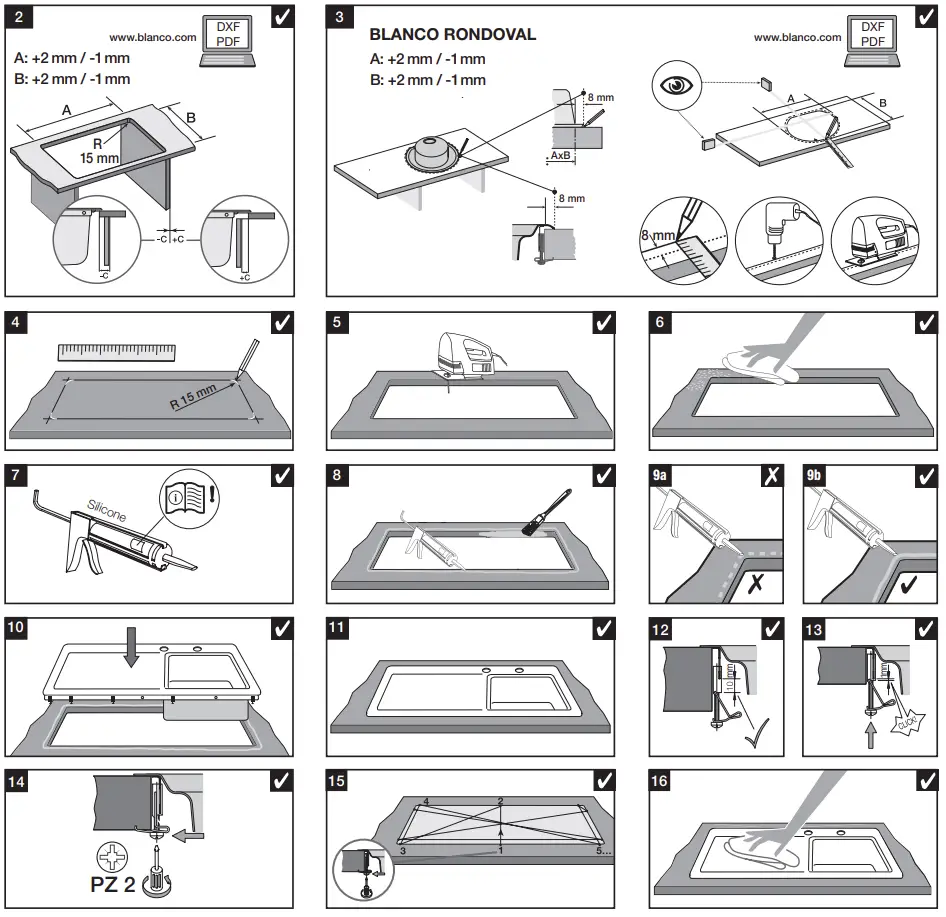

| +2mm / -1mm | C | ||
| A | B | ||
| BLANCO DANA 45 | 462 mm | 482 mm | +6 mm |
| BLANCO DANA 6 | 587 mm | 482 mm | -6,5 mm |
| BLANCO FLEX | 842 mm | 417 mm | +7 mm |
| BLANCO FLEX Mini | 762 mm | 417 mm | +7 mm |
| BLANCO FLEX PRO 45 S | 842 mm | 462 mm | +11 mm |
| BLANCO LANIS 45 S | 842 mm | 482 mm | +10 mm |
| BLANCO LANIS 6 S | 932 mm | 482 mm | +9 mm |
| BLANCO MAGNAT | 842 mm | 417 mm | -20 mm |
| BLANCO RONDOSOL | Ø 444 mm | – | -3 mm |
| BLANCO RONDOVAL | 519 mm | 474 mm | +34,5 mm |
| BLANCO TIPO 45 | 462 mm | 482 mm | +22 mm |
| BLANCO TIPO 45 S | 842 mm | 482 mm | +10 mm |
| BLANCO TIPO 45 S Compact | 762 mm | 482 mm | +10 mm |
| BLANCO TIPO 45 S Mini | 587 mm | 482 mm | +6 mm |
| BLANCO TIPO 5 S | 932 mm | 482 mm | +11,5 mm |
| BLANCO TIPO 6 S Basic | 932 mm | 482 mm | +9 mm |
| BLANCO TIPO 8 | 842 mm | 482 mm | +21 mm |
| BLANCO TIPO 8 Compact | 762 mm | 482 mm | -19 mm |
| +2mm / -1mm | C | ||
| A | B | ||
| BLANCO TIPO 8 S | 1192 mm | 482 mm | -4 mm |
| BLANCO TIPO 8 S Compact | 1140 mm | 480 mm | -5 mm |
| BLANCO TIPO XL 6 S | 932 mm | 482 mm | -6 mm |
| BLANCO TOGA 45 | 462 mm | 482 mm | +6 mm |
| BLANCO TOGA 45 S | 842 mm | 482 mm | +10 mm |
| BLANCO TOGA 45 S Compact | 762 mm | 482 mm | +10 mm |
| BLANCO TOGA 45 S Mini | 587 mm | 482 mm | +6 mm |
| BLANCO TOGA 5 S | 932 mm | 482 mm | +11,5 mm |
| BLANCO TOGA 6 S Basic | 932 mm | 482 mm | +9 mm |
| BLANCO TOGA XL 6 S | 932 mm | 482 mm | -6 mm |
| BLANCO TOGA 8 S | 1192 mm | 482 mm | -4 mm |
| BLANCO TOP ED 8 x 4 | 762 mm | 417 mm | -19 mm |
| BLANCO TOP EE 3 x 4 | 312 mm | 452 mm | +6 mm |
| BLANCO TOP EE 4 x 4 | 417 mm | 452 mm | -16,5 mm |
| BLANCO TOP EES 8 x 4 | 842 mm | 417 mm | -4 mm |
| BLANCO TOP EZ 8 x 4 | 842 mm | 417 mm | -29 mm |
| BLANCO TOP EZS 11 x 4 | 1082 mm | 417 mm | -19 mm |
| BLANCO TOP EZS 12 x 4-2 | 1217 mm | 417 mm | +1 mm |
