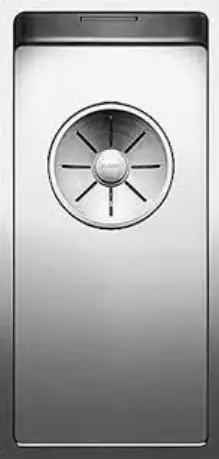

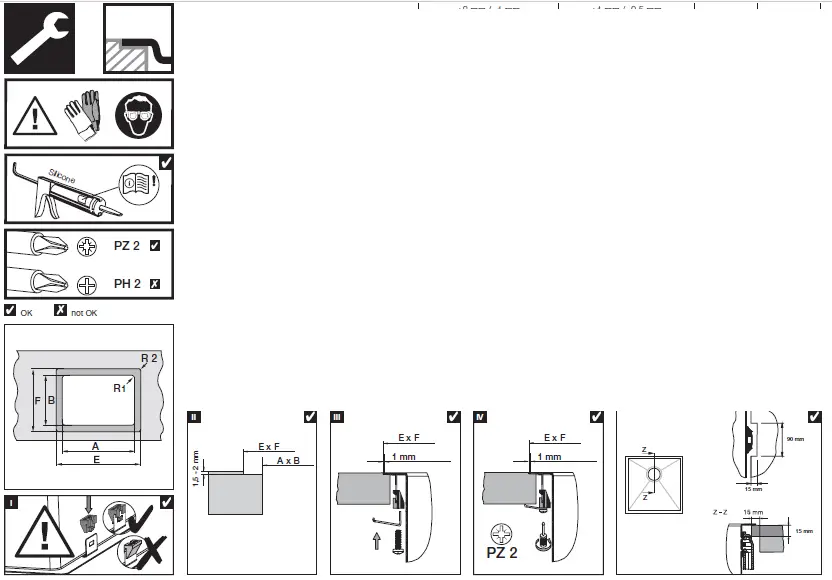

BLANCO CLARON 180-IF Stainless Steel Satin Polish

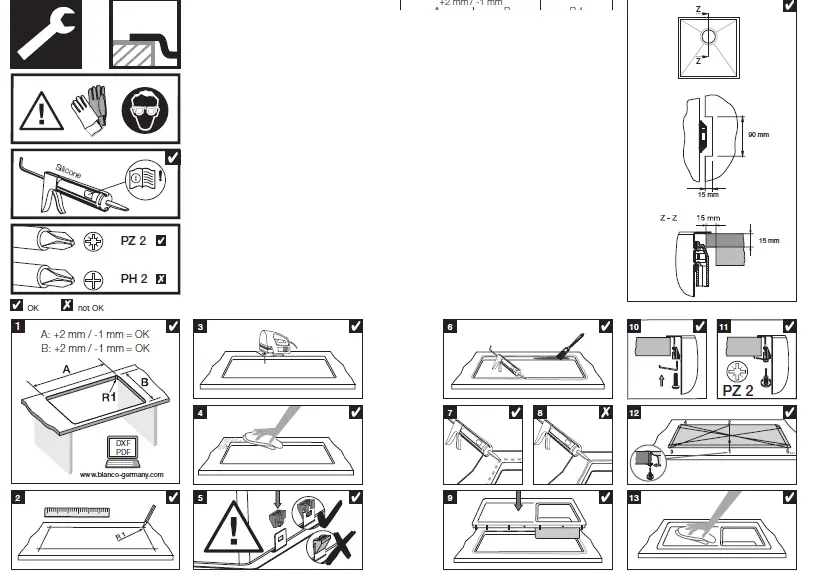

Instruction
| +2 mm / -1 mm | R 1 | ||
| A | B | ||
| BLANCO ZEROX 180-IF/N | 210 mm | 430 mm | 0-15 mm |
| BLANCO ZEROX 340-IF/N | 370 mm | 430 mm | 0-15 mm |
| BLANCO ZEROX 400-IF/N | 430 mm | 430 mm | 0-15 mm |
| BLANCO ZEROX 450-IF/N | 480 mm | 430 mm | 0-15 mm |
| BLANCO ZEROX 500-IF/N | 530 mm | 430 mm | 0-15 mm |
| BLANCO ZEROX 550-IF/N | 580 mm | 430 mm | 0-15 mm |
| BLANCO ZEROX 700-IF/N | 730 mm | 430 mm | 0-15 mm |
| BLANCO ZEROX 340/180-IF/N | 575 mm | 430 mm | 0-15 mm |
| BLANCO ZEROX 340/340-IF/N | 735 mm | 430 mm | 0-15 mm |
| BLANCO ZEROX 400/400-IF/N | 855 mm | 430 mm | 0-15 mm |
| BLANCO ZEROX 400/550T-IF/N | 1005 mm | 430 mm | 0-15 mm |
| BLANCO CLARON 180-IF/N | 210 mm | 430 mm | 0-15 mm |
| BLANCO CLARON 340-IF/N | 370 mm | 430 mm | 0-15 mm |
| BLANCO CLARON 400-IF/N | 430 mm | 430 mm | 0-15 mm |
| BLANCO CLARON 450-IF/N | 480 mm | 430 mm | 0-15 mm |
| BLANCO CLARON 500-IF/N | 530 mm | 430 mm | 0-15 mm |
| BLANCO CLARON 550-IF/N | 580 mm | 430 mm | 0-15 mm |
| BLANCO CLARON 550T-IF | 580 mm | 430 mm | 0-15 mm |
| BLANCO CLARON 550-IF/N Dampfgar-Edition | 580 mm | 362 mm | 0-15 mm |
| BLANCO CLARON 700-IF/N | 730 mm | 430 mm | 0-15 mm |
| BLANCO CLARON 340/180-IF/N | 575 mm | 430 mm | 0-15 mm |
| BLANCO CLARON 340/340-IF/N | 735 mm | 430 mm | 0-15 mm |
| BLANCO CLARON 400/400-IF/N | 855 mm | 430 mm | 0-15 mm |
| BLANCO CLARON 400/550T-IF/N | 1005 mm | 430 mm | 0-15 mm |
| BLANCO CLARON XL 60-IF DampfgarPlus | 560 mm | 450 mm | 0-15 mm |
| BLANCO JARON XL 6 S-IF | 915 mm | 430 mm | 25 mm |
| +2 mm / -1 mm | +1 mm / -0,5 mm | R 1 | R 2 | |||
| A | B | E | F | |||
| BLANCO ZEROX 180-IF/N | 210 mm | 430 mm | 222 mm | 442 mm | 0-15 mm | 5 mm |
| BLANCO ZEROX 340-IF/N | 370 mm | 430 mm | 382 mm | 442 mm | 0-15 mm | 5 mm |
| BLANCO ZEROX 400-IF/N | 430 mm | 430 mm | 442 mm | 442 mm | 0-15 mm | 5 mm |
| BLANCO ZEROX 450-IF/N | 480 mm | 430 mm | 492 mm | 442 mm | 0-15 mm | 5 mm |
| BLANCO ZEROX 500-IF/N | 530 mm | 430 mm | 542 mm | 442 mm | 0-15 mm | 5 mm |
| BLANCO ZEROX 550-IF/N | 580 mm | 430 mm | 592 mm | 442 mm | 0-15 mm | 5 mm |
| BLANCO ZEROX 700-IF/N | 730 mm | 430 mm | 742 mm | 442 mm | 0-15 mm | 5 mm |
| BLANCO ZEROX 340/180-IF/N | 575 mm | 430 mm | 587 mm | 442 mm | 0-15 mm | 5 mm |
| BLANCO ZEROX 340/340-IF/N | 735 mm | 430 mm | 747 mm | 442 mm | 0-15 mm | 5 mm |
| BLANCO ZEROX 400/400-IF/N | 855 mm | 430 mm | 867 mm | 442 mm | 0-15 mm | 5 mm |
| BLANCO ZEROX 400/550T-IF/N | 1005 mm | 430 mm | 1017 mm | 442 mm | 0-15 mm | 5 mm |
| BLANCO CLARON 180-IF/N | 210 mm | 430 mm | 222 mm | 442 mm | 0-15 mm | 11 mm |
| BLANCO CLARON 340-IF/N | 370 mm | 430 mm | 382 mm | 442 mm | 0-15 mm | 11 mm |
| BLANCO CLARON 400-IF/N | 430 mm | 430 mm | 442 mm | 442 mm | 0-15 mm | 11 mm |
| BLANCO CLARON 450-IF/N | 480 mm | 430 mm | 492 mm | 442 mm | 0-15 mm | 11 mm |
| BLANCO CLARON 500-IF/N | 530 mm | 430 mm | 542 mm | 442 mm | 0-15 mm | 11 mm |
| BLANCO CLARON 550-IF/N | 580 mm | 430 mm | 592 mm | 442 mm | 0-15 mm | 11 mm |
| BLANCO CLARON 550T-IF | 580 mm | 430 mm | 592 mm | 442 mm | 0-15 mm | 11 mm |
| BLANCO CLARON 550-IF/N Dampfgar-Edition | 580 mm | 362 mm | 592 mm | 374 mm | 0-15 mm | 11 mm |
| BLANCO CLARON 700-IF/N | 730 mm | 430 mm | 742 mm | 442 mm | 0-15 mm | 11 mm |
| BLANCO CLARON 340/180-IF/N | 575 mm | 430 mm | 587 mm | 442 mm | 0-15 mm | 11 mm |
| BLANCO CLARON 340/340-IF/N | 735 mm | 430 mm | 747 mm | 442 mm | 0-15 mm | 11 mm |
| BLANCO CLARON 400/400-IF/N | 855 mm | 430 mm | 867 mm | 442 mm | 0-15 mm | 11 mm |
| BLANCO CLARON 400/550T-IF/N | 1005 mm | 430 mm | 1017 mm | 442 mm | 0-15 mm | 11 mm |
| BLANCO CLARON XL 60-IF DampfgarPlus | 560 mm | 450 mm | 572 mm | 462 mm | 0-15 mm | 11 mm |
| BLANCO JARON XL 6 S-IF | 915 mm | 430 mm | 927 mm | 442 mm | 25 mm | 31 mm |
