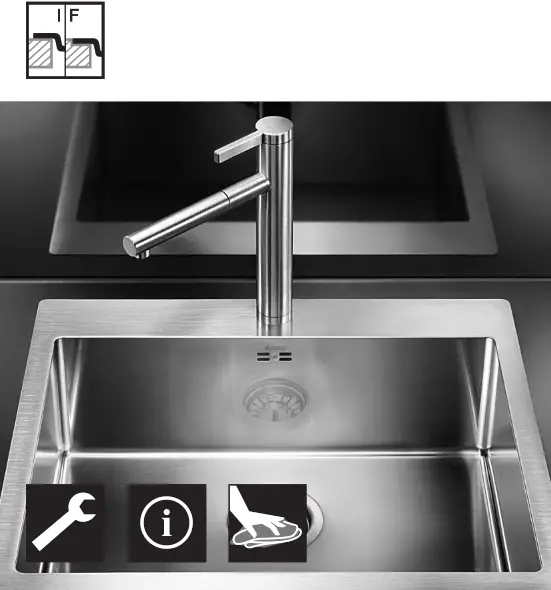

Claron Style 500-IF-A Stainless Steel Satin Polish
Instructions
Claron Style 500-IF-A Stainless Steel Satin Polish
 |  |

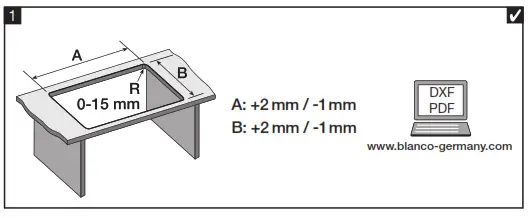

| +2 mm / -1 mm | ||
| A | B | |
| BLANCO C-STYLE 400-IF/A | 440 mm | 490 mm |
| BLANCO C-STYLE 500-IF/A | 540 mm | 490 mm |
| BLANCO C-STYLE 340 / 180-IF/A | 585 mm | 490 mm |
| BLANCO Z-STYLE 400-IF/A | 440 mm | 490 mm |
| BLANCO Z-STYLE 500-IF/A | 540 mm | 490 mm |
| BLANCO Z-STYLE 340 / 180-IF/A | 585 mm | 490 mm |

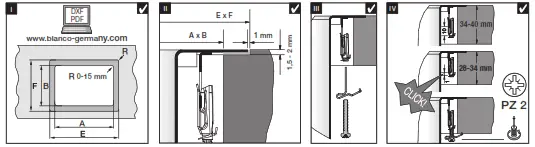

| +2 mm / -1 mm | +1 mm / -0,5 mm | R | |||
| A | B | E | F | ||
| BLANCO C-STYLE 400-IF/A | 440 mm | 490 mm | 462 mm | 512 mm | 11 mm |
| BLANCO C-STYLE 500-IF/A | 540 mm | 490 mm | 562 mm | 512 mm | 11 mm |
| BLANCO C-STYLE 340/180-IF/A | 585 mm | 490 mm | 607 mm | 512 mm | 11 mm |
| BLANCO Z-STYLE 400-IF/A | 440 mm | 490 mm | 462 mm | 512 mm | 5 mm |
| BLANCO Z-STYLE 500-IF/A | 540 mm | 490 mm | 562 mm | 512 mm | 5 mm |
| BLANCO Z-STYLE 340/180-IF/A | 585 mm | 490 mm | 607 mm | 512 mm | 5 mm |
BLANCO GmbH + Co KG
Service
Tel.: +49 7045 44-81 419
[email protected]
www.blanco-germany.com
