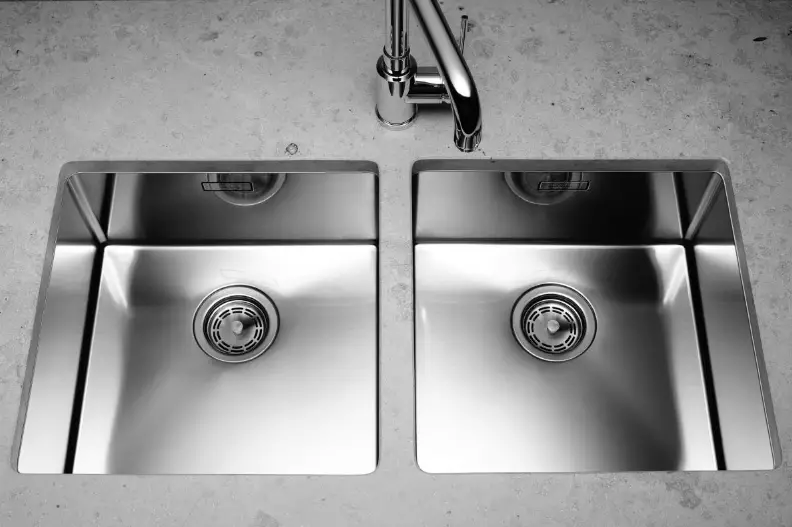

Blanco Claron 340-180 Stainless Steel Satin Polish Instructions

Claron 340-180 Stainless Steel Satin Polish
Instructions

Claron 340-180 Stainless Steel Satin Polish

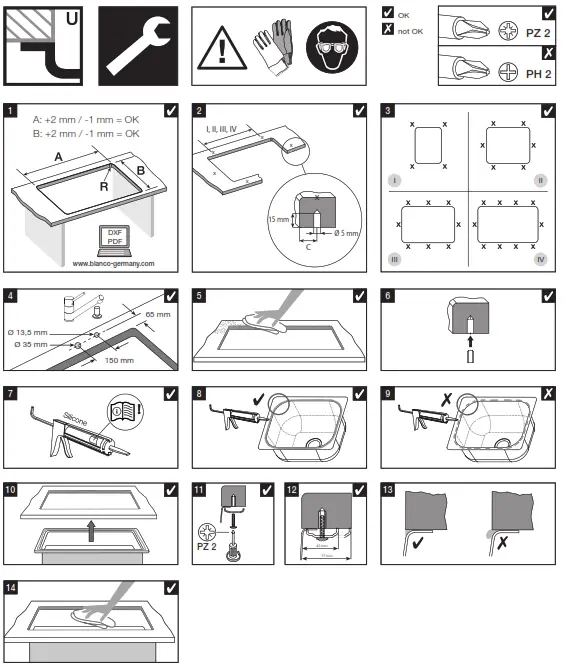

	+2mm / -1mm		C	D
	A	B
BLANCO CLARON 180-U	180 mm	400 mm	27 mm	10 mm	I
BLANCO CLARON 340-U	340 mm	400 mm	27 mm	10 mm	I
BLANCO CLARON 400-U	400 mm	400 mm	27 mm	10 mm	I
BLANCO CLARON 450-U	450 mm	400 mm	27 mm	10 mm	II
BLANCO CLARON 500-U	500 mm	400 mm	27 mm	10 mm	II
BLANCO CLARON 550-U	550 mm	400 mm	27 mm	10 mm	II
BLANCO CLARON 550×332 EDITION	550 mm	332 mm	27 mm	10 mm	II
BLANCO CLARON 550-T-U	550 mm	400 mm	27 mm	10 mm	II
BLANCO CLARON 340/180-U	545 mm	400 mm	27 mm	10 mm	III
BLANCO CLARON 700-U	700 mm	400 mm	27 mm	10 mm	III
BLANCO CLARON 340/340-U	705 mm	400 mm	27 mm	10 mm	III
BLANCO CLARON 400/400-U	825 mm	400 mm	27 mm	10 mm	III
BLANCO CLARON 400/550-T-U	975 mm	400 mm	27 mm	10 mm	IV
BLANCO CLARON 550/200-U	775 mm	400 mm	27 mm	10 mm	III
BLANCO CLARON XL 60-U DampfgarPlus	530 mm	420 mm	27 mm	10 mm	II
BLANCO ZEROX 180-U	180 mm	400 mm	27 mm	1 mm	I
BLANCO ZEROX 340-U	340 mm	400 mm	27 mm	1 mm	I
BLANCO ZEROX 400-U	400 mm	400 mm	27 mm	1 mm	I
BLANCO ZEROX 450-U	450 mm	400 mm	27 mm	1 mm	II
BLANCO ZEROX 500-U	500 mm	400 mm	27 mm	1 mm	II
BLANCO ZEROX 550-U	550 mm	400 mm	27 mm	1 mm	II
BLANCO ZEROX 550-T-U	550 mm	400 mm	27 mm	1 mm	II
BLANCO ZEROX 340/180-U	545 mm	400 mm	27 mm	1 mm	II
BLANCO ZEROX 700-U	700 mm	400 mm	27 mm	1 mm	III
BLANCO ZEROX 340/340-U	705 mm	400 mm	27 mm	1 mm	III
BLANCO ZEROX 400/400-U	825 mm	400 mm	27 mm	1 mm	III
BLANCO ZEROX 400/550-T-U	975 mm	400 mm	27 mm	1 mm	IV
BLANCO ZEROX XL 6S-U	940 mm	400 mm	27 mm	1 mm	IV
BLANCO ZEROX 6S-U	940 mm	400 mm	27 mm	1 mm	IV
BLANCO ZEROX 8S-U	1100 mm	400 mm	27 mm	1 mm	IV
