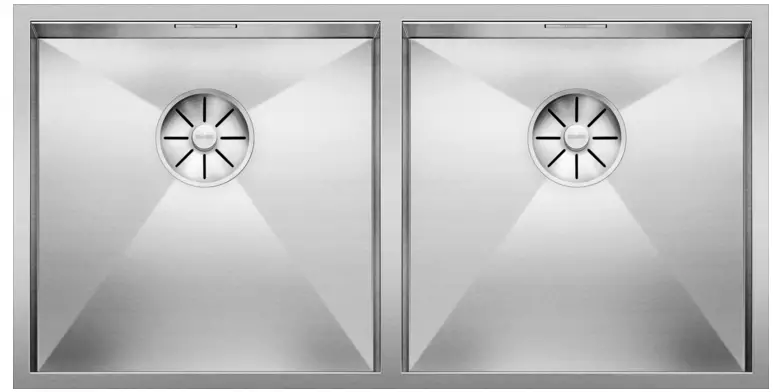

ZEROX 700 U Stainless Steel Satin Polish
User Guide
ZEROX 700 U Stainless Steel Satin Polish

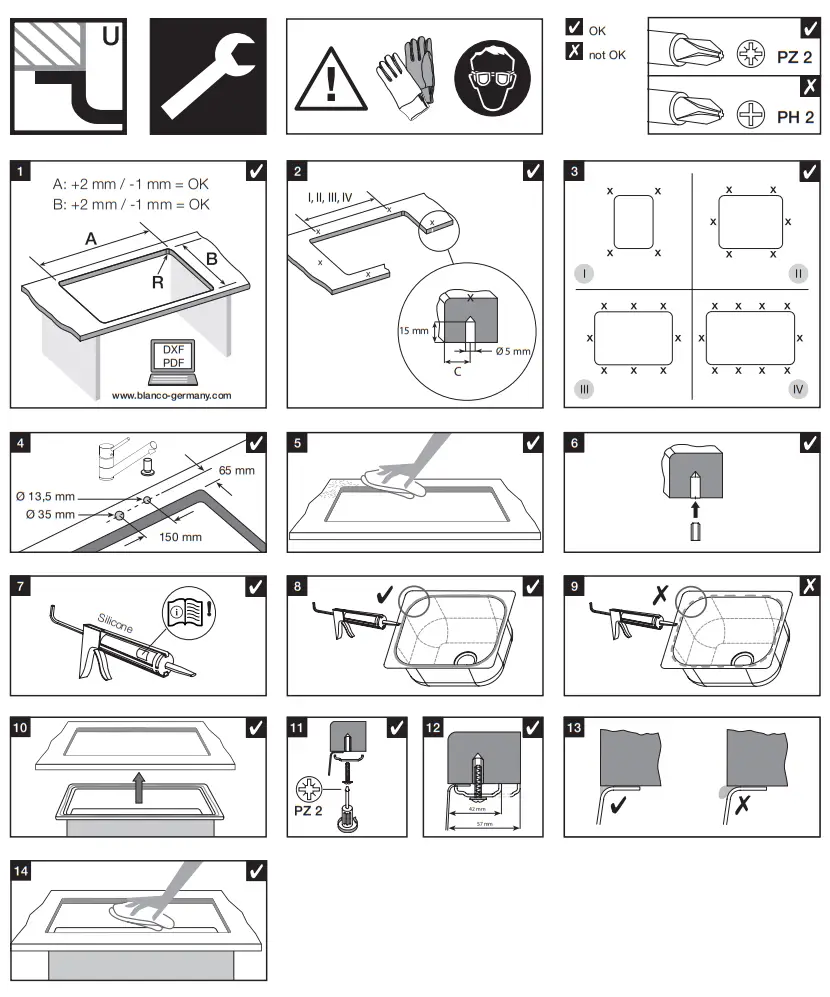

| +2mm / -1mm |  | ||||
| A | B | C | R | I | |
| BLANCO CLARON 180-U | 180 mm | 400 mm | 27 mm | 10 mm | I |
| BLANCO CLARON 340-U | 340 mm | 400 mm | 27 mm | 10 mm | I |
| BLANCO CLARON 400-U | 400 mm | 400 mm | 27 mm | 10 mm | II |
| BLANCO CLARON 450-U | 450 mm | 400 mm | 27 mm | 10 mm | II |
| BLANCO CLARON 500-U | 500 mm | 400 mm | 27 mm | 10 mm | II |
| BLANCO CLARON 550-U | 550 mm | 400 mm | 27 mm | 10 mm | II |
| BLANCO CLARON 550×332 EDITION | 550 mm | 332 mm | 27 mm | 10 mm | II |
| BLANCO CLARON 550-T-U | 550 mm | 400 mm | 27 mm | 10 mm | III |
| BLANCO CLARON 340/180-U | 545 mm | 400 mm | 27 mm | 10 mm | III |
| BLANCO CLARON 700-U | 700 mm | 400 mm | 27 mm | 10 mm | III |
| BLANCO CLARON 340/340-U | 705 mm | 400 mm | 27 mm | 10 mm | III |
| BLANCO CLARON 400/400-U | 825 mm | 400 mm | 27 mm | 10 mm | IV |
| BLANCO CLARON 400/550-T-U | 975 mm | 400 mm | 27 mm | 10 mm | III |
| BLANCO CLARON 550/200-U | 775 mm | 400 mm | 27 mm | 10 mm | II |
| BLANCO CLARON XL 60-U DampfgarPlus | 530 mm | 420 mm | 27 mm | 10 mm | I |
| BLANCO ZEROX 180-U | 180 mm | 400 mm | 27 mm | 1 mm | I |
| BLANCO ZEROX 340-U | 340 mm | 400 mm | 27 mm | 1 mm | I |
| BLANCO ZEROX 400-U | 400 mm | 400 mm | 27 mm | 1 mm | II |
| BLANCO ZEROX 450-U | 450 mm | 400 mm | 27 mm | 1 mm | II |
| BLANCO ZEROX 500-U | 500 mm | 400 mm | 27 mm | 1 mm | II |
| BLANCO ZEROX 550-U | 550 mm | 400 mm | 27 mm | 1 mm | II |
| BLANCO ZEROX 550-T-U | 550 mm | 400 mm | 27 mm | 1 mm | II |
| BLANCO ZEROX 340/180U | 545 mm | 400 mm | 27 mm | 1 mm | III |
| BLANCO ZEROX 700-U | 700 mm | 400 mm | 27 mm | 1 mm | III |
| BLANCO ZEROX 340/340U | 705 mm | 400 mm | 27 mm | 1 mm | III |
| BLANCO ZEROX 400/400U | 825 mm | 400 mm | 27 mm | 1 mm | IV |
| BLANCO ZEROX 400/550 T-U | 975 mm | 400 mm | 27 mm | 1 mm | IV |
| BLANCO ZEROX XL 6S-U | 940 mm | 400 mm | 27 mm | 1 mm | IV |
| BLANCO ZEROX 6S-U | 940 mm | 400 mm | 27 mm | 1 mm | IV |
| BLANCO ZEROX 8S-U | 1100 mm | 400 mm | 27 mm | 1 mm | |
