525987 Double Kitchen Sink Black
User Guide
525987 Double Kitchen Sink Black
 |  |
 |  |

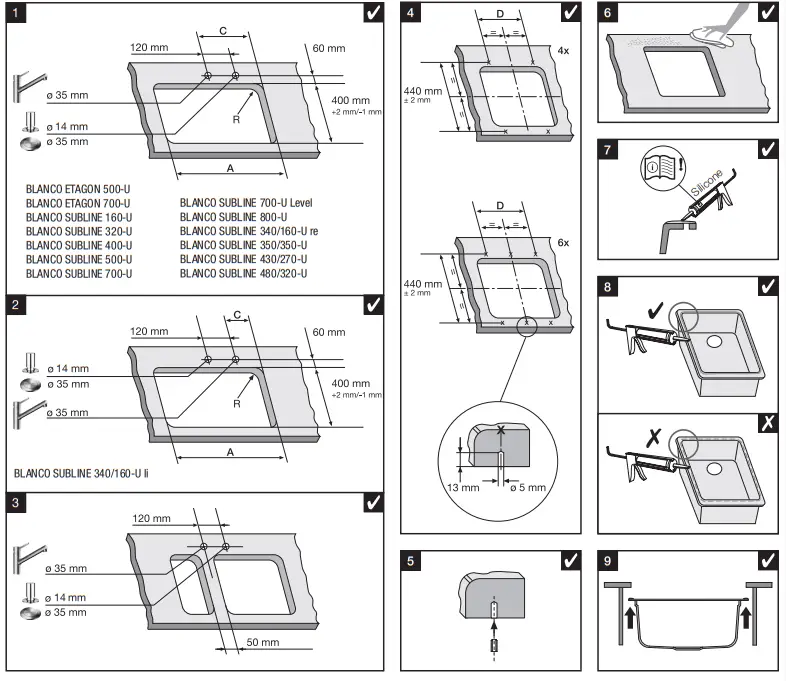

| BLANCO ETAGON 500-U | +2mm-1mmA | +2mm-1mmC | D | Ø5 mm | R |
| BLANCO ETAGON 700-U | 500 mm | 250 mm | 355 mm | 4x | 20 mm |
| BLANCO SUBLINE 160-U | 700 mm | 350 mm | 555 mm | 4x | 20 mm |
| BLANCO SUBLINE 320-U | 160 mm | 80 mm | 150 mm | 4x | 10 mm |
| BLANCO SUBLINE 400-U | 320 mm | 160 mm | 310 mm | 4x | 10 mm |
| BLANCO SUBLINE 500-U | 400 mm | 200 mm | 255 mm | 4x | 10 mm |
| BLANCO SUBLINE 700-U | 500 mm | 250 mm | 355 mm | 4x | 10 mm |
| BLANCO SUBLINE 700-U Level | 700 mm | 350 mm | 555 mm | 4x | 10 mm |
| BLANCO SUBLINE 800-U | 800 mm | 400 mm | 655 mm | 4x | 10 mm |
| BLANCO SUBLINE 340/160-U re | 525 mm | 352 mm | 515 mm | 6x | 10 mm |
| BLANCO SUBLINE 340/160-U li | 525 mm | 173 mm | 515 mm | 6x | 10 mm |
| BLANCO SUBLINE 350/350-U | 725 mm | 363 mm | 630 mm | 6x | 10 mm |
| BLANCO SUBLINE 430/270-U | 725 mm | 283 mm | 630 mm | 6x | 10 mm |
| BLANCO SUBLINE 480/320-U | 825 mm | 333 mm | 630 mm | 6x | 10 mm |
