Instruction Manual

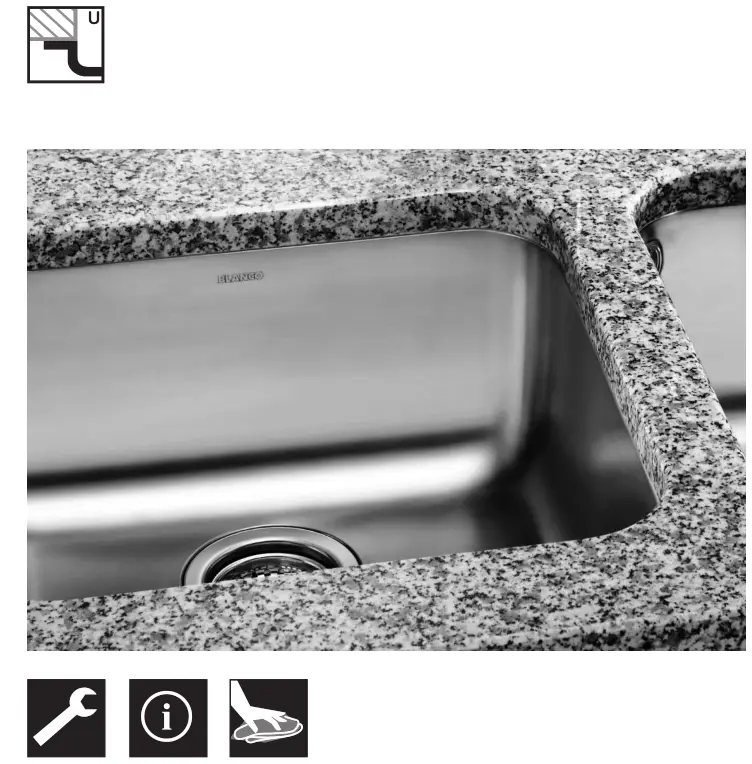

526113 Solis 180 U InFino Brushed
| +2mm / -1mm | |||||
| A | B | C | R |  | |
| BLANCO A-STYLE 400-U | 400 mm | 400 mm | 27 mm | 22 mm | I |
| BLANCO A-STYLE 500-U | 500 mm | 400 mm | 27 mm | 22 mm | I |
| BLANCO A-STYLE 340 / 180-U | 545 mm | 400 mm | 27 mm | 22 mm | III |
| BLANCO C-STYLE 400-U | 400 mm | 400 mm | 27 mm | 10 mm | I |
| BLANCO C-STYLE 500-U | 500 mm | 400 mm | 27 mm | 10 mm | II |
| BLANCO C-STYLE 340 / 180-U | 545 mm | 400 mm | 27 mm | 10 mm | III |
| BLANCO S-STYLE 400-U | 400 mm | 400 mm | 22 mm | 60 mm | I |
| BLANCO S-STYLE 500-U | 500 mm | 400 mm | 22 mm | 60 mm | I |
| BLANCO Z-STYLE 400-U | 400 mm | 400 mm | 27 mm | 1 mm | I |
| BLANCO Z-STYLE 500-U | 500 mm | 400 mm | 27 mm | 1 mm | II |
| BLANCO Z-STYLE 340 / 180-U | 545 mm | 400 mm | 27 mm | 1 mm | III |
| BLANCO Z-STYLE 700-U | 700 mm | 400 mm | 27 mm | 1 mm | II |
| BLANCO Z-STYLE 400/400-U | 825 mm | 400 mm | 27 mm | 1 mm | IV |
| BLANCO ANDANO 180-U | 180 mm | 400 mm | 27 mm | 22 mm | I |
| BLANCO ANDANO 340-U | 340 mm | 400 mm | 27 mm | 22 mm | I |
| BLANCO ANDANO 340 / 340-U | 705 mm | 400 mm | 27 mm | 22 mm | IV |
| BLANCO ANDANO 400-U | 400 mm | 400 mm | 27 mm | 22 mm | I |
| BLANCO ANDANO 450-U | 450 mm | 400 mm | 27 mm | 22 mm | I |
| BLANCO ANDANO 500-U | 500 mm | 400 mm | 27 mm | 22 mm | I |
| BLANCO ANDANO 500 / 180-U | 705 mm | 400 mm | 27 mm | 22 mm | III |
| BLANCO ANDANO 700-U | 700 mm | 400 mm | 27 mm | 22 mm | II |
| BLANCO ANDANO 340 / 180-U | 545 mm | 400 mm | 27 mm | 22 mm | III |
| BLANCO ANDANO 400 / 400-U | 825 mm | 400 mm | 27 mm | 22 mm | IV |
| BLANCO ETAGON 500-U | 500 mm | 400 mm | 27 mm | 35 mm | I |
| BLANCO ETAGON 700-U | 700 mm | 400 mm | 27 mm | 35 mm | II |
| BLANCO SOLIS 180-U | 180 mm | 400 mm | 27 mm | 42 mm | I |
| BLANCO SOLIS 340-U | 340 mm | 400 mm | 27 mm | 42 mm | I |
| BLANCO SOLIS 340/180-U | 545 mm | 400 mm | 27 mm | 42 mm | III |
| BLANCO SOLIS 400-U | 400 mm | 400 mm | 27 mm | 42 mm | I |
| BLANCO SOLIS 450-U | 450 mm | 400 mm | 27 mm | 42 mm | I |
| BLANCO SOLIS 500-U | 500 mm | 400 mm | 27 mm | 42 mm | I |
| BLANCO SOLIS 700-U | 700 mm | 400 mm | 27 mm | 42 mm | II |
| BLANCO SUPRA 340-U | 340 mm | 400 mm | 22 mm | 60 mm | I |
| BLANCO SUPRA 340/340-U | 715 mm | 400 mm | 27 mm | 60 mm | V |
| BLANCO SUPRA 400-U | 400 mm | 400 mm | 22 mm | 60 mm | I |
| BLANCO SUPRA 450-U | 450 mm | 400 mm | 22 mm | 60 mm | I |
| BLANCO SUPRA 500-U | 500 mm | 400 mm | 22 mm | 60 mm | I |
| BLANCO YPSILON 340-U | 340 mm | 420 mm | 22 mm | 60 mm | I |
