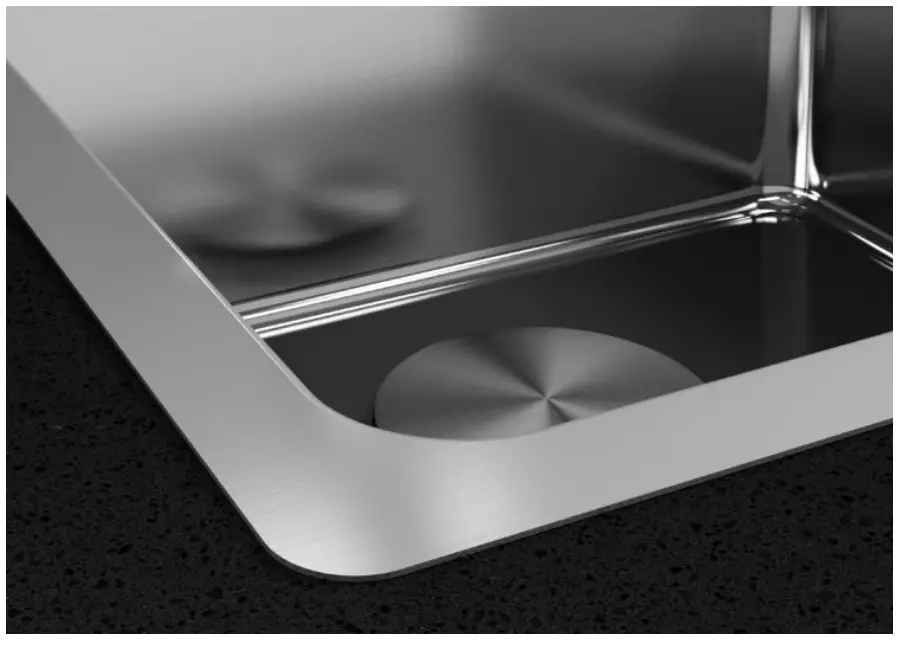

BLANCO Solis 340 IF Kitchen Sink

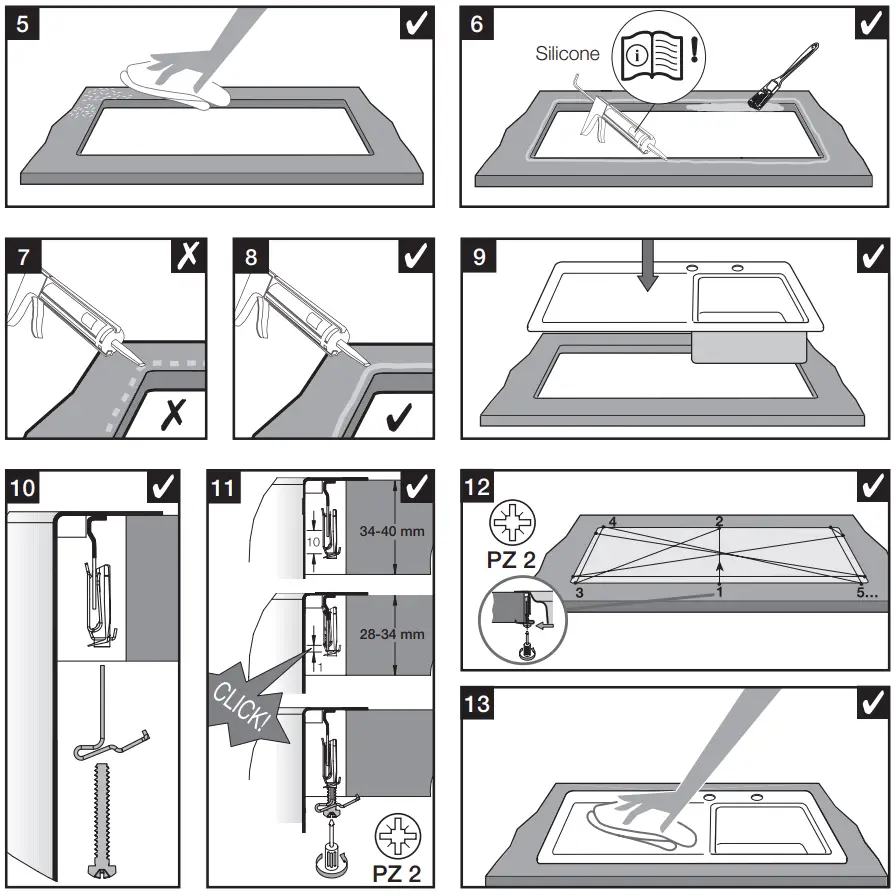

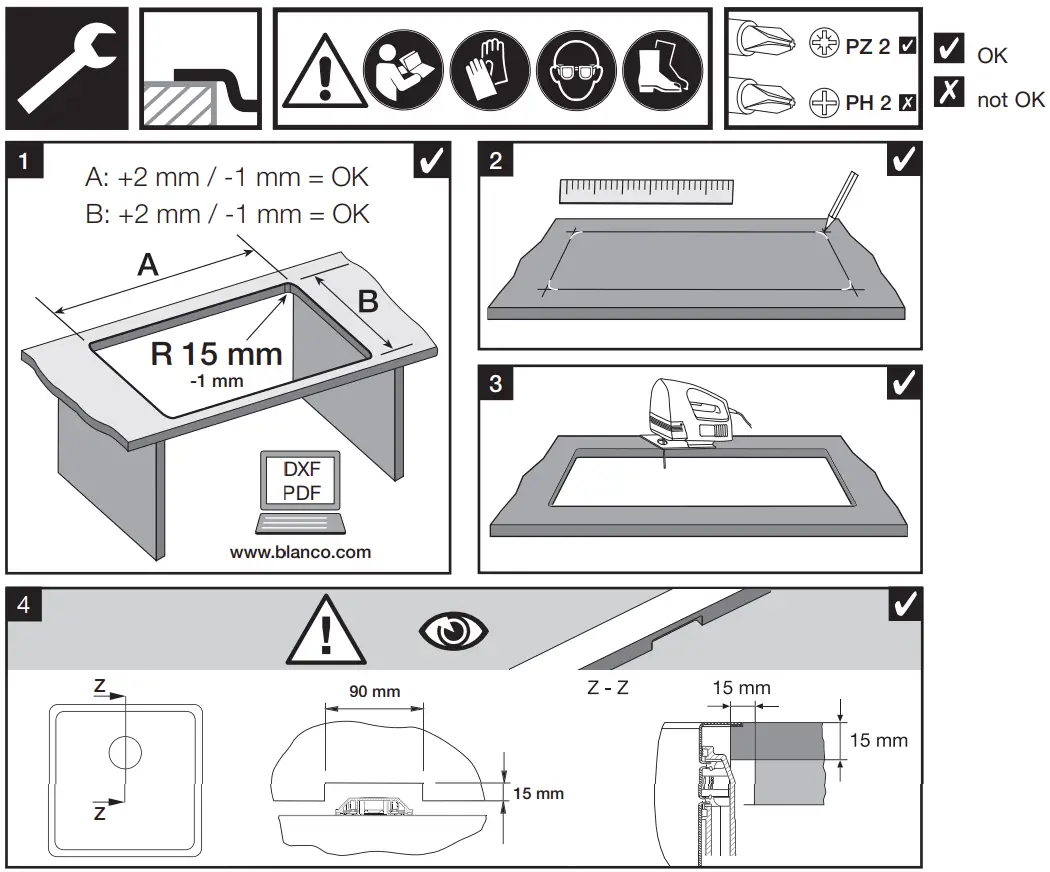

Instruction Installation

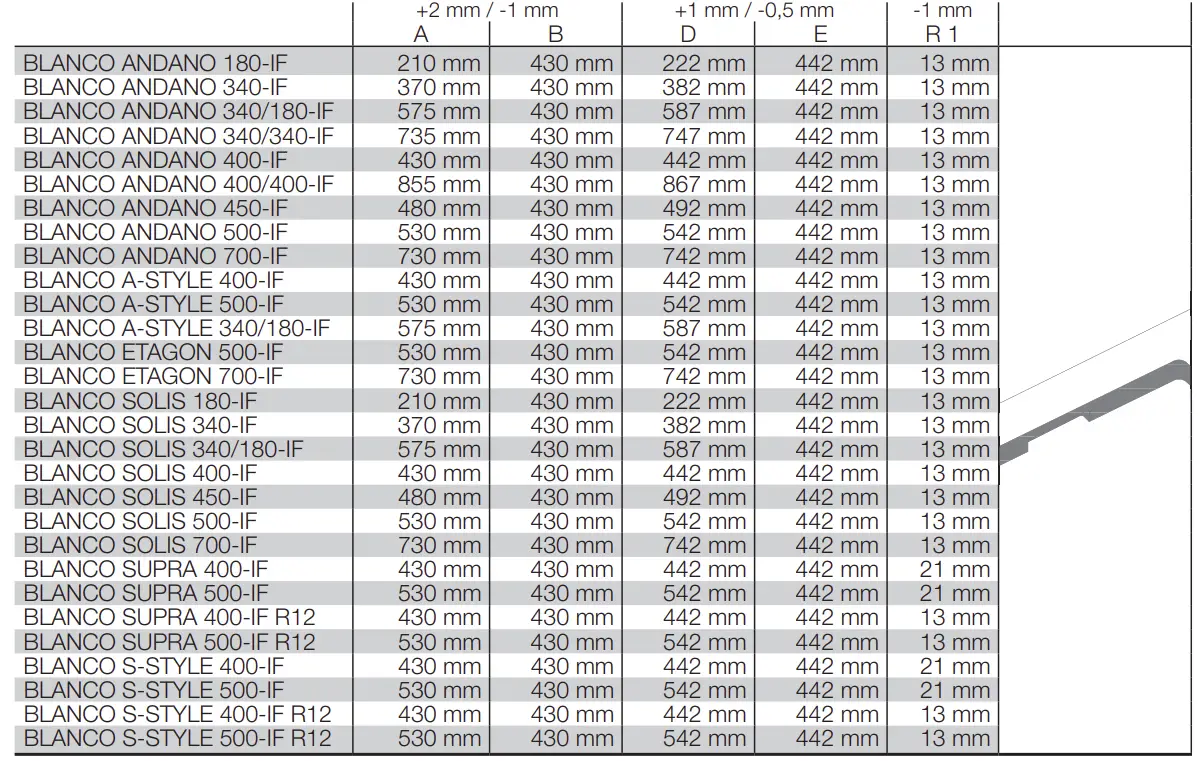

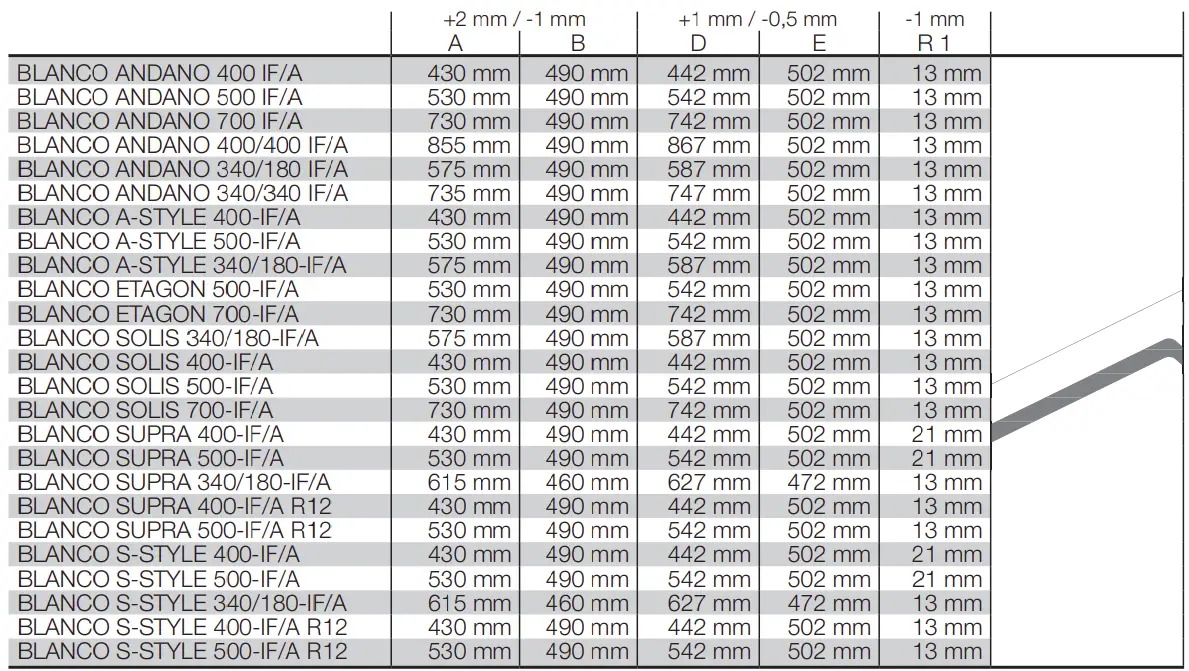

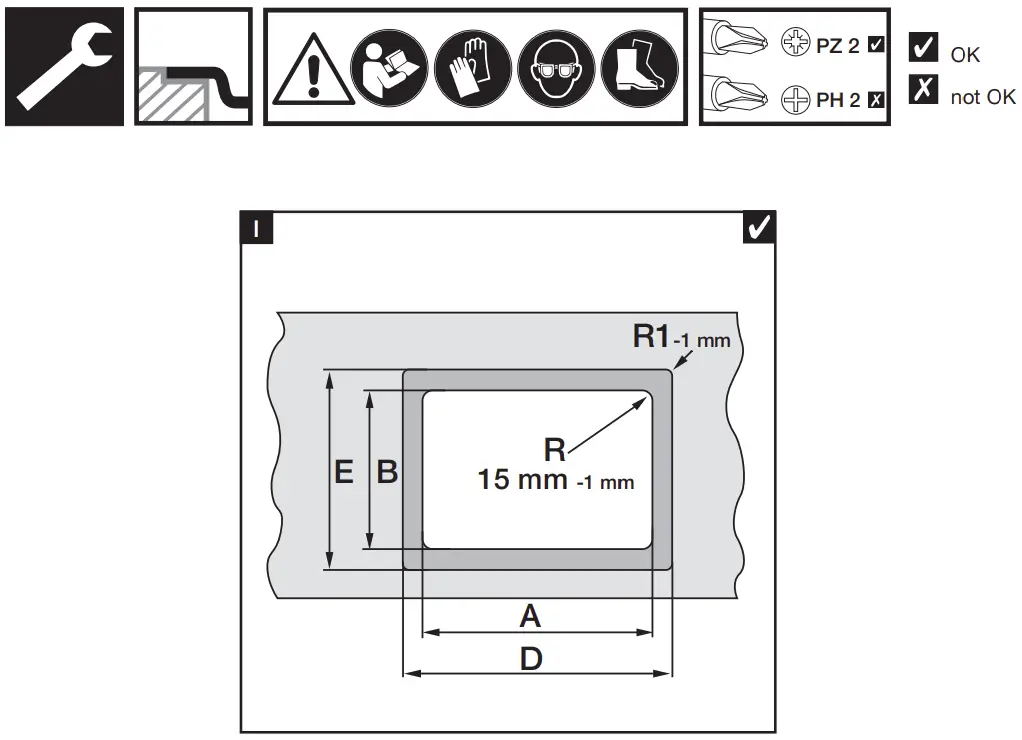

| +2 mm / -1 mm | ||
| A | B | |
| BLANCO ANDANO 180-IF | 210 mm | 430 mm |
| BLANCO ANDANO 340-IF | 370 mm | 430 mm |
| BLANCO ANDANO 340/180 | 575 mm | 430 mm |
| BLANCO ANDANO 340/340-IF | 735 mm | 430 mm |
| BLANCO ANDANO 400-IF | 430 mm | 430 mm |
| BLANCO ANDANO 400/400-IF | 855 mm | 430 mm |
| BLANCO ANDANO 450-IF | 480 mm | 430 mm |
| BLANCO ANDANO 500-IF | 530 mm | 430 mm |
| BLANCO ANDANO 700-IF | 730 mm | 430 mm |
| BLANCO A-STYLE 400-IF | 430 mm | 430 mm |
| BLANCO A-STYLE 500-IF | 530 mm | 430 mm |
| BLANCO A-STYLE 340/180-IF | 575 mm | 430 mm |
| BLANCO ETAGON 500-IF | 530 mm | 430 mm |
| BLANCO ETAGON 700-IF | 730 mm | 430 mm |
| BLANCO SOLIS 180-IF | 210 mmx | 430 mm |
| BLANCO SOLIS 340-IF | 370 mm | 430 mm |
| BLANCO SOLIS 340/180-IF | 575 mm | 430 mm |
| BLANCO SOLIS 400-IF | 430 mm | 430 mm |
| BLANCO SOLIS 450-IF | 480 mm | 430 mm |
| BLANCO SOLIS 500-IF | 530 mm | 430 mm |
| BLANCO SOLIS 700-IF | 730 mm | 430 mm |
| BLANCO SUPRA 400-IF | 430 mm | 430 mm |
| BLANCO SUPRA 500-IF | 530 mm | 430 mm |
| BLANCO SUPRA 400-IF R12 | 430 mm | 430 mm |
| BLANCO SUPRA 500-IF R12 | 530 mm | 430 mm |
| BLANCO S-STYLE 400-IF | 430 mm | 430 mm |
| BLANCO S-STYLE 500-IF | 530 mm | 430 mm |
| BLANCO S-STYLE 400-IF R12 | 430 mm | 430 mm |
| BLANCO S-STYLE 500-IF R12 | 530 mm | 430 mm |
BLANCO GmbH + Co KG
Service
Tel.: +49 7045 44-81 419
[email protected]
www.blanco.com
