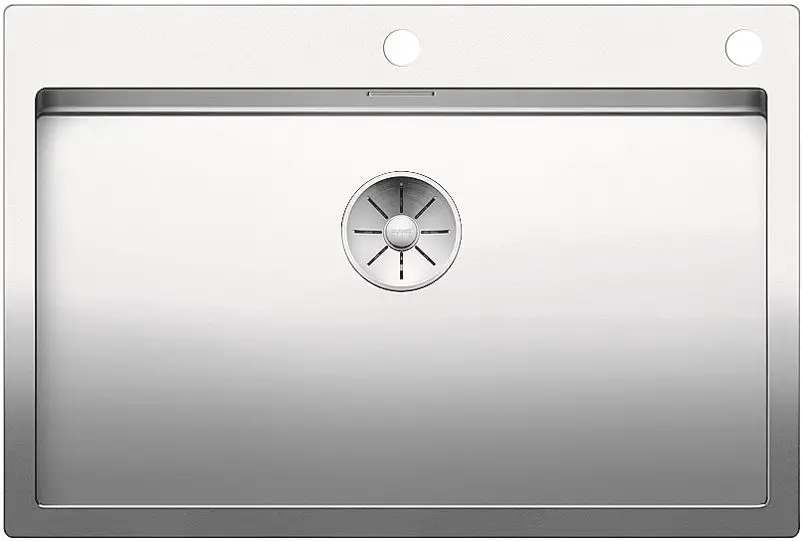

BLANCO 521634 Claron 700-IF-A Kitchen Sink

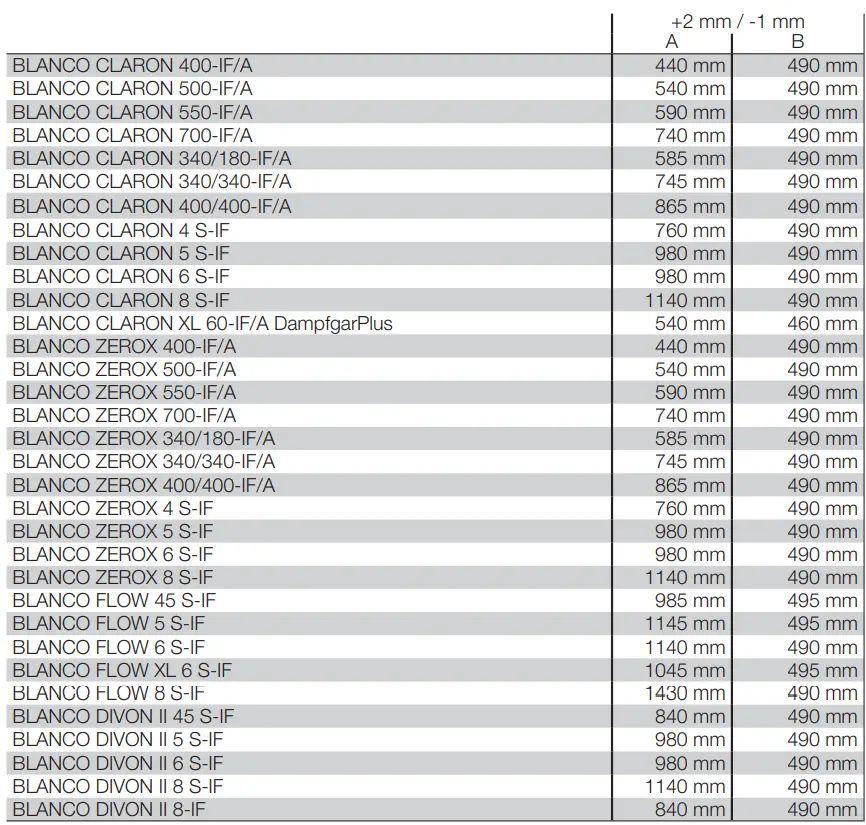

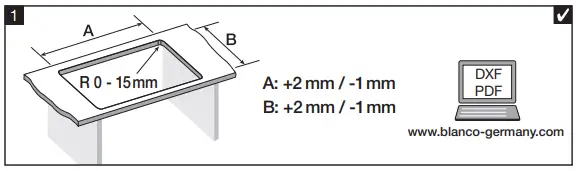

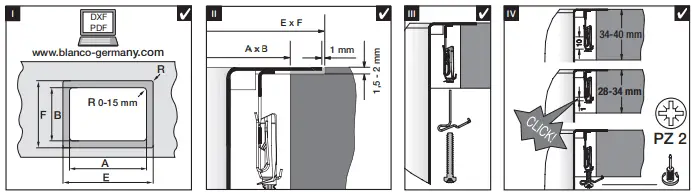

| +2 mm / -1 mm | +1 mm / -1 mm | R | |||
| A | B | E | F | ||
| BLANCO CLARON 400-IF/A | 440 mm | 490 mm | 462 mm | 512 mm | 11 mm |
| BLANCO CLARON 500-IF/A | 540 mm | 490 mm | 562 mm | 512 mm | 11 mm |
| BLANCO CLARON 550-IF/A | 590 mm | 490 mm | 612 mm | 512 mm | 11 mm |
| BLANCO CLARON 700-IF/A | 740 mm | 490 mm | 762 mm | 512 mm | 11 mm |
| BLANCO CLARON 340/180-IF/A | 585 mm | 490 mm | 607 mm | 512 mm | 11 mm |
| BLANCO CLARON 340/340-IF/A | 745 mm | 490 mm | 767 mm | 512 mm | 11 mm |
| BLANCO CLARON 400/400-IF/A | 865 mm | 490 mm | 887 mm | 512 mm | 11 mm |
| BLANCO CLARON 4 S-IF | 760 mm | 490 mm | 782 mm | 512 mm | 11 mm |
| BLANCO CLARON 5 S-IF | 980 mm | 490 mm | 1002 mm | 512 mm | 11 mm |
| BLANCO CLARON 6 S-IF | 980 mm | 490 mm | 1002 mm | 512 mm | 11 mm |
| BLANCO CLARON 8 S-IF | 1140 mm | 490 mm | 1162 mm | 512 mm | 11 mm |
| BLANCO CLARON XL 60-IF/A DampfgarPlus | 540 mm | 460 mm | 562 mm | 482 mm | 11 mm |
| BLANCO ZEROX 400-IF/A | 440 mm | 490 mm | 462 mm | 512 mm | 5 mm |
| BLANCO ZEROX 500-IF/A | 540 mm | 490 mm | 562 mm | 512 mm | 5 mm |
| BLANCO ZEROX 550-IF/A | 590 mm | 490 mm | 612 mm | 512 mm | 5 mm |
| BLANCO ZEROX 700-IF/A | 740 mm | 490 mm | 762 mm | 512 mm | 5 mm |
| BLANCO ZEROX 340/180-IF/A | 585 mm | 490 mm | 607 mm | 512 mm | 5 mm |
| BLANCO ZEROX 340/340-IF/A | 745 mm | 490 mm | 767 mm | 512 mm | 5 mm |
| BLANCO ZEROX 400/400-IF/A | 865 mm | 490 mm | 887 mm | 512 mm | 5 mm |
| BLANCO ZEROX 4 S-IF | 760 mm | 490 mm | 782 mm | 512 mm | 5 mm |
| BLANCO ZEROX 5 S-IF | 980 mm | 490 mm | 1002 mm | 512 mm | 5 mm |
| BLANCO ZEROX 6 S-IF | 980 mm | 490 mm | 1002 mm | 512 mm | 5 mm |
| BLANCO ZEROX 8 S-IF | 1140 mm | 490 mm | 1162 mm | 512 mm | 5 mm |
| BLANCO FLOW 45 S-IF | 985 mm | 495 mm | 1002 mm | 512 mm | 5 mm |
| BLANCO FLOW 5 S-IF | 1145 mm | 495 mm | 1162 mm | 512 mm | 5 mm |
| BLANCO FLOW 6 S-IF | 1140 mm | 490 mm | 1162 mm | 512 mm | 5 mm |
| BLANCO FLOW XL 6 S-IF | 1045 mm | 495 mm | 1062 mm | 512 mm | 5 mm |
| BLANCO FLOW 8 S-IF | 1430 mm | 490 mm | 1452 mm | 512 mm | 5 mm |
| BLANCO DIVON II 45 S-IF | 840 mm | 490 mm | 862 mm | 512 mm | 11 mm |
| BLANCO DIVON II 5 S-IF | 980 mm | 490 mm | 1002 mm | 512 mm | 11 mm |
| BLANCO DIVON II 6 S-IF | 980 mm | 490 mm | 1002 mm | 512 mm | 11 mm |
| BLANCO DIVON II 8 S-IF | 1140 mm | 490 mm | 1162 mm | 512 mm | 11 mm |
| BLANCO DIVON II 8-IF | 840 mm | 490 mm | 862 mm | 512 mm | 11 mm |

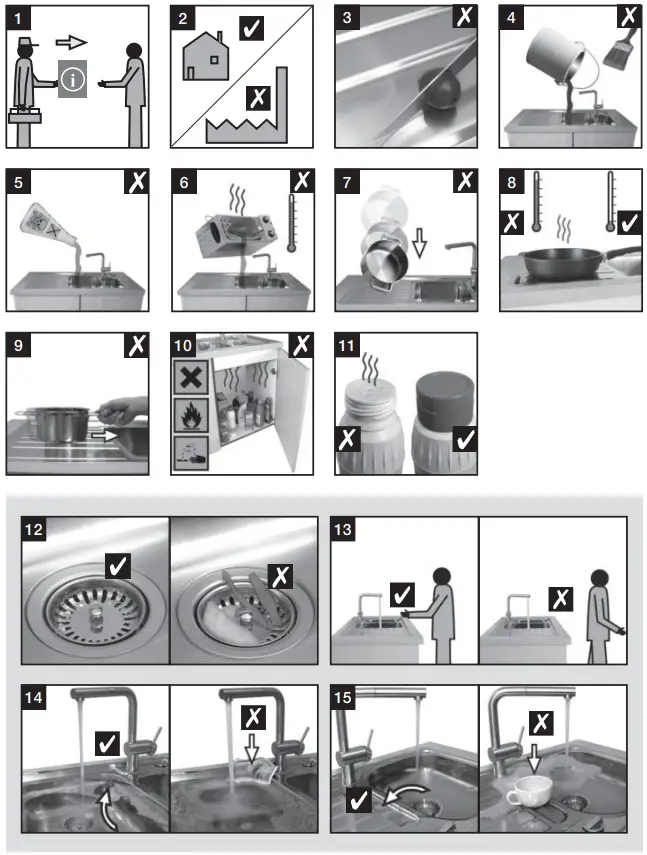

CAUTION

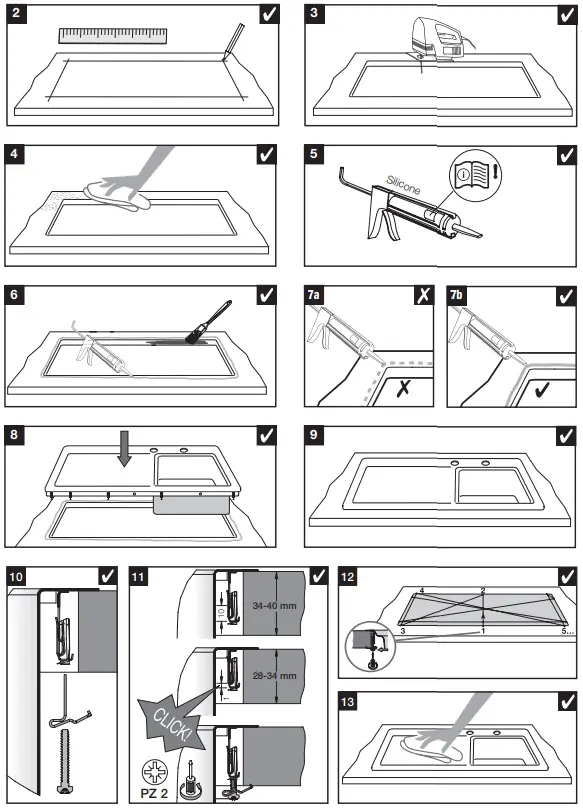

INSTALLATION
BLANCO GmbH + Co KG
Service
Tel.: +49 7045 44-81 419
[email protected]
www.blanco-germany.com
www.blanco-steelart.de
