525169 Etagon 700-U InFino Sink
Instruction Manual
525169 Etagon 700-U InFino Sink

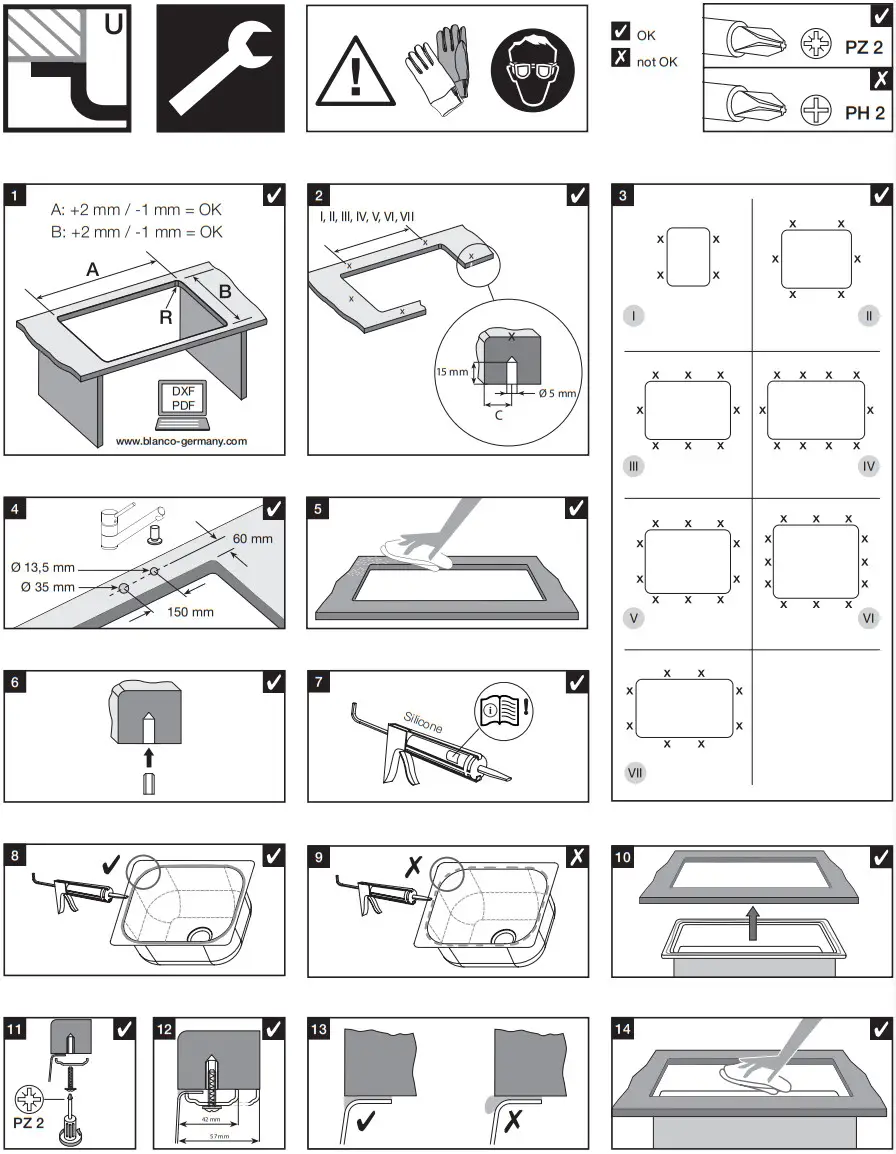

| +2mm / -1mm | C | R |  | ||
| A | B | ||||
| BLANCO A-STYLE 400-U | 400 mm | 400 mm | 27 mm | 22 mm | I |
| BLANCO A-STYLE 500-U | 500 mm | 400 mm | 27 mm | 22 mm | I |
| BLANCO A-STYLE 340 / 180-U | 545 mm | 400 mm | 27 mm | 22 mm | III |
| BLANCO C-STYLE 400-U | 400 mm | 400 mm | 27 mm | 10 mm | I |
| BLANCO C-STYLE 500-U | 500 mm | 400 mm | 27 mm | 10 mm | II |
| BLANCO C-STYLE 340 / 180-U | 545 mm | 400 mm | 27 mm | 10 mm | III |
| BLANCO S-STYLE 400-U | 400 mm | 400 mm | 22 mm | 60 mm | I |
| BLANCO S-STYLE 500-U | 500 mm | 400 mm | 22 mm | 60 mm | I |
| BLANCO Z-STYLE 400-U | 400 mm | 400 mm | 27 mm | 1 mm | I |
| BLANCO Z-STYLE 500-U | 500 mm | 400 mm | 27 mm | 1 mm | II |
| BLANCO Z-STYLE 340 / 180-U | 545 mm | 400 mm | 27 mm | 1 mm | III |
| BLANCO ANDANO 180-U | 180 mm | 400 mm | 27 mm | 22 mm | I |
| BLANCO ANDANO 340-U | 340 mm | 400 mm | 27 mm | 22 mm | I |
| BLANCO ANDANO 340 / 340-U | 705 mm | 400 mm | 27 mm | 22 mm | IV |
| BLANCO ANDANO 400-U | 400 mm | 400 mm | 27 mm | 22 mm | I |
| BLANCO ANDANO 450-U | 450 mm | 400 mm | 27 mm | 22 mm | I |
| BLANCO ANDANO 500-U | 500 mm | 400 mm | 27 mm | 22 mm | I |
| BLANCO ANDANO 500 / 180-U | 705 mm | 400 mm | 27 mm | 22 mm | III |
| BLANCO ANDANO 700-U | 700 mm | 400 mm | 27 mm | 22 mm | II |
| BLANCO ANDANO 340 / 180-U | 545 mm | 400 mm | 27 mm | 22 mm | III |
| BLANCO ANDANO 400 / 400-U | 825 mm | 400 mm | 27 mm | 22 mm | IV |
| BLANCO ETAGON 500-U | 500 mm | 400 mm | 27 mm | 35 mm | I |
| BLANCO GAMMA 420-U | 420 mm | 340 mm | 22 mm | 60 mm | I |
| BLANCO JOTA 180-U | 180 mm | 290 mm | 20 mm | 60 mm | I |
| BLANCO MIDI 315-U | 315 mm | 355 mm | 22 mm | 60 mm | I |
| BLANCO PROFI 500-U | 500 mm | 300 mm | 27 mm | 60 mm | I |
| BLANCO QUARTA 450-U | 450 mm | 400 mm | 27 mm | 1 mm | II |
| BLANCO QUARTA 500-U | 500 mm | 400 mm | 27 mm | 1 mm | II |
| BLANCO QUARTA 550-U | 550 mm | 400 mm | 27 mm | 1 mm | II |
| BLANCO QUARTA 340/180-U | 545 mm | 400 mm | 27 mm | 1 mm | II |
| BLANCO QUARTA TEN 450-U | 450 mm | 400 mm | 27 mm | 10 mm | II |
| BLANCO QUARTA TEN 500-U | 500 mm | 400 mm | 27 mm | 10 mm | II |
| BLANCO QUARTA TEN 550-U | 550 mm | 400 mm | 27 mm | 10 mm | II |
| BLANCO QUARTA TEN 340/180-U | 545 mm | 400 mm | 27 mm | 10 mm | III |
| BLANCO RONIS | Ø 480 mm | 32 mm | II | ||
| BLANCO STATURA 160-U | 160 mm | 330 mm | 20 mm | 35 mm | I |
| BLANCO STATURA 450-T-U | 450 mm | 330 mm | 20 mm | 35 mm | I |
| BLANCO STATURA 450-U | 450 mm | 330 mm | 20 mm | 35 mm | I |
| BLANCO STATURA 6-U | 570 mm | 490 mm | 20 mm | 12 mm | VI |
| BLANCO STATURA 6-U / W70 | 570 mm | 560 mm | 22 mm | 12 mm | VI |
| BLANCO STATURA K 480-U / W70 | 480 mm | 548 mm | 22 mm | 12 mm | V |
| BLANCO STATURA K 550-U | 548 mm | 480 mm | 22 mm | 12 mm | V |
| BLANCO STATURA K 640-U | 638 mm | 330 mm | 32 mm | 35 mm | III |
| BLANCO SUPRA 340-U | 340 mm | 400 mm | 22 mm | 60 mm | I |
| BLANCO SUPRA 340/340-U | 715 mm | 400 mm | 27 mm | 60 mm | VII |
| BLANCO SUPRA 400-U | 400 mm | 400 mm | 22 mm | 60 mm | I |
| BLANCO SUPRA 450-U | 450 mm | 400 mm | 22 mm | 60 mm | I |
| BLANCO SUPRA 500-U | 500 mm | 400 mm | 22 mm | 60 mm | I |
| BLANCO SUPRA 550-T | 550 mm | 400 mm | 22 mm | 60 mm | I |
| BLANCO YPSILON 340-U | 340 mm | 420 mm | 22 mm | 60 mm | I |
| BLANCO YPSILON 550-T | 550 mm | 420 mm | 22 mm | 60 mm | I |
