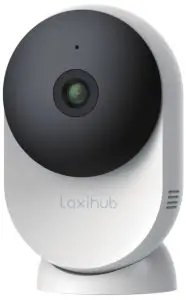

Smart Indoor Wi-Fi Camera
MiniCam
QUICK GUIDE
Compatible with Amazon Alexa & Google Assistant

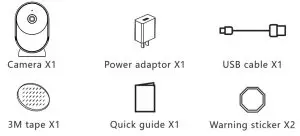

Packing list

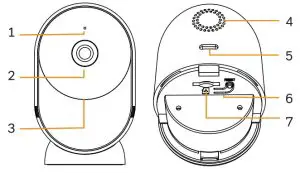

Product description
- Microphone
- Lens
- LED indicator
- Speaker
- Type-C port
- Reset
- SD card slot
Notice
To reset the device, press and hold the reset button for 5s.
The camera beeps when the operation is complete.
LED indicator of the camera:
| Flashing red light (slow) | Wait for network config |
| Flashing red light (fast) | Connecting the network |
| Fixed red light | Network is malfunctional |
| Fixed blue light | Camera is working correctly |

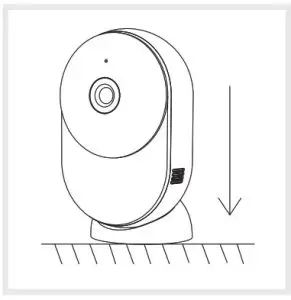

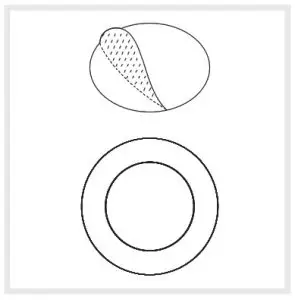

Installation
- Stick the 3M tape in the middle of the camera bottom.
- Put the camera on the clean plane.
Product configuration
Step 1 Turn on your camera.
Step 2 Connect your smartphone to the Wi-Fi network.
Step 3 Download the Arenti app from the App Store or Google Play depending on your device.
Step 4 Launch the App and sign up for the first use.
Step 5 Follow the on-screen instructions to add your camera.
For more information, scan the QR code.
https://www.arenti.com/blogs/help_center
Notice
If you have multiple cameras, please follow step 5 again to add devices one by one.
To change the Wi-Fi network, please restore the camera to factory settings and follow step 5 to add the camera.
Specifications
| Sensor type | 1/3′ CMOS |
| Min. brightness | Color [email protected] |
| Black and white [email protected] | |
| Resolution | 2 Megapixels |
| Lens | 3.6 mm F2.0 |
| Shutter | 1/25-1/100,000 per second |
| Infrared | High power LED with ICR |
| Infrared distance | 10 meters |
| Video compression | H.264 |
| Bit rate | 32Kbps – 2Mbps |
| Max resolution | 1920 x 1080 |
| Framerate | 1-25 per second |
| Picture settings | Support HD/SD; support flip |
| Storage | SD card (Max 256GB) |
| Audio | Two-way audio |
| Protocols | HTTP, DHCP, DNS, RTSP |
| WiFi standard | IEEE802.11b/g/n |
| Frequency | 2.4 GHz – 2.4835 GHz |
| WiFi encryption | WPA-PSK/WPA2-PSK |
| Security | AES128 |
| Working temperature | -20°C-40°C |
| Power | DCSV,1A |
| Consumption | 2.5W MAX |
| Size(mm) | 143x57x36 |
| Model | TPA-67F050100VUO1 |
| Input voltage | 100-240V AC |
| Input frequency | 50-60Hz |
| Output voltage | 5V DC |
| Output current | 1A |
| Output power | 5W |
| Efficiency | 74.% |
| No-load consumption | < 0.1W |
Legal notice
Support
www.laxihub.com
Symbols
Direct current (DC)
Don’t throw batteries or out-of-order products with household waste (garbage). The dangerous substances that they are likely to include may harm health or the environment. Make your retailer take back these products or use the selective collection of garbage proposed by your city.
Hereby, Laxihub declares that the radio equipment type ‘MiniCam’ is in compliance with the Directive 2014/53/EU The full text of the EU declaration of conformity is available at the following Internet address:
www.laxihub.com
For indoor use only
V1.1 202102
© 2021 Laxihub. All rights reserved. All trade names are registered trademarks of respective companies Apple, the Apple logo, iPhone is trademarks of Apple Inc. registered in the U.S. and other countries. Google, the Google logo, Android are trademarks of Google Inc. App Store is a service mark of Apple Inc. Google Play is a service mark of Google Inc.
