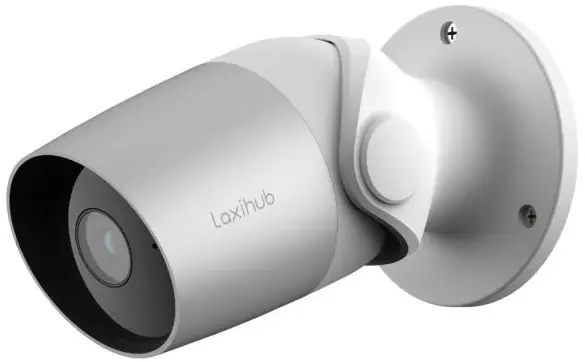

Laxihub O1 Outdoor Wi-Fi Camera

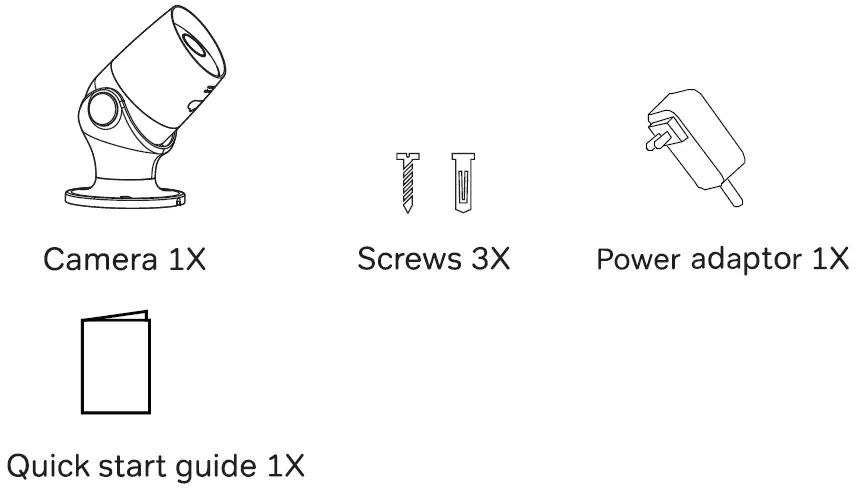

Packing list

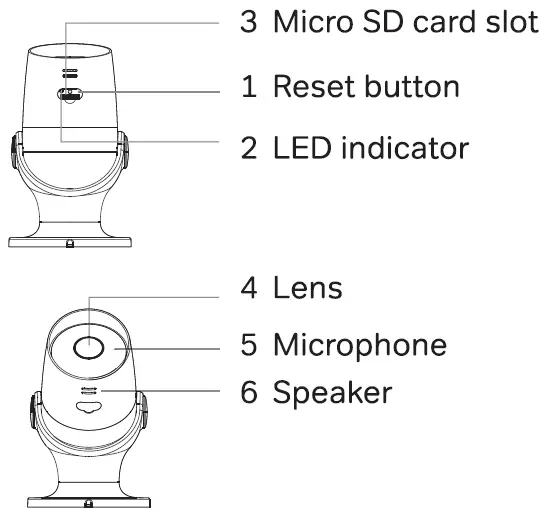

Product Description
Notice
To reset the device, press and hold the reset button for 5 seconds. The camera beeps when the operation is complete.
| Flashing red light (slow) | Waiting configuration |
| Flashing red light (fast) | Searching WiFi network |
| Fixed blue light | Camera connected to WiFi |
| Flashing blue light | Access point mode |
Camera configuration
- Step 1 Turn on your camera by plugging in the power adapter.
- Step 2 Connect your smartphone to the Wi-Fi network.
- Step 3 Download the Arenti app from the App Store or Google Play depending on your device.
- Step 4 Launch the Arenti app and sign up for the first use.

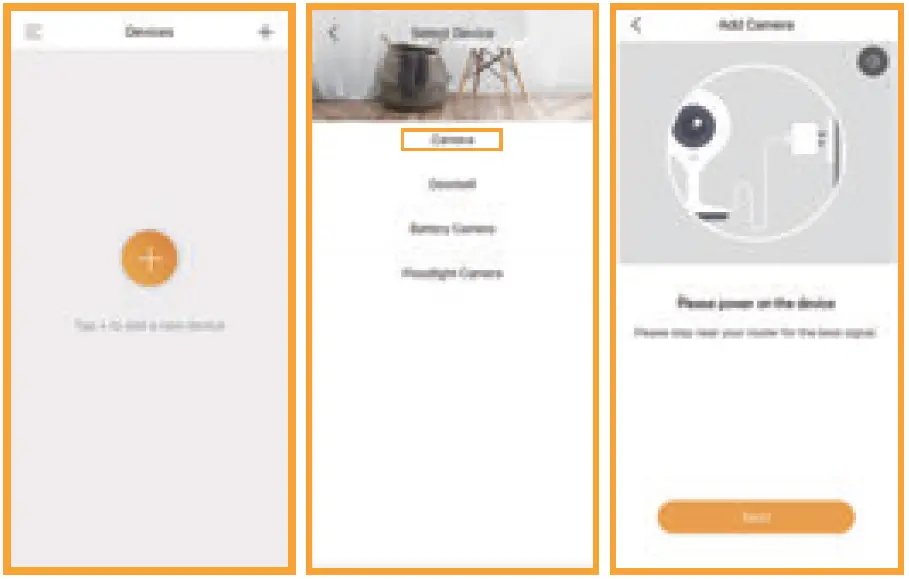

- Step 5 Follow the steps below to add your camera, then follow the on-screen instructions.
Note
- If you have multiple cameras, please follow step 5 again to add devices one by one.
- To change Wi-Fi network, please restore the camera to factory settings and follow step 5 to add the camera.
For more information, please download the user manual at www.laxihub.com.
Specifications
| Sensor type | 1/2.9″ CMOS |
| Min. brightness | Color [email protected] |
| Black and white [email protected] | |
| Resolution | 2 Mega pixels |
| Lens | 3.6 mm F2.0 |
| Shutter | 1/15-1/10,000 per second |
| Infrared | High power LED with ICR |
| Infrared distance | 10 meters |
| Video compression | H.264 |
| Bit rate | 32Kbps – 2Mbps |
| Max resolution | 1920 x 1080 |
| Framerate | 1-25 per second |
| Picture settings | Support HD/SD; support flip |
| Storage | SD card (Max 128GB) |
| Audio | Two-way audio |
| Protocols | HTTP, DHCP, DNS, RTSP |
| WiFi standard | IEEE802.11b/g/n |
| Frequency | 2.4 GHz – 2.4835 GHz |
| Bandwidth | 20/40MHz |
| WiFi encryption | WPA-PSK/WPA2-PSK |
| Security | AES128 |
| Working temperature | -20℃~50℃ |
| Power | DC12V,1A |
| Size(mm) | 79x79x132 |
| Model | KA1201A-1201000EU |
| Input voltage | 100-240Vac |
| Input frequency | 50-60Hz |
| Output voltage | +12Vdc |
| Output current | 1A |
| Output power | 12W |
| Efficiency | 73,62% |
| No-load consumption | <0.1W |
Support
www.laxihub.com
Symbols
Direct current (DC)
Don’t throw batteries or out-of-order products with household waste (garbage). The dangerous substances that they are likely to include may harm health or the environment. Make your retailer take back these products or use the selective collection of garbage proposed by your city.
Hereby, Arenti, declares that the radio equipment type ’01’ is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: http://www.laxihub.com.
