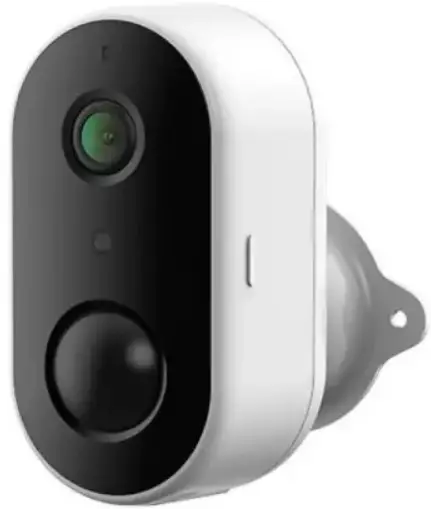

Laxihub W1 Wire-Free Battery WiFi Security Camera User Guide
Packing list
- Camera IX
- Power adaptor IX
- USB cable IX
- Screws 3X

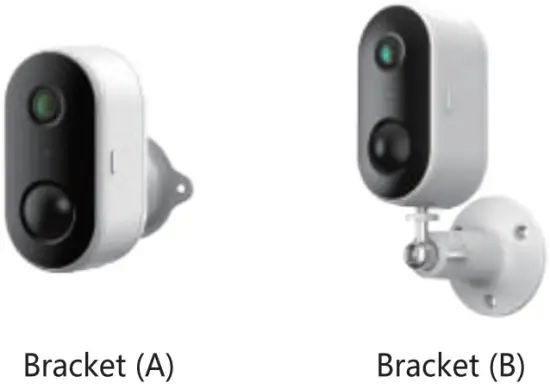

- Bracket (A) 1X
- Bracket (B) 1X
- Reset pin IX
- Quick guide 1X

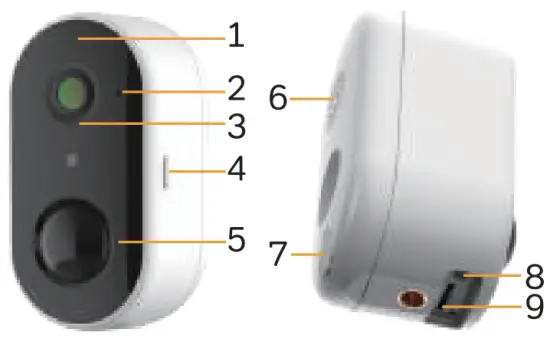

Product description
- LED indicator
- Microphone
- Lens
- Power key
- PIR
- Speaker
- DCSV USB port
- Reset button
- Micro SD card slot
Notice
The camera beeps when the operation is completed. To reset the device, press and hold the reset button for 5 seconds.
Flashing red light (slow) | Waiting configuration |
| Flashing red light (fasts | Searching WiFi network |
Fixed blue light | Camera connected to WiFi |
| Flashing blue light | Access point mode |
Installation
Camera configuration
- Step 1 Turn on your camera by plugging in the power adaptor.
- Step 2 Connect your smartphone to the Wi-Fi network.
- Step 3 Download Arenti app from the App Store or Google Play depending on your device.
- Step 4 Launch Arenti app and sign up for the first use.
- Step 5 Follow the steps below to add your camera, then follow the on screen instructions.
Note
- If you have multiple cameras, please follow step 5 again to add devices one by one.
- To change Wi-Fi network, please restore the camera to factory settings and follow step 5 to add the camera.
Specifications
| Sensor type | 1/ 2.9” CMOS |
| Min. Brightness | Color [email protected] |
| Black and white [email protected] | |
| Resolution | 2 Mega pixels |
| Lens | 2.4mm F2.0 |
| Shutter | 1/25-1/100,000 per second |
| Infrared | High power LED with ICR |
| Infrared distance | 10 meters |
| Wide Angle | 145° |
| Video compression | H.264 |
| Bit rate | 32Kbps-2Mbps |
| Max resolution | 1920 • 1080 |
| Framerate | 1-25 per second |
| Picture settings | Support HD/SD;support flip; |
| Storage | SD card(Max 128G) |
| Audio | Two-way audio |
| PFOtOCOIS | HTTP,DHCP,DNS |
| WiFi standard | IEEE802.11b/g/n |
| Frequency | 2.4 GHz – 2.4835 GHz |
| Bandwidth | 20/4OMHz |
| WiFi encryption | WPA-PSKYWPA2-PSK |
| Security | AES128 |
| Working temperature | -20°C-50°C |
| Power | DC5V,1A |
| Consumption | 4,5W MAX |
| Size(mm) | 52,1X50X94,9 |
| IP Protection | IP65 |
| Battery | 6700mA |
| Model | TPA-46B050100UU |
| Input voltage | 100-240Vac |
| input frequency | 50-60Hz |
| Output voltage | +5Vdc |
| Output current | 1A |
| Output power | 5W |
| Efficiency | 73,62% |
| No-load Consumption | < 0.1W |
Support
Symbols
Direct current (DC)
Don’t throw batteries or out of order products with the household waste (garbage). The dangerous substances that they are likely to include may harm health or the environment. Make your retailer take back these products or use the selective collect of garbage proposed by your city.
Hereby, laxihub, declares that the radio equipment type ‘ W 1 ‘ is in compliance with the Directive 2014/53/EU.- The full test of the EU declaration of conformity is available at the following Internet address: www.Iaxihub.com.
Direct current (DC)
Don’t throw batteries or out of order products with the household waste (garbage). The dangerous substances that they are likely to include may harm health or the environment. Make your retailer take back these products or use the selective collect of garbage proposed by your city.
Hereby, laxihub, declares that the radio equipment type ‘ W 1 ‘ is in compliance with the Directive 2014/53/EU.© 2020 Laxihub. All rights reserved. All trade names are registered trademarks of respective companies Apple, the Apple logo, iPhone are trademarks of Apple Inc. registered in the U.S. and other countries. Google, the Google logo, Android are trademarks of Google Inc. App Store is a service mark of Apple Inc. Google Play is a service mark of Google Inc.
Laxihub Europe
Zandsteen 50, 2132 MR Hoofddorp, The Netherlands
