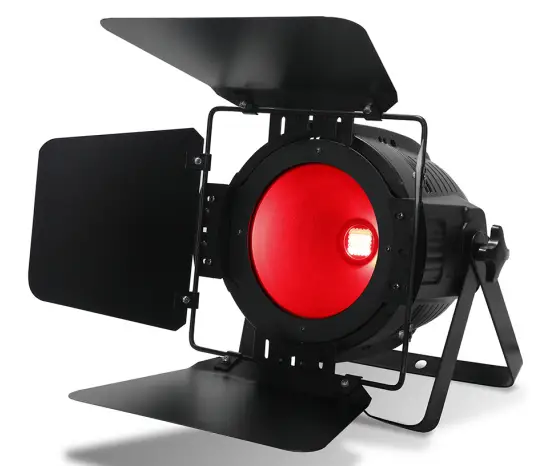

FOS technologies COB PAR 200 RGBW 4 In 1 COB LED
Caution!
Please read the instruction carefully before use Be careful with your operations. With a dangerous voltage, you can suffer a dangerous electric shock when touching the wires! Keep this device away from rain and moisture! Make sure it is grounded when using it! Unplug the mains lead before opening the housing! For your own safety, please read this user manual carefully before you initial start-up.
Introduction
Thank you for having chosen this Item. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device?
Safety instructions
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. Always disconnect. from the mains, when the device is not in use or before cleaning it. Keep away from children. and amateurs from the device! There are no serviceable parts inside the device.
Specifications
- Input power:AC100-240V 50/60 Hz
- Power consumption:200w
- LED:1 pcs 200W（4-in-1） COB light distribution uniform and soft
- DMX channel:4/8 channels
- Beam angle:60 degree
- Temperature control protection
- Control mode: DMX512/Master-Slave/Autorun/sound 0-100% linear dimmer high speed synchronous strobe
- IP-Rating: IP20
- product size：230×280×350mm
- packing size：255×255×360mm
- N.W：3.5Kg
- G.W：4.3KG

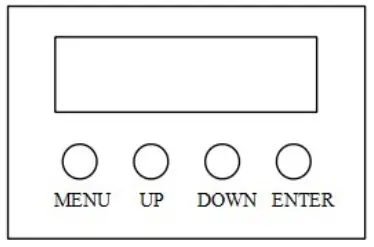

- [MENU] Main menu to select or return to the previous menu
- [UP] Menu selection or parameter increase
- [DOWN] Menu selection or parameter decrease
- [ENTER] OK / enter or select sub menu
| Show | Value | Function |
|
STAT | R.000-255 | Static colour mode，Red dimmer ,dark to bright |
| G.000-255 | Static colour mode，Green dimmer ,dark to bright | |
| B.000-255 | Static colour mode，Blue dimmer ,dark to bright | |
| W.000-255 | Static colour mode，White dimmer ,dark to bright | |
| CC.00 | CC.00-99 | Colour change mode |
| CP.00 | CP.00-99 | Colour fade mode |
| dE.00 | dE.00-99 | Auto mode |
| bEbE | Sound control | |
| CHAN | CH.04 | 4 channel |
| CH.08 | 8 channel | |
| d.001 | d.001-512 | DMX setting |
Channel modes:
4 channel mode
| 4-CHANNEL-MODE | |||
| Channel | Function | Values | Function |
| 1 | Red | 0-255 | Dimmer 0 – 100% |
| 2 | Green | 0-255 | Dimmer 0 – 100% |
| 3 | Blue | 0-255 | Dimmer 0 – 100% |
| 4 | White | 0-255 | Dimmer 0 – 100% |
8 channel mode
| 8-CHANNEL-MODE | |||
| Channel | Function | Values | Function |
| 1 | Master Dimmer | 0-255 | Dimmer 0 – 100% |
| 2 | Multifunctional Strobe | 0-10 | Strobe open |
| 11-255 | Strobe slow -> fast (1Hz – 20Hz) | ||
|
3 | no Function | 0-49 |
Color Macro |
| Colour change | 50-99 | ||
| Colour fade | 100-149 | ||
| Colour fade in/out | 150-199 | ||
| Sound active | 200-255 | ||
| 4 | Chase/fade speed (slow to fast) | 0-255 | |
| 5 | Red | 0-255 | Dimmer 0 – 100% |
| 6 | Green | 0-255 | Dimmer 0 – 100% |
| 7 | Blue | 0-255 | Dimmer 0 – 100% |
| 8 | White | 0-255 | Dimmer 0 – 100% |
Set DMX address
Display the DMX 512 value of each channel. With this function you can display the DMX 512 value of each channel. The display automatically shows the channel with a value changing.
