Ultra-Compact RGB COB LED Projector
User Manual
DECRIPTION

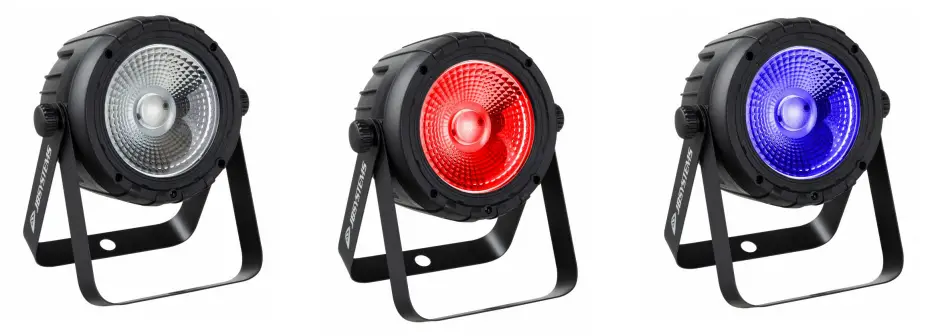

Ultra-compact RGB COB LED projector
FEATURES
- Ultra-compact RGB COB LED projector with a powerful single beam of 38°
- Use the unit in any way you like it !
• Standalone: sound activated (internal mic) or automatic shows.

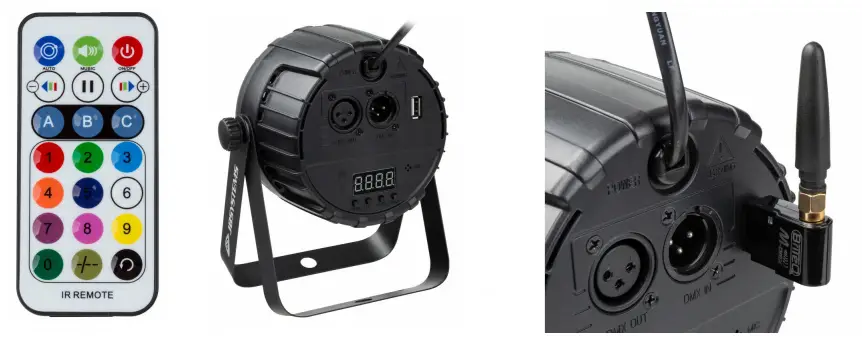

• Can be controlled with the optional IR REMOTE controller.
• Master/slave function for wonderful synchronized shows when several units are used.
• DMX-control: via 3, 4 or 5 Channels. - Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE !
- 4-digit LED display for easy menu navigation.
- Compatible with the LEDCON-02 Mk2 and LEDCON-XL controllers.
- Double hanging bracket that can be used as a floor stand.
TECHNICAL SPECIFICATION
| General : Dimensions (cm) | 15 x 16 x 9 |
| General : Weight (kg) | 0.4 |
| General : Powerinput | AC 100 – 240V, 50/60Hz |
| General : Energy Label | No |
| General : Power consumption W | 22 |
| General : Color | black |
| General : Display | LED |
| General : IP rating | indoor |
| Control : Modes | standalone fixed, standalone sound, standalone automatic, remote, manual, DMX, Master/Slave |
| Control : Protocol | DMX, Wireless DMX |
| Control : optional remote | IR REMOTE |
| Control : programmable | No |
| Control : upgradable software | No |
| Control : minimum DMX channels | 3 |
| Control : maximum DMX channels | 5 |
| Light : lamp socket | No |
| Light : lamp | LED |
| Light : colors | RGB |
| Light : mix colors | Yes |
| Light : max. refresh rate (kHz) | No |
| Connections : input | 3 pin XLR, wireless DMX optional |
| Connections : output | 3 pin XLR |
| Brand | JB SYSTEMS |
| EANCode | 5.42003E+12 |
