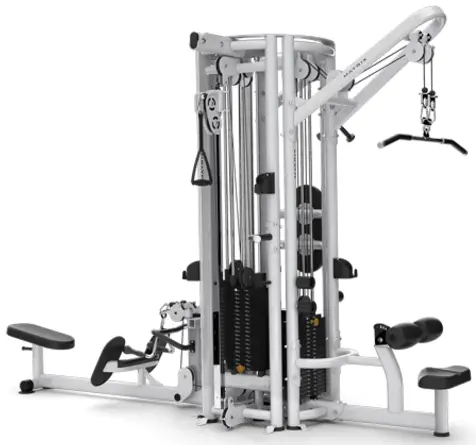

MATRIX Aura Series 4-Stack Multi-Station
Meet the strength training needs of multiple users and maximize training options with customized Aura Multi-Stations. Our 4-stack configuration allows you to integrate four configurable stations of your choice including Adjustable Pulley (MS24), Lat Pulldown (MS51), Triceps Press (MS52) and/or Low Row (MS53). The Low Row and Lat Pulldown feature dual pulleys for a greater exercise variety, and a bottle and towel holder keep essential accessories easily accessible. In addition to offering a unique aesthetic distinction that attracts more users, our round-tube construction with an automotive-quality powder-coat finish provides lasting strength and durability.
SPECIFICATION
| EASE OF USE | FRAME | ||
| Ergo Form Cushions | Yes | Frame Colors | Iced Silver, Matte Black, Graphite Grey, Gloss Black, Lace White, Polarized Titanium |
| Bottle & Towel Holder | Yes | Frame Finish | Proprietary two-coat powder process |
| Color-coded Pivots & Adjusts | Yes | Over-sized Frame Tubing | Yes |
| TECH SPECS | WEIGHT STACK | ||
| Overall Dimensions (L x W x H)* | 167.8 x 369.8 x 252.0 cm / 66.1″ x 145.6 “x 99.2” | PTFE Impregnated Weight Stack Bushings | Solid cold-rolled steel plate, with Teflon inner bushings |
| Weight Stack* | 2 x 91 kg, 2 x 134 kg / 2 x 200 lbs., 2 x 295 lbs. | Suspension | Three-point design |
| Max User Weight | 136 kg / 300 lbs. | Weight Pins | Magnetic & tethered |
| Total Weight* | 998 kg / 2,200 lbs. | Guards & Pulleys Covers | Yes |
The dimensions and weight listed are based on the configuration shown in the main top image.
REQUIRED CONNECTION KITS
| REQUIRED CONNECTION KITS | NUMBER OF KITS |
| G3-MS40CK (MAS0868-02) 4-stack Connection Kit | One Kit |

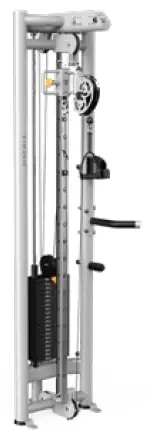

Adjustable Pulley G3-MS24
- Single-handed height adjustment offers easy to use
- A 1:2 pulley ratio provides smooth movement and smaller incremental weight changes
- Balance bar adds support during exercise
- Includes water bottle holder and towel hook

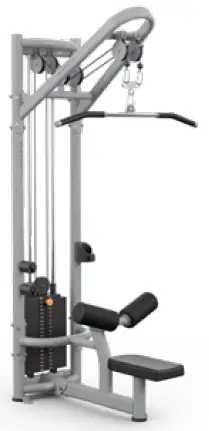

Lat Pulldown G3-MS51
- Two independent cables add training variety
- Pivoting knee pad allows for quick and easy adjustments
- Includes water bottle holder and towel hook

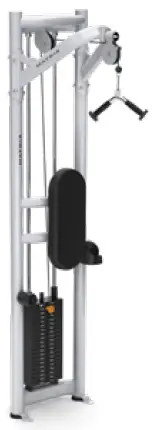

Triceps Pressdown G3-MS52
- Swiveling top pulley enhances durability
- 1:1 pulley ratio allows for heavy training
- Additional stability pad enhances comfort
- Includes water bottle holder and towel hook

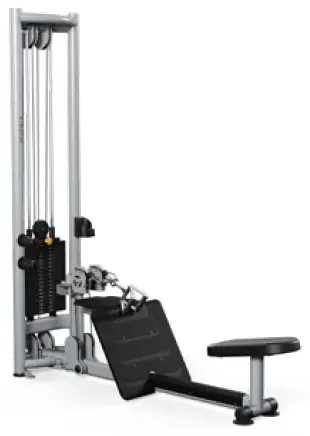

Low Row G3-MS53
- Two independent cables add training variety
- Pivoting knee pad allows for quick and easy adjustments
- Includes water bottle holder and towel hook

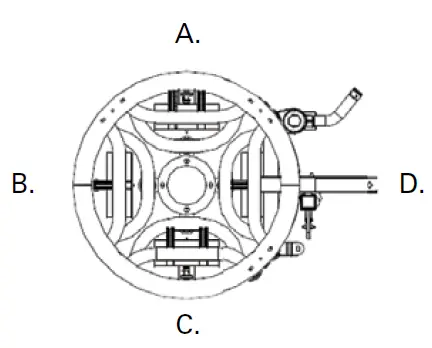

CONFIGURATION
Choose four stations from above.
| A. | C. | ||
| B. | D. |
