STACKING+MULTI CONTROL KIT
(WASHER & DRYER ONLY)
INSTALLATION INSTRUCTIONS
CAUTION: Two people are required to lift the dryer onto the washer. WARNING: These washer and dryer are not suitable for mobile home or RV installation.
Dryer
STEP 1 Have two persons place the dryer on a non-slippery floor. Then, have one person tilt the dryer to the side. Do not lay the dryer down. The dryer may be scratched.

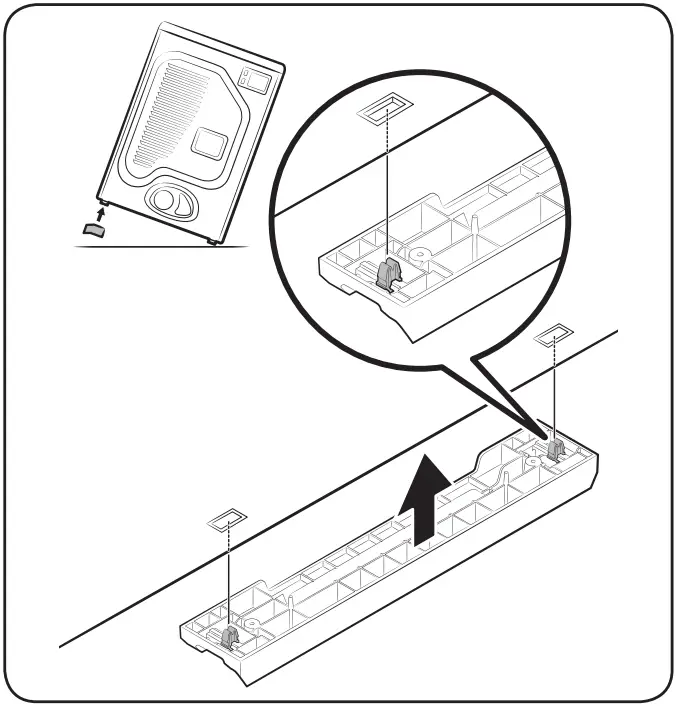

STEP 2 Check to make sure the legs are all the way up and tightened securely in place. And then insert the stacking support guides in the rectangular holes of the dryer’s base until you hear a clicking sound. You don’t need to remove the legs.
STEP 3 Repeat the same step above on the other side.

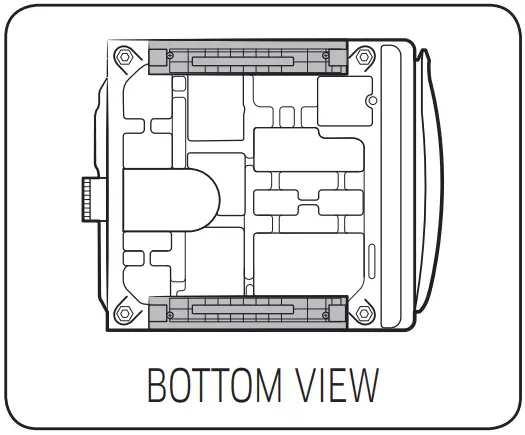

STEP 4 Bottom view of the dryer after assembling the Stacking Support Guides to the dryer base.
- Use a stacking kit compatible with the purchased model.
- Do not lay the dryer down on the floor when installing the stacking kit. Hold the dryer firmly to prevent it from tipping over.
Washer (only applicable for models supporting multi-control)
STEP 5 DO NOT TIGHTEN SCREWS COMPLETELY.

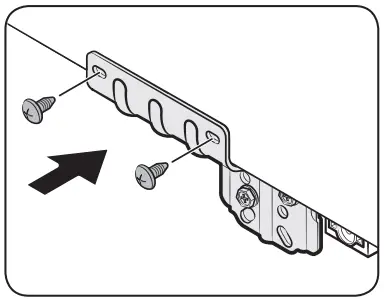

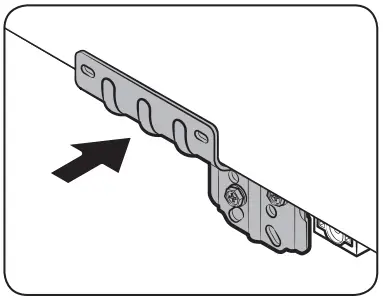

LOOSELY fasten two REAR BRACKETS at the back of the washer using the two SCREWS-HEX HEAD (6002-001431) and WASHERS (DC60-00044A).
- Fasten the ASSY BRACKET STACKING on the right side.
- Fasten the other REAR BRACKET on the left side.
STEP 6
Lift and position dryer into the position on the washer shown above, and slide dryer backward to make contact with rear brackets. CAUTION: To prevent noise, check the followings.
- Make sure the washer is level.
- Make sure the dryer’s leveling legs are tightened up.
STEP 7 Align rear brackets with mounting holes on the rear of the dryer as shown above.
STEP 8 LOOSELY assemble rear brackets to the back of the dryer using two (2) Screws- Phillips Pan Head (6006-001174) for each rear bracket as shown above.
Extra screws may be included with this kit.
STEP 9

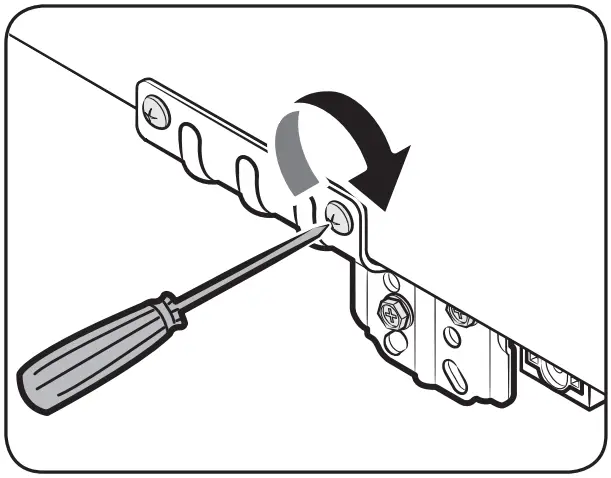

Tighten screws on the dryer side of the rear bracket. WARNING: Additional gas hook-up components are required for the gas dryer.

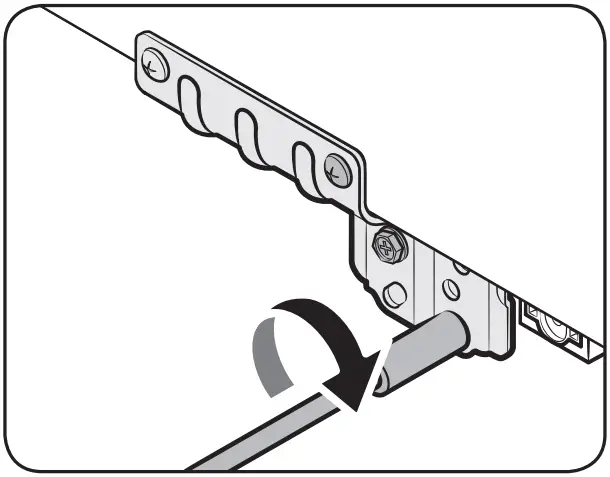

STEP 10 Tighten screws on the washer side of the rear bracket.
* DO NOT REVERSE THE ORDER OF STEPS 8 & 9.

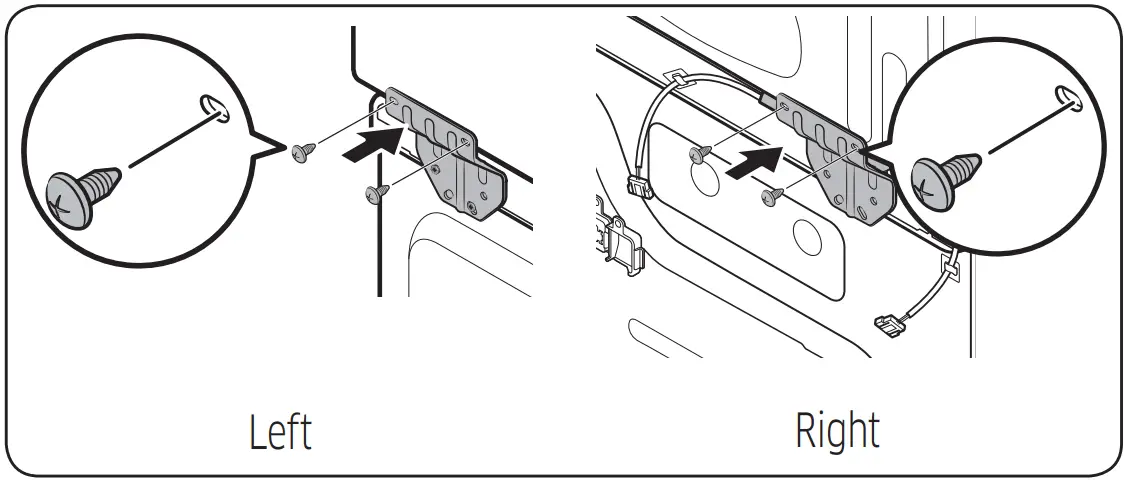

STEP 11 Assemble the provided ASSY BRACKET STACKING on the right side and assemble the REAR BRACKET on the left side. All the necessary parts are included
in the stacking kit.

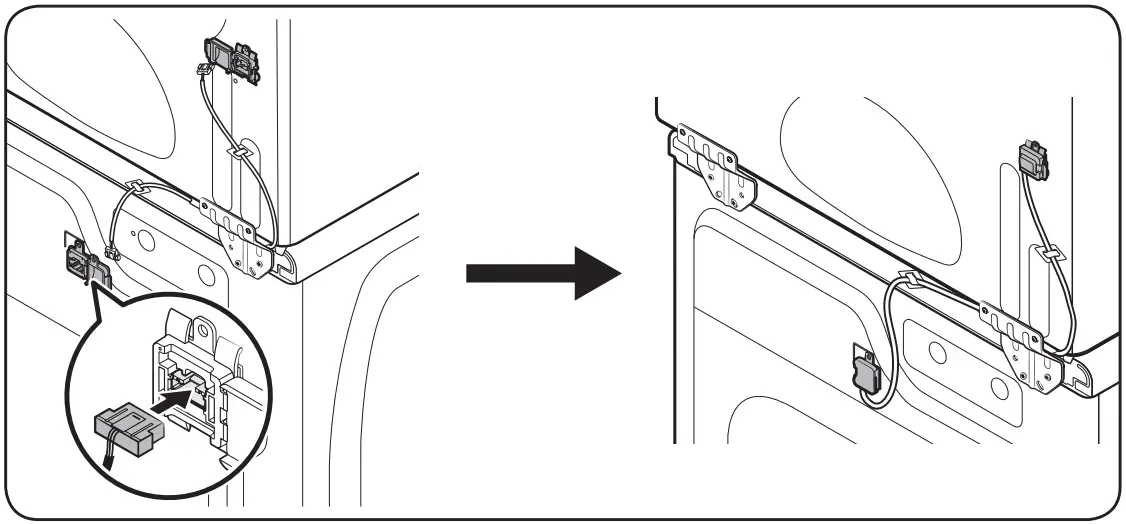

STEP 12 Open the connector port cover on the dryer and the washer, connect the wire on both ports, and then close the cover.
- Be careful not to damage the wire by the connector port cover.
- Do not pull the wire too hard to remove the connector from the port.

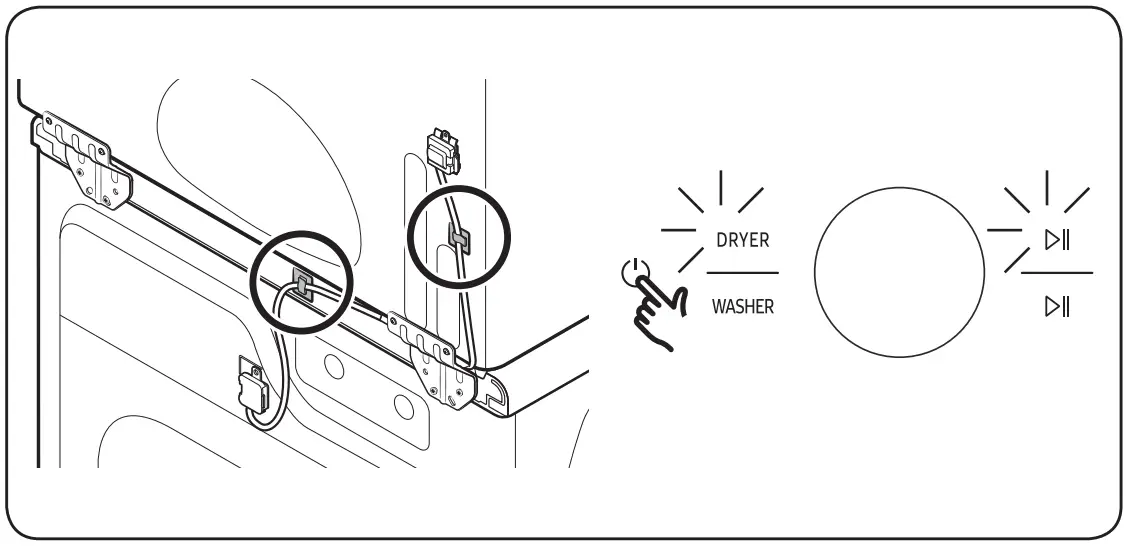

STEP 13 There is two HOLDER WIRE preassembled to the wire. Attach each HOLDER WIRE to the dryer and the washer.
Check and make sure the washer and the dryer are connected.
Stacking kit components

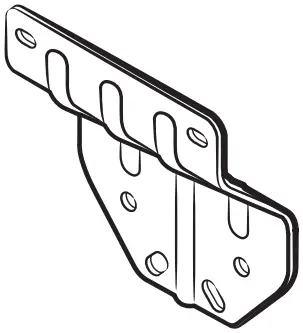

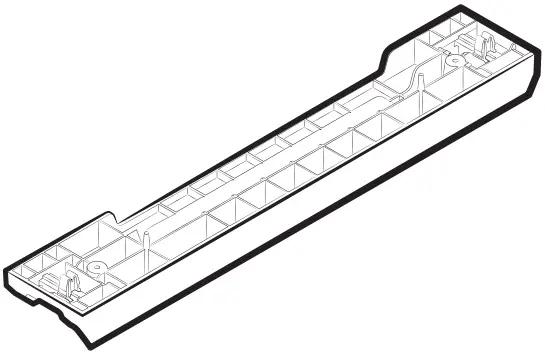

 Stacking Support Guides (2) – DC61-04159A |  Rear Bracket (1) – DC61-04955A |  Screw-Hex Head (4) – 6002-001431 (M5, L16) |

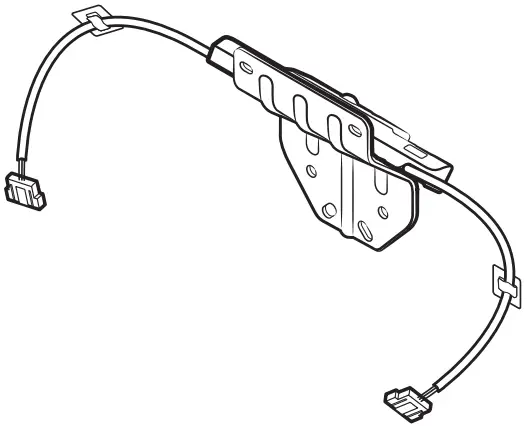

 Screw Phillips-Pan Head (8) – 6006-001174 (M4, L12) |  Washer (4) – DC60-00044A (ID5, OD10) |  Assy Bracket Stacking (1) |
