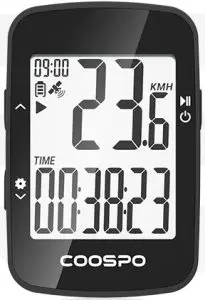

COOSPO BC26 Bike Computer and Cycling Accessories User Manual

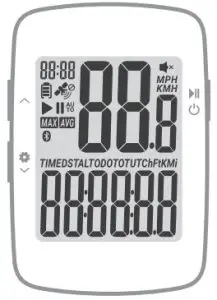

Button function

• Up Left
  Short Press: Switch Data Type / Numerical Value
• Left Down
  Short Press: Switch Data Type / Numerical Value Long Press: Enter/ Exit Setting Mode
• Right Button
  Short Press: Power on / Start Riding / Switch Settings Long Press: Power off / End the ride

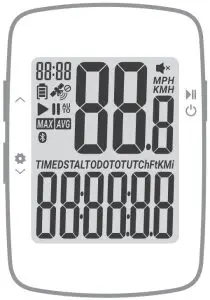

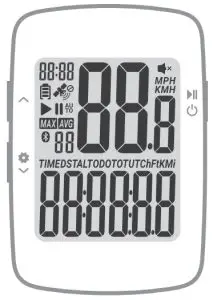

Status Icons

	Time
	No satellite signal
	Satellite signal level
	Alert sound on / off
	Riding
	Manual pause /Auto pause
	Bluetooth connected
	Battery level
	Average speed
	Maximum speed
MPH	Miles per hour
KMH	Kilometers per hour
TIME	Riding time
DST	Distance
ALT	Altitude
ODO	Odometer (Total distance)

Standard accessories

• Main Device x 1

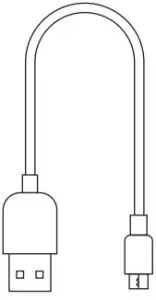

• Charging Cable x 1

• User Manual x 1

• Standard bike mount x 1

• Rubber pad for standard bike mount x 1

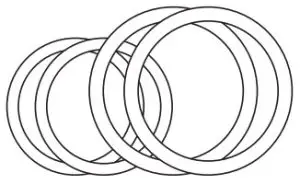

• Big size rubber ring x 2
  Small size rubber ring x 2


How to Install

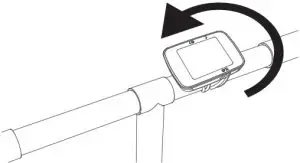

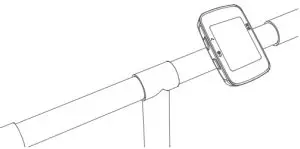

Standard Mount Installation

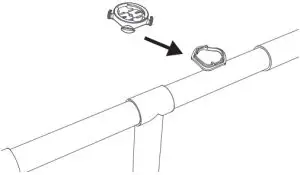

1. Install the rubber pad onto the mount

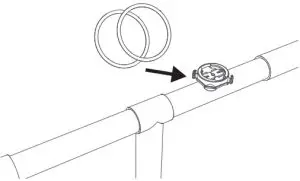

2. Tie the mount onto the bar with the rubber rings

3. Tie up the mount

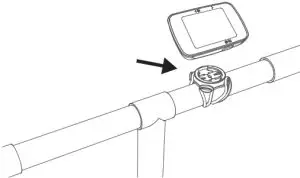

4. Install the main device

5. Rotate the main device for 90 degrees

6. Installation completed onto the mount

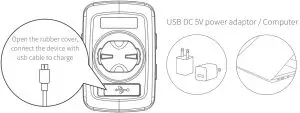

Charging

1. Please charge the device before first time use.
2. Please use DC 5V power adaptor for charging.
3. During the charging, the battery icon will flash until fully charged.


The product has a built-in battery. Do not throw the product into a fire. Please choose an adapter that meets the rated voltage of the device to charge the device to avoid damage to the device.

Acquiring Satellite Signals, Time Setting and Auto Backlight

Acquiring Satellite Signals

This device can use speed sensor or GPS for speed tracking, when using please make sure the device is outdoor and under a clear view of sky. Usually it may take 15-90 seconds for the bike computer to locate satellite signals, remain stationary when acquiring satellite signals.

Time Setting

The time and date will be calibrated automatically after locate the satellite signals(Check how to set the time zone correctly, please refer to the time zone setting chapter).

Auto Backlight

This device will automatically calculate the sunrise and sunset time, from the time half an hour before sun set to half an hour after sun rise, the backlight will be automatically lighted; the backlight will be turned off if no operation detected in 15 seconds.

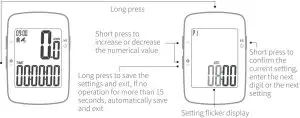

Time Zone Setting

1. Long press to enter the setting mode (P1-P3), P1 time zone setting, the currently set numerical value flicker display;
2. Short press to switch numerical value;
3. Short press to confirm the current setting, and enter the next digit or the next setting (P2 metric / imperial setting);
4. The device will automatically save and exit after 15s no operation or long press to exit the setting.

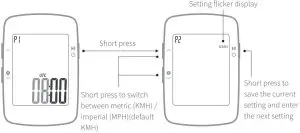

Setting Metric and Imperial Units

1. Long press to enter setting mode (P1-P3), short press to enter P2 metric / imperial setting;
2. Short press to switch between metric (KMH) / imperial (MPH);
3. Short press to confirm the current setting and enter the next setting (P3 speed alert setting).

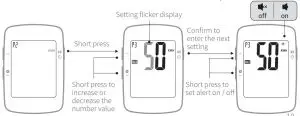

Maximum Speed Alert Setting

1. Long press to enter the setting mode (P1′-P3), short press to enter the P3 maximum speed alert setting, the currently set numerical value flicker display;
2. Short press to switch numerical value;
3. Short press to confirm the current setting and enter the next digit setting or the next setting;
4. Short press to set the prompt tone on / off, after the setting is completed, Long press to exit or no operation for 15s to automatically save and exit.

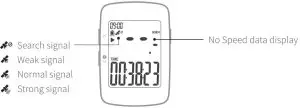

GPS Positioning

1. Auto GPS positioning after the bike computer is power on. Please start cycling after the GPS positioning is successful.
2. Please make sure you are outdoor when positioning. Bad weather and dense forest may affect GPS signal. You can stand still 3-5 minutes to get more connections with satellites for better GPS signal.
3. If you lost GPS Positioning during riding, the speed data (real-time, average, maximum) will be displayed as” “, and the rest of the data remains the same.

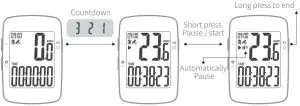

Cycling

Turn on the device, short press to start riding, short press to pause / start; Long press to end riding (when the speed is 0 or there is no data during riding, or when the speed is too low, the bike computer will automatic pause IPS / automatic start ► ; When there is no speed data during riding, the cycling computer will automatically enter dormant after 15 minutes, and it will return to the previous riding state after pressing to turn it on).

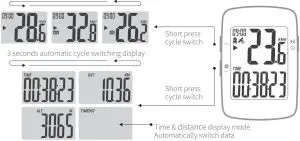

Riding Data Display

1. Short press cycle to switch real-time speed, maximum speed, and average speed.
2. Short press V cycle to switch time, distance, altitude and time & distance display mode automatically switch data. Real-time Speed Maximum Speed Average Speed


Bluetooth Connection

1. Download CoospoRide in Google Play or App Store



   Compatible with
   iOS 9.0 version and above, iphone 4s and above
   Any Bluetooth 4.0 enabled Android device with Android 4.3 and above
2. Power on the bike computer;

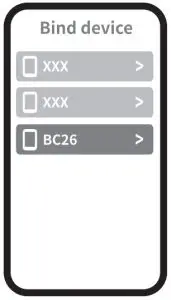

3. Open the CoospoRide App, enter the binding cycling computer step, select the BC26 bike computer in the device list to bind the device, (the phone needs to turn on Bluetooth and allow Bluetooth permissions);

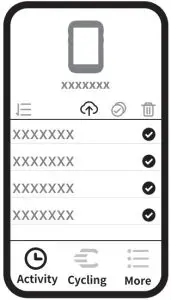

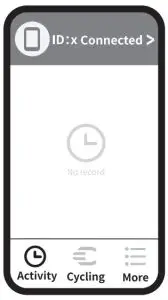

4. In the activity page of the App, click on the connected device to enter the record synchronization operation page (through the authorization to Strava in the App more settings, the computer data can be synchronized to the Strava platform at the same time);

5. Select the record to be synchronized and click Sync, and the record on the bike computer will be deleted automatically after synchronization.


Basic Parameters

Attentions

The water resistant level of the bicycle computer is IPX7. It can be used in the rain if you close the protective cover on the back tightly. It is recommended to take down the bicycle computer and put it into waterproof bag if it rains heavily.

Responsibility Disclaimer

• The information contained in this manual just for reference. The product described above may be subject to alteration owing to the manufacturer’s continuing research and development plans, without making an announcement in advance.
• We shall not bare any legal responsibility for any direct or indirect, accidental or special damages, losses and expenses arising from or in connection with this manual or the contained product.
