Coospo Bc107 Gps Bike Computer User Manual

BC107 GPS Bike Computer
User Manual

SCAN for more….

https://www.coospo.com/download-center-bc107/

Button function

Left Button
Short Press: Mark a new lap
Hold for 2 seconds: Power off
(Power on: short press the button）
(Short press in setting mode: exit / return and save the setting)
Mid Button
Short Press: Pause / Continue (Short press to start recording after power on)
Hold for 2 seconds: save the exercise record and exit the exercise
(Short press in setting mode: enter the current setting / switch the number of digits)
Right Button
Short Press: Page turning
Hold for 2 seconds: setting mode
(Short press in setting mode: switch setting options / switch the numerical)

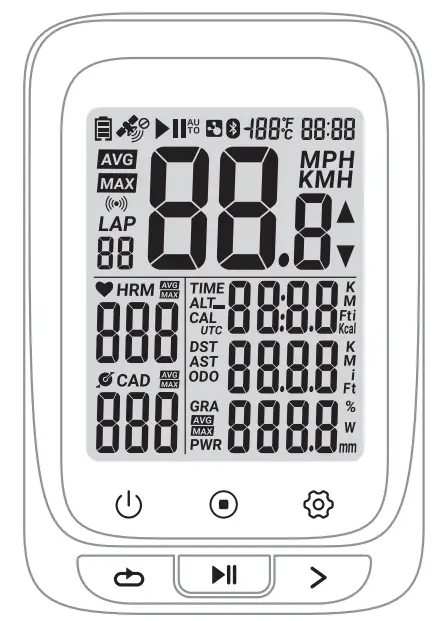

Status Icons

	Time
	No satellite signal
	Satellite signal level
	Accessory connecting status
	Under exercising
	Manual pause
	Connected with App by BLE
	Temperature
	Battery level
	Average
	Maximum
	Miles per hour
	Kilometers per hour
	Increased & Decreased
	Heart Rate
	Cadence
	Gradient

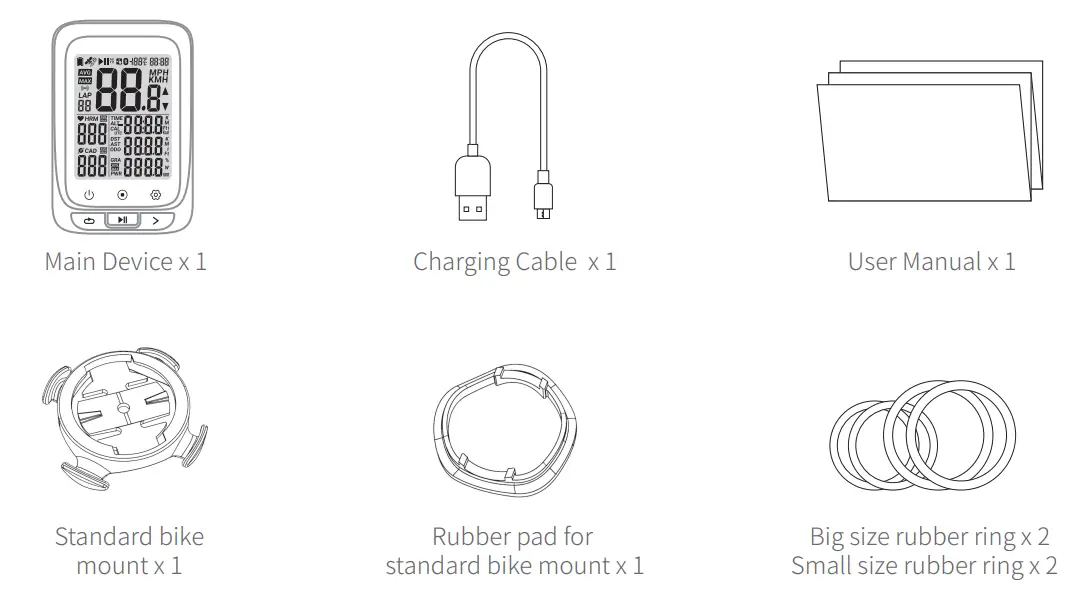

Standard accessories

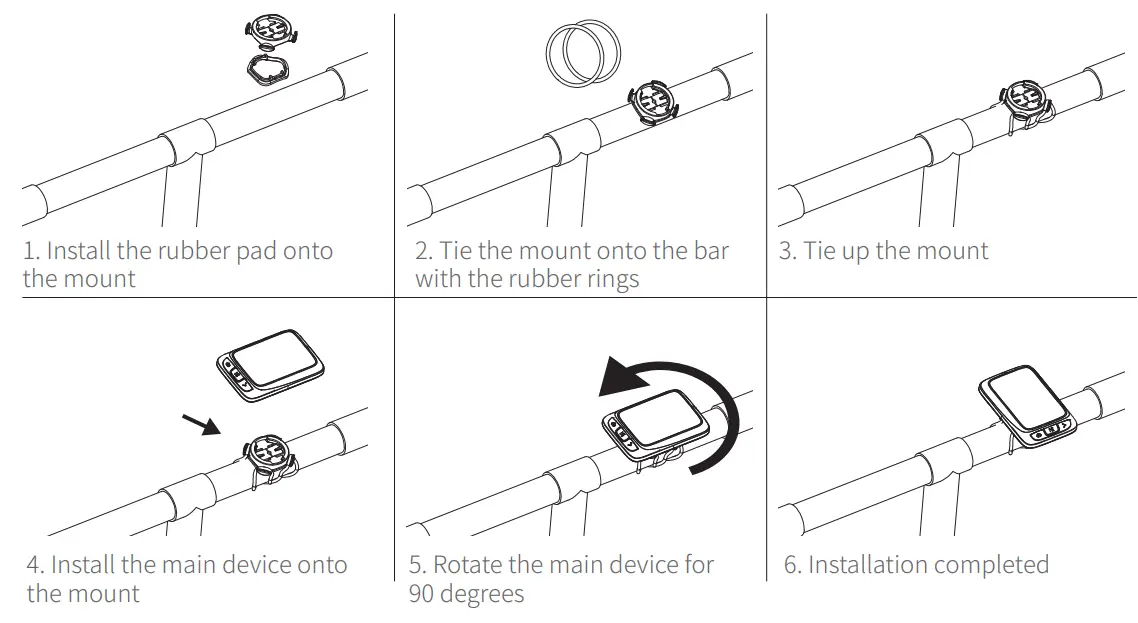

How to Install

Standard Mount Installation

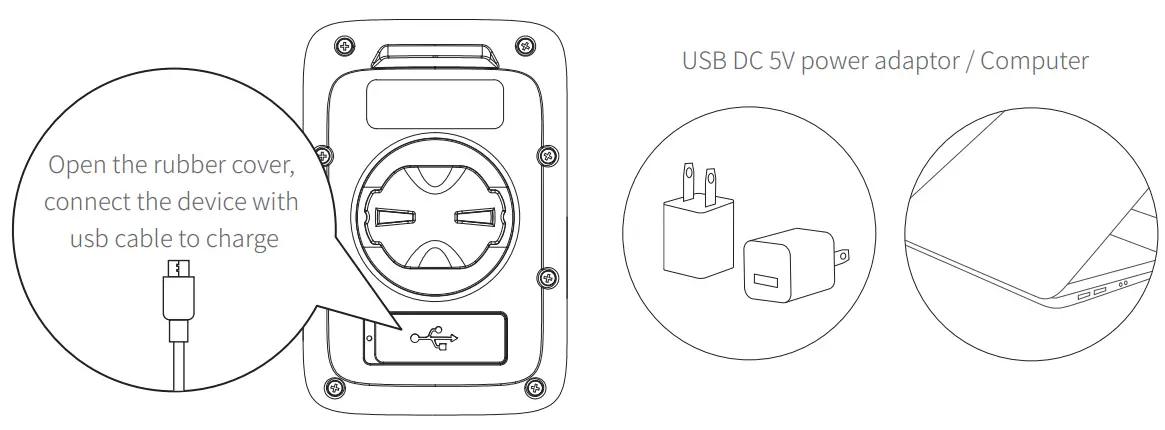

Charging

1. Please charge the device before first time use.
2. Please use DC 5V power adaptor for charging.
3. During the charging, the battery icon will flash until fully charged.


Acquiring Satellite Signals, Time Setting and Auto Backlight

Auto Backlight
This device will automatically calculate the sun rise and sun set time, from the time half an hour before sun set to half an hour after sun rise, the backlight will be automatically lighten up, in  the rest of the time, the backlight will be turned off if no operation detected in 15 seconds.
Acquiring Satellite Signals
Please make sure the device is outdoor and under a clear view of sky. Usually it may take 15~90 seconds to locate satellite signals, remain stationary when acquiring satellite signals. This device can use speed sensor or GPS for speed tracking, when the speed sensor is not connected, the device will use GPS for speed tracking, and will use speed sensor when the sensor is  connected.
Time Setting
The time and date will be calibrated automatically after locate the satellite signals when the device is powered on (Please set the time zone correctly, refer to the time zone setting chapter) or  connect the device to the App (CoospoRide) to sync the time.

Connecting with ANT+ Sensors

1. Please make sure the sensors are in wake-up mode(For example, the heart rate monitor should be worn on properly, and the speed cadence and power meter should be awakened by turning  the pedals or wheels).


2.1 Hold the to get into setting mode;
2.2 There are 5 settings pages available (P1 ~ P5), press the to switch to P1;
2.3 Press to select to enter;
2.4 The computer automatically searches for ANT+ peripherals, and automatically connects after searching for ANT+ peripherals;
2.5 Press to save the found accessories and return. If no ANT+ accessory is found, the device will return to the last pages automatically (When a power device is connected during riding, the  computer will display power data first, and when there is no power device, it will display GRA slope data).

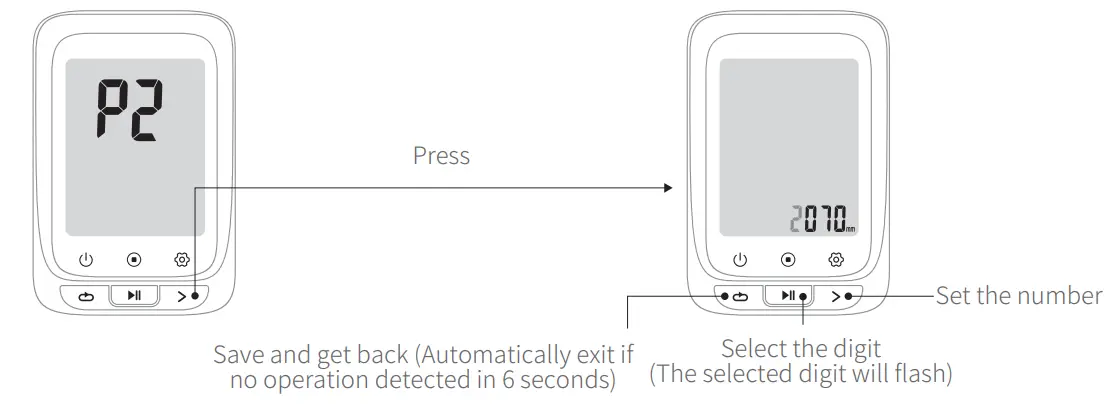

Setting the Wheel Size

1.1 Hold the to get into setting mode;
1.2 There are 5 settings pages available (P1 ~ P5), press the to switch to P2;
1.3 Press to select to enter;
1.4 Press to select the setting digit, press the to set the numbers;
1.5 Press to save and exit (Automatically exit in 6 seconds if no operation detected).

Common wheel size and circumference(Wheel Size L (mm)

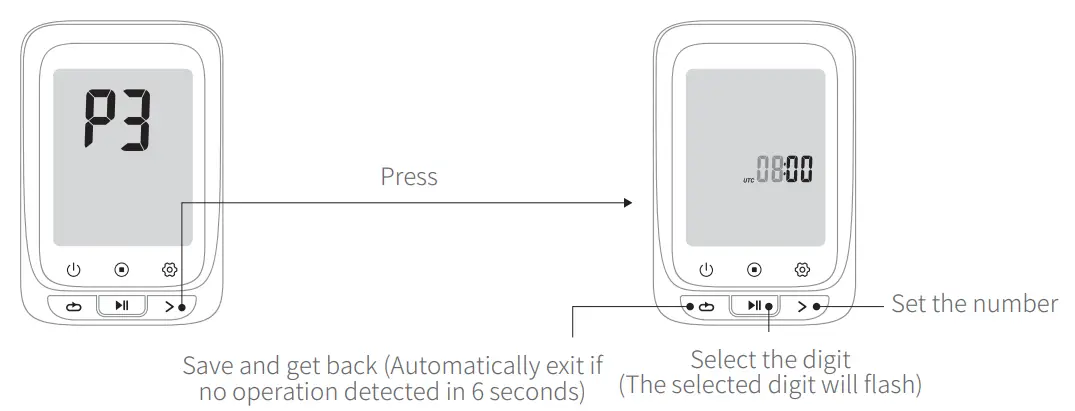

Time Zone Setting

1.1 Hold the to get into setting mode;
1.2 There are 5 settings pages available (P1 ~ P5), press the to switch to P3;
1.3 Press to select to enter (Default time zone: UTC/GMT + 08:00);
1.4 Press to select the setting digit, press the to set the numbers;
1.5 Press to save and exit (Automatically exit in 6 seconds if no operation detected).

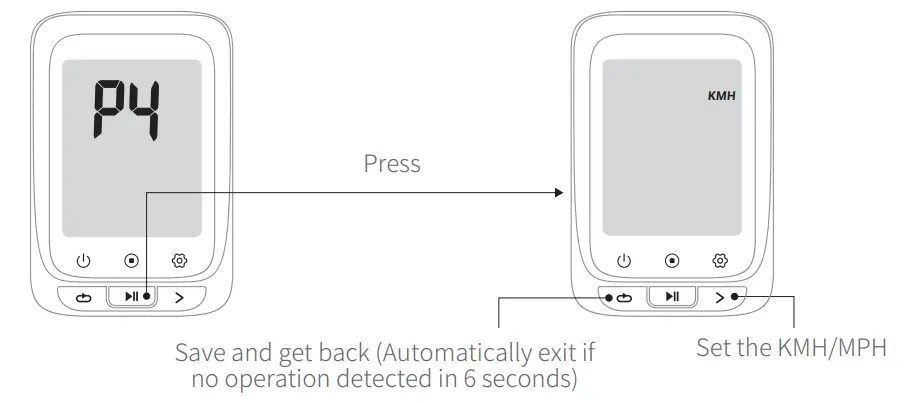

Setting Metric and Imperial Units

1.1 Hold the to get into setting mode.
1.2 There are 5 settings pages available (P1 ~ P5), press the to switch to P4.
1.3 Press to enter(Default: KMH).
1.4 press the to switch.
1.5 Press to save and exit (Automatically exit in 6 seconds if no operation detected).

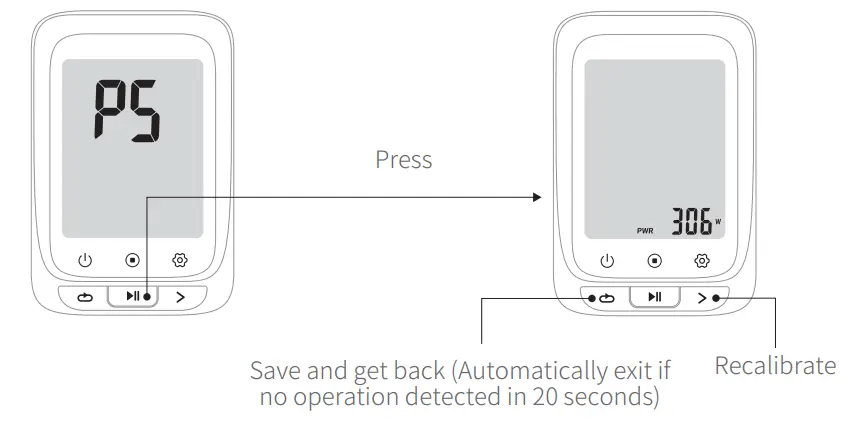

Power calibration
1.1 Hold the to get into setting mode;
2.1 There are 5 settings pages available (P1 ~ P5), press the to switch to P5, it will automatically calibrate;
2.2 Short press to recalibrate, the value flashes during the calibration, the value does not flash after the calibration is successful;
2.3 After the calibration is successful, press to save and exit(Automatically exit in 20 seconds if no operation detected).

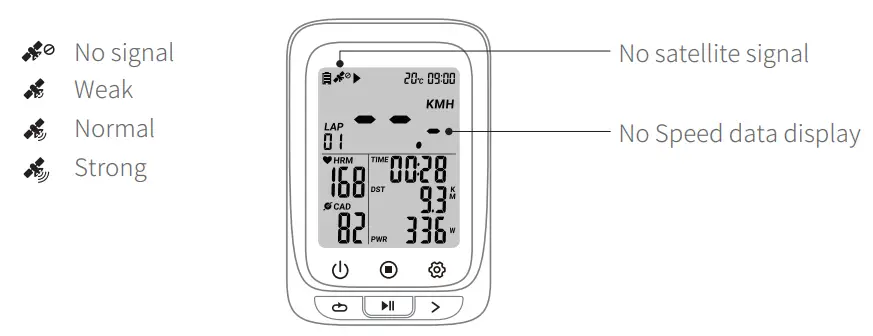

GPS Positioning
GPS searching is Auto after power on. Please start cycling after the GPS positioning is successful.

1. If you start riding when the GPS is not positioned successfully (speed sensor not connected), the speed data(real-time, average, maximum) will be displayed as”— ”, and the rest of the data  remains the same.
2. Tips: You can stand still 3-5 minutes to get more connections with satellites for better GPS signal.


Note: Please make sure you are outdoor when positioning. Bad weather and dense forest may affect GPS signal.

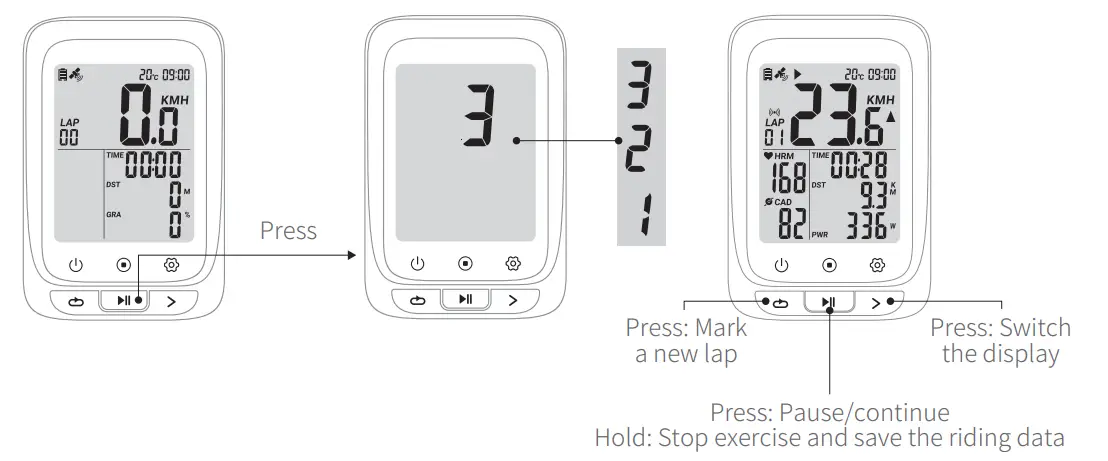

Cycling

Turn on the device, press to start an exercise and recording(During the cycling, when the cycling speed is 0, the device will pause automatically, if no data get for speed, cadence and heart rate in 15 minutes the device will turn into sleep mode, press to resume).

* Bluetooth Connection

1. Download CoospoRide in Google Play or App Store
   * Compatible with
   iOS 9.0 version and above, iphone 4s and above
   Any Bluetooth 4.0 enabled Android device with Android 4.3 and above

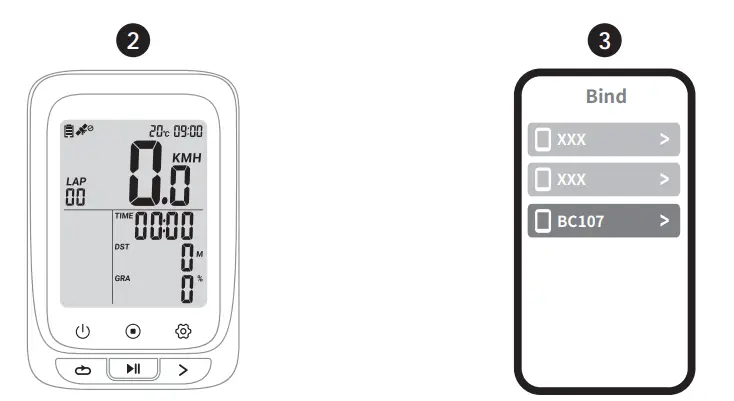

2. Power on the bike computer;
3. Open the CoospoRide App, enter the binding computer step, select the BC107 computerin the device list to bind the device, (the phone needs to turn on Bluetooth and allow Bluetooth permissions);

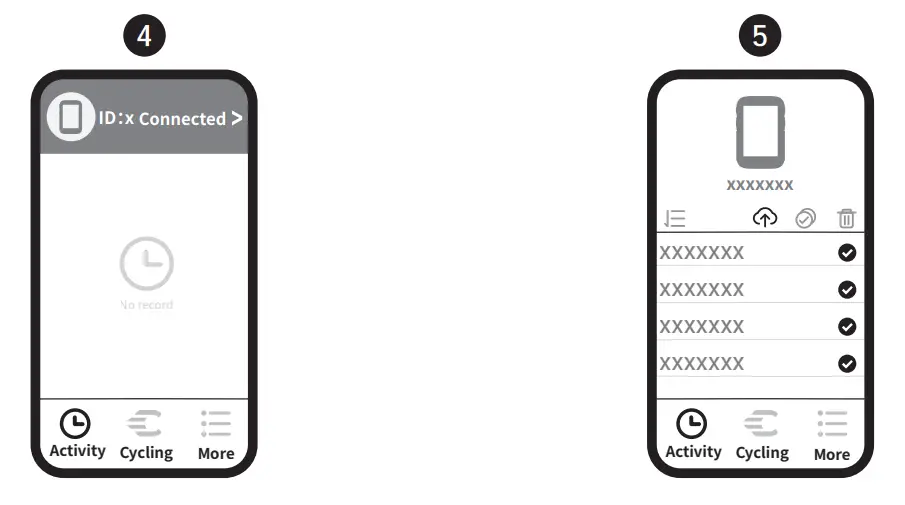

4. In the activity page of the App, click on the connected device to enter the record synchronization operation page (through the authorization to Strava in the App more settings, the  computer data can be synchronized to the Strava platform at the same time);
5. Select the record to be synchronized and click Sync, and the record on the computer will be deleted automatically after synchronization.


Basic Parameters

Attentions
The water resistant level of the bicycle computer is IPX7. It can be used in the rain if you close the protective cover on the back tightly. It is recommended to take down the bicycle computer  and put it into waterproof bag if it rains heavily.
Responsibility Disclaimer
The information contained in this manual just for reference. The product described above may be subject to alteration owing to the manufacturer’s continuing research and development plans,  without making an announcement in advance.
We shall not bare any legal responsibility for any direct or indirect, accidental or special damages, losses and expenses arising from or in connection with this manual or the contained product.

FCC statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable  protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the  instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause  harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of  the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and .
2. this device must accept any interference received, including interference that may cause undesired operation.

IC statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the  following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Contact your local government or a retailer for additional information.

• Do not open or modify the product.
• Do not disassemble or attempt to service this product.
• This product is safe under normal and reasonably foreseeable operating conditions.
• If product is operating improperly, call COOSPO support.
• Product must be returned to the manufacturer for any service or repair.
