Dual Band WiFi FPC Antenna (IPEX Connector)
AFAG2220-SW2
FEATURES
- Low profile
- Flexible structure
- Omni-directional pattern
- Integrated IPEX connector
- Peel-and-stick installation
APPLICATIONS
- IoT
- Home automation
- WiFi/Bluetooth
- Industrial wearables
- Appliances
- Security
- Video
Key Electrical Specifications
| Item Frequency | 2400-2500 MHz | Specification 5100-5900 MHz | |
| VSWR | <2.0 | <2.5 | |
| Impedance | 5052 | ||
| Gain | Average | 1— 2 dBi typ | |
| Peak | 6.5 dBi | ||
| Azimuth | Omni-directional | ||
| Polarization | Vertical | ||
| Installation mode | Surface-pasting | ||
| Operating Temperature | -40 to +85°C | ||
| Power Capacity | 3W | ||
Note:
Don’t paste on the surface of metal.
Frequency change with different material and thickness of the shell.

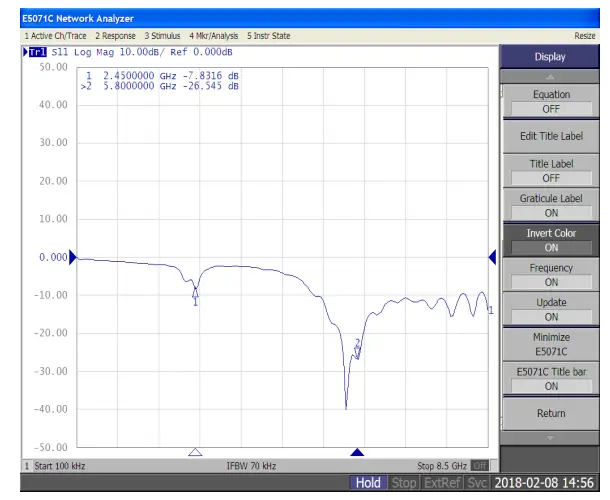

VSWR Characteristics

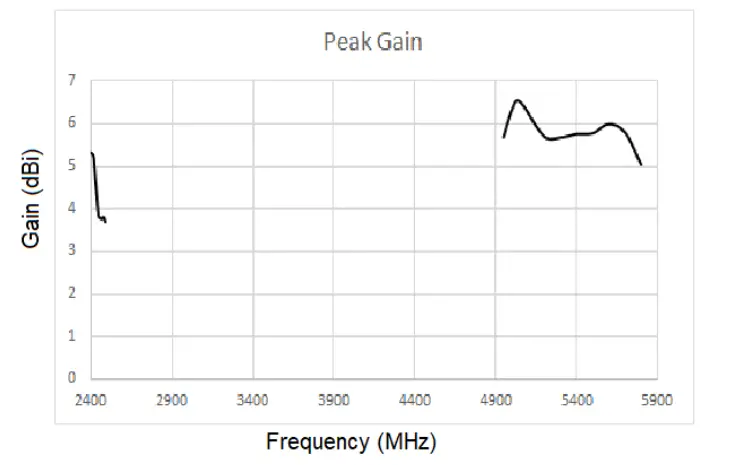

Peak Gain

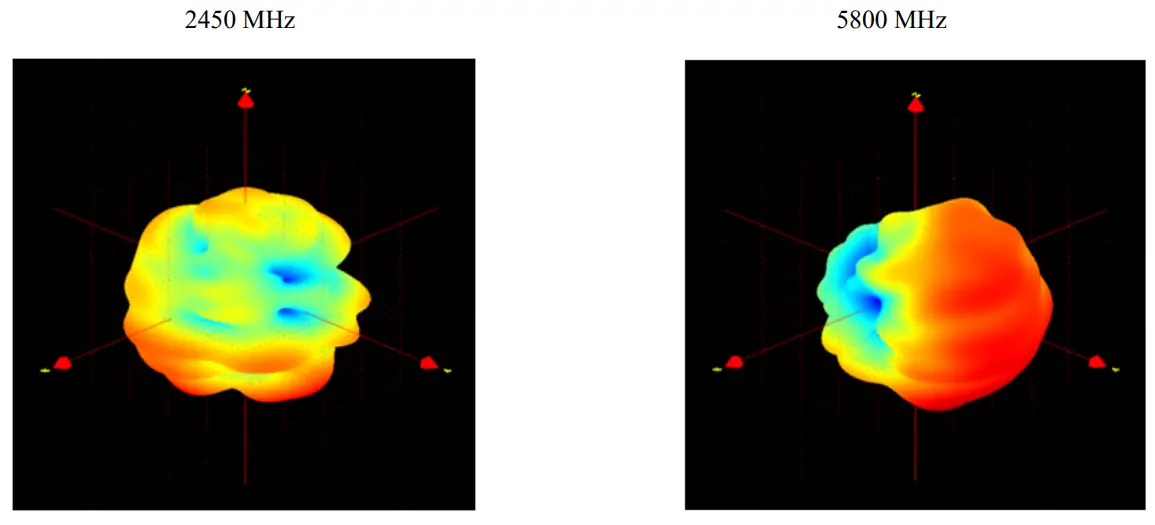

Radiation Patterns

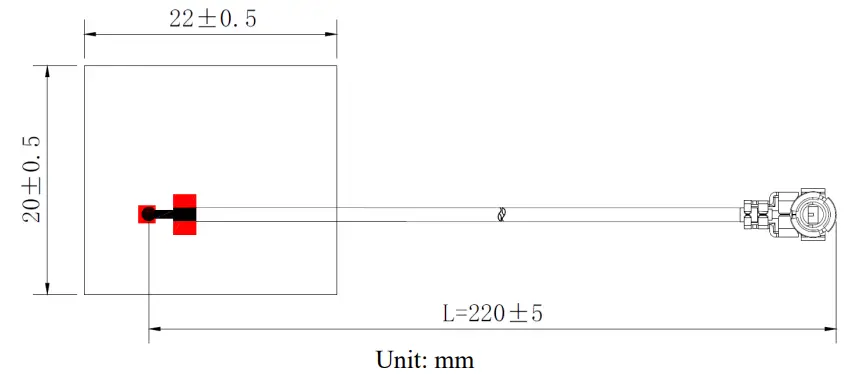

Dimensions
| Description | Spec |
| Antenna Size | 22 x 20 mm |
| Material | FPC |
| RF Cable | (1:11.13mm (L=220-15mm) |
| RF Connector | I-PEX |
| Adhesive Tape | 3M-467MP |
Product Image
Packaging
There are 5 pcs per plastic bag (inner box), and 500 pcs per carton (outer box). The size of each inner box is 180 x 122mm and the size of the carton is 500 x 260 x 250mm. The weight of the carton is 1.5/3.5kgs (NW/GW).
| Package Type | Quantity |
| Inner Box | 5 pcs/plastic bag |
| Carton | 500pcs/ctn |
