Montigo Hdkpd36 Cool Wall Advantage Kit Instruction Manual

HDKPD36, HDKPD48, HDKPD63, HDKPD72 COOL
WALL ADVANTAGE TV KIT
Instruction Manual

•  24′ of 5’’ diameter flex pipe required for completion of the installation (12′ for 36″ Distinction and Delray Square 38). Flex pipe is available from Montigo as part # HDKPDFK.
• The installation of this fireplace must be done by a qualified and certified gas appliance installer.
• Check local codes and read all instructions prior to installation.
• See installation manual for clearances to combustible materials
• Minimum clearance to flexible ducting is 1″

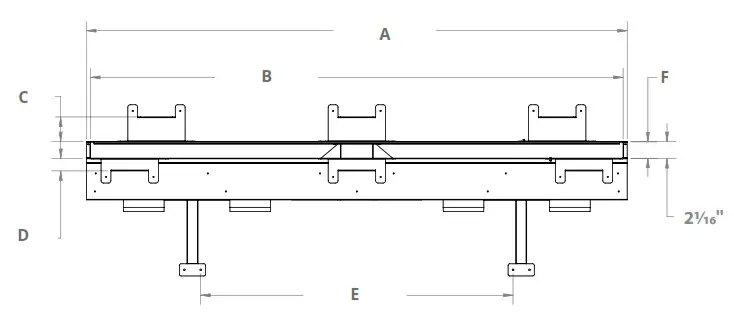

Assembly

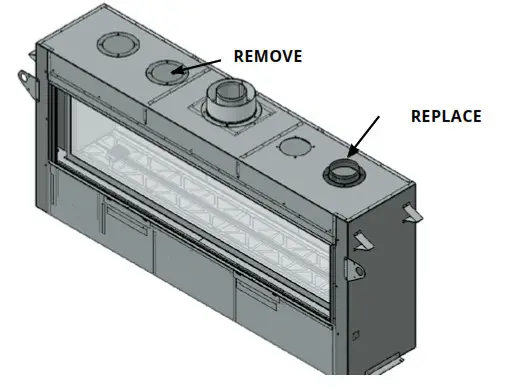

1. Unscrew Cap and replace with supplied Crimp Collarsusing the same hardware.

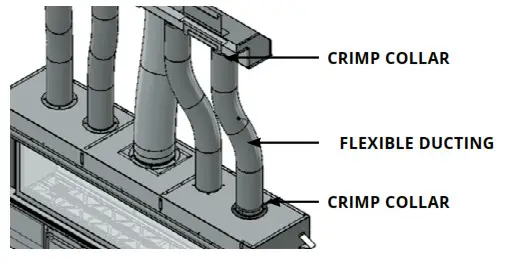

2. Secure Heat Distribution kit to Framing at Desired Height and use supplied crimp collars to secure ducting with tek screws.
   If using Montigo Flex Pipe Kit HDKPD63FK please ensure that the pipe is fully extended before cutting to the desired length. Montigo flex pipe can be stretched 50% (e.g. 6’ pipe can be stretched to 9’)
   Maintain 1” Clearance to combustibles from flex pipe.

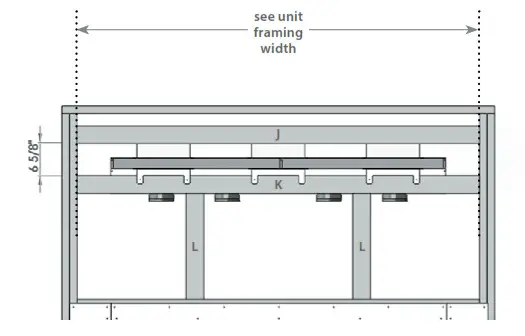

3. Install boards J and K first then secure the TV kit with the lower screws. Boards L will be cut to length depending on the height of the Heat Distribution Kit.
   Then install the upper board J to secure the Heat Distribution Kit.

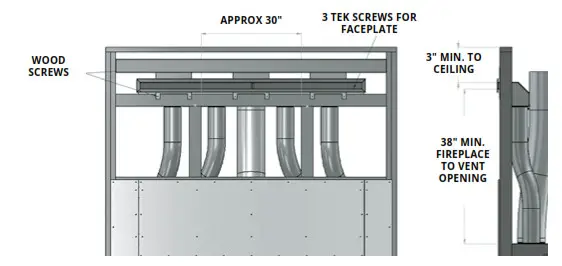

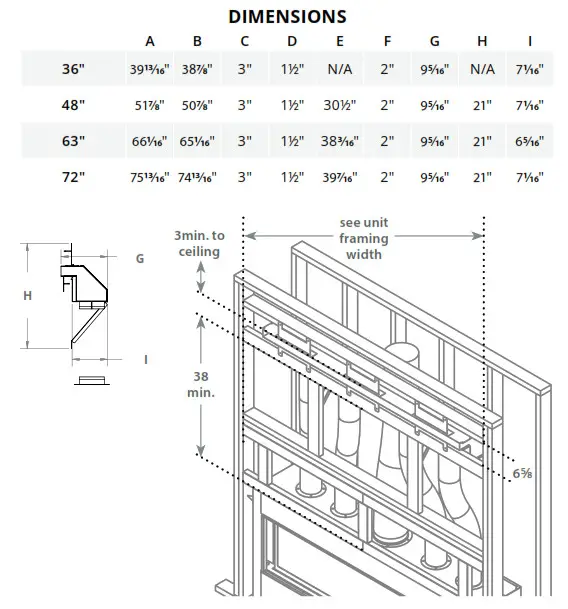

4.  The opening should be a minimum of 38” from the top of the fireplace and a minimum of 3” from the ceiling. Secure with 12 wood screws (not provided)

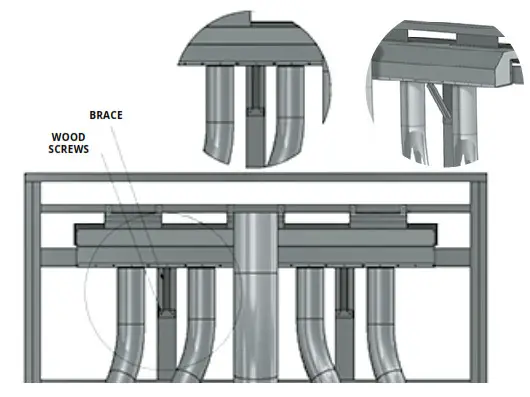

5. Insert Brace to secure unit to stud frame

NOTICE
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.

Finishing

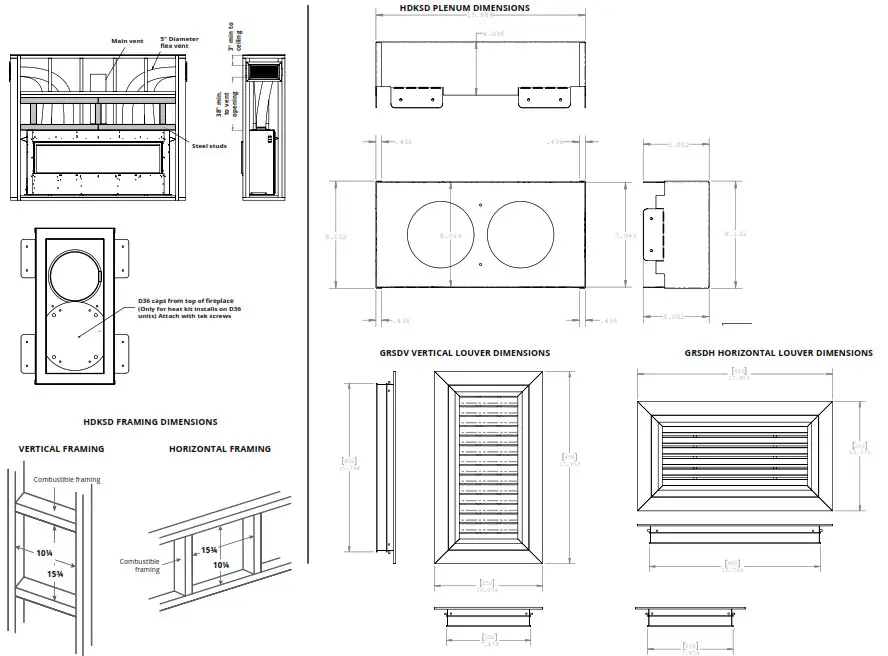

HDKSD, HDKSVD
COOL WALL ADVANTAGE SIDE DISCHARGE KIT

NOTICE
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.

• 24′ of 5’’ diameter flex pipe required for completion of the installation (12′ for 36″ Distinction and Delray Square 38). Flex pipe is available from Montigo as part # HDKPDFK.
• The installation of this fireplace must be done by a qualified and certified gas appliance installer.
• Check local codes and read all instructions prior to installation.
• See installation manual for clearances to combustible materials
• Minimum clearance to flexible ducting is 1″

WARNING
Some materials used in the manufacturing process of this product can expose you to Benzene which is known in the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov

Assembly
