FREEDOM Pergola Side Wall Kit Instruction Manual

WARNING:

Improper installation of this product can result in personal injury. Always wear safety goggles when assembling the product.
Incorrect installation may cause harm to the product or individual.

NOTICE:

DO NOT attempt to assemble the kit if parts are missing or damaged.
DO NOT return the product to the store, for assistance or replacement parts call: 1-888-418-4400

Contents hide

Check your local zoning laws.

Local zoning laws and Home Owners Associations may regulate the location, style and height of your product or even require a permit signoff beforehand.

NOTE:

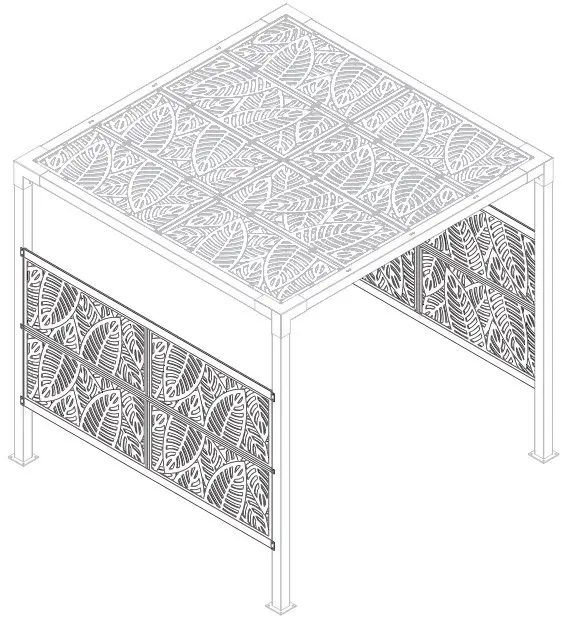

Side wall is to be installed on corresponding Pergola assembly (sold separately)
Side wall can only be installed on opposing shorter sides of Pergola assembly.

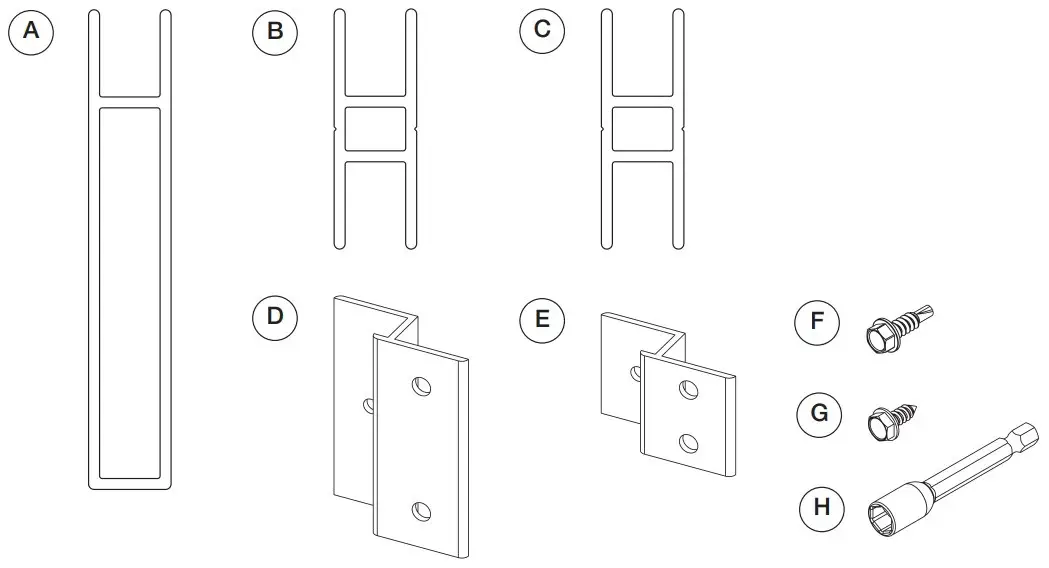

SOLD SEPARATELY:

QTY.	Description
2	U-Channels – “A”
1	H-Channel for mid-rail – “B
2	Vertical H-Channels (short) – “C”
4	Large Side Wall Brackets – “D”
2	Small Side Wall Brackets – “E”
12	Large post attachment screws – “F”
6	Small Bracket attachment screws – “G”
1	Hex Head driver bit – “H”

Determine desired height of assembly on post.
NOTE:
The side wall can only be installed on shorter side(s) of the pergola.

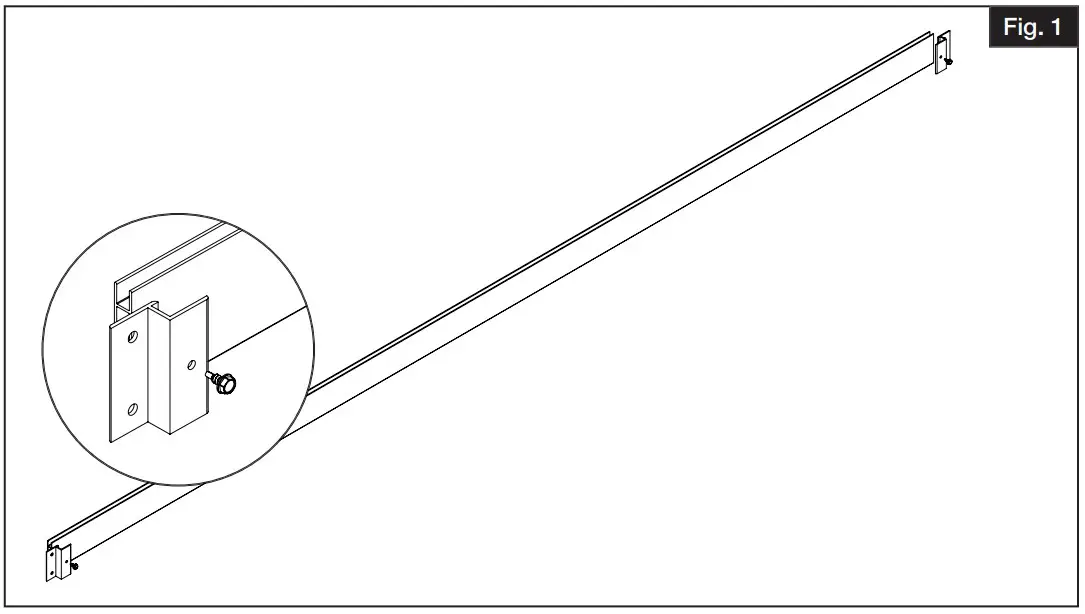

Attach large side brackets to either side of U-channel for bottom rail using small attachment screws (one per side). Opening of rail should be facing up (Fig. 1).

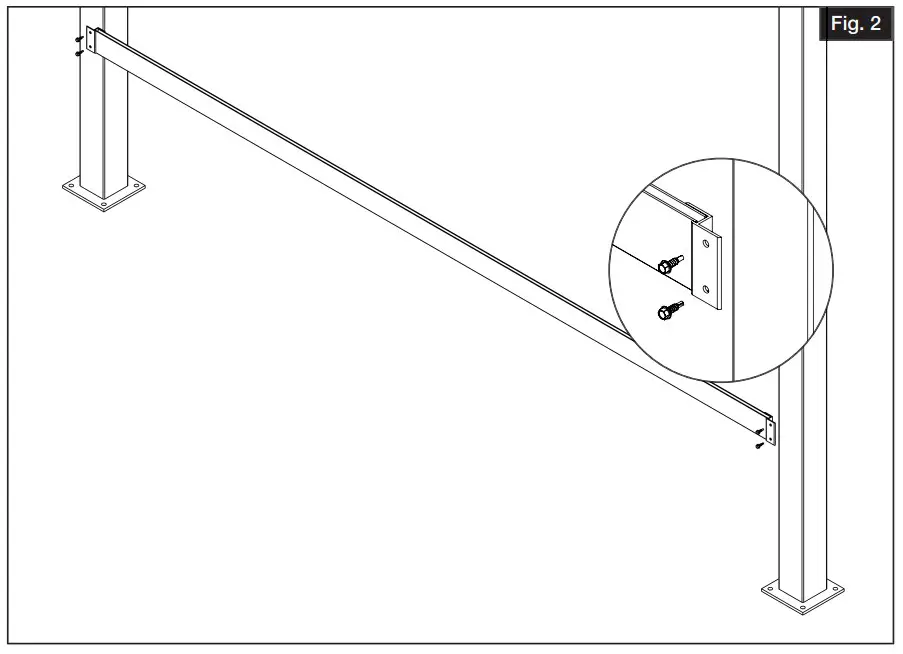

Install bottom U-channel to both post faces using the large attachment screws (two per side) (Fig. 2).
Insert (2) Decorative screen panels into bottom rail. Insert one vertical H channel in-between panels (Figs. 3 & 4).
Repeat step 2 for mid-rail by attaching small side brackets to either side of H-channel for mid-rail using small attachment screws (one per side).

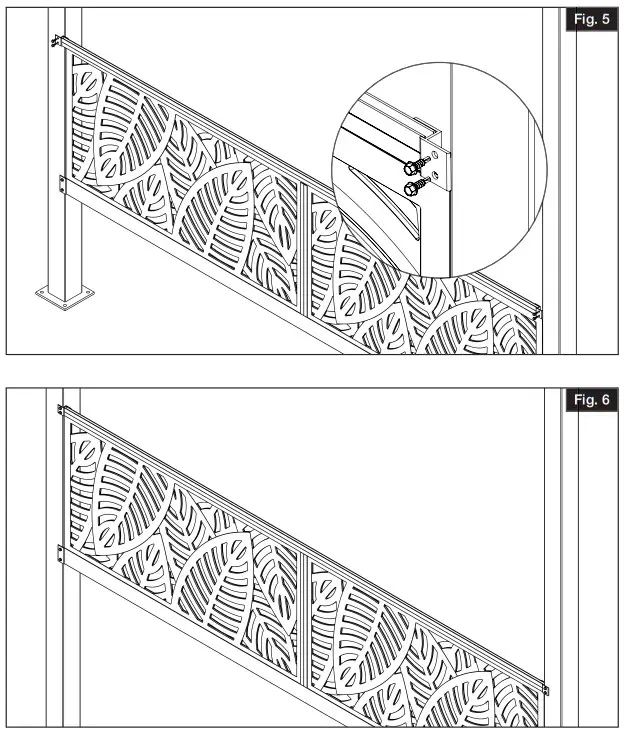

Install H-channel over decorative screen panels & attach to face of post using the large attachment screws (Figs. 5 & 6)

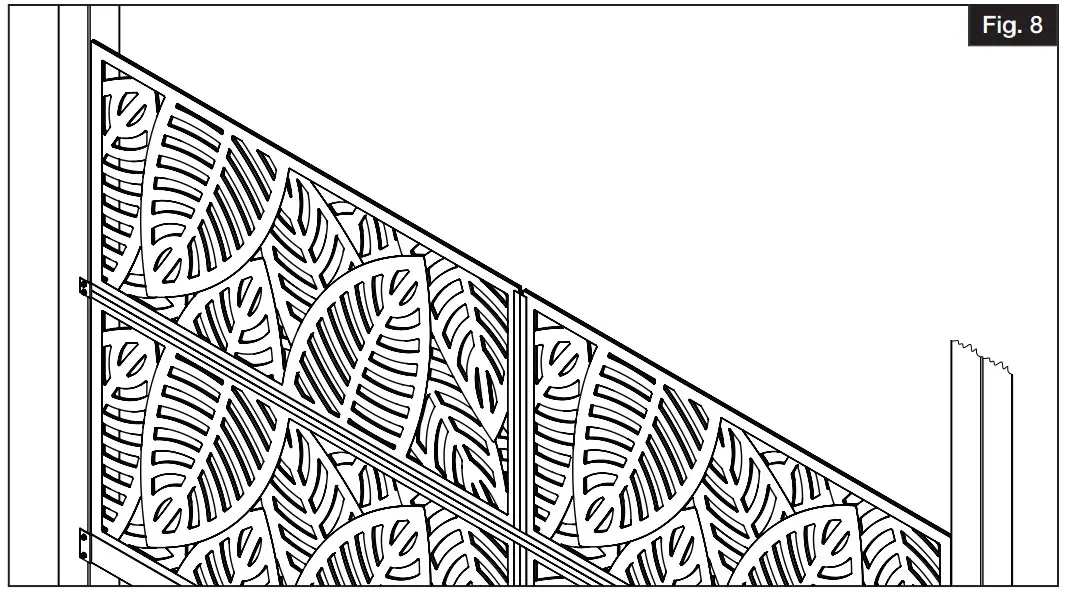

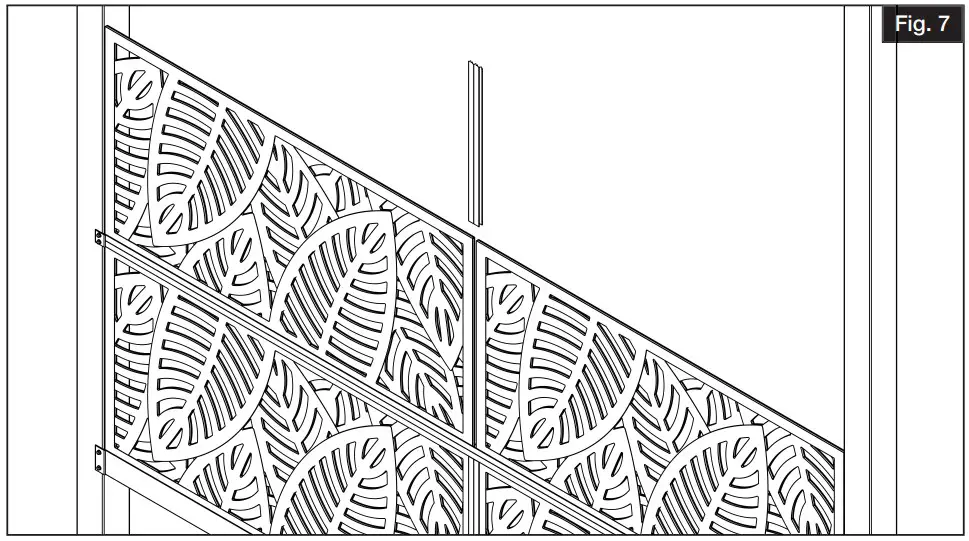

Repeat step 4 for additional two panels & vertical rail (Fig. 7 & 8)
Attach large side brackets to either side of U-channel for top rail using small attachment screws (one per side). Opening of rail should be facing down.

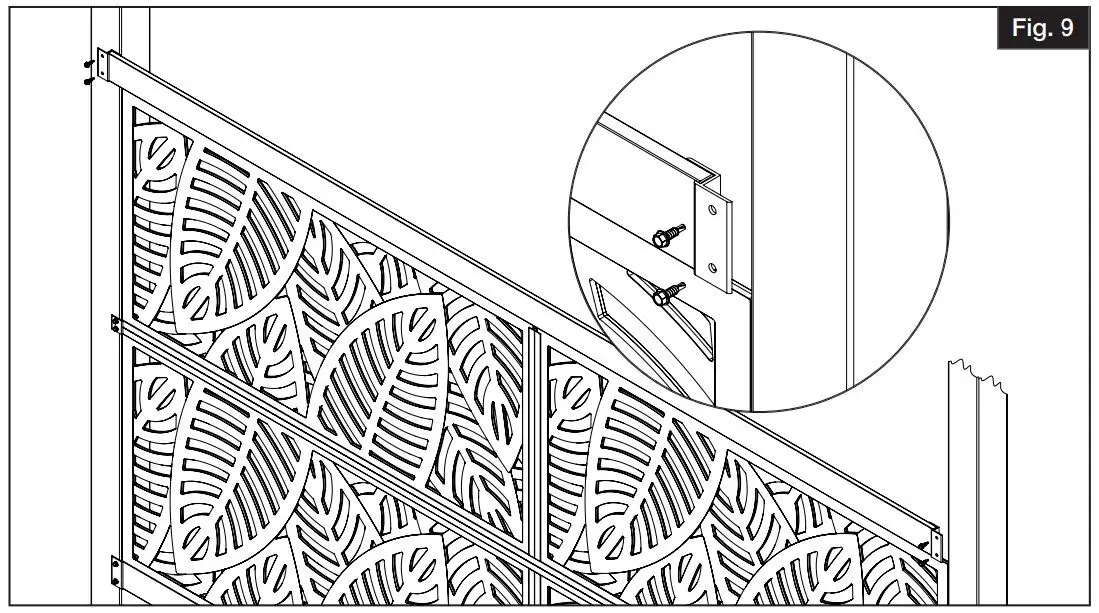

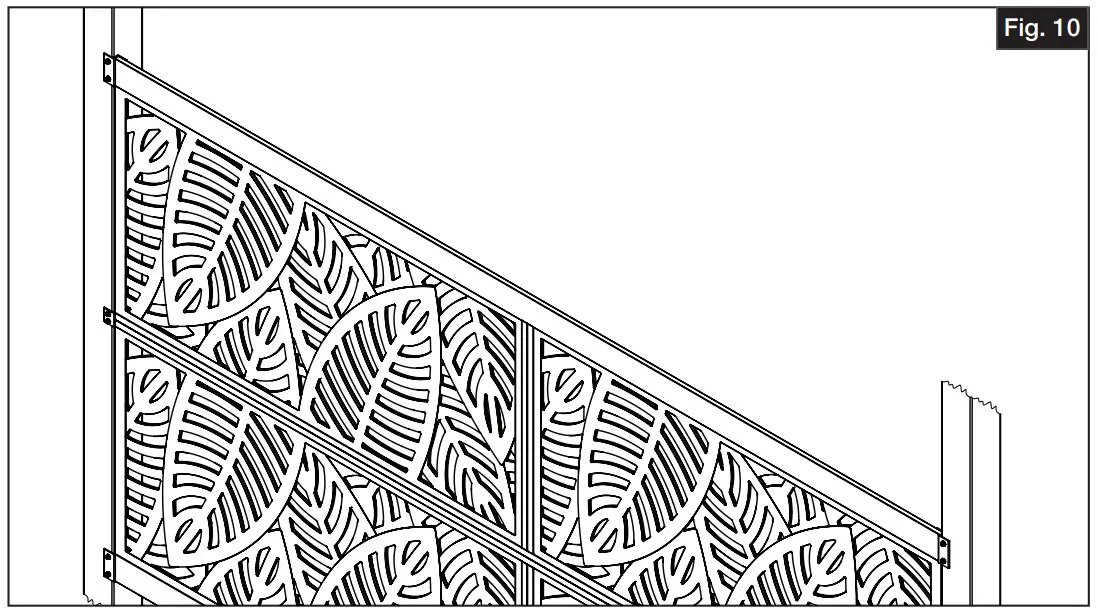

Install top u-channel to both post faces using the large attachment screws (two per side) (Figs. 9 & 10).
