SERVER Eco Pump for Bottle User Guide

ASSEMBLY INSTRUCTIONS

1. Remove pump from box and disassemble then wash, rinse, and sanitize all pump parts properly before use.

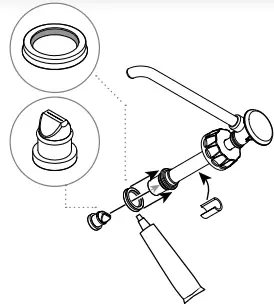

2. Install seal onto head assembly piston. Apply small amount of food equipment lubricant inside seal. Flared end of seal should face away from piston head. Install pinch valve securely to seal end. Squeeze pinch valve open before installation.

3. Optional: add gaging collar (if included) to reduce portion size.

4. Insert spring into cylinder. Optional: Add extension tube (if included) to bottom of cylinder if extra length will be needed to reach product at bottom of container.

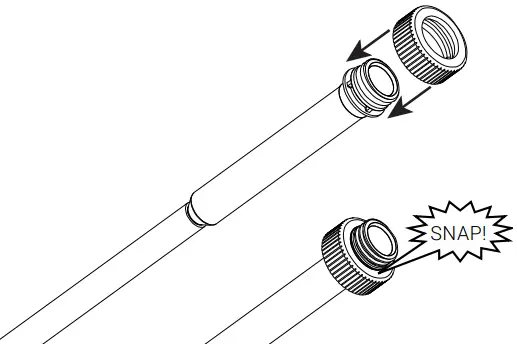

5. Snap cap onto cylinder. Press firmly to secure cap down over all threading on cylinder.

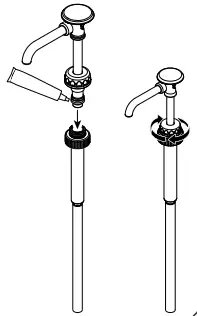

6. Install head assembly in cylinder. Apply small amount of food equipment lubricant inside top of cylinder and outside of seal. Slide locking collar down onto cylinder threading. Tighten firmly.

7. Insert and secure pump to product container. Tighten cap very firmly onto product container threading.

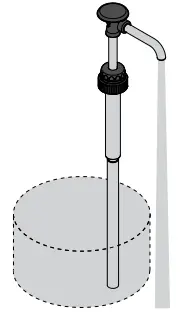

8. Prime pump by continuously pressing on the pump until prime is achieved.

9. This pump can also be cleaned-in-place without disassembly. For complete instructions for cleaning-in-place, scan the QR code below and look up your part number in the search bar to find the manual.


WARRANTY

2 YEAR WARRANTY

WANT TO LEARN MORE?

Visit server-products.com/manual-more for your manual, part breakdown, support videos and more. [email protected] | 800.558.8722
