1999-2004 Mustang GT 4.6L Cortex EBC
WIRING

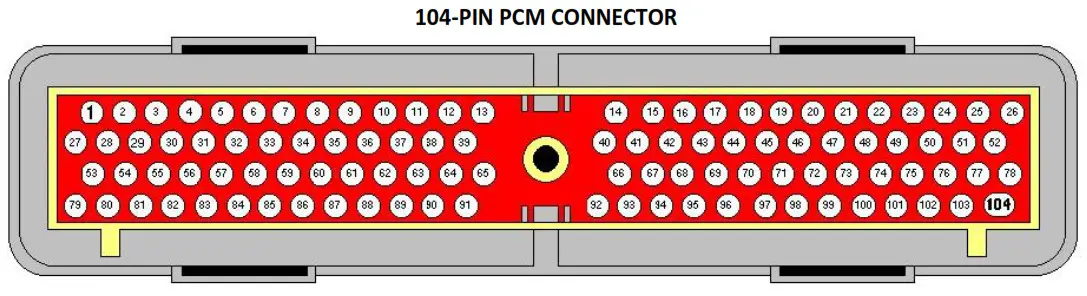

The 1999-2004 Mustang PCM is inside the vehicle behind the kick panel in the passenger side foot well near the door. The PCM has a single 104-pin connector. Power, ground, RPM, vehicle speed, and throttle position signals can be accessed at the PCM connector.
The Cortex EBC wiring harness can be connected to the 104-pin PCM connector as outlined in the following table. RPM and vehicle speed signals are required for boost by gear applications.
CORTEX EBC TO PCM CONNECTIONS
| CORTEX SIGNAL | CORTEX WIRE COLOR | PCM SIGNAL | PCM PIN | PCM WIRE COLOR |
| +12V Power | Red | Switched PCM Power | 71 | Red |
| Ground | Black (x2) | Connect to Chassis Near EBC | N/A | N/A |
| Engine Speed | Pink | Camshaft Position Sensor | 85 | Dark Blue / Orange |
| Vehicle Speed | Green | Vehicle Speed Output | 68 | White / Orange |
| General-Purpose | Orange | Throttle Position | 89 | Gray / White |
VEHICLE CONFIGURATION SETTINGS

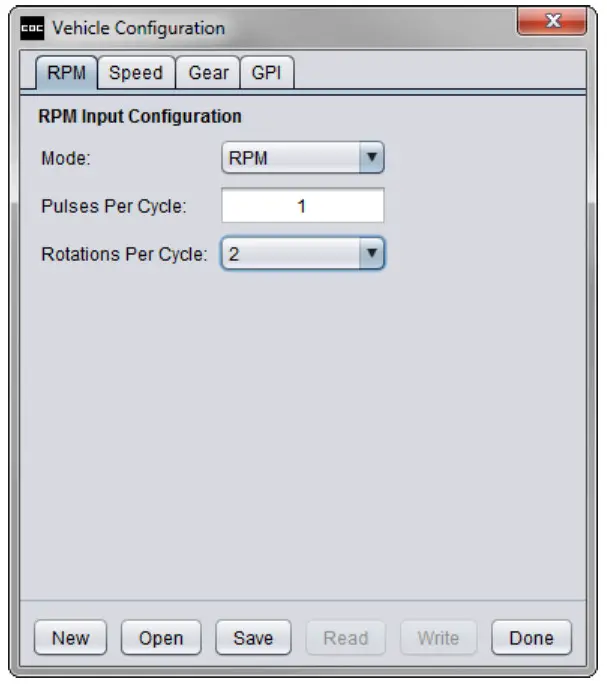

RPM DETECTION:
- Mode: RPM
- Pulses Per Cycle: 1
- Rotations Per Cycle: 2
GEAR DETECTION
• Follow the steps in the Setup – Gear Detection section of the Help utility to determine the correct EVS ratio settings for gear detection.
SPEED DETECTION

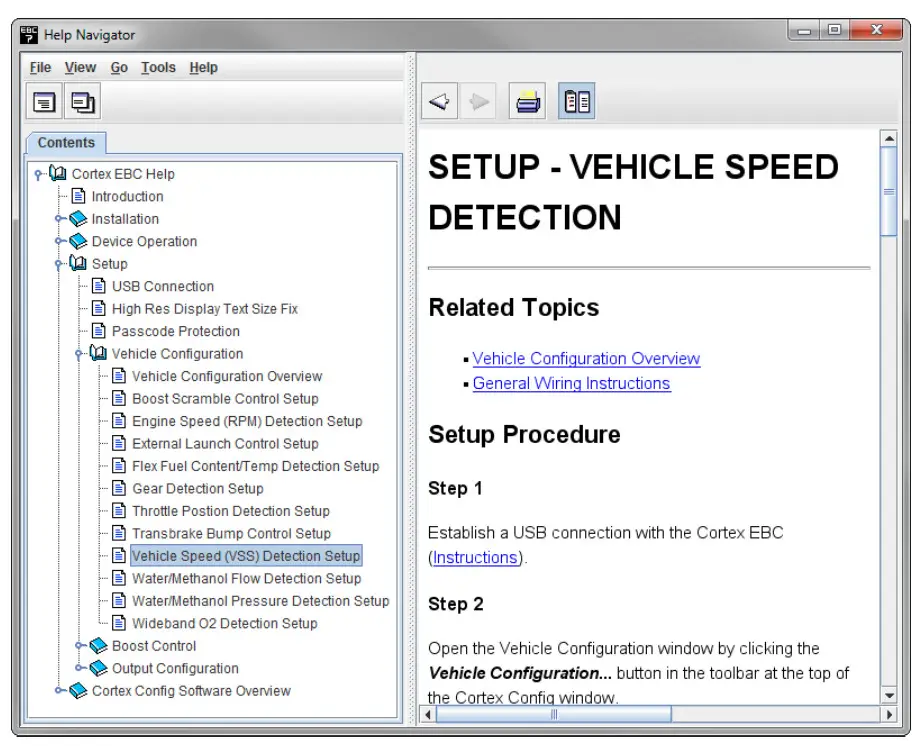

- Follow the steps in the Setup – Vehicle Speed Detection section of the Help utility to determine the correct Pulses Per Mile setting.
- NOTE: Gear detection setup should be performed before calibrating the Pulses Per Mile setting.
THROTTLE POSITION DETECTION:

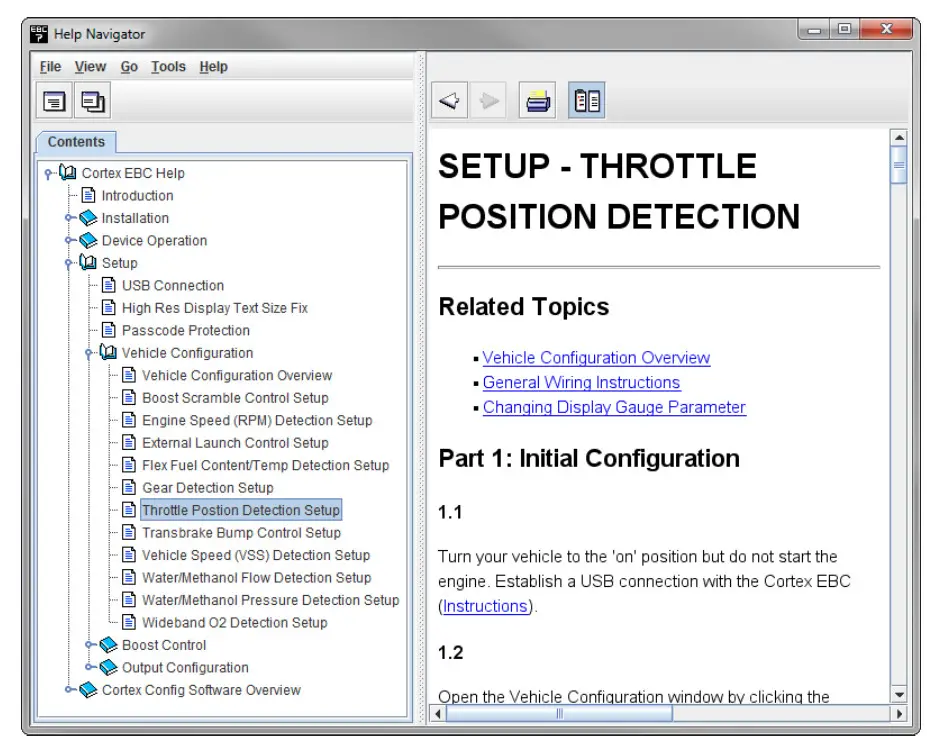

- Follow the steps in the Setup – Throttle Position Detection section of the Help utility to determine the correct Closed TPS Voltage and Open TPS Voltage settings.
