SIRHC LABS 1986-1987 Mustang GT 5.0L Cortex EBC
WIRING
The 1986-1987 Mustang PCM is inside the vehicle, behind the kick panel in the passenger side foot well near the door. The PCM has a single large 60-pin connector. Power, ground, RPM, and throttle position signals can be accessed at the PCM connector. In 1986-1987 Mustangs vehicle speed must be accessed at a different location.

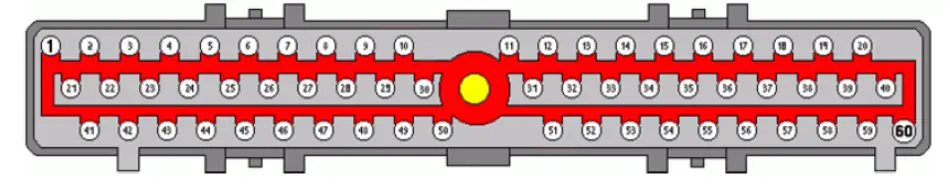

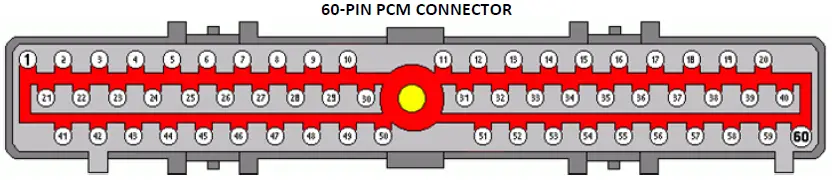

60-PIN PCM CONNECTOR
The Cortex EBC wiring harness can be connected to the 60-pin PCM connector as outlined in the following table. RPM and vehicle speed are required for boost-by-gear applications.
CORTEX EBC TO PCM CONNECTIONS
| CORTEX SIGNAL | CORTEX WIRE COLOR | PCM SIGNAL | PCM PIN | PCM WIRE COLOR |
| +12V Power | Red | Switched PCM Power | 37 | Red |
| Ground | Black (x2) | Connect to Chassis Near EBC | N/A | N/A |
| Engine Speed | Pink | Cam Position Signal (PIP) | 56 | Dark Blue |
| General-Purpose | Orange | Throttle Position | 47 | Dark Green / Light Green |
The 1986-1987 Mustangs were equipped with an electronic VR speed sensor for the cruise control system. However, the sensor is not connected to the PCM and the signal is instead accessed from a wiring harness connector behind the kick panel in the driver’s side foot well near the door. There are several connectors behind the kick panel. The required connector will be black and has 8 pins. On one edge of the connector, there will be an orange/yellow wire and a dark green/white wire that will be connected to the Speed Sensor Adapter V2 module. The Speed Sensor Adapter V2 can be connected to the same power and ground source as the Cortex EBC if desired.
SPEED SENSOR ADAPTER V2 CONNECTIONS
| SPEED SENSOR ADAPTER V2 SIGNAL | SPEED SENSOR ADAPTER V2 WIRE COLOR | CRUISE CONTROL SIGNAL | CRUISE CONTROL WIRE COLOR |
| Sensor IN+ | Green | Vehicle Speed Signal + | Dark Green / White |
| Sensor IN- | Blue | Vehicle Speed Signal – | Orange / Yellow |
| – | – | CORTEX SIGNAL | CORTEX WIRE COLOR |
| Output | White | Vehicle Speed | Green |
VEHICLE CONFIGURATION SETTINGS

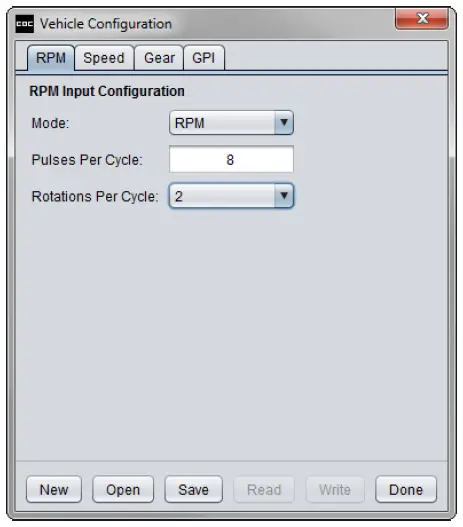

RPM DETECTION
- Pulses Per Cycle: 8
- Rotations Per Cycle: 2
GEAR DETECTION:

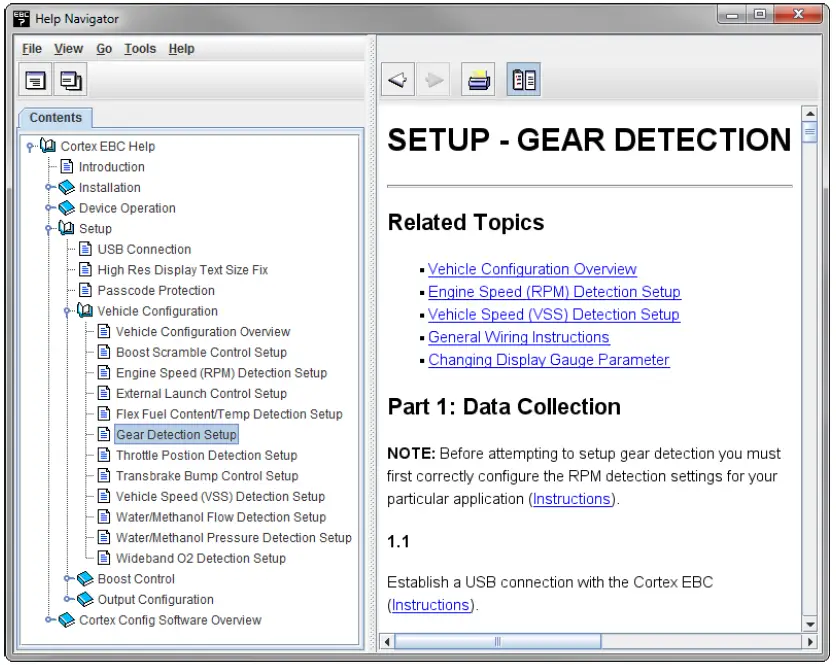

Follow the steps in the Setup – Gear Detection section of the Help utility to determine the correct EVS ratio settings for gear detection.
SPEED DETECTION:

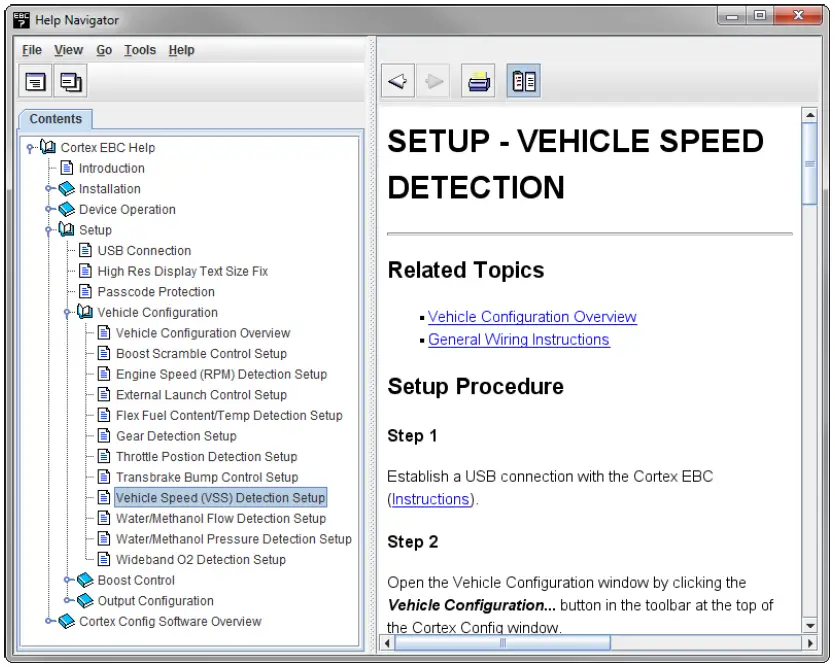

- Follow the steps in the Setup – Vehicle Speed Detection section of the Help utility to determine the correct Pulses Per Mile setting.
- NOTE: Gear detection setup should be performed before calibrating the Pulses Per Mile setting.
THROTTLE POSITION DETECTION:
- Follow the steps in the Setup – Throttle Position Detection section of the Help utility to determine the correct Closed TPS Voltage and Open TPS Voltage settings.
