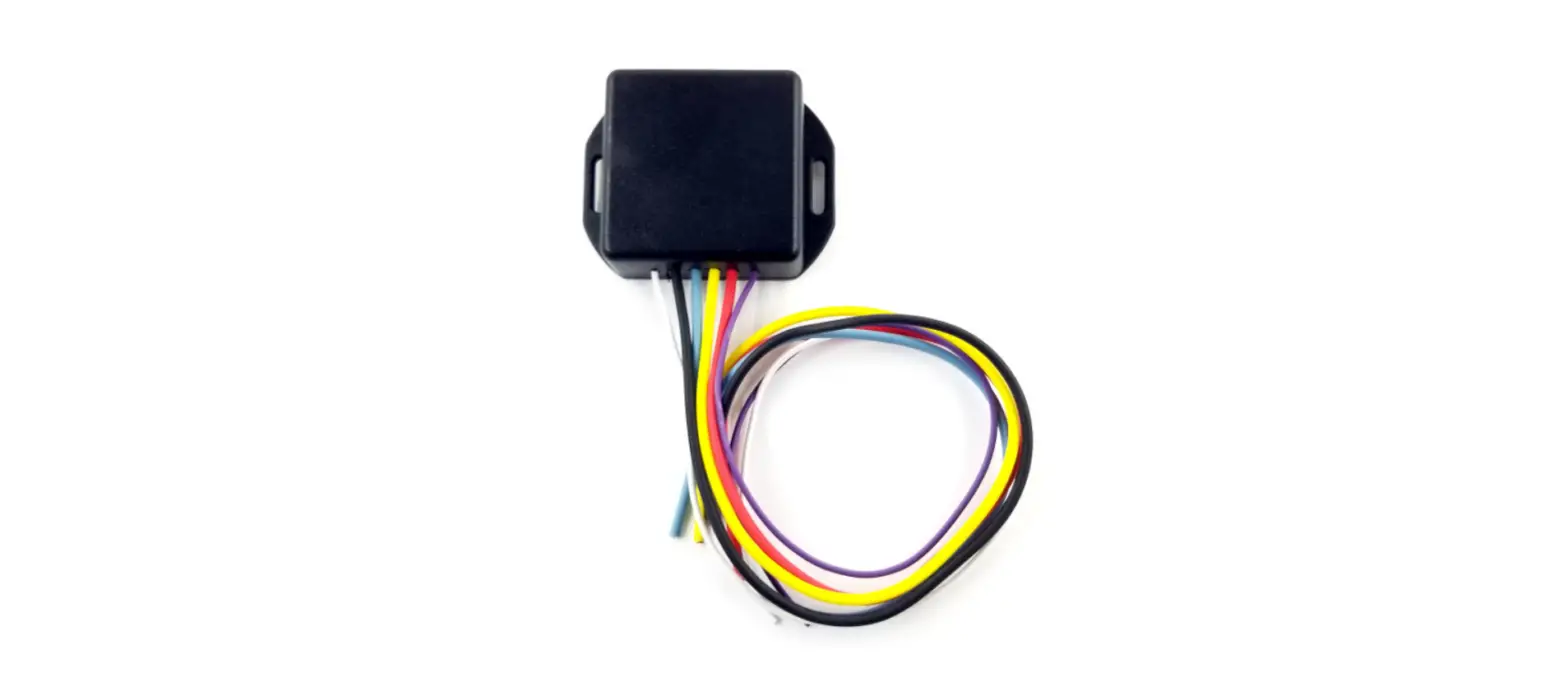

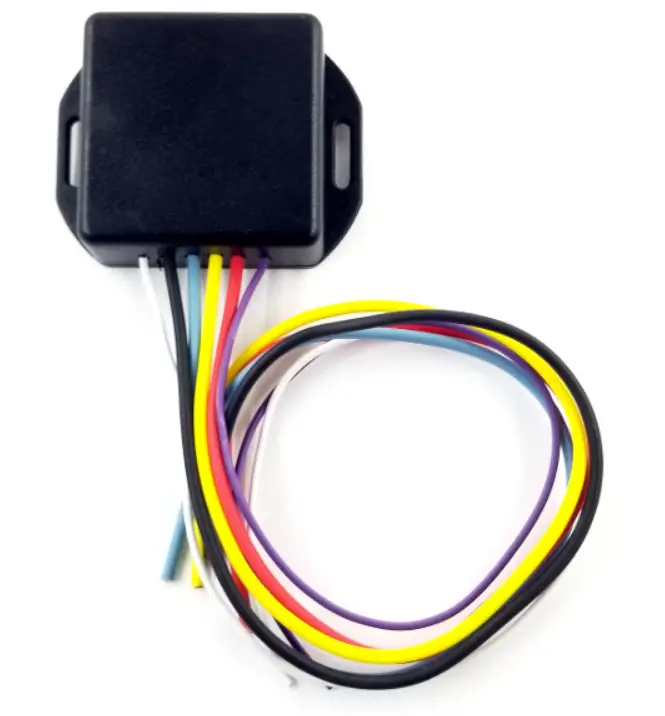

SIRHC LABS Transbrake Bump Driver
INSTALLATION INSTRUCTIONS
The Transbrake Bump Driver is required to utilize the Cortex EBC’s transbrake bump control functionality. These drivers can be used with any one-wire or twowire transbrake solenoid that draws 20 Amps or less. The Transbrake Bump Driver is specifically designed for transbrake bump control, and should not be used to provide PWM control for high-speed solenoids.
INCLUDED COMPONENTS
- Transbrake Bump Driver
- 12 V Diffused Indication LED (Red, Green Blue)

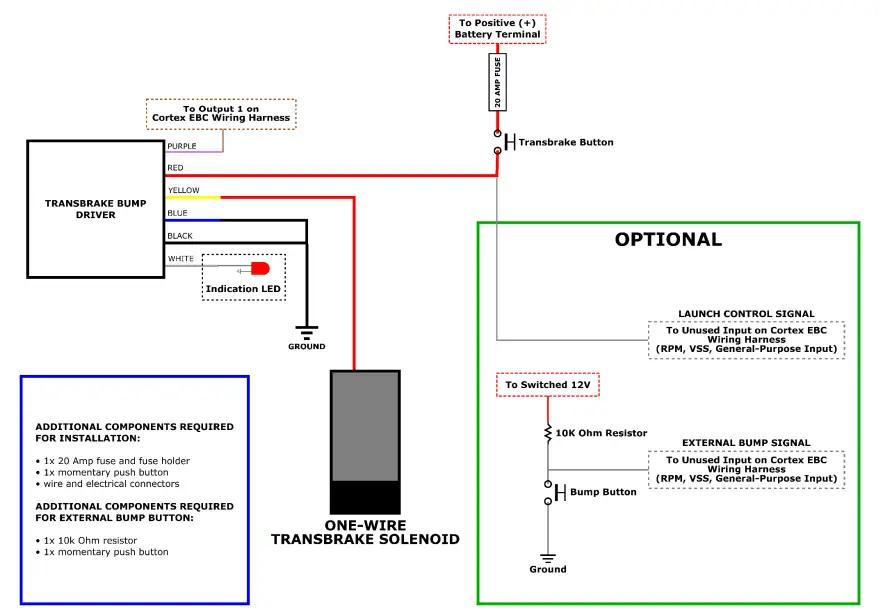

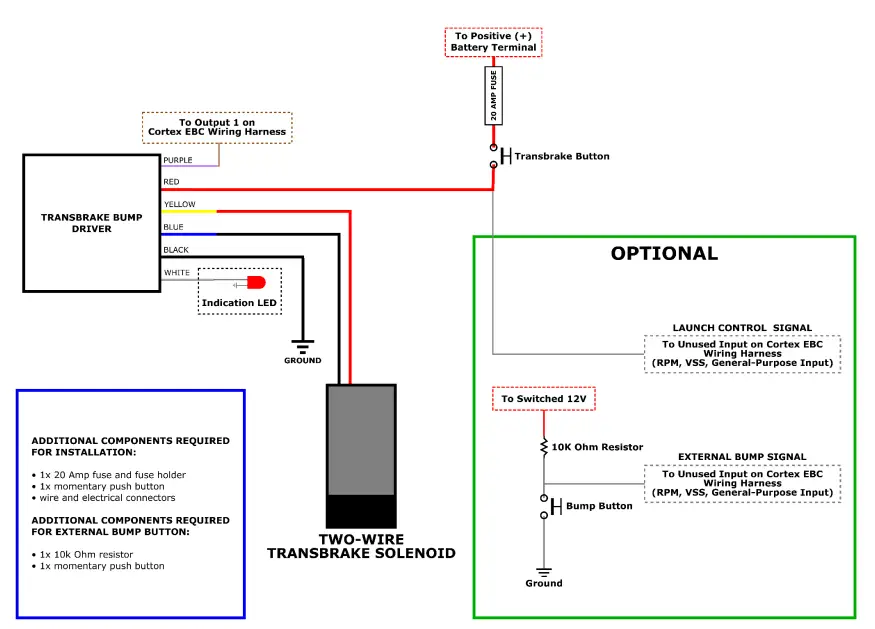

CONTROL DEVICE COMPATIBILITY
Cortex EBC
ACTIVATION METHOD
The Transbrake Bump Driver is activated by pulling the control input (purple wire) to ground.
CONTROL INPUT PULL-UP RESISTANCE
500 Ω pull-up to supply voltage
MAXIMUM CURRENT
20 Amps
MAXIMUM PWM FREQUENCY
N/A
SIZE
66.5 mm x 50 mm x 20 mm (2.62 in x 1.97 in x 0.79 in)
