ENGINEERING TOMORROW
VF3 DN 200-300 / 73691560
VF3 DN 200-300
Operating Guide
VF3 Seated Valves
 |
 |
 |
 |
 |
 |

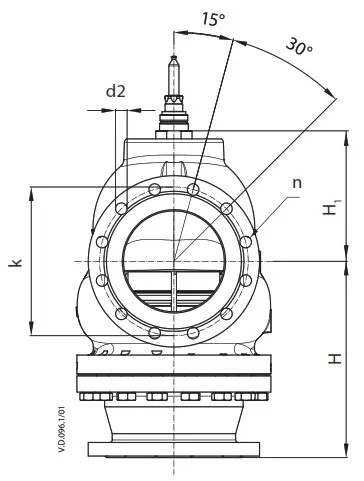

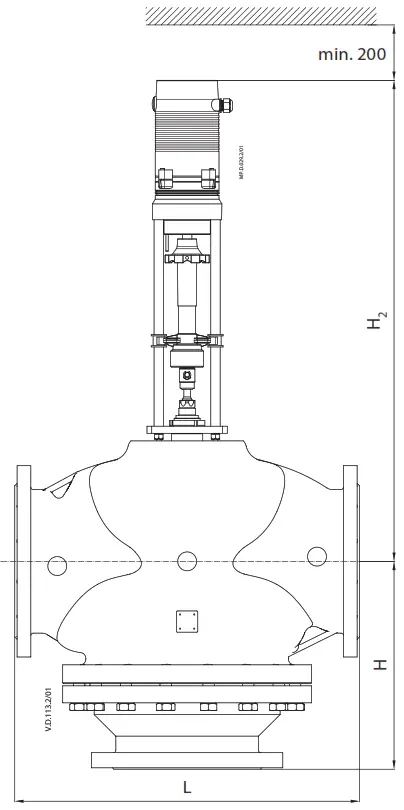

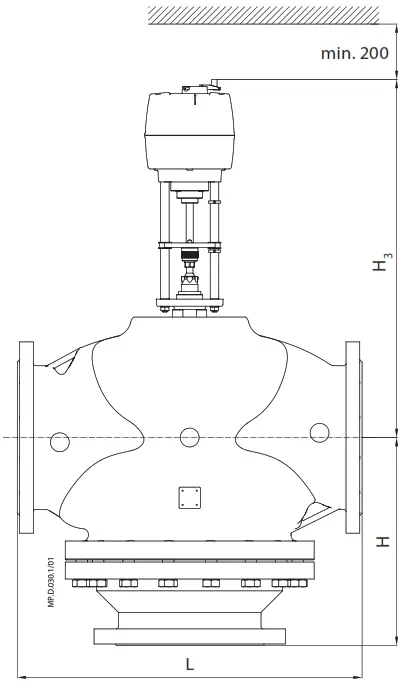

| DN | L | H | H | H | H | k | d2 | n |
| mm | ||||||||
| 200 | 600 | 389 | 259 | 1006 | 746 | 295 | 23 | 12 |
| 250 | 730 | 440 | 1080 | 1018 | 758 | 355 | 26 | 12 |
| 300 | 850 | 490 | 1093 | 1051 | 791 | 410 | 28 | 12 |
|
|
|

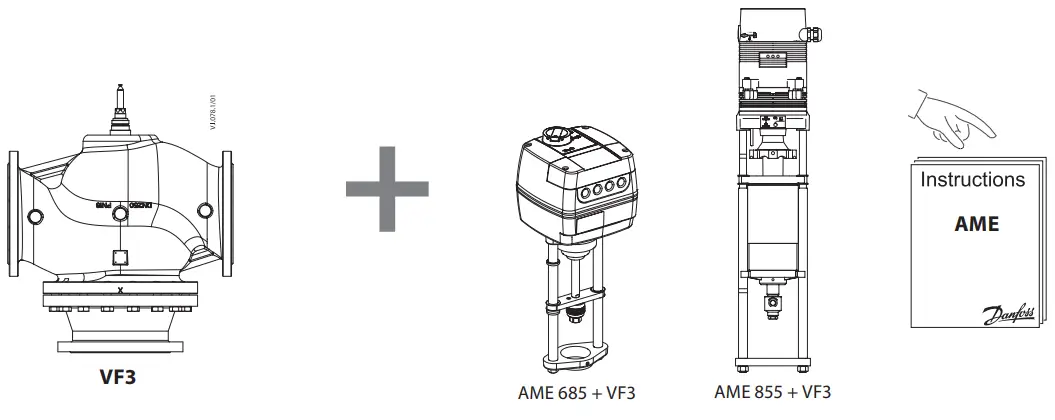

VF3 (DN 200-300)

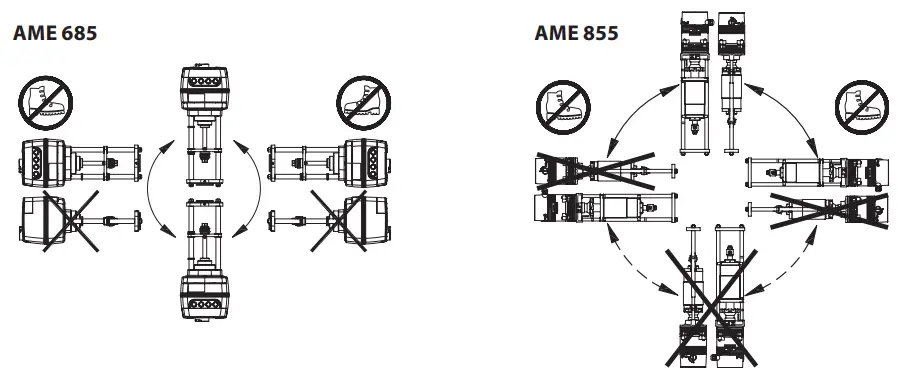

AME 855 +
AME 685 +Danfoss A/S
